U-Line H-8667 Assembly Instructions Manual

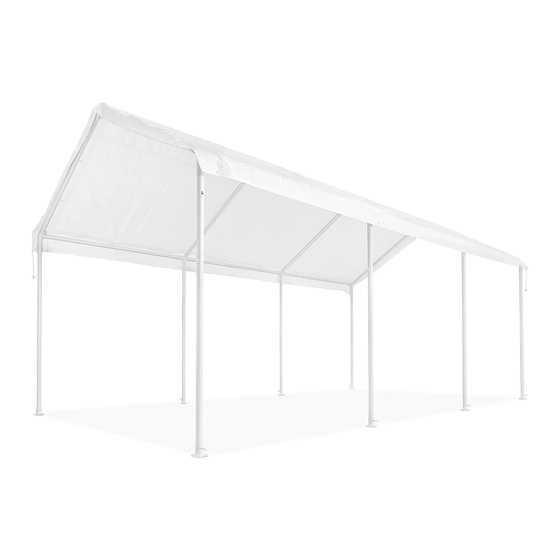

Deluxe shelter
Hide thumbs

Advertisement

Available languages

Available languages

Quick Links

Download this manual
π

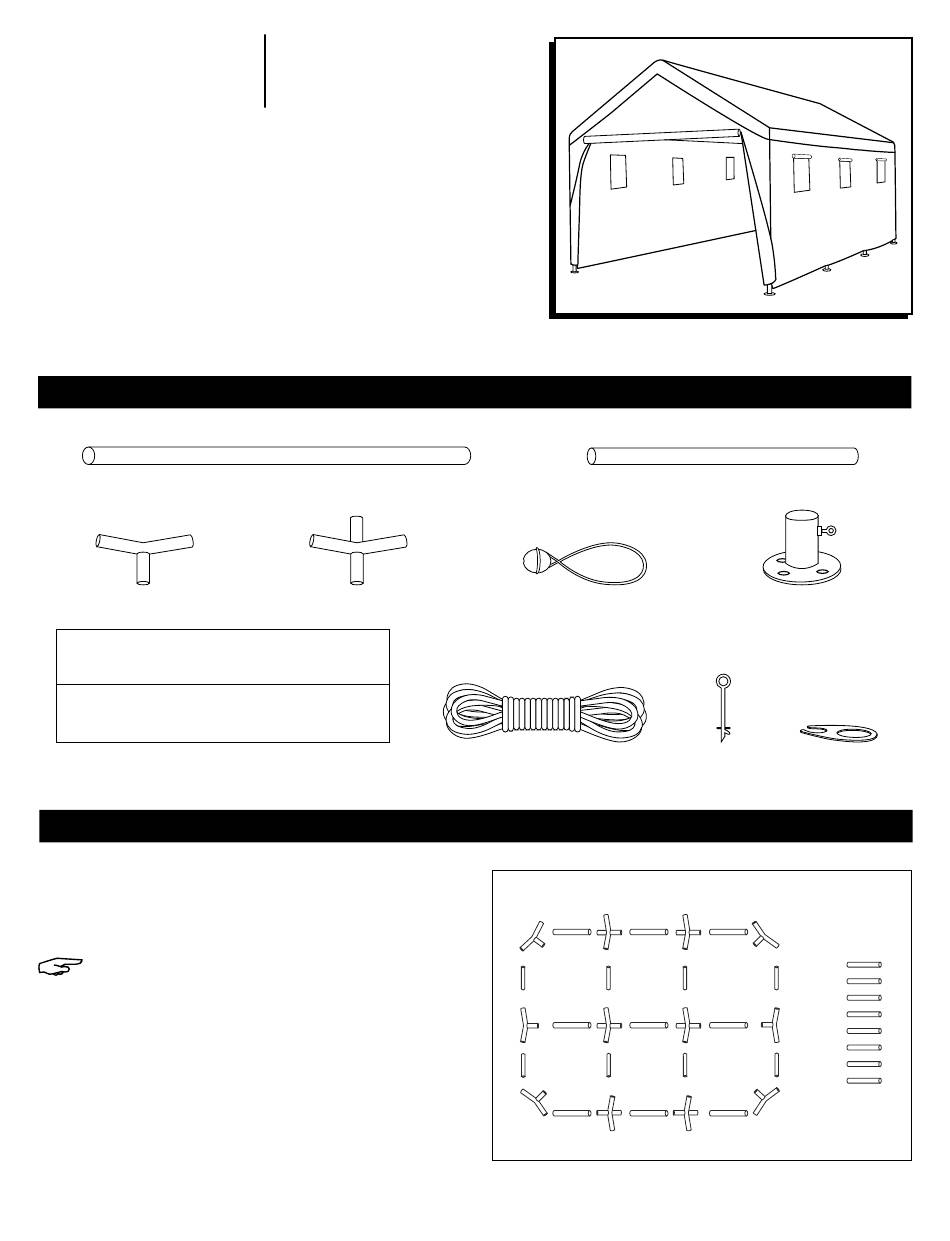

H-8667
DELUXE SHELTER
3-Way Connector x 6
White Drawstring Cover x 1
FRAME ASSEMBLY
1.
Separate all pieces according to size and shape
and arrange as shown. (See Figure 1)
NOTE: Eight 68" pipes will be used to form the
roof rafters. Nine 78" pipes will be used for the
roof and eight 78" pipes will be used for the legs.
PAGE 1 OF 12
1-800-295-5510
uline.com
78" Pipe x 17
4-Way Connector x 6
PARTS
Elastic Ball Strap x 18
Rope x 4
ASSEMBLY
Figure 1
78"
68"
78"
68"
78"
Para Español, vea páginas 5-8.
Pour le français, consulter les pages 9-12.
68" Pipe x 8
Foot Pad x 8
Anchor x 4
78"
78"
68"
68"
68"
78"
78"
68"
68"
68"
78"
78"
Curtain Clip x 4
78"
0321 IH-8667

Advertisement

loading
Need help?

Need help?

Do you have a question about the H-8667 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for U-Line H-8667

  • Page 1 Para Español, vea páginas 5-8. Pour le français, consulter les pages 9-12. π H-8667 1-800-295-5510 uline.com DELUXE SHELTER PARTS 78" Pipe x 17 68" Pipe x 8 3-Way Connector x 6 4-Way Connector x 6 Elastic Ball Strap x 18...

  • Page 2: Cover Assembly

    ASSEMBLY CONTINUED 2. Assemble the center frame first and then assemble 3. Attach two elastic ball straps at each of the four each side. (See Figure 2) corners. (See Figure 4) NOTE: Attach the cover before inserting the legs. Start at Figure 4 NOTE: Do not connect leg poles at this point.

  • Page 3: Leg Assembly

    ASSEMBLY CONTINUED LEG ASSEMBLY ANCHORING NOTE: If adding side walls to unit, see H-8668 Measure out at least 36" from each corner leg. Screw each anchor into the ground leaving 2" deluxe shelter s ide wall instructions. Attach tops of side walls before proceeding to next step. between the ground and the eye of each anchor.
  • Page 4 SAFETY • Do not wash cover in washing machine or dry in IMPORTANT! Please read carefully. dryer. Hand wash with mild soap and water only. • Do not allow rain water, snow or ice to accumulate • Keep away from all flame and heat sources. The on top of cover.
  • Page 5 π H-8667 800-295-5510 uline.mx CARPA DE ALTA CALIDAD PARTES 17 Tubos de 78" 8 Tubos de 68" 6 Conectores de 3 Entradas 6 Conectores de 4 Entradas 18 Correas Elásticas con Esfera 8 Bases para Patas 1 Carpa Blanca con Jareta...
  • Page 6 CONTINUACIÓN DEL ENSAMBLE 2. Ensamble primero el armazón central y luego 3. Fije dos correas elásticas con esfera en cada una ensamble cada lateral. (Vea Diagrama 2) de las cuatro esquinas. (Vea Diagrama 4) NOTA: Ensamble la carpa antes de insertar Diagrama 4 Empiece en las patas.
  • Page 7 CONTINUACIÓN DEL ENSAMBLE ENSAMBLE DE LAS PATAS ANCLAJE NOTA: Si añade paredes laterales a la unidad, vea Mida por lo menos 36" desde cada pata de esquina. las instrucciones para la pared lateral H-8668 para Atornille cada anclaje al suelo y deje 2" entre el suelo y carpa de alta calidad.
  • Page 8 SEGURIDAD • No lave la carpa en lavadora ni la seque en ¡IMPORTANTE! Por favor lea cuidadosamente. secadora. Lave a mano con detergente suave y agua solamente. • Mantenga lejos de todas las fuentes de llamas y • No permita que el agua de lluvia, nieve o hielo se calor.

  • Page 9: Montage

    π H-8667 1-800-295-5510 uline.ca ABRI DE LUXE PIÈCES Tuyau de 78 po x 17 Tuyau de 68 po x 8 Raccord à 3 voies x 6 Raccord à 4 voies x 6 Sangle élastique à boule x 18 Plaque de pied x 8 Toile blanche à...
  • Page 10 MONTAGE SUITE 2. Montez d'abord la structure du milieu et ensuite les 3. Attachez deux sangles élastiques à boule aux côtés. (Voir Figure 2) quatre coins. (Voir Figure 4) REMARQUE : Attachez la toile avant d'insérer les Commencez Figure 4 pieds.

  • Page 11: Montage Des Pieds

    MONTAGE SUITE MONTAGE DES PIEDS ANCRAGE REMARQUE : Si vous ajoutez des parois latérales à la Mesurez une distance d'au moins 36 po à partir de chacun des pieds en coin. Vissez chaque ancrage en laissant structure, consultez les instructions pour les abris de luxe H-8668 à...
  • Page 12 SÉCURITÉ • Ne pas laver la toile à la machine et ne pas la ARRÊT IMPORTANT! Lire attentivement. sécher dans la sécheuse. Laver uniquement à la main, à l'eau et au savon doux. • Garder à l'écart des sources de chaleur et d'ignition. •...
