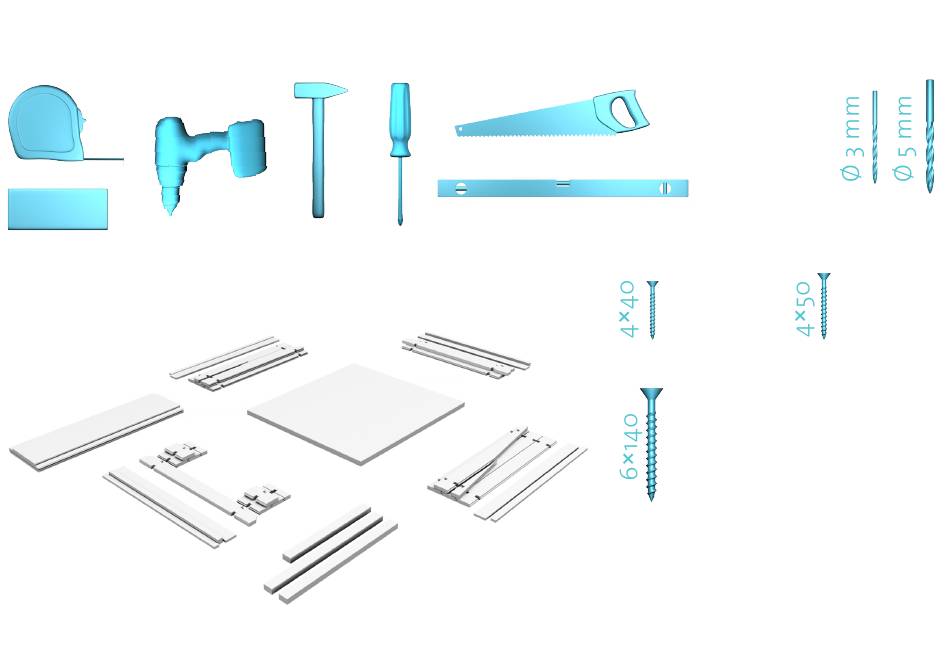

- Page 1 ROBOT LAWN MOWER PREPARE THE GROUND, UNWRAP THE PACKAGE, LAY OUT THE COMPONENTS, FIND THE TOOLS. GARAGE I 28 × 40 × 30 × 30 1/13...
- Page 2 ROBOT LAWN MOWER LAY OUT THE FOUNDATION BEAMS AB=CD SQUARE IT BY MEASURING GARAGE I 28 FROM CORNER TO CORNER. 0° IFB1 IFB2 MAKE SURE THAT THE FOUNDATION IS INSTALLED ON A LEVEL SURFACE. CHECKING ALL DIRECTIONS, 2/13 INCLUDING CORNER TO CORNER.
- Page 3 ROBOT LAWN MOWER ASSEMBLE THE FOUNDATION WITH SCREWS GARAGE I 28 × 2 3/13...
- Page 4 ROBOT LAWN MOWER LAY OUT THE BOTTOM LOGS, ATTACH TO THE FOUNDATION. GARAGE I 28 × 4 2 BL-1 A LG-3 B LG-3 THE WALL LOGS WILL HANG OVER 1 BL-1 THE FOUNDATION BEAMS APPROXIMATELY 5MM. THIS OVERHANG 1 BL-1 4/13 IS DESIGNED AS A RAIN DRIP.
- Page 5 ROBOT LAWN MOWER ATTACH THE NEXT ROWS OF WALL LOGS WITH SCREWS. GARAGE I 28 × 4 2 LG-1 1 LG-1 1 LG-1 5/13...
- Page 6 ROBOT LAWN MOWER AFTER PLACING 3-4 ROWS OF WALL LOGS, TAP EACH WALL LOG IN PLACE USING A HAMMER AND THE GARAGE I 28 HITBLOCK PROVIDED, TO TIGHTEN THE LOGS. HITBLOCK 6/13...
- Page 7 ROBOT LAWN MOWER ATTACH THE NEXT ROWS OF WALL LOGS WITH SCREWS. GARAGE I 28 × 4 7/13...
- Page 8 ROBOT LAWN MOWER ATTACH THE NEXT ROWS OF WALL LOGS WITH SCREWS. GARAGE I 28 × 4 2 TL-1 B LG-2 A LG-2 LOGS IN PLACE 8/13...
- Page 9 ROBOT LAWN MOWER ATTACH THE NEXT ROWS OF WALL LOGS WITH SCREWS. GARAGE I 28 × 4 A LG-1 B LG-1 1 TL-1 9/13...
- Page 10 ROBOT LAWN MOWER PLACE THE FIRST ROOFBOARD FLUSH WITH THE END OF THE TOPLOGS AND ATTACH GARAGE I 28 WITH 4 SCREWS, 2 INTO EACH NEXT, SAW THE LAST BOARD TO MAKE IT FIT. × 24 10/13...
- Page 11 ROBOT LAWN MOWER FOR THE FASCIA TRIMS INSERT SCREWS AFTER EVERY 0,4 METERS. GARAGE I 28 × 16 11/13...
- Page 12 ROBOT LAWN MOWER EAVES EDGES GO ON TOP OF THE ROOFING*. GARAGE I 28 *(NOT INCLUDED) × 18 12/13...
- Page 13 ROBOT LAWN MOWER WHEN THE GARAGE IS ASSEMBLED, YOU SHOULD COVER THE TIMBER WITH WOOD PROTECTIVE SEAL, GARAGE I 28 PAINT OR STAIN AS SOON AS POSSIBLE TO AVOID DETERIORATION TO THE WOOD. 13/13 100%...
