BRINKS 7639 Installation Instructions

NOTE: IF FOR ANY REASON YOUR PURCHASE OF THIS PRODUCT HAS NOT BEEN A POSITIVE EXPERIENCE, PLEASE CALL OUR CUSTOMER CARE HOTLINE AT 1-800-562-5625
BEFORE RETURNING YOUR PRODUCT. WE WANT YOUR FEEDBACK AND AN OPPORTUNITY TO PROVIDE YOU THE CUSTOMER SERVICE YOU ARE ENTITLED TO WITH OUR PRODUCTS.
Congratulations on your purchase of a BRINKS LED area lighting xture – featuring powerful LEDs. You have purchased a safe, dependable, easy-to-install security lighting system. You can use this xture at home for outdoor
lighting applications.
WHAT'S INCLUDED: A - Lantern Base
D - Fixture Mounting Screws (2) E - Lens Housing
IMPORTANT SAFETY INFORMATION
IF YOU ARE NOT FAMILIAR WITH ELECTRICAL WIRING, IT IS RECOMMENDED THAT YOU SECURE THE SERVICES OF A QUALIFIED ELECTRICIAN WHO CAN ASSURE THAT THIS INSTALLATION MEETS LOCAL,
STATE, AND NATIONAL CODES.
BE SURE POWER IS TURNED OFF AT THE MAIN POWER PANEL OR FUSE BOX BEFORE INSTALLING OR REPLACING THE FIXTURE.
DO NOT USE THIS FIXTURE WITH A DIMMING CIRCUIT.
• Before installing this xture, be sure to check with local ordinances regarding approved outdoor
lighting. This xture style may not be allowed in some areas.
• This xture is for outdoor use only.
• This xture should be mounted to a grounded junction box marked for use in wet locations.
• This xture is for WALL MOUNTING only.
• The electrical system and the method of connecting the xture to the system must be in accordance
with local, state, and national electrical codes.
• This xture is to be connected to a 120 Volts, 60 Hz power source. Connecting to a different power
source may create a hazard and will void the warranty.
PRIOR TO INSTALLATION
Carefully read through the entire installation instructions before installing this security light xture.
Make sure all installation parts are included. Compare parts with package contents list above. If any part is missing or damaged, do not attempt to install product. Please contact customer service for replacement parts.
WARNING: BE SURE POWER IS OFF AT MAIN POWER PANEL/FUSE BOX BEFORE INSTALLING OR REPLACING FIXTURE. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION
CODES BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
FIXTURE SHOULD BE MOUNTED ON A WALL AT LEAST 7 FEET ABOVE THE GROUND FOR OPTIMAL PERFORMANCE.
INSTALLATION INSTRUCTIONS
BE SURE POWER IS TURNED OFF AT THE MAIN POWER PANEL OR FUSE BOX PRIOR TO INSTALLATION OR REPLACING FIXTURE.
1. Remove old lighting fixture. If installing at a new location, contact a qualified electrician.
2. Insert two (2) Fixture Mounting Screws (D), as shown in Figure 1, through back of Swivel Mounting Bracket (C).
3. Attach Swivel Mounting Bracket (C) onto the junction box using two Mounting Bracket Screws (G). Pull the supply
wires from the junction box and past the Mounting Bracket (C) in preparation for wiring as shown in Figure 1.
4. WIRING – See Figure 2
a. Connect the Black wire from the fixture to the Black wire of the supply circuit using Wire Connectors (B).
b. Connect the White wire from the fixture to the White wire of the supply circuit using Wire Connectors (B).
c. Connect the GREEN wire from the fixture to the GREEN or copper ground wire from the junction box using
Wire Connector (B). NOTE: Some junction boxes may NOT have a ground wire. In this case, attach GREEN wire from the fixture
to ground screw located on the mounting bar.
5. Tuck wires into junction box.
FIGURE 1
6. Attach Wall Light to junction box over the two (2) Fixture Mounting Screws (D) - which you installed onto Mounting Bracket (C) earlier,
then secure using two (2) Nut Caps (F) as in Figure 3. Tighten Nut Caps (F) clockwise.
7. IMPORTANT: Apply a weatherproof silicone caulk or sealant around the fixture base to reduce chance of water leaking into the fixture body.
8. Turn ON the power. This fixture is NOT dimmable.
MOTION SENSOR SETTINGS - Observe the two (2) controls on the bottom of the Lantern Base (A) – Figure 4.
INITIAL SET-UP
NOTE: This unit requires a warm-up of approximately 30-40 seconds after power is applied for the system's circuits to stabilize and before sensor can assume normal activity.
RANGE
• Turn RANGE dial fully counterclockwise. This is the minimum sensitivity setting.
• Have a person stand in the approximate center of your targeted detection area and instruct person to wave their arms.
• Slowly rotate the RANGE dial clockwise until the light goes ON. Motion will now be detected at this setting.
• NOTE: The RANGE dial can be rotated either direction to increase or decrease your sensitivity setting. Clockwise will increase the motion
sensor sensitivity. Counterclockwise will decrease the sensor sensitivity. A lower setting (counterclockwise) would reduce false
triggering by small animals.
TIME (Duration)
• Adjust the TIME dial fully counterclockwise to minimize the time the light will be ON after motion is detected. Minimum ON duration is
approximately one (1) minute.
• Turn the TIME dial clockwise to increase the time the light is ON after motion is detected. Maximum ON duration is approximately eight (8)
minutes.
• NOTE: Every time motion is detected, the timer (TIME setting) will restart. The light will remain on until the last movement is detected,
then will turn OFF per your selected time setting.
TEST
• Turning the TIME dial fully counterclockwise will put motion sensor in TEST mode (T). This will deactivate the photocell and allow the motion sensor to be active during daylight hours.
FOR OPTIMAL OPERATION
• Unit should be mounted 7 feet above the ground for best operation.
• Unit should be located away from air conditioners, barbeque grills, and other sources of heat the motion sensor may detect.
• Unit works properly in temperatures ranging from -10°C to 40°C. Very hot weather can reduce sensor sensitivity, while colder weather may increase sensitivity.
MANUAL OVERRIDE FEATURE
If the security floodlight is connected to an outlet controlled by a wall switch, the Manual Override Feature is available. The Manual Override Feature allows the unit to be turned ON or OFF manually
during the night, bypassing the motion sensor.
MANUAL OPERATION
To manually turn the floodlight ON, turn the wall switch OFF and then ON again immediately within 2 seconds. The floodlights will turn ON and remain ON until the wall switch is turned OFF. If the wall
switch was previously turned OFF for a period of time, turn the wall switch ON for at least 5 seconds, and then use the OFF- ON procedure above to turn the floodlight ON manually. To manually turn
the floodlight OFF, simply turn the wall switch OFF. The unit will not activate as long as the wall switch is in the OFF position.
RESETTING TO AUTOMATIC OPERATION
To return the security floodlight to automatic operation, turn the wall switch OFF for at least 5 seconds and then turn the switch back ON. The security floodlight will come ON for the time duration set,
and then turn OFF. The floodlight will now activate according to the settings on the motion sensor. Leave the wall switch in the ON position to operate the floodlight in automatic mode.
TROUBLESHOOTING
Does not function at all
• Make sure wall switch (if applicable) is ON and that the wiring is correct.
• Check that the circuit breaker, fuse, and main circuit breaker or main power switch are ON.
Light cycles ON and OFF
• Re-locate fixture away from heat sources such as street, active sidewalk, barbecue grill, etc.
• Turn RANGE control more counter-clockwise.
Light is continuously ON
• If there is no wall switch, turn the circuit breaker OFF for at least 2 seconds and then turn circuit breaker back ON again.
QUESTIONS: For further assistance or more information, please call 1-800-562-5625,8 am – 5 pm (Paci c Time),Monday – Friday.
LIMITED LIFETIME WARRANTY – This product is warranted to be free from defects in material and workmanship for life of product. If a defect occurs, call 1-800-562-5625 for instructions on how to have defective
product repaired or replaced free of charge. LIMITATIONS - This warranty only covers the assembled lighting products and accessories and is not extended to other components, or equipment used on the product.
Warranty extends to original purchaser of product. Receipt or other approved proof of purchase required for warranty service. NOT LIABLE FOR INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES. Some states do
not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you speci c legal rights, and you may also have other rights
which vary from state to state. NOT COVERED - Product failure not relating to faulty material or workmanship, corrosion of brass components, reimbursement for installation or unauthorized service.
© 2017 Hampton Products International Corp.
50 Icon, Foothill Ranch, CA 92610-3000 USA
www.hamptonproducts.com • 1-800-562-5625
B - Wire Connector (3) C - Swivel Mounting Bracket w/ ground screw
F - Nut Caps (4) G - Mounting Bracket Screws (2)
FIGURE 2
GROUND SCREW
Brink's trademark & copyright work are used with permission.
Se utilizan con autorización la marca registrada y los trabajos con derechos reservados de Brink's.

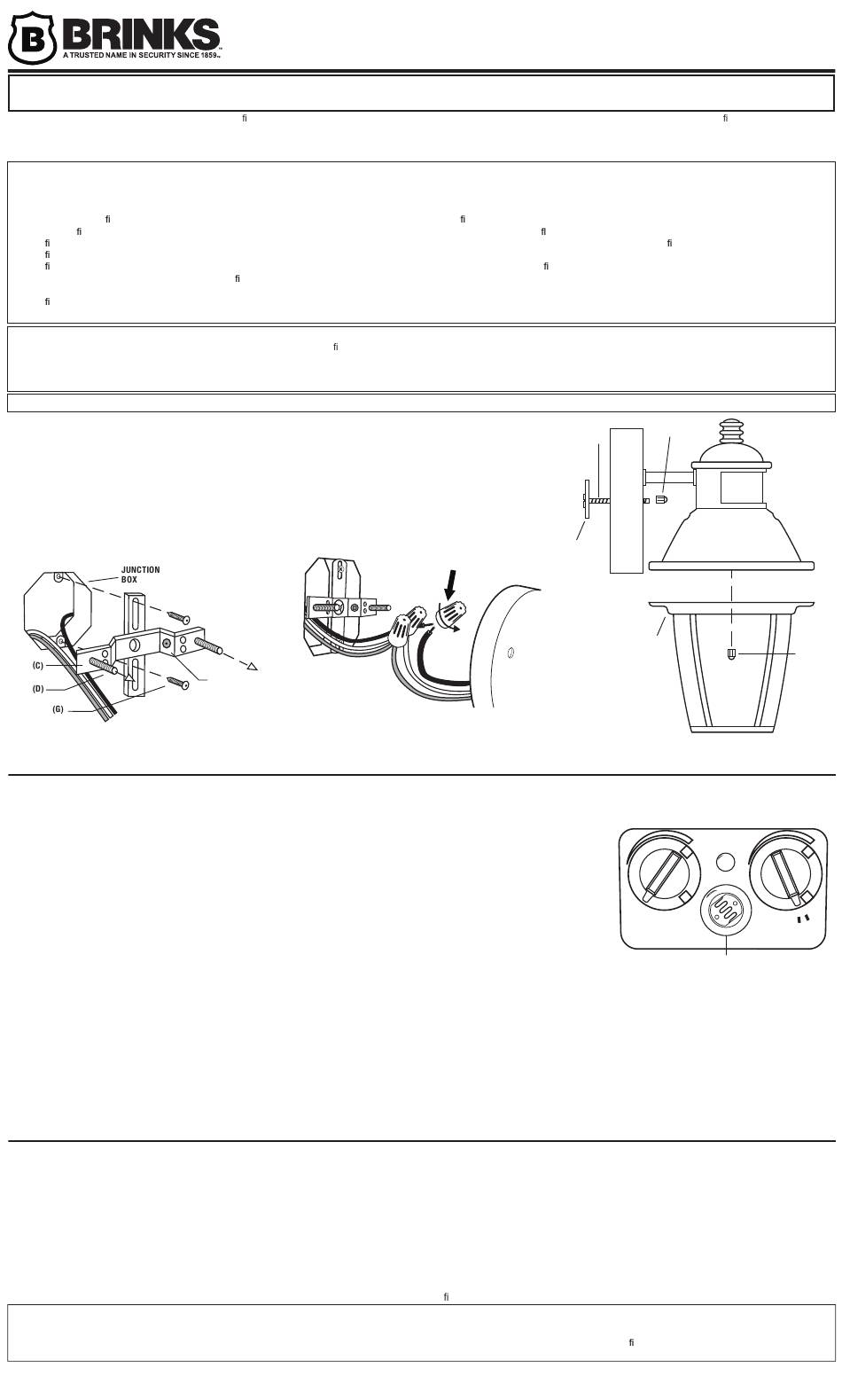

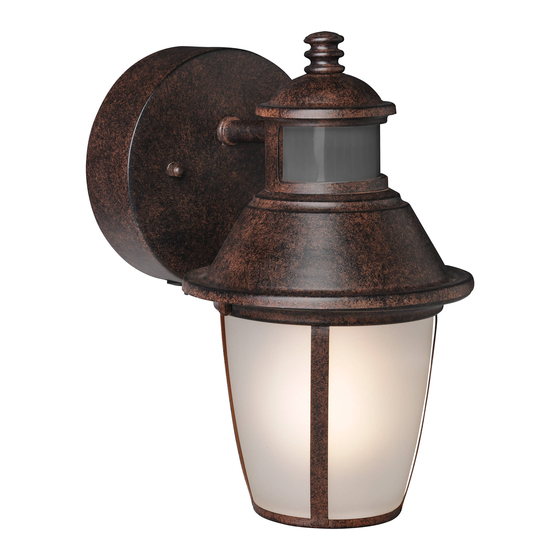

LED WALL LANTERN WITH MOTION DETECTION
Tools Required: Phillips Screwdriver, Silicone Sealant or Caulk
• This xture is suitable for wet locations.
• Do not use near or around ammable/combustible material or liquids.
• LEDs can not be replaced. They are a permanent part of the xture. Do not attempt to open lamp
heads. There are no serviceable parts inside.
• Do not attempt to open the xture housing. There are no serviceable parts inside.
• Always use safety precautions. Safety glasses and gloves should be worn during installation.
• CAUTION: LEDs are VERY bright. Avoid looking directly into light.
(C)
(B)
INSTALLATION INSTRUCTIONS
MODEL 7639
(F)
(D)
FIGURE 3
(E)
FIGURE 4
RANGE
PHOTOCELL
Made in China / Hecho en China
999-61441_7639_REVB 01/17
