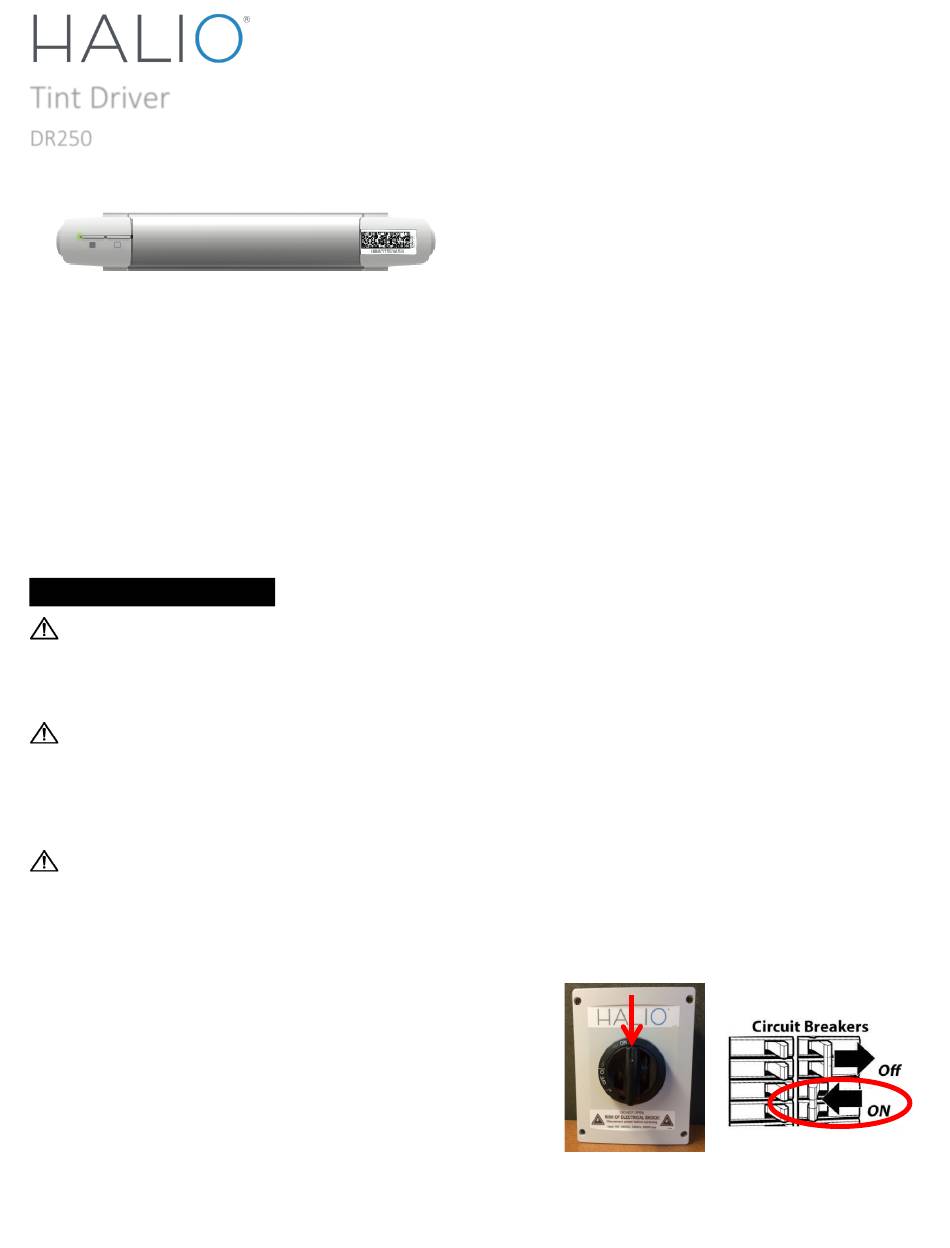

Halio DR250 Installation Manual

Tint Driver
DR250
Installation Guide

INTRODUCTION

Each unit of Halio smart tinting glass is controlled by a Halio
Tint Driver. The Tint Driver supplies the precise power
required to achieve the desired tint level, quickly, efficiently,
and reliably. Tint Drivers are housed in the Halio Component
Cabinet.
The Tint Driver communicates with the Halio System Gateway
wirelessly using mesh networking. Tinting is automatically
controlled by the Halio cloud-based software. However, the
Tint driver also provides a local user interface for setup,
manual control, and troubleshooting.

INSTALLATION WARNINGS

WARNING! / ATTENTION
Install in accordance with all NEC and local electrical codes.
Installez conformément à tous les codes électriques NEC et
locaux.
CAUTION / MISE EN GARDE
Installation should be installed only by trained Halio installers.
L'installation ne doit être installée que par des installateurs
Halio qualifies.
CAUTION / MISE EN GARDE
Tint Driver is only for use in the Halio system.
Tint Driver est uniquement destiné à être utilisé avec le
système Halio.
IMPORTANT / IMPORTANT
Use the Halio Installer App to assist in this installation.
Utilisez l'application d'installation Halio pour vous aider dans
cette installation.
DR200IG-191210

PREREQUISITES TO INSTALLATION

Before beginning the Tint Driver installation, ensure:
• Advanced System Design has been completed for the
site and you have the necessary design, layout and
installation details
• Halio System Power Disconnect has been installed
and connected to the building's power supply.
• Halio System Power Supply has been installed and
connected to outputs from the Halio Power
Disconnect switch.
Halio Component Cabinet where the Tint Driver(s)
•
will be mounted has been properly installed.
• Power from the System Power Supply has been
properly connected to the Energy Manager(s) within
the Cabinet (or directly to the terminal blocks where
applicable).
Power output cabling from Energy Manager(s) has
•
been connected to the terminal blocks that will
supply power through the wiring harness to each
Tint Driver slot.
The System Disconnect, System Power Supply, and
•
Component Cabinet are all properly grounded
through the provided connections.
• Halio System Gateway has been installed in the
Component Cabinet and has been provisioned to the
Halio Cloud.
• A Halio Driver Cable is connected to the desired
Halio glass units and routed into the appropriate
Component Cabinet to the intended Driver location.
• You have access to the Halio Installer App used for
Halio system provisioning.

INSTALLING TINT DRIVERS IN CABINET

To install Halio Tint Drivers:
1. Ensure the Halio System Power Disconnect (or other
approved safety disconnect) is set to the ON position to
supply power to the devices in the Component Cabinet.
2. Trim any excess Driver Cabling to align the cable to the
target cabinet slot.
