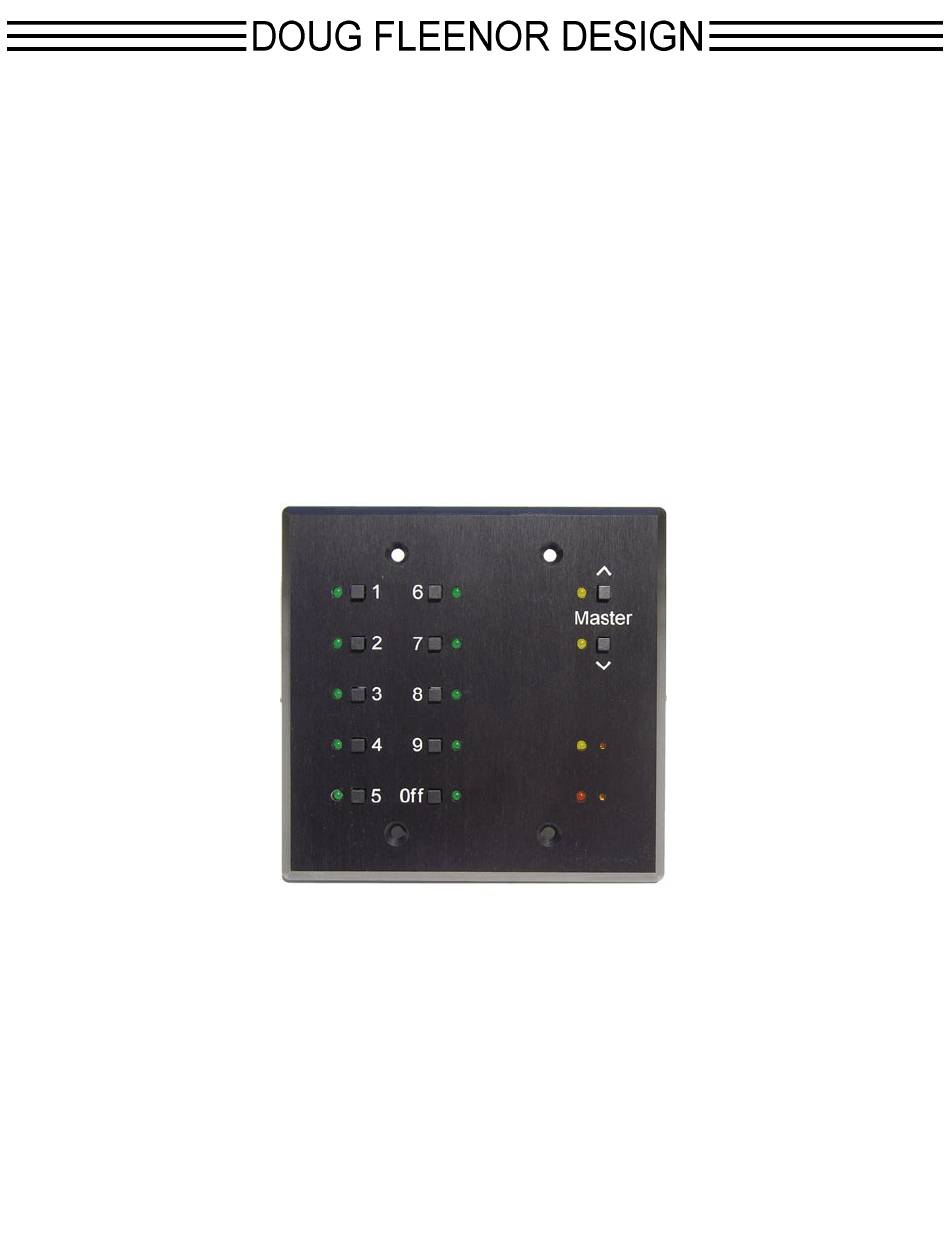

- Page 1 PRESET TEN ARCHITECTURAL TWO OWNERS MANUAL m odel: PRE10-A2 Doug Fleenor Design 396 Corbett Canyon Road Arroyo Grande, CA 93420 (805) 481-9599 Software Version 1.8 Manual revision July 2020...
-
Page 2: Product Description

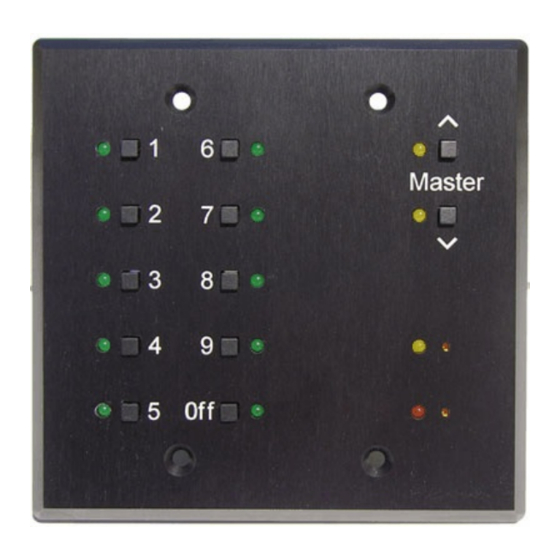

Preset 10 Architectural Two either returns to its pervious preset or holds the last look (jum per selectable). In com bining m ode the Preset 10 Architectural Two m erges the levels from the console with the levels of the currently active preset. -
Page 3: Specifications
SPECIFICATIONS Connector: Phoenix Contact MSTB series 3 position two part term inal block Model: MSTB MSTB 2,5/3-ST-5,08 Order Num ber: 17 57 02 2 Phoenix Contact MSTB series 5 position two part term inal block Model: MSTB 2,5/5-ST-5,08 Order Num ber: 17 57 04 8 Connector pin out: 1 (C) DMX512 com m on... -
Page 4: Wiring Information
POWER SUPPLY The voltage provided to the Preset 10 Architectural Two m ust be between 9-15 volts AC or DC. The Preset 10 Architectural Two has been designed to operate on a standard class 2 “doorbell” transform er. For exam ple Ace Hardware’s m odel# ACE36483 10 volt 5 watt transform er. - Page 5 Preset 10 Architectural Two - INSTALLATION (continued) Upstream Rem ote Installation Note: Main - Rem ove JP4 Rem ote - Rem ove JP2 & JP4 CABLE COLOR FROM Shield Pin 1 TB1-1 Common 120 Ohm Data Cable Belden 9829 or...
- Page 6 MAIN faceplate. W hen this jum per is rem oved the Preset 10 Architectural Two will hold its last look upon loss of DMX input. W hen this jum per is installed it enables SINGLE STATION MODE. In this m ode the faceplate will not send any "alternate start code"...
- Page 7 Preset 10 Architectural Two - OPERATION INDICATORS GREEN LED ON = CURRENTLY SELECTED PRESET FLASHING = TIME SETTING MODE SELECTED FOR THIS PRESET YELLOW TIM E LED ON = PRESET FADE IS IN PROGRESS FLASHING = TIME SETTING MODE SELECTED...
-
Page 8: Recording Presets
RECORDING PRESETS In order to set the individual dim m er levels recorded to a preset, the Preset 10 Architectural Two m ust be connected to a DMX512 source. W hen less than 512 dim m er levels are received, a level of 0% will be stored for all channels above those received. -
Page 9: Grand Master
Note: If a static preset is playing at the tim e power is lost Preset 10 Architectural Two will return to that preset when power is restored. The fade will begin with all 512 channels at 0% and fade up in the tim e recorded to that preset. -
Page 10: Limited Manufacturer's Warranty
LIMITED MANUFACTURER’S WARRANTY Products m anufactured by Doug Fleenor Design (DFD) carry a five-year parts and labor warranty against m anufacturing defects. It is the custom er's responsibility to return the product to DFD at the custom er's expense. If covered under warranty, DFD will repair the unit and pay for return ground shipping.
