GRAF & MEYER EVA 16 2.0 Start-Up

GRÄF & MEYER EVA 16 2.0

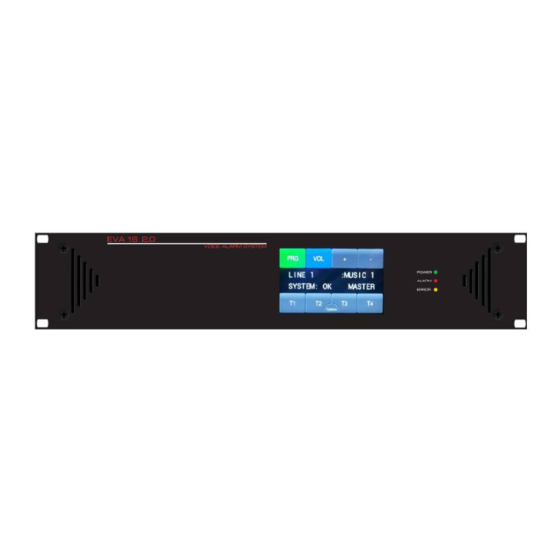

F EVA16 2.0 S
RONT VIEW
Monitor-
Speaker
ADJUSTING THE LEVEL OF AN AVAILABLE INPUT SOURCE
initial view based :
ZONE 1
SYSTEM_OK
1. Selecting the zone to be edited :
The zone to be edited will be selected by pressing one of the buttons [ T1 ].[ T4 ]
2. Selecting the active source :
Every further pressing of the same button leads on to the next available (not blocked)
source which can be routed to the actual output zone.
3. Selecting the source to be edited :
By the first pressing of the button [ VOL ] the display shows the level-menu
ZONE
1
LEVEL:
MUSIC 3
ATTENTION:
Selecting the source which level has to be edited for the actual displayed output zone
by pressing one or more times the button [ VOL ] .
The sources will appear in the lower display line in the following order :
MUSIC 1 => MUSIC 2 => MUSIC 3 => MUSIC 4 => MUSIC MASTER ( for actual output
zone ) => chime => TEXT 1 => TEXT 2 => AUX 1 => AUX 2
4. Setting the volume :
pressing the buttons [ + ] respective [ - ] changes the audio level for the displayed cross point
of input source and output zone ( + : raises - : reduces the level ).
If " - - dB" appears behind a selected input, so this input may not be activated for the actual
displayed output, this connection is blocked by programming, the source cannot be routed to the
actual displayed output.
( return to standard display view by pressing [ PRG ] two times
seconds, then the system returns automatically to the
EVA16 System Controller Rel. 1.03.10
Rel. 1.03.10
C
YSTEM ONTROLLER
Touch-Display
MUSIK 1
MASTER
MUSIC 1
-12dB
the source to be edited not mandatory is the source displayed
in the upper line of the display !!!
[ PRG] [ VOL ] [ + ] [ - ]
( startup - view )
[ T1 ] [ T 2 ] [ T 3 ] [ T 4 ]
( startup - view )
:
( only the changeable part of the display shown )
___ __
- startup guide, english, page 1 -
Startup
ERROR | ALARM | POWER
- LED -
.
=> and music 1 again ...
- or by waiting a few
12/2017
SD-cardslot
( hidden )
