schroff 23006-79 Series User Manual

CPCI Backplanes 23006-79x
Assembly Instructions & General Information
1

Mechanical:

The Backplanes are intended for horizontal assembly.
2

Mounting:

Attach the Backplane, using at least every second mounting hole at the top
and the bottom, with M2.5 screws and isolating washers.
Note: Do not tighten the screws.
Align the Backplane by inserting Boards in the outer guide rails at the left and the right and
tighten all screws.
Note: We recommend to use the Schroff mounting kit, see catalog or at www.schroff.biz.
3

Chassis GND:

GND, use conductive washers instead of isolating washers. Spring washers are recom-
mended instead of flat washers. Creepage and clearance between screw and GND are in
accordance with EN60950.
4

V(I/O):

Check V(I/O) coding and V(I/O) power bridge. The default assembly is +5 V (blue
key at connector P1 and power bridge between V(I/O) and +5 V). To set V(I/O) to 3,3 V,
change the keys and set the power bridge between V(I/O) and 3,3 V.
(Conversion kit, order# 21101-658, including 8 yellow keys and tool)
5

Power input:

The Backplane provide 47-position connectors to connect CPCI plug-in
power supplies. The AC power is brought to the 47-position connectors by "feed through"
contacts.
6

Power output:

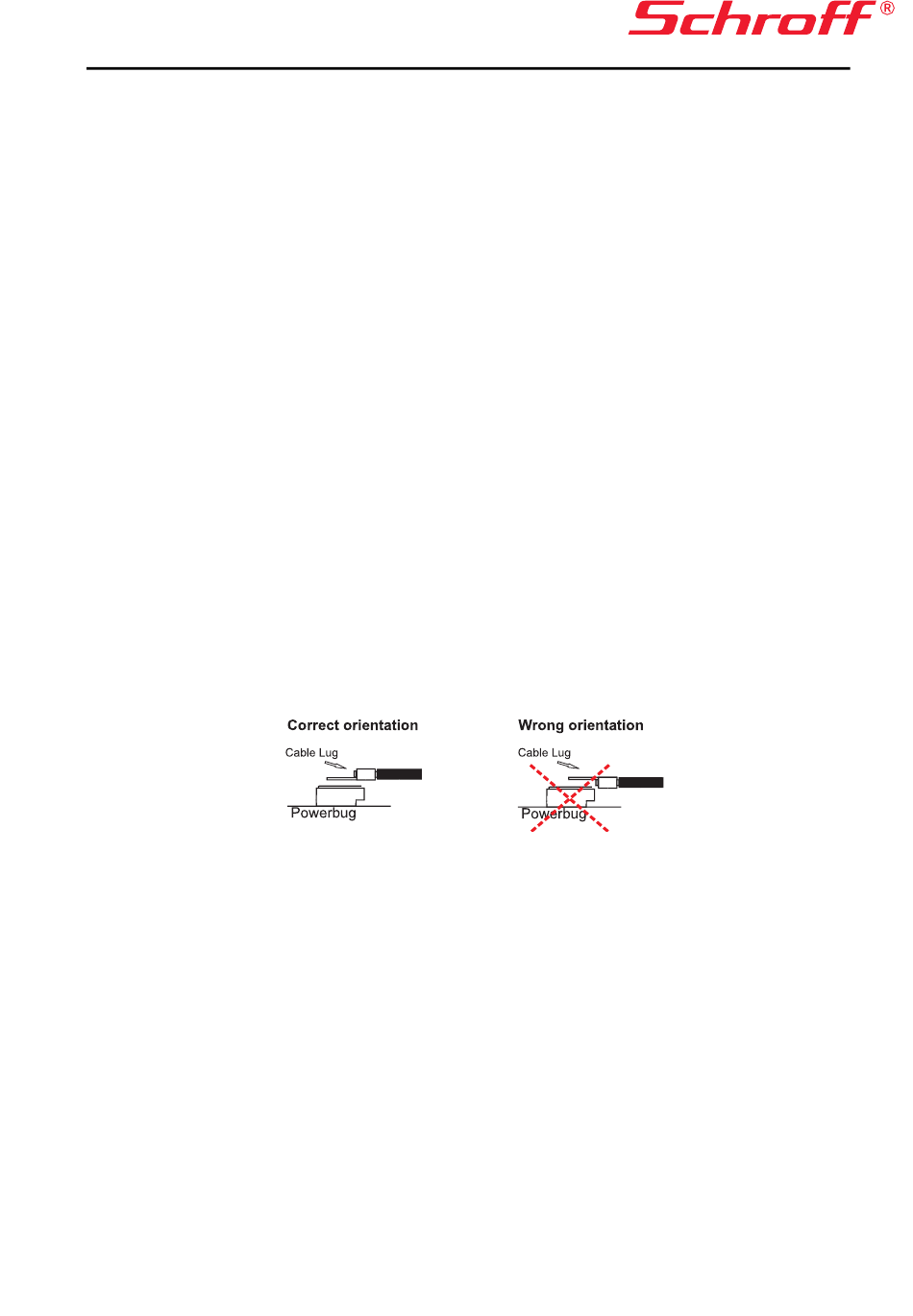

cable lugs should be used to connect the power output cables to the power bugs.
Maximum 2 cables are allowed per power bug. Please assemble the cable lugs with the
flat side to the power bug to ensure the correct isolation distance between the not insu-
lated part of the power cable and not insulated parts of the backplane.
7

Backplane Topology

• 1 CPCI System Slot placed left (bottom, Backplane is horizontally orientated)
• 64-bit CompactPCI bus (PICMG2.0 R.3.0) is implemented at Slots
• PSU Slots with 47-position CPCI connectors acc. to PICMG 2.11 for 3 U PSUs
• Power connector for additional disk drives
• Power bugs providing power output of all CPCI system voltages
• Connector for fan tray
• IPMB-0, IPMB-1 connectors
• Utility connector
8

Applicable Specifications:

• PICMG 2.0R3.0 CPCI Core Specification
• PICMG 2.01 R2.0 Hot Swap
• PICMG 2.09 R1.0 System Management Bus
• PICMG 2.10 R1.0 Keying
• PICMG 2.11 R1.0 Power Interface Specification
www.schroff.biz
If noise reduction shall be achieved by connecting digital GND to Chassis
The Backplane provide power bugs to connect power output cables. M4
1 63972-213_R1.0, January 14, 2008
User's Manual
