Summary of Contents for MAGMATIC JAVELIN

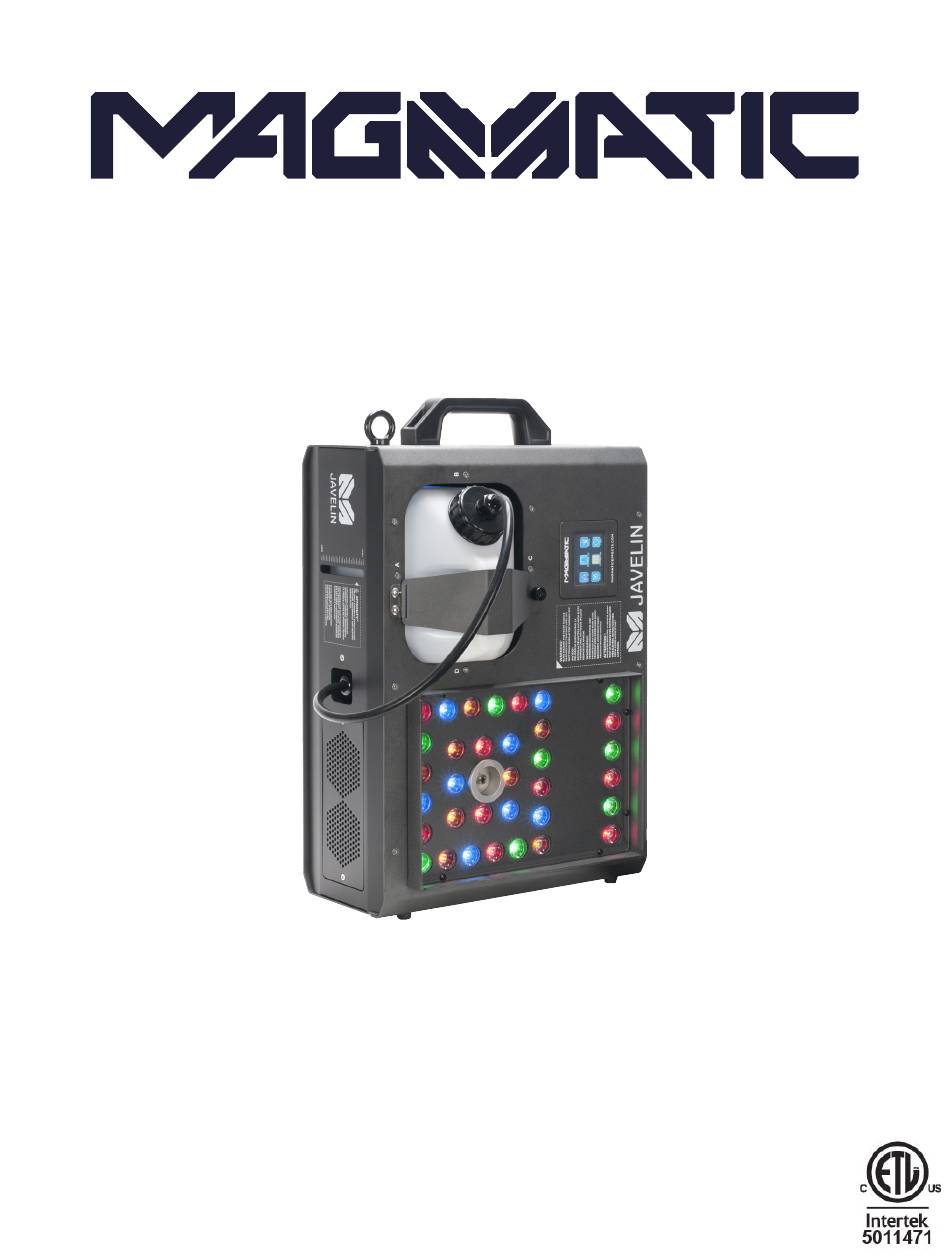

- Page 1 JAVELIN User Manual US SKU#: RSJ150 UPC#: 810008261545...
- Page 2 All non-MAGMATIC brands and product names are trademarks or registered trademarks of their respective companies. MAGMATIC EFFECTS and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...
-
Page 3: Table Of Contents
CONTENTS General Information Limited Warranty (USA Only) Warranty Returns (USA Only) Safety Guidelines Overview Installation Operation Control Panel System Menu DMX Channel Functions & Values LED Layout Macros Table Color List Dimensional Drawings Trouble Shooting | Cleaning & Maintenance | Optional Accessories Specifications FCC Statement... -
Page 4: General Information
Please recycle whenever possible. BOX CONTENTS Twist-locking power cable CUSTOMER SUPPORT Contact MAGMATIC customer service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments, or suggestions. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | Fax 323-832-9142 | sales@magmaticeffects.com... -
Page 5: Limited Warranty (Usa Only)
No accessories should be shipped with the product. If any accessories are shipped with the product, Magmatic Effects shall have no liability what so ever for loss and/or or damage to any such accessories, nor for the safe return thereof. -
Page 6: Warranty Returns (Usa Only)
(double-box and foam) that provides ample product protection for ground and/or air freight transit, and must be shipped freight pre-paid and insured to MAGMATIC in Los Angeles, CA or a MAGMATIC Authorized Service Center. The RMA number must be clearly written on the outside of the return box, and a brief description of the problem and the RMA number must be documented and included in the box. -
Page 7: Safety Guidelines
This fixture is a sophisticated piece of electronic equipment. To guarantee smooth operation, it is important to follow all instructions and guidelines in this manual. Magmatic Effects is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the infor- mation printed in this manual. - Page 8 SAFETY GUIDELINES IMPORTANT SAFETY INSTRUCTIONS. READ THESE INSTRUCTIONS THOROUGHLY BEFORE USE, AND SAVE THEM FOR FUTURE REFERENCE. CAUTION: • Risk of burn, fire, or electric shock. • For indoor use only. • Please read the instruction manual carefully before use. •...
-
Page 9: Overview

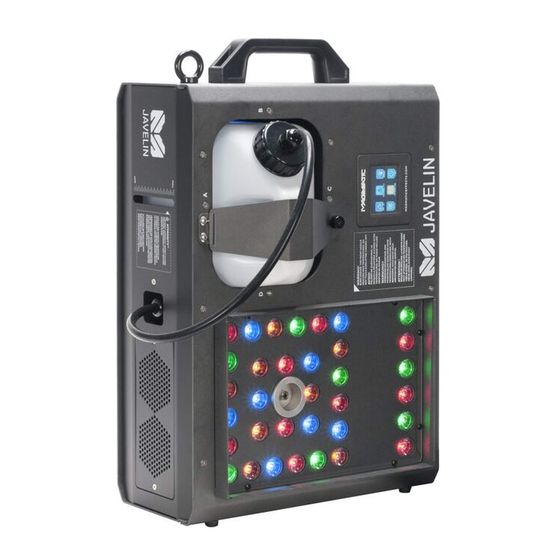

OVERVIEW 1. Fog Outlet 7. Breaker 2. LED Array 8. Carry Handle 3. Wired Remote Port 9. Touch Screen Display 4. DMX In 10. Tank Fill Cap 5. DMX Out 11. Safety Cable Attachment 6. Power In 12. Tank Level Indicator... -
Page 10: Installation
INSTALLATION CLAMP INSTALLATION This device features attachment points for two (2) omega brackets located on the device underside, near the underside vents. A safety cable rigging point is also included, located beside the carry handle (see the illustration below). When mounting this unit to truss, be sure to secure appropriately rated omega brackets (not included) to the mounting bracket attachment points and attach a sepa- rate SAFETY CABLE of the appropriate rating to the safety cable rigging point. -
Page 11: Operation
OPERATION FOG FLUID Fill tank only with approved Atmosity Flash Fog Fluid (AFF-4L) or Atmosity Extreme Filtered Fog Fluid (AEF-4L). WARM UP Allow the device 540 seconds (9 minutes) to warm up after initial power up or refilling the fluid tank. FOG DURATION While the fog duration setting can be set as high as 250 seconds, the individual bursts of continuous fog output will only occur for a maximum of 8 seconds. -
Page 12: Control Panel
CONTROL PANEL This unit includes a system menu with an easy to navigate touch screen control panel where all nec- essary settings and adjustments are made. When first powering on the machine, the main menu will be displayed (see Main Menu Screen below). Press the main menu icon you would like to access. -
Page 13: System Menu
SYSTEM MENU DMX ADDR 1 - 512 1-CH DMX SET 4-CH DMX MODE 7-CH 12-CH MagApp Name MagApp Passcode MagApp IP MagApp Port Complete MagApp Set MagApp Reset Failed, try again Allows MagApp data to be con- MagApp > verted to DMX On / Off DMX &... - Page 14 SYSTEM MENU Frequency Match- ing feature. Display will read “Connected” if When Magfly is not equipped, select- connection at- ing this function causes “Optional MagRF Learn tempt succeeds Module Not Installed” to show on the within 20 sec- screen. onds. Otherwise, display will read PERSONALITY “Connection...
- Page 15 SYSTEM MENU OPT1 OPT2 Selection effect for different OPT Effect liquid (types) OPT3 OPT4 LED always on LED illuminates when fog is LED Status Follow outputted LED always off LED Bright 0 - 100% LED brightness adjustment Random LED Effect Pulse Strobe LED Off...
- Page 16 SYSTEM MENU Null Displays what type of module is Slot 2 connected to Slot 2. MagFly MagApp MagRF LCD_auto LCD_manual Displays current control method Last Control MagApp MagRF MagRemote Error Displays whether remote has MagRemote Yes / No INFORMATION been connected State (cont’d from Null...
-
Page 17: Dmx Channel Functions & Values
DMX CHANNEL FUNCTIONS & VALUES CHANNEL VALUES FUNCTION 1-CH 4-CH 7-CH 12-CH 000 - 009 Off LED on (switches LEDs on w/ 1-second 010 - 127 delay) 128 - 255 Max Fog with LED On Macro 000 - 004 LED Off 005 - 154 Macros 1 - 75 (see Macro Table) 155 - 180... -
Page 18: Led Layout
LED LAYOUT for 12-Channel Mode ABBREVIATION LED ZONE NAME Red 1 Blue 1 Amber 1 Red 2 Green 2 Blue 2 Amber 2 Red 3 Green 3... -
Page 19: Macros Table
MACROS LIST MACRO MACRO MACRO VALUE VALUE VALUE 005 - 006 Macro 1 065 - 066 Macro 31 125 - 126 Macro 61 007 - 008 Macro 2 067 - 068 Macro 32 127 - 128 Macro 62 009 - 010 Macro 3 069 - 070 Macro 33... -
Page 20: Color List
COLOR LIST Color 1 Color 32 Color 63 Color 2 Color 33 Color 64 Color 3 Color 34 Color 65 Color 4 Color 35 Color 66 Color 5 Color 36 Color 67 Color 6 Color 37 Color 68 Color 7 Color 38 Color 69 Color 8... -
Page 21: Dimensional Drawings
DIMENSIONAL DRAWINGS Dimensions may not be drawn to scale. -
Page 22: Trouble Shooting | Cleaning & Maintenance | Optional Accessories
3-4 months. Long periods of inactivity can severely shorten the life of your device. Only run Magmatic’s Atmosity fluid through your machine. Never run plain water, vinegar, or any other liquid solution through your device, as doing so will severely damage your device. -
Page 23: Specifications
SPECIFICATIONS PERFORMANCE Rated Power: 1450W Max Output: 50,000 CFM* (cu ft/min.) Fog Burst Distance 5-6m / 3 sec. Ready Time: Initial = 9 Minutes* Fluid Capacity: 0.66 gallons (2.5 liters) Fluid Consumption: 6.09 oz/min (180 ml/min) *approximate Max Continuous Output Duration: 8 Seconds COMPATIBLE FLUID Atmosity Flash Fog Fluid (AFF-4L) Atmosity Extreme Filtered Fog Fluid (AEF-4L) -
Page 24: Fcc Statement
FCC STATEMENT This device complies with Part 15 of the FCC rules. Operation is subject to the following two condi- tions: (1) this device may not cause harmful interference, and (2) this device must accept any inter- ference received, including interference that may cause undesired operation. FCC RADIO FREQUENCY INTERFERENCE WARNINGS &...
