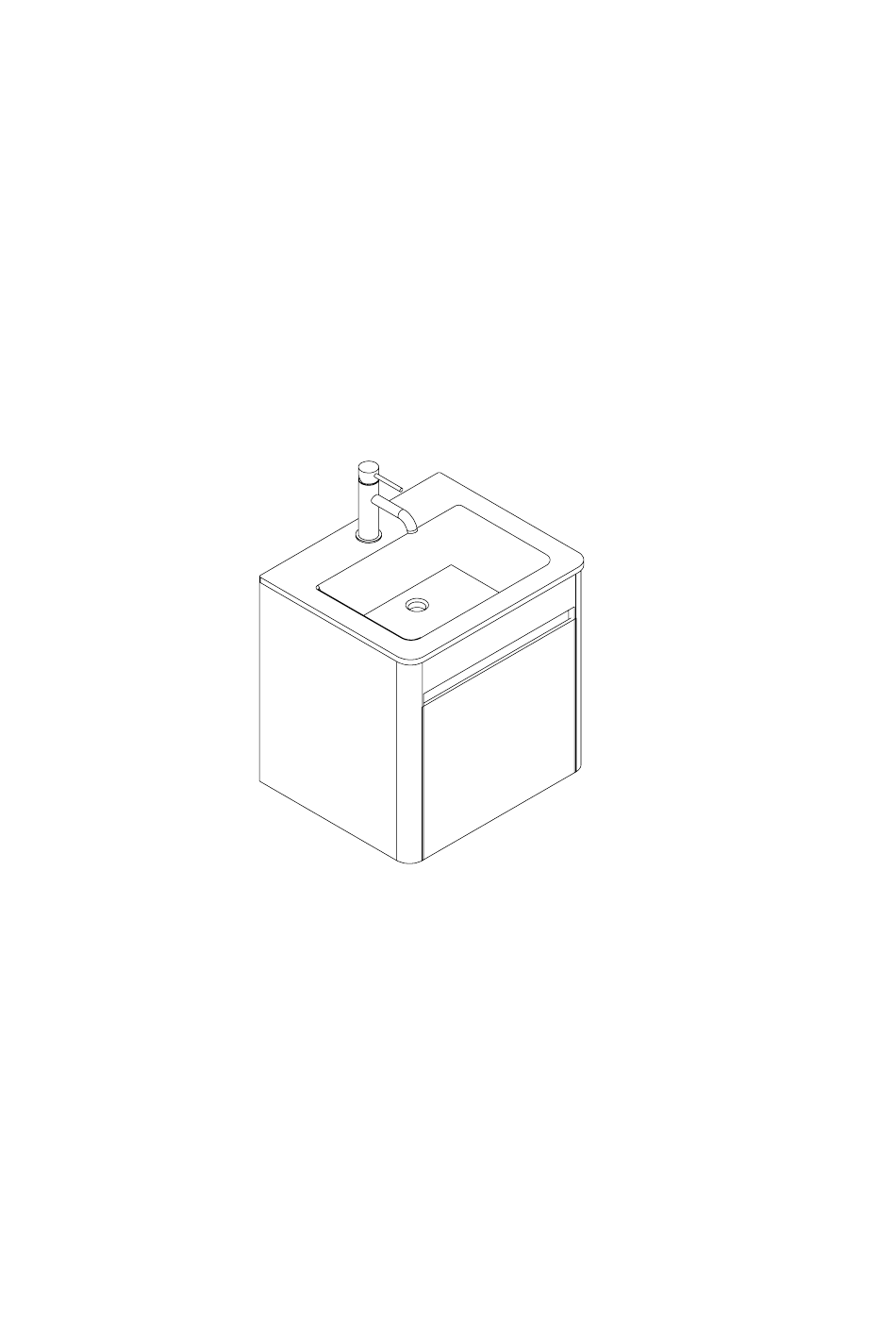

D-Style Underbasin Cabinet
Installation & Aftercare Instructions
Please retain for future reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D-Style Underbasin Cabinet and is the answer not in the manual?

Questions and answers

Summary of Contents for ABACUS D-Style Underbasin Cabinet

  • Page 1 D-Style Underbasin Cabinet Installation & Aftercare Instructions Please retain for future reference...
  • Page 2 IMPORTANT - Advice and Safety Please read before installation Please read these instructions fully before starting installation and keep in a safe place for future reference. Warning! Please check for any hidden pipes or electrical cables before drilling holes in the floor or walls.
  • Page 3 Parts Supplied: 1x Basin Unit 1 x Fixing Pack 1x Left Hand Wall Bracket 1x Right Hand Wall Bracket 4x Wall Plugs (8mm) 4x Screws Tools Required: Drill Ruler/tape measure 8mm drill bit Pencil Phillips screwdriver Silicone sealant (clear) Spirit level...
  • Page 4 Required Extra Parts: D-Style Basin Optional Extra Parts: Internal Drawer MODUL Basin Furniture Frame...
  • Page 5 Before You Start It is recommended that the unit is secured to a suitably reinforced wall to ensure stability. The wall plugs supplied are only suitable for solid stone or brick walls. For plasterboard walls we would advise the unit is fitted to a MODUL basin Frame as units are very heavy.
  • Page 6 Step2: Fix Wall Brackets Using the below measurements as a guide, position the included wall brackets Note: These instructions are based on installation to a blockwork wall. If you are installing on to plasterboard / stud walling please use the appropriate fixings and ensure that the wall is able to fully support the weight of the product.
  • Page 7 Step3: Levelling the unit Hang the unit on the wall brackets and check it is level front to back and side to side The level can be micro-adjusted foreward/backward and upward/downward as follows.
  • Page 8 Step4: Attaching the tap and basin to the unit 1: Once the unit is levelled then attach the tap to the basin and attach the waste 2: Apply a bead of silicone to the top edges of the unit 3: Carefully position the basin onto the unit, ensuring it is centrally positioned and flush at the back 4: Wipe away any excess silicone 5: Connect the tap and waste...
