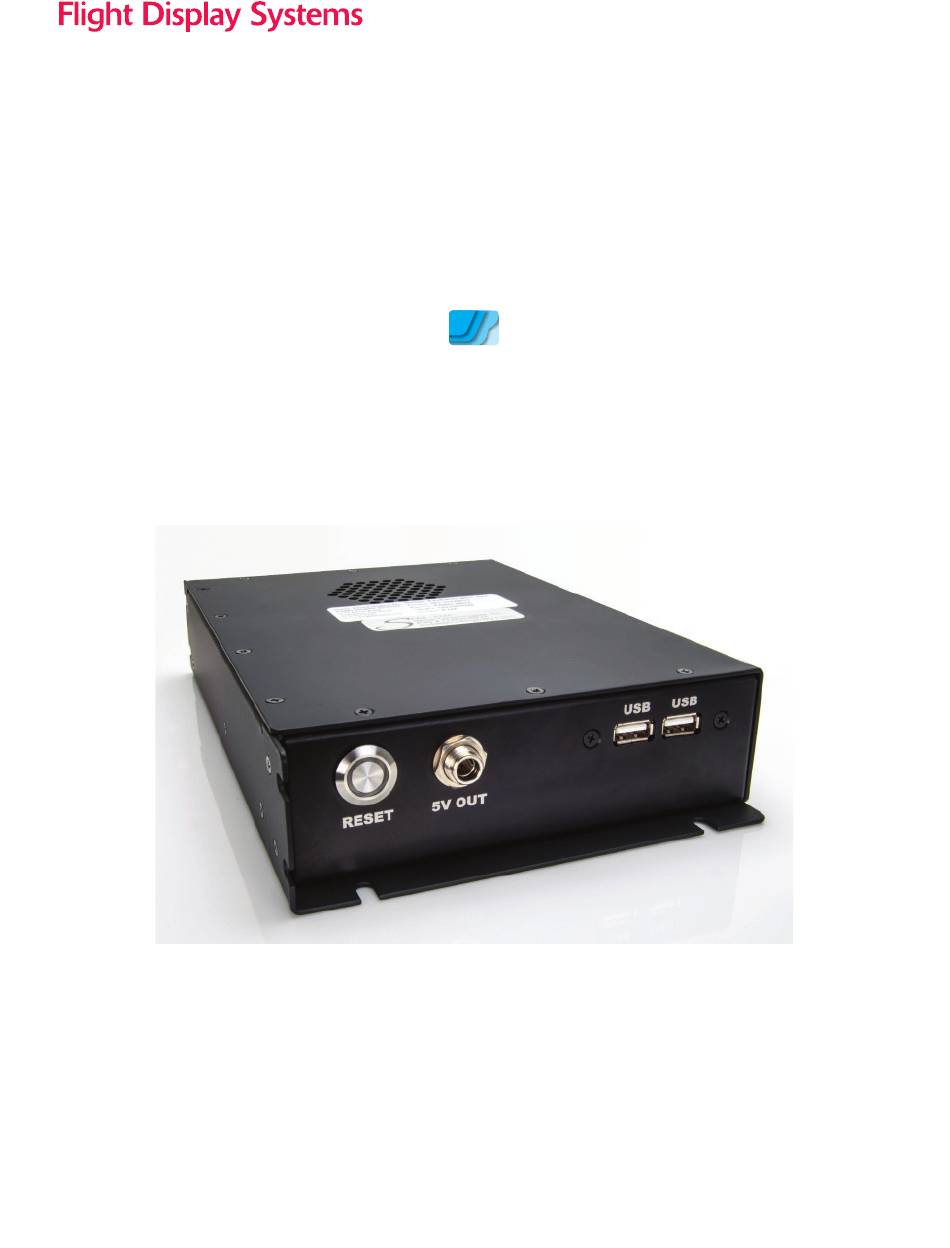

- Page 1 Revision Date: September 29, 2014 Rev: F MAN – FD800JBOX VER RJ45 Installation and Operation Manual FD800JBOX VER RJ45 JetJukebox S M A R T C O N N E C T I V I T Y Technical Support 470-239-7421...
- Page 2 For the most current copy of all product manuals, please visit our website at: www.FlightDisplay.com © 2014 Flight Display Systems. All Rights Reserved. Reproducing copyrighted materials is in violation of the law and could subject users to substantial fi nes as well as civil or criminal liability, it is recommended that you contact your legal advisor or the music or movie label if you are at all uncertain about your rights.
-
Page 3: Table Of Contents
MAN – FD800JBOX VER RJ45 Contents General Information New Capabilities Additional Information Specifi cations Installation Instructions Power Wiring Suggestions Power and Ground Wiring Front View with Connectors J1 – Power/Data J2 - HDMI J3 - VGA Video, J4 & J5 - Ethernet Connectors... - Page 4 MAN – FD800JBOX VER RJ45 Creating MP4 Files Moving Map Features and Confi guration Abbreviations Features and Pages Advanced Confi guration and Troubleshooting ARINC-429 Data Capture USING RS-232 DATA RS-232 Data Capture Technical Drawing Troubleshooting Video Noise Snow or Sweeping Lines...
-
Page 5: General Information
HDMI or VGA video output. New Capabilities The FD800JBOX VER RJ45 has been enhanced with new capabilities. JetJukebox now has the ability to interface with the Smart Cabin CMS to control many cabin functions. This includes cabin lights, video, audio, and more. -
Page 6: Specifi Cations
MAN – FD800JBOX VER RJ45 Specifi cations Dimensions 6.35”(W) x 1.95” (H) x 9.75”(D) Weight 3 lbs. Power Input 28V DC @ 1.5 A Max. Cont. Steady-State Power Output 5V DC @ 1 Max. to Power Test Wi-Fi Router File Types Video: MP4 Part 10/H.264 Files... -
Page 7: Installation Instructions
Example: 22awg wire has 16.2 Ohms per 1000 feet, this equates to. 81 Ohms for 50 feet. 3 Amps of current All cabin equipment, such as the FD800JBOX VER RJ45, on.81 Ohms will drop 2.43 Volts. should be installed on a non-essential bus and have a dedicated circuit breaker. - Page 8 MAN – FD800JBOX VER RJ45 Rear View with Connectors 1. J1 – DB25 Male 28V DC Power, ARINC 429 and RS- 232 for FMS/GPS Data, audio, and FDS CMS interface via CAN. 2. USB 2.0 x (4) These ports can be used for a USB mouse/keyboard, thumb drives, point and shoot cameras, and USB hard drives when adding additional content or confi...
-
Page 9: Front View With Connectors
Revision: September 29, 2014 Revision Date: MAN – FD800JBOX VER RJ45 MAN – FD800JBOX VER RJ45 Page: Front View with Connectors 1. RESET This button is a combination reset switch and power indicator. To turn off the unit, hold the button for 3 seconds until the green indicator turns off. -
Page 10: J1 - Power/Data
MAN – FD800JBOX VER RJ45 J1 – Power/Data Part Numbers for DB-25 mating connector and contacts (manufactured by Tyco/Amp). D-sub, 25 Contact Receptacle P/N: M24308/2-283 Contact P/N: M39029/63-368 Pin Number Description 28VDC Power Input 28VDC Ground Input Audio Left Audio Right... -
Page 11: J2 - Hdmi
Revision: September 29, 2014 Revision Date: MAN – FD800JBOX VER RJ45 Page: J2 - HDMI HDMI (High-Defi nition Multimedia Interface) defi nes the protocol and electrical specifi cations for the signaling, pin- out, electrical, and mechanical requirements of cable and connectors used for transmitting High-Defi... -
Page 12: J3 - Vga Video, J4 & J5 - Ethernet Connectors
MAN – FD800JBOX VER RJ45 J3 – VGA Video Part Numbers for DB-15 High Density mating connector and contacts (manufactured by Tyco/Amp). D-sub,15 HD Contact Plug P/N: M24308/4-264 Contact P/N: M39029/58-360 Pin Number Description Red Signal DB15 Green Signal Blue Signal... -
Page 13: Operation Instructions
MAN – FD800JBOX VER RJ45 Page: Operation Instructions The FD800JBOX VER RJ45 is continuously on but can be de-energized by removing power from the cabin entertainment system, or pressing and holding the power button on the front of the unit. -
Page 14: Connecting To Jetjukebox Using An Ipad
MAN – FD800JBOX VER RJ45 Connecting to JetJukebox using an iPad 1. Launch Safari on the iPad home screen. ® ® 2. In the address bar at the top of the browser, type in the address: 192.168.0.100. 3. This should bring you to the JetJukebox home screen. -
Page 15: Playing Internal Media
Revision: September 29, 2014 Revision Date: MAN – FD800JBOX VER RJ45 Page: Playing Internal Media Movies By clicking on the Movies icon, all movie folders contained within the drive D:\video\ folder will be displayed. Clicking the movie thumbnail or the video name below the thumbnail and the video will begin playing. - Page 16 MAN – FD800JBOX VER RJ45 Use the full screen icon in the lower right hand corner to increase the video size. After increasing the size, additional playback functionality will appear. 1. Done - This will button cause the browser to return to the main movie page.
-
Page 17: Photos
Revision: September 29, 2014 Revision Date: MAN – FD800JBOX VER RJ45 Page: Photos By clicking on the Photos icon, folders contained within the drive D:\pictures\ folder will be displayed as an album. Jukebox Home Screen > Select Internal Media Internal Media Screen > Select Photos... - Page 18 MAN – FD800JBOX VER RJ45 Click on the album (name of the sub-folder) to see the pictures contained within the album. Photos appear in albums Once you have opened an album, all of the pictures contained within the album will be displayed. Click on any image for a larger view.
-
Page 19: Music
Revision: September 29, 2014 Revision Date: Page: MAN – FD800JBOX VER RJ45 Music By clicking on the Music icon, folders contained within the drive D:\music\ folder will be displayed as an album. Jukebox Home Screen > Select Internal Media Internal Media Screen > Select Music... - Page 20 MAN – FD800JBOX VER RJ45 Click on the album (name of the subfolder) to play the music contained within the album. If a JPG image is placed within a music folder it will be used as album artwork. Albums appear as icons Press play to begin playing the fi...
-
Page 21: Browse
PDFs,.DOC, and spreadsheets to be opened or downloaded. *Note - Flight Display Systems simply creates a link to a fi le. Compatibility will be dependent upon the device and browser in use. Please refer the PED manufactures documentation for fi... -
Page 22: External Media And Camera
MAN – FD800JBOX VER RJ45 External Media and Camera The External Media and Camera functions are operationally identical to the Internal Media function. If multiple thumb drives are connected to the system, they will all appear on the JetJukebox home screen. -
Page 23: Bulkhead Functionality
The line level output volume can also be adjusted on this screen. By default Flight Display Systems sets the line output volume to maximum. This can be adjusted to balance volume levels between different source equip- ment, but volume adjustment should primarily occur with the existing aircraft audio system (cabin speaker amplifi... -
Page 24: Bulkhead Media Home Screen
MAN – FD800JBOX VER RJ45 Bulkhead Media Home Screen After pressing the Display Movie on the bulkhead options page, the JetJukebox should now show the bulkhead media homepage. From here the user can select videos, music, or pictures. Use the directional buttons (up, down, left, right) and enter to progress through the menus to select the desired content. - Page 25 Revision: September 29, 2014 Revision Date: MAN – FD800JBOX VER RJ45 Page: Bulkhead Media Home Screen Press enter on the desired video, picture, or music fi le to play the content. Alternatively videos can be launched on the bulkhead display through the Internal or External Media menus by pressing the PLAY ON BULKHEAD button upon touching the desired video.
-
Page 26: Moving Map
MAN – FD800JBOX VER RJ45 MAN – FD800JBOX VER RJ45 Moving Map By clicking on the Moving Map icon, the moving map pages will display within the browser. The pages will automatically scroll at the pre-confi gured interval (default 7 seconds). Use the browser’s back button to return to the JetJukebox home page. - Page 27 Revision: September 29, 2014 Revision Date: MAN – FD800JBOX VER RJ45 Page: Note: All digital content must comply with copyright laws. Reproducing copyrighted materials is in violation of the law and could subject users to substantial fi nes as well as civil or criminal liability.
-
Page 28: Loading New Content
MAN – FD800JBOX VER RJ45 Loading New Content File Types Flight Display Systems recommends the following fi le types for use with the JetJukebox FD800JBOX VER RJ45: Video .MP4 Part 10/H.264 Files .M4V Audio .MP3 Photos .JPG .PNG .BMP While other fi le types may work using the Browse Drive function, the above fi... -
Page 29: Copying Files To The Internal Solid State Disk
Revision: September 29, 2014 Revision Date: MAN – FD800JBOX VER RJ45 Page: Copying Files to the Internal Solid- State Disk There are two ways to copy fi les to the internal solid state drive. The fi rst way is by connecting a USB Mouse/ Keyboard, a monitor, and USB hard drive or thumb drive. -
Page 30: Network Copy
MAN – FD800JBOX VER RJ45 Network Copy Using a PC 1. Connect an Ethernet cable to the wireless router or connect to the JB-WIFI wireless network (JB-WIFI is the default wireless SSID – this is subject to change and will be different if using a wireless solution provided by other manufacturers such as Aircell). -
Page 31: Creating Mp4 Files
1. Go to http://handbrake.fr and then click the download button. ***HandBrake is only used as a reference in this manual. Please note that Flight Display Systems has no relationship or involvement with HandBrake software or its contents. Hand Brake Home page 2. - Page 32 MAN – FD800JBOX VER RJ45 folder, name the fi le, then click Save. Flight Display Systems recommends using short names that give enough information to describe what the video contains. 10. Click on the Audio tab. You should now see the audio track as shown in the image below.
-
Page 33: Moving Map Features And Confi Guration
fl ight. Typically these pages will contain company logos, cabin briefi ngs, or welcome aboard messages. The images should match the confi gured resolution of the FD800JBOX VER RJ45. Flight Display Systems can assist with formatting these pages. Airport Diagrams The Airport Diagram page shows a chart of the airport, and location of the aircraft. - Page 34 FD800JBOX RJ45 if a pre- confi guration form supplied. USING ARINC-429 DATA The FD800JBOX VER RJ45 contains a built in ARINC-429 bus reader that can accept high or low speed ARINC 429 data. The data is processed and used by the JetJukebox to show information such as position, speed, altitude, etc.
- Page 35 Revision: September 29, 2014 Revision Date: MAN – FD800JBOX VER RJ45 Page: It is recommended that you use a “General Purpose” Octal Label Label Description or “Cabin Display” output bus to send data to the Pressure Altitude JetJukebox. Check the FMS manufacturer’s installation manual for pino uts and other confi...
-
Page 36: Advanced Confi Guration And Troubleshooting
USING RS-232 DATA 2. The individual terminal boxes below show each The FD800JBOX VER RJ45 accepts RS-232 input on data type with its corresponding value and the connector J1. Data can be read at 4800 or 9600 baud. - Page 37 20. Set the port number to Port 1. This data can be sent to Flight Display Systems for further analysis. 21. Set the Baud rate to 9600 or 4800 depending on the GPS in use.
-
Page 38: Technical Drawing
MAN – FD800JBOX VER RJ45 Technical Drawing... -
Page 39: Troubleshooting
If the return of the unit to the factory is required, an RMA Stand off the wires, if necessary. number will be issued at that time. Flight Display Systems will, upon receipt of the failed hardware, remanufacture or If snow or sweeping lines persist, it is possible that the replace the unit at our discretion. -
Page 40: Change Log
MAN – FD800JBOX VER RJ45 Change Log Date Page Description 03/15/2013 Original Issue 05/7/2013 Updated Interface screenshots, added additional fi le extension compatibility, added note that JetJukebox does not yet support playing back content stored on USB connected phones/tablets, added information about Camera to multiple sections, added information about playing back DRM content, added audio settings to hand- brake instructions, updated pictures to refl...
