‡ SIGNET 5900 Salinity Monitor
C (6/01) English
3-5900.090-1
Contents

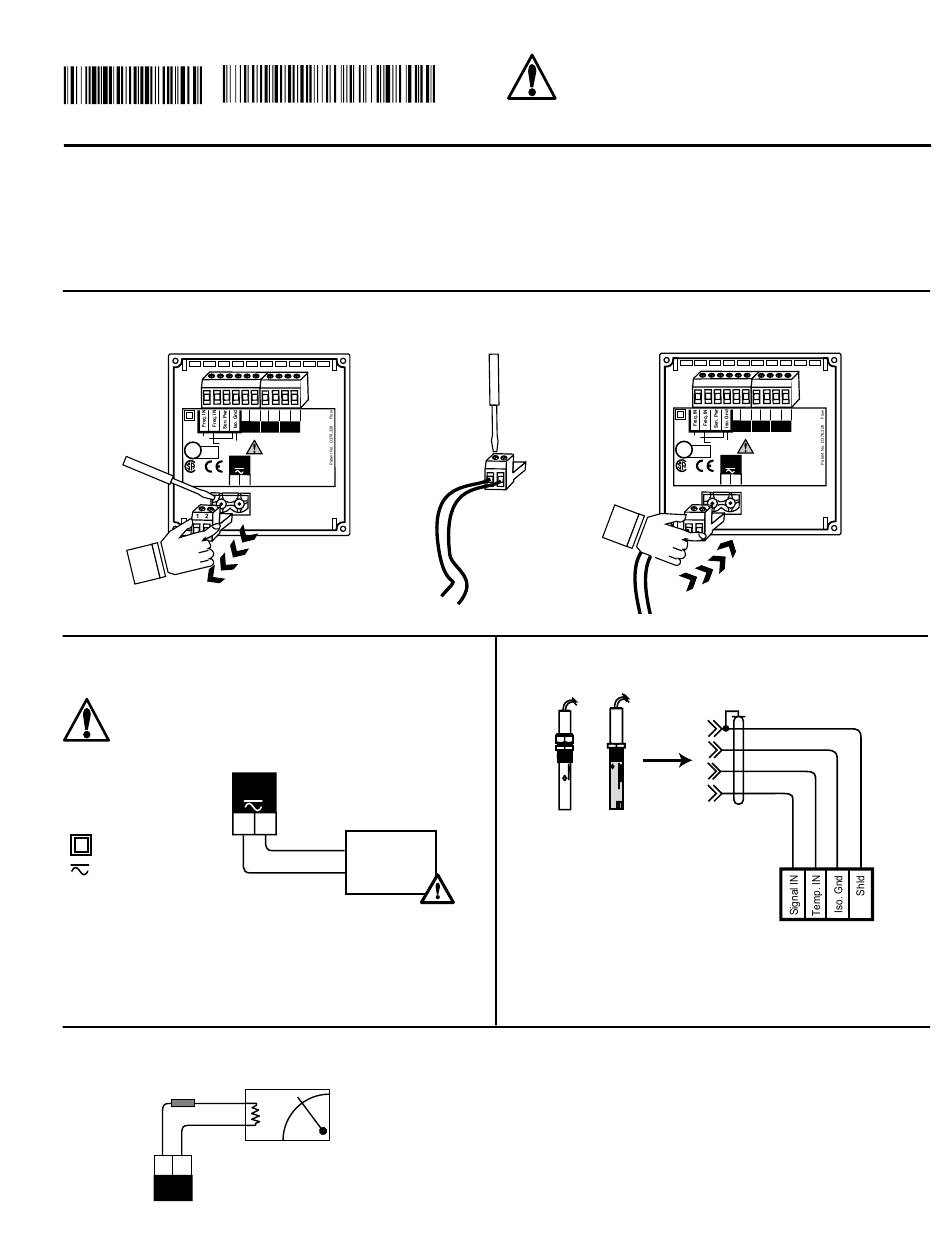

1. Power Connections
2. Compatible Sensor Wiring
3. 4 - 20 mA Current Output Connections
Remove terminal blocks for easy wiring
1.
1 2 3 4 5 6
Std. Sensor
Open Collector
U L
Sensor
LISTED
77CJ
12-24 V
10 W
+
1. Power Connections
CAUTION!
Never connect 110 VAC or 220 VAC to rear power
terminals. High voltage AC will damage instrument and
void warranty.
12-24 V
10 W
+
= Double Insulated
= DC or AC power
Technical Notes:
•
To reduce the possibility of noise interference, isolate AC
power lines from signal lines.
•
Maximum 4-20 mA loop impedance is affected by the supply
voltage.
3. 4-20 mA Current Output Connections
Fuse**
1/8A
+
-
-
+
5900 Terminals
4-20
mA
‡ SIGNET 5900 Salinity Monitor
1 2 3 4
+
+
Gnd
1
2
Gnd
PLS
AUX
Total
output
output
reset
-
5900 Terminals
External power supply
-
-
12 - 24 VDC
OR
12 - 24 VAC
+
4 - 20 mA*
*
CAUTION!
•
Refer to instruction manual for more details.
•
Remove power to unit before wiring input and output
connections.
•
Follow instructions carefully to avoid personal injury.
2.
3.
2. Compatible Sensor Wiring
20.0
10.0
+GF+ SIGNET Sensor
3-2822-1 (10.0)
3-2823-1 (20.0)
Technical Notes:
•
Use three conductor shielded cable for cable extensions up to
30 m (100 ft) max.
•
Cable shield MUST be maintained through cable splice.
Technical Notes:
** 1/8A fuse recommended (customer supplied)
*
4-20 mA output is internally powered (non-isolated),
maximum loop impedance 350 Ω with a 12 V instrument
supply voltage, 950 Ω with a 24 V instrument supply voltage.
To isolate output and prevent ground loop problems:
1. Use monitor device with isolated inputs, or
2. Use separate DC supply for 5900 and monitor device, or
3. Power 5900 with 12 - 24 VAC step down transformer
1 2 3 4 5 6
1 2 3 4
+
+
Gnd
Gnd
1
2
PLS
AUX
Total
output
output
reset
Std. Sensor
Open Collector
U L
Sensor
LISTED
77CJ
12-24 V
10 W
+
-
Silver (Shld)
Black
White
Red
Range (PPT):
0 - 80
PPT
ENGLISH
5900
Terminals
Pg 1 of 12
Advertisement
Table of Contents
Summary of Contents for GF SIGNET 5900
-
Page 1: Table Of Contents
‡ SIGNET 5900 Salinity Monitor ENGLISH CAUTION! • Refer to instruction manual for more details. • Remove power to unit before wiring input and output C (6/01) English 3-5900.090-1 connections. • Follow instructions carefully to avoid personal injury. Contents 1. Power Connections 7. -
Page 2: Relay Connections
(e.g. < 10 PPT). intended levels (e.g. < 30 PPT). Relay 1 Relay 1 or Relay 2 or Relay 2 Relay 1: Pulse Relay 1: Pulse 30.0000 10.0000> 10.0000 30.0000> ‡ SIGNET 5900 Salinity Monitor pg 2 of 12... -
Page 3: Menu Functions
Relay 2: High G. Last calibration shows a user defined 40.0000 PPT setup date for maintenance records. This feature is not an internal timer or calendar. Last CAL: 01-01-99 To A ‡ SIGNET 5900 Salinity Monitor Pg 3 of 12... - Page 4 VIEW: quick quick press press Sets relay pulse rate, 000 - 300 pulses/minute. Sets user defined setup date for maintenance records. This feature is not an internal timer or calendar. ‡ SIGNET 5900 Salinity Monitor pg 4 of 12...
- Page 5 Requirements Electronic calibration is performed to exacting standards by +GF+ SIGNET. System calibration will reduce errors which may be caused by sensor wire lengths longer than the standard 15 foot length. Wire lengths of 100 feet are acceptable; cable shield must be maintained through cable splice.
-
Page 6: Temperature Coefficient
• Front snap-on bezel, 3-5000.525 (code 198 840 226) • Assorted conductivity unit/multiplier decal sheet, 3-5500.612 (code 198 840 231) • 5900 Salinity Monitor Instruction Sheet, 3-5900.090-1 (code 159 000 080) ‡ SIGNET 5900 Salinity Monitor pg 6 of 12... -
Page 7: Specifications
9. Specifications +GF+ SIGNET Conductivity Sensor Ranges Ultra- Pure Pure Rinse General Compatible sensors: +GF+ SIGNET 3-28XX-1 Standard and 2823-1 Certified Series Sensors 2822-1 ±0.5% PPT Accuracy: 2821-1 Input range: 1 to 80 PPT optically isolated 2820-1 Enclosure: 2819-1 • NEMA 4X/IP65 front •... -
Page 8: Quick Reference Menu Parameters
Relay 1 Rate: pulses/minute pulse rate pulses/minute 120 Pulses/min > 00 - 00 - 00 - Last CAL: Last calibration 01 - 01 - 98 39 - 39 - 99 date 01-01-98 ‡ SIGNET 5900 Salinity Monitor pg 8 of 12... - Page 9 19 - 21 mA 20 mA Adjust: adjust 20.00 mA > °C °Celsius or Temperature Temperature: °C °Fahrenheit display Temperature comp. 0.00 % - 2.00 % Temperature percentage 9.99 % Comp %: 2.00 > ‡ SIGNET 5900 Salinity Monitor Pg 9 of 12...
-
Page 10: Troubleshooting
Power fault occurred while Press any key system setup parameters. saving setup menu entry. 12. Maintenance Clean the instrument case and front panel with a soft cloth and a mild liquid soap solution. ‡ SIGNET 5900 Salinity Monitor pg 10 of 12... - Page 11 ‡ SIGNET 5900 Salinity Monitor Pg 11 of 12...
- Page 12 For Worldwide Sales and Service, visit our website: www.gfsignet.com • Or call (in the U.S.): (800) 854-4090 GEORGE FISCHER ‡ Piping Systems 3-5900.090-1/(C-6/01), English © Signet Scientific Company 2001 Printed in U.S.A. on recycled paper ‡ SIGNET 5900 Salinity Monitor pg 12 of 12...
