Summary of Contents for Checkme O2 Max
- Page 1 Checkme O2 Max Smart Wrist Pulse Oximeter User Manual...
-
Page 2: Table Of Contents
User’s Manual Contents 1. Introduction.................... 1 2 Using the Monitor................... 4 3 PC software.....................8 4 Maintenance....................9 5 Troubleshooting..................9 6 Specifications..................10 7 Electromagnetic Compatibility............11... -
Page 3: Introduction
1. Introduction Intended Use This product is intended to be used for measuring, displaying and storing of pulse oxygen saturation (SpO ) ， pulse rate and motion in home or healthcare facilities environment. App can show real-time SpO pulse rate; get record, display results and report. Note: The data and results provided by this device are for pre-check screening purpose only and cannot be directly used for diagnostic... - Page 4 in this manual. Prolonged continuous SpO monitoring may increase the risk of undesirable changes in skin characteristics, such as irritation, reddening, blistering or burns. Check the SpO sensor application site every 6-8 hours to determine the positioning of the sensor and the circulation and skin sensitivity of the patient.
- Page 5 Guide to Symbols Symbol Description Type BF-Applied Part Manufacturer European authorized representative CE Marking indicating conformance to CE0197 EC directive No. 93/42/EEC concerning medical devices. MRI unsafe. Presents hazards in all MR environments as device contains strongly ferromagnetic materials. Indicate separate collection for electrical and electronic equipment (WEEE).
-
Page 6: Using The Monitor

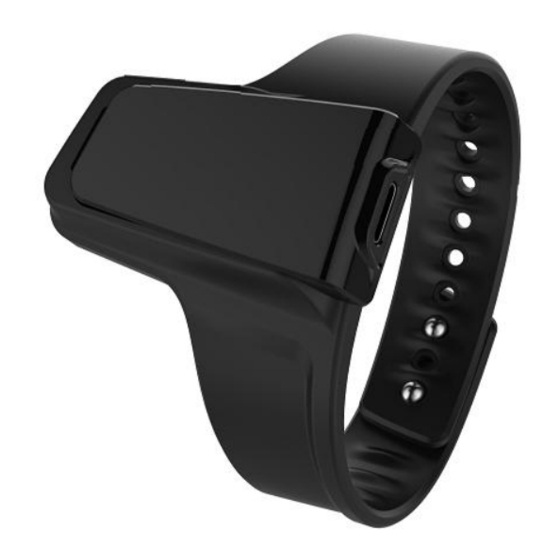

Using the Monitor Overview 1. Pulse oximeter 2. Wristband 3. Sensor interface / charging interface 4. Power button 5. SpO2 sensor Screen display item description: SpO2 Pulse rate Wear the sensor Time Remaining battery capacity Alert is on Alert is off Bluetooth is connecting... - Page 7 Charging Charge the battery before using. Use the charge cable to charge the battery of device in the USB Port of the computer or with USB charging adapter. After being fully charged, the device will power off automatically. POWER ON/OFF POWER ON: Press the button for 1 second to turn on the device.
- Page 8 STOP. After the record, take off the Ring Sensor (and the device), the recording will be save after the countdown. (If the working time is less than 1 minute, the data will not be saved.) Note: Please avoid excessive motion for the sensed ...
- Page 9 Note: The serial number is on the back of the device. How to synchronize the time of the device The time of the monitor will be automatically synchronized with the network time on your smart device after connected with the app. Note: Refer the ViHealth app manual for more details.
-
Page 10: Pc Software
Compatibility The device is compatible with iOS versions 9.0+ and Android versions 5.0+. Refer the ViHealth app manual for more details. Bluetooth Connection The device Bluetooth will be enabled automatically when the device is on. Note: DO NOT PAIR in the settings of your smart device. -
Page 11: Maintenance
Open the “O2 Insight Pro” software and click the “Connect” on the screen. Choose your device to connect. Then click the “download” on the screen. Then the data will sync with your Mac. view and print report, which can also be You can exported as PDF or CSV files. -
Page 12: Specifications
Specifications Classifications MDD, 93/42/EEC EC Directive R&TTE, 1999/5/EC ROHS 2.0, 2011/65/EU Degree protection Type BF against electrical shock Environmental Item Operating Storage Temperature 5 to 40°C -25 to 70°C Relative humidity 10% to 95% 10% to 95% (noncondensing) 700 to 1060 Barometric 700 to 1060 hPa Degree of dust &... -
Page 13: Electromagnetic Compatibility
30 to 250 bpm ±2 bpm or ±2%，whichever is PR accuracy greater Wave length 660-940nm Output power Red/Infrared: 3mW max. avg. Storage Capacity 4 records,10 hours for each Mobile APP iOS 9.0 or above, iPhone 4s/iPad 3 or above Android Android 5.0 or above, with... - Page 14 https://api.viatomtech.com.cn/documents/2017/emc_en.pdf...
- Page 15 Shenzhen Viatom Technology Co., Ltd 4E,Building 3, Tingwei industrial Park, Honglang North 2 Road, Baoan, 518100 Shenzhen, P.R.China www.viatomtech.com MedNet GmbH Borkstrasse 10, 48163 Muenster, Germany Tel:+49 251 32266-0 Fax:+49 251 32266-22 2020.11 Version: A Contents of this manual are subject to changes without prior notice.
Need help?
Do you have a question about the Max and is the answer not in the manual?
Questions and answers
What does it mean when you get a message that says error 4?
What does it mean when you get error 4 message?
For the Checkme Max, "ERROR 4" means the sensor may be damaged. You should press and hold the power button for 10 seconds, wait 10 seconds, then turn on the device with the sensor plugged in. If "ERROR 4" still appears, contact your healthcare service provider for a replacement.
This answer is automatically generated
I **** getting error 4 message
I **** a message that says error 4
For the Checkme™ O2 Max Wrist Oxygen Monitor, an "ERROR 4" message means there is an issue that may require a replacement sensor. To resolve it, you should find your order information, take a photo or video showing the error, and confirm your shipping address so the support team can send a replacement sensor free of charge.
This answer is automatically generated
The vibration alert on my Checkme O2 device is no longer vibrating when activated can you offer any advice please
To fix the vibration alert issue on your Checkme O2 device, you may need to adjust or disable the vibration settings. Users have reported that the frequent vibration alerts can interfere with sleep. While specific steps are not detailed in the context, the device likely allows configuration of alert settings such as vibration duration or intensity through its app or settings menu. Review the settings in the associated app or device menu to reduce or turn off the vibration alerts.
This answer is automatically generated
My sensor seems not to be working error 4 shows up how do I get service i have only owned it since Jan 2025
To get service for your Checkme Max sensor showing "ERROR 4", follow these steps:
1. Find your order information (email used at checkout or order number).
2. Take a photo or short video clearly showing the "ERROR 4" message on the screen.
3. Confirm your shipping address. If it differs from the original order, mention the new address.
4. Send the information to the support team at support@getwellue.com.
A replacement sensor will be sent free of charge.
This answer is automatically generated
What does error 4 mean when it appears on face of screen?
The meaning of "ERROR 4" on the Checkme Max screen is not specifically explained in the provided context. However, if your device shows "ERROR 4," you should:
1. Find your order information (email used at checkout or order number).
2. Take a photo or short video clearly showing the "ERROR 4" message.
3. Confirm your shipping address (inform if it needs to be different).
4. Send this information to the support team at support@getwellue.com.
They will assist you and send a replacement sensor free of charge.
This answer is automatically generated
charger-can we buy another charger to the pulse ox testing machine?
