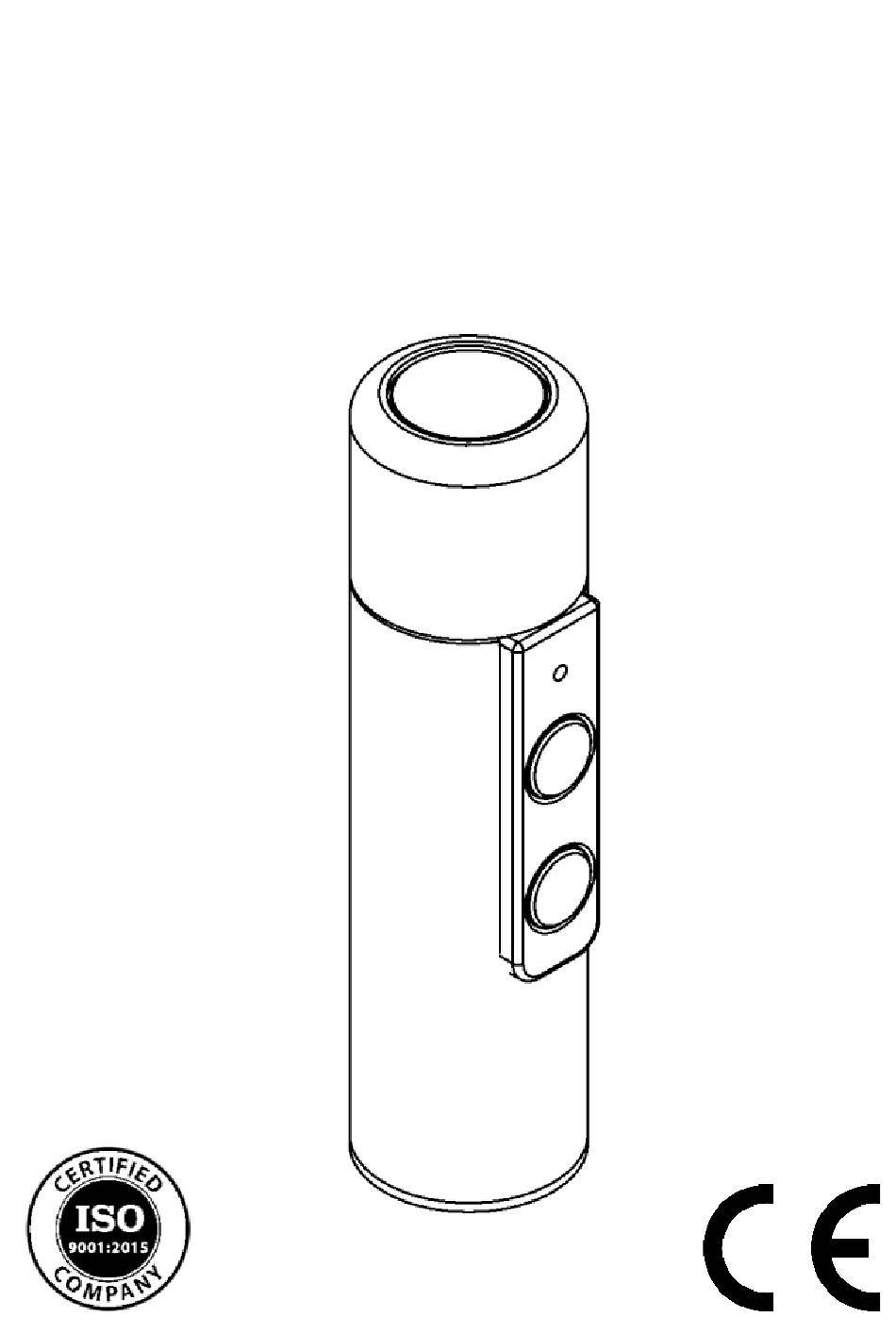

Labex Harmony User Manual, Date: 15 February 2021, # 1
L
™ H
E
ABEX
ARMONY
LECTROLARYNX
U
M
SER
ANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HARMONY ELECTROLARYNX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Labex HARMONY ELECTROLARYNX

Summary of Contents for Labex HARMONY ELECTROLARYNX

  • Page 1 Labex Harmony User Manual, Date: 15 February 2021, # 1 ™ H ABEX ARMONY LECTROLARYNX ANUAL...
  • Page 2 Labex Harmony User Manual, Date: 15 February 2021, # 2 VERVIEW 1. What is Labex Harmony Labex Harmony is a digital electrolarynx device. It is specially designed to help laryngectomees talk. Its main feature is the two individually configurable talk buttons.

  • Page 3: Parts And Buttons

    Labex Harmony User Manual, Date: 15 February 2021, # 3 2. In the box In the box, you will find everything you need to start using the device: • Labex Harmony electrolarynx device; • USB charging cable (USB A to micro-USB type B);...
  • Page 4 Labex Harmony User Manual, Date: 15 February 2021, # 4 2. LED Indicator– Indicates battery charge and different settings information. 3. Talk Button 1 – Press to produce sound. It can be configured with its own unique volume and pitch.

  • Page 5: Basic Use

    Labex Harmony User Manual, Date: 15 February 2021, # 5 ETTING TARTED 4. Basic use The device is partially charged by the manufacturer. After you take the device out of the box, you need to fully charge it before starting usage.
  • Page 6 Labex Harmony User Manual, Date: 15 February 2021, # 6 If you turn the device on from the bottom switch while charging and try to use it, the device will not emit sound and the LED light above the speech buttons will glow in Red to warn you. To use the device, simply disconnect the charger.
  • Page 7 Labex Harmony User Manual, Date: 15 February 2021, # 7 The easiest way to find your sweet spot is by tightly pressing the electrolarynx Top Cap in different locations on your neck area and articulating a single vowel while pressing one of the Talk Buttons.

  • Page 8: How To Change The Volume

    Labex Harmony User Manual, Date: 15 February 2021, # 8 In some cases, talking can be achieved in a month, in other cases, it can take only 3 days. For a more detailed guide, please check our blog: https://labextrade.com/tips-for-using- electrolarynx/ ETTINGS 8.
  • Page 9 Labex Harmony User Manual, Date: 15 February 2021, # 9 in green. The device is now in “Volume setup mode.” 5. You can now press Talk Button 1 to increase the volume up and Talk Button 2 to decrease the volume.
  • Page 10 Labex Harmony User Manual, Date: 15 February 2021, # 10 4. After a few seconds, the device will start emitting sound on its own. Release all buttons. The device is now in “Pitch setup mode.” 5. You can now press Talk Button 1 to increase the pitch and Talk Button 2 to decrease the pitch.

  • Page 11: Check The Battery Level

    Labex Harmony User Manual, Date: 15 February 2021, # 11 1. Press and hold all buttons starting from the top - Talk Button 1, Talk Button 2, and the Settings Button. 2. The LED will start glowing in blue. Continue to hold all buttons until the LED turns from blue to white.
  • Page 12 Labex Harmony User Manual, Date: 15 February 2021, # 12 YELLOW – the remaining capacity is between 25% and 50%. RED – the remaining capacity is between 10% and 25%. The LED will continue to glow in red after each button press, to remind you to charge your device.

  • Page 13: Charging The Battery

    Labex Harmony User Manual, Date: 15 February 2021, # 13 https://labextrade.com/contact-us support@labextrade.com 12. Charging the battery To charge the device plug the provided USB cable into the USB Port at the bottom of the device. Plug the other end of the provided USB cable into the provided USB charger and plug the charger into an electrical socket.

  • Page 14: Cleaning The Device

    Labex Harmony User Manual, Date: 15 February 2021, # 14 sunlight, move it to a cooler place. The charging will continue after the device cools down. • This is a rare situation: A hardware problem may be detected and internal protection is turned on and denies charging the battery.

  • Page 15: Contact Information

    Labex Harmony User Manual, Date: 15 February 2021, # 15 disinfectant gel or alcohol. Alternatively, alcohol wipes can be used. 3. Wipe the device with a soft microfiber cloth again. 14. Contact information LABEX TRADE LTD. 59 Sankt Peterburg Blvd., Floor 6, Office 604...
  • Page 16 Labex Harmony User Manual, Date: 15 February 2021, # 16 General parameters Labex Harmony Adjustable pitch Adjustable volume Pitch range 55 - 165 Hz Volume range 60 - 83 dB Speech time per charge up to 30 h* Full charge time...
  • Page 17 Labex Harmony User Manual, Date: 15 February 2021, # 17 Lanyard Power charger Built-in Charger type USB charger Connector type Micro USB type B 5V 1.5A max. - depending on USB Charge current port power Battery information Labex Harmony Capacity...
  • Page 18 Labex Harmony User Manual, Date: 15 February 2021, # 18 NFORMATION 15. Warnings • Do not submerge the device underwater. Do not wash the device under running water. This will potentially damage the device. • Do not try to disassemble the device under any circumstances.

  • Page 19: Safe Storage

    Labex Harmony User Manual, Date: 15 February 2021, # 19 • Do not charge the device if its temperature is below 0°C. • Do not store cells or batteries haphazardly in a pocket, purse, box, or drawer where they may short-circuit each other or be short-circuited by conductive materials such as coins or keys.

  • Page 20: Limited Warranty Conditions

    Labex Harmony User Manual, Date: 15 February 2021, # 20 17. Limited Warranty Conditions This Limited Warranty covers any defects in material or workmanship under normal use of the device, according to the User Manual during the Warranty Period. During the Warranty Period, Labex Trade Ltd. will...
  • Page 21 Labex Harmony User Manual, Date: 15 February 2021, # 21 The Warranty Period for Labex™ electrolarynges is two years from the date of purchase. A fully replaced or repaired electrolarynx remains in the warranty period. The warranty does not cover:...
  • Page 22 Labex Harmony User Manual, Date: 15 February 2021, # 22 Trying to open or repair the device; causing extensive shock damage (dropping it, hitting it against other objects, etc.); or liquid damaging it (submerging in water or other chemicals). Shipping charges as well as the risk of loss or...
  • Page 23 Labex Harmony User Manual, Date: 15 February 2021, # 23 18. Information on Disposal for Users of WEEE: The symbol on the product box and/or accompanying documents means that used electrical and electronic equipment (WEEE) should not be mixed with general household waste.
  • Page 24 Labex Harmony User Manual, Date: 15 February 2021, # 24 applicable for incorrect disposal of this waste, following your national legislation. For professional users in the European Union, if you wish to discard electrical and electronic equipment (EEE), please contact your dealer or supplier for further information.
