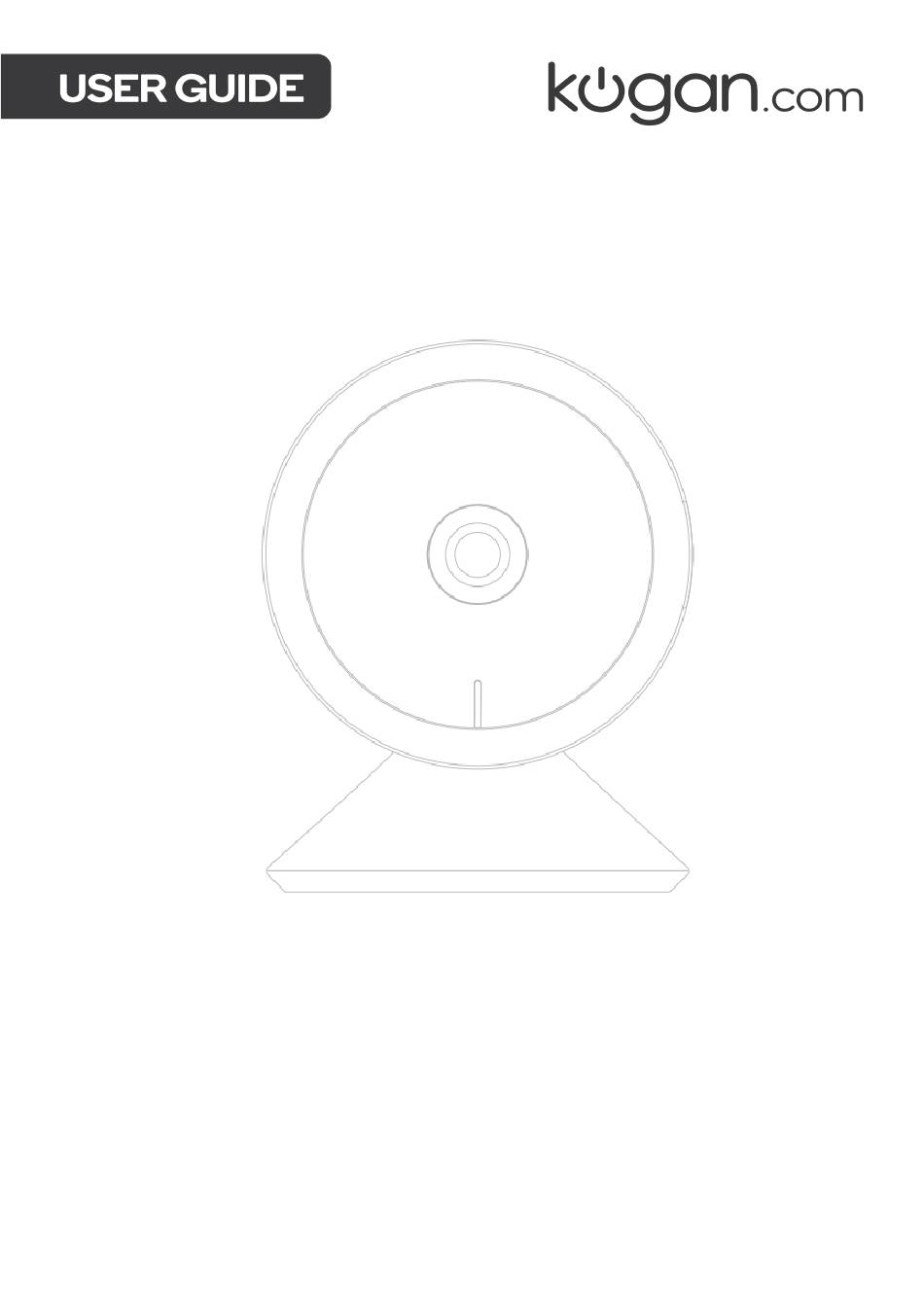

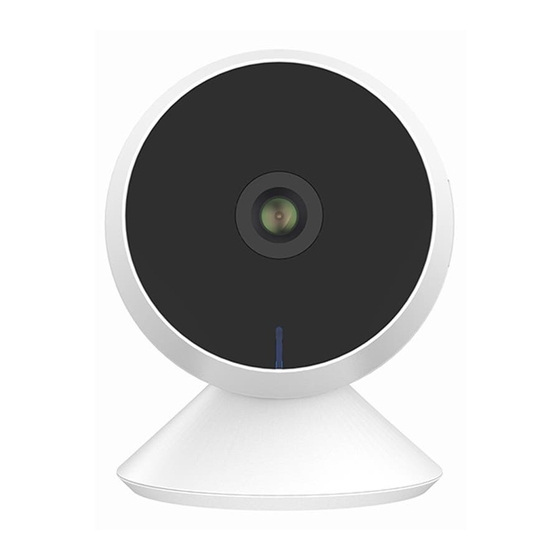

- Page 1 KOGAN SMARTERHOME™ FULL HD INDOOR WI-FI CAMERA KAFXIDIPCNA...
- Page 3 COMPONENTS Camera Power adapter USB cable Adhesive tape User guide...
- Page 4 OVERVIEW USB port Microphone microSD Indicator card slot Reset Speaker • Red light solid: network error • Red light blinking: awaiting Wi-Fi connection Indicator • Blue light solid: camera operating normally • Blue light blinking: network currently connecting microSD Supports up 128G card slot Press and hold for 5 seconds with pin to reset the camera and put into Reset...
-
Page 5: Getting Started
GETTING STARTED Connection preparation Bring the camera and your phone within 30 – 100cm of the router. Camera Router Smartphone Insert the microSD card Insert a microSD card (not supplied) into the microSD card slot on the camera. Connect the power to the camera Connect the camera to power using the power adapter and USB cable. -
Page 6: Install The Application
Download the “Kogan SmarterHome™” app from the Play Store (Android) or App Store (iOS). Register If you do not have a Kogan SmarterHome™ account, register or sign in with a verification code sent by SMS. To register: Tap to enter registration page. - Page 7 Set device in pairing mode When the device is first turned on, it may automatically enter pairing mode (indicator light rapidly flashing). If not automatically in pairing mode when powered on, you can manually set the device in pairing mode by pressing and holding the reset button for 5 seconds until the indicator light is rapidly flashing red.
- Page 8 Upon successfully confirming pairing mode, enter your Wi-Fi details. It is important that your SmarterHome™ device and the app are connected to the same Wi-Fi network during setup. The camera will next activate and begin scanning for a QR code. When pressing “Continue”...
- Page 9 The device will commence the pairing process and connect to the app. Ensure your Wi-Fi router, mobile phone, and the SmarterHome™ device are kept close until connection is complete. 12. After successfully being added, you will have the option to rename the device and assign it to a location.
-
Page 10: Installation
INSTALLATION Step 1: Remove the backing and stick the adhesive tape in the middle of the underside of the camera. Step 2: Adhere the camera to a clean flat surface. -
Page 11: Operation
OPERATION In the camera’s control page, tap the " " icon in top right hand corner to access the camera’s functions. Functions Motion detection: Built in motion sensors will notify you when movement is detected and will send notifications and app alerts (notifications must be enabled on the app). Screenshot: Save a screenshot to the microSD card. -
Page 12: Troubleshooting
TROUBLESHOOTING The camera’s feed cannot be previewed. • Ensure your Wi-Fi network is working. • Place the camera closer to the router. • Reset the camera and add it to the app again, following the pairing steps. Camera is it still in the list of devices after resetting. First remove the camera from the list of devices in the app, and then follow the pairing steps to add again. - Page 13 NOTES...
- Page 16 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com.
