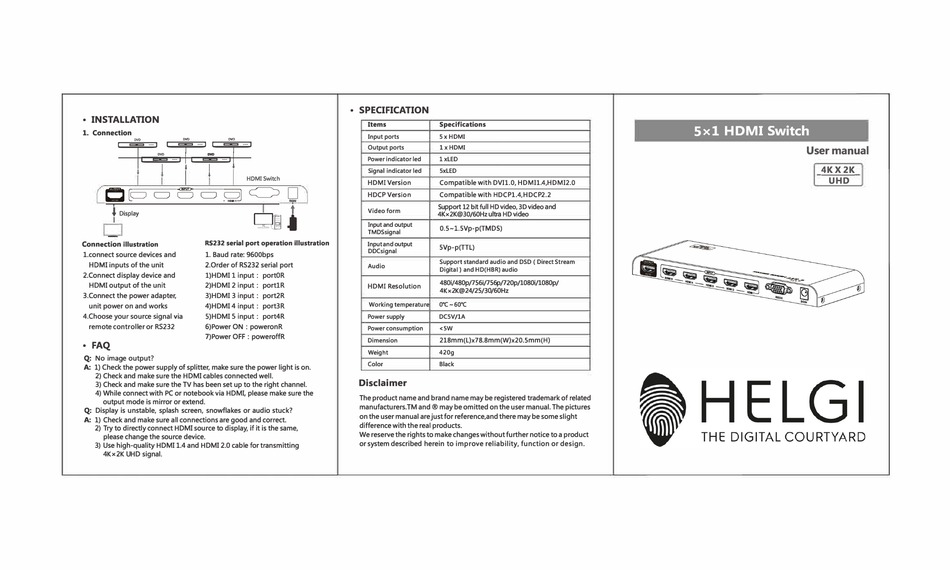

HELGI HLG0501-V2.0 User Manual

• INSTALLATION

=
1. Connectlon I=
�1�1
I
-�-�
I
I
I
I
I
c:: a =:::i
HDMI Switch
o
q
c:::::=i
f
c:::J c:::J
g;a
o;splay
RS232 serial port operatlon lllustratlon
Connection illustration
l.connect source devices and 1. Baud rate: 9600bps
inputs of
HOMI the unit 2.Order of RS232 serial port
l)HDMI 1 ;nput : portOR
2.Connect display device and
HDMI the unit 2)HDMI 2 ;nput : portlR
output of
3)HDMI 3 input : port2R
3.Connect the power adapter,
unit power on and works 4)HDMI 4 input : port3R
4.Choose your source signal via S)HDMI 5 input : port4R
Remote Controller or RS232
G)Power ON : poweronR
7)Power OFF : poweroffR

• FAQ

No image output?
Q:
A: 1) Check the power supply of splitter, make sure the power light is on.
2) Check and make sure the HDMI cables connected well.
3) Check and make sure the TV has been set up to the right channel.
4) While connect with PC or notebook via HDMI, please make sure the
output mode is mirror or extend.
Q: Display is unstable, splash screen, snowflakes or audio stuck?
A: 1) Check and make sure all connections are good and correct.
2) Try to directly connect HDMI source to display, if it is the same,
please change the source device.
3) Use high-quality HDMI 1.4 and HDMI 2.0 cable for transmitting
4Kx2K UHD signal.

• SPECIFICATION

ltems Specifications
Input ports S xHDMI
Output ports lxHDMI
Power indicator led lxLED
Signal indicator led SxLED
□
HDMI Version Compatible with DVII.O, HDMl1.4,HDMI2.0
HOCP Version Compatible with HOCP1.4,HOCP2.2
t
Support 12 bit full HD video, 30 video and
Video form
4Kx2K@30/60Hz ultra HD video
Input and output
0.5~1.SVp-p(TMDS)
TMOSsignal
Input and output
SVp-p(TTL)
DDCsignal
Support standard audio and oso ( Direct Stream
Audio
Digitai) and HO(HBR) audio
480V480p/7S6;/7S6p/720p/1080V1080p/
HDMI Resolution
4Kx2K@24/25/30/60Hz
Working temperature O-C-60-C
Power supply OCSV/lA
,sw
Power consumption
Dimension 218mm(L)x78.8mm(W)x20.5mm(H)
Weight 420g
Color Black
Disclaimer
The product name and brand name may be registered trademark of related
manufacturers.TM and ® may be omitted on the user manual. The pictures
on the user manual arejust for reference,and there may be some slight
difference with the real products.
We reserve the rights to make changes without further notice to a product
or system described herein to improve reliability, function or design.

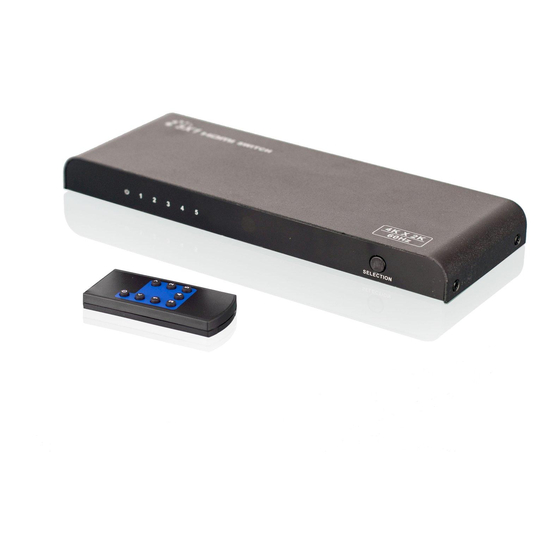

Sxl HDMI Switch
Usermanual
4KX2K
UHD
