Homestar LEGACY HOME FURNISHINGS & DECOR C1930030 Assembly Instructions Manual

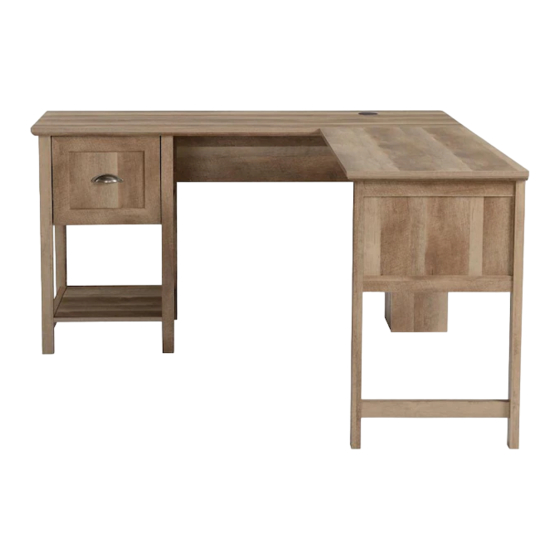

L shaped desk with drawer
Hide thumbs

Advertisement

Quick Links

Download this manual
L
H
EGACY
OME
F
D
URNISHINGS &
ECOR
Assembly Instructions
Instrucciones de Ensamblaje
120mns
SAVE THESE INSTRUCTIONS
GUARDE ESTAS INSTRUCCIONES
Do Not Return!
No Vuelvas!
Escritorio en forma de L con cajón
Email or call customer service for help first.
Envie correo electrónico o llame al servicio para
obtener ayuda primero.
1-214-758-1098/Toll free: 1-883-907-1099
Monday-Friday 9am - 4pm CST
customer@legacyhfd.com
L Shaped Desk with Drawer
C1930030

Advertisement

loading
Need help?

Need help?

Do you have a question about the LEGACY HOME FURNISHINGS & DECOR C1930030 and is the answer not in the manual?

Questions and answers

Related Manuals for Homestar LEGACY HOME FURNISHINGS & DECOR C1930030

Summary of Contents for Homestar LEGACY HOME FURNISHINGS & DECOR C1930030

  • Page 1 EGACY URNISHINGS & ECOR Assembly Instructions Instrucciones de Ensamblaje 120mns L Shaped Desk with Drawer SAVE THESE INSTRUCTIONS Escritorio en forma de L con cajón GUARDE ESTAS INSTRUCCIONES C1930030 Email or call customer service for help first. Envie correo electrónico o llame al servicio para Do Not Return! obtener ayuda primero.

  • Page 2: Helpful Advice

    EGACY URNISHINGS & ECOR Helpful advice Consejos útiles 1. Follow the assembly instructions carefully. 1. Siga a tentamente las instrucciones de montaje. 2. Check to ensure all parts, fasteners and hardware 2. Asegúrese de que la caja contiene todas las piezas, are present.
  • Page 3 EGACY URNISHINGS & ECOR Parts list/Lista de piezas...
  • Page 4 EGACY URNISHINGS & ECOR Hardware/Lista de materiales ITEM IMAGE DESCRIPTION DESCRIPCIÓN QUANTITY Wood dowel Perno Madera Cam bolt Perno Metálico Bloqueo metálico Cam lock Φ3.5×12 mm Screw Φ3.5×12 mm Tornillo Left glide Planeador izquierdo Right glide Planeador derecho Drawer connector Conector de plástico Φ3.5×12 mm Screw Φ3.5×12 mm Tornillo...
  • Page 5 EGACY URNISHINGS & ECOR Hardware/Lista de materiales ITEM IMAGE DESCRIPTION DESCRIPCIÓN QUANTITY Handle Tirador Φ4×14 mm Screw Φ4×14 mm Tornillo Metal plate Hoja de hierro Plastic hole cap pasa cables Plastic file hanger Perchero de plástico Note/Nota El uso del tornillo incorrecto puede Using the wrong screw will cause provocar daños al producto.
  • Page 6 EGACY URNISHINGS & ECOR WARNING This product can expose you to chemicals including Formaldehyde, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/furniture ADVERTENCIA Este producto puede exponerlo a sustancias quím icas, incluyendo el formaldehído, el cual es conocido en el estado de California como causante de cáncer, defectos de nacimiento u otros daños reproductivos.
  • Page 7 EGACY URNISHINGS & ECOR Necessary tools/Herramientas necesarias Glue not enclosed (We recommend to apply some glue into holes before inserting wood dowels.) Colle non fournie (Nous vous recommandons d’appliquer quelques gouttes de colle dans les trous avant Glue not included ( We recommend to apply some glue into holes before inserting wood dowels .) d’y introduire les chevilles de bois.) Cola, no incluida (Le recomendamos colocarunas gotas de cola en los ori cios antes de insertar las clavijas de madera.) madera.)
  • Page 8 EGACY URNISHINGS & ECOR Attention: In order to help your assembly, do not lock the screw tightly until you have assembled all the other parts. Atención: Con el fin de facilitar su montaje, no apretar el tornillo firmemente hasta que haya ensamblad o todas las otras partes.
  • Page 9 EGACY URNISHINGS & ECOR Step 3/Paso 3 Insert 2 wood dowels (A) and 4 cam bolts (B) into gable left (2). Attach left glide (E) to gable left (2) with 3 screws (D). Inserte 2 Pernos maderas (A) y 4 Pernos metálicos (B) en el Marco izquierdo (2). Bloquee el Planeador izquierdo (E) al Marco izquierdo (2) con 3 Tornillos (D).
  • Page 10 EGACY URNISHINGS & ECOR Step 5/Paso 5 Insert 2 wood dowels (A) and 4 cam bolts (B) into divider (3). Attach right glide (F) to divider (3) with 3 screws (D). Inserte 2 Pernos maderas (A) y 4 Pernos metálicos (B) en el Marco central (3). Bloquee el Planeador derecho (F) al Marco central (3) con 3 Tornillos (D).
  • Page 11 EGACY URNISHINGS & ECOR Step 7/Paso 7 Insert 2 cam bolts (B) into divider (3). Slide left back panel (7) into the assembly part. Inserte 2 Pernos metálicos (B) en el Marco central (3). Inserte el Tablero posterior (7) en el ensamblaje. B x 2 Step 8/Paso 8 Insert 2 wood dowels (A) and 3 cam bolts (B) into right support panel (10).
  • Page 12 EGACY URNISHINGS & ECOR Step 9/Paso 9 Insert 3 cam locks (C) into left support panel (9) to combine with right support panel (10). Conecte los Tableros soportes (9) (10) con 3 Bloqueos metálicos (C). C x 3 Step 10/Paso 10 Insert 6 wood dowels (A) into the holes on the edge of middle back panel (8).
  • Page 13 EGACY URNISHINGS & ECOR Step 11/Paso 11 Connect middle back panel (8) with left support panel, use 2 screws (K). Conecte el Tablero posterior (8) al ensamblaje con 2 Tornillos (K). K x 2 Step 12/Paso 12 Insert 2 cam locks (C) into middle back panel (8) to combine with divider (3). Conecte el Tablero posterior (8) al Marco central (3) con 2 Bloqueos metálicos (C).
  • Page 14 EGACY URNISHINGS & ECOR Step 13/Paso 13 Insert 6 wood dowels (A) into right back panel (12). Inserte 6 Pernos maderas (A) en el Tablero posterior derecho (12). A x 6 Step 14 /Paso 14 Insert 2 wood dowels (A) and 2 cam bolts (B) into gable right (11). Inserte 2 Pernos maderas (A) y 2 Pernos metálicos (B) en el Marco derecho (11).
  • Page 15 EGACY URNISHINGS & ECOR Step 15/Paso 15 Connect gable right (11) with right back panel (12), use 2 cam locks (C). Conecte el Marco derecho (11) al Tablero posterior derecho (12) con 2 Bloqueos metálicos (C). C x 2 Step 16/Paso 16 Combine left assembly part and right assembly part with 2 screws (K).
  • Page 16 EGACY URNISHINGS & ECOR Step 17/Paso 17 Insert 10 cam bolts (B) into long top (1). Inserte 10 Pernos metálicos (B) en el Panel Superior largo (1). B x 10 Step 18 /Paso 18 Insert 4 cam bolts (B) into short top (13). Inserte 4 Pernos metálicos (B) en el Panel superior corto (13).
  • Page 17 EGACY URNISHINGS & ECOR Step 19/Paso 19 Combine top with base, use 14 cam locks(C). Connect long top (1) with short top (13), use 2 metal plates (O), tighten with 8 screws (N). Conecte Panel superiors (1) (13) al ensamblaje con 14 Bloqueos metálicos (C). Conecte el Panel Superior largo (1) al Panel superior corto (13) con 2 Hojas de hierro (O) y 8 tornillos (N).
  • Page 18 EGACY URNISHINGS & ECOR Step 21/Paso 21 Attach left glide (E) to drawer side left (14) with 3 screws (D). Attach right glide (F) to drawer side right (15) with 3 screws (D). Utilice 3 Tornillos (D) para jar el Planeador izquierdo (E) en el Tablero izquierdo de cajón (14). Utilice 3 Tornillos (D) para jar el Planeador derecho (F) en el Tablero derecho de cajón (15).
  • Page 19 EGACY URNISHINGS & ECOR Step 23/Paso 23 Slide drawer bottom (17) into drawer. Inserte el Tablero inferior de cajón (17) en el ensamblaje. Step 24/Paso 24 Align handle (M) with the holes on the drawer front (18) , secure with 2 bolts (L). Insert drawer front (18) into assembly part with 4 screws (I).
  • Page 20 EGACY URNISHINGS & ECOR Step 25/Paso 25 Put 2 plastic le hangers (Q) into the drawer sides. Fije 2 Percheros de plástico (Q) en los Tableros laterales del cajón. Q x 2 Step 26/Paso 26 Push drawer to the desk. Inserte el cajón en la mesa.
  • Page 21 EGACY URNISHINGS & ECOR Maximum weight capacities/Capacidades de carga máxima 45 kg 99 lbs. 45 kg 99 lbs. 10 kg 22 lbs. 10 kg 22 lbs. WARNING Please use your furniture correctly and safely. Improper use can cause safety hazards, or damage to your furniture or household items.

  • Page 22: Year Warranty

    1 YEAR WARRANTY BASIC WARRANTY: Homestar® furniture is warranted by Homestar Corporation (Homestar) to the original purchaser for a period of one year from the date of purchase, subject to the following conditions and limitations. 1. Install and operate this item in accordance with the Installation and 6.
