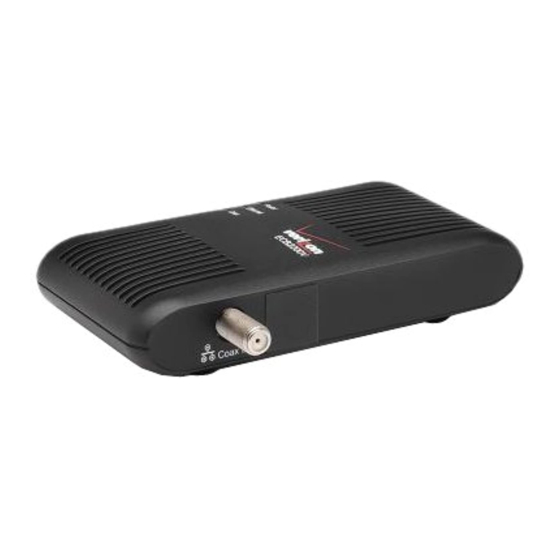

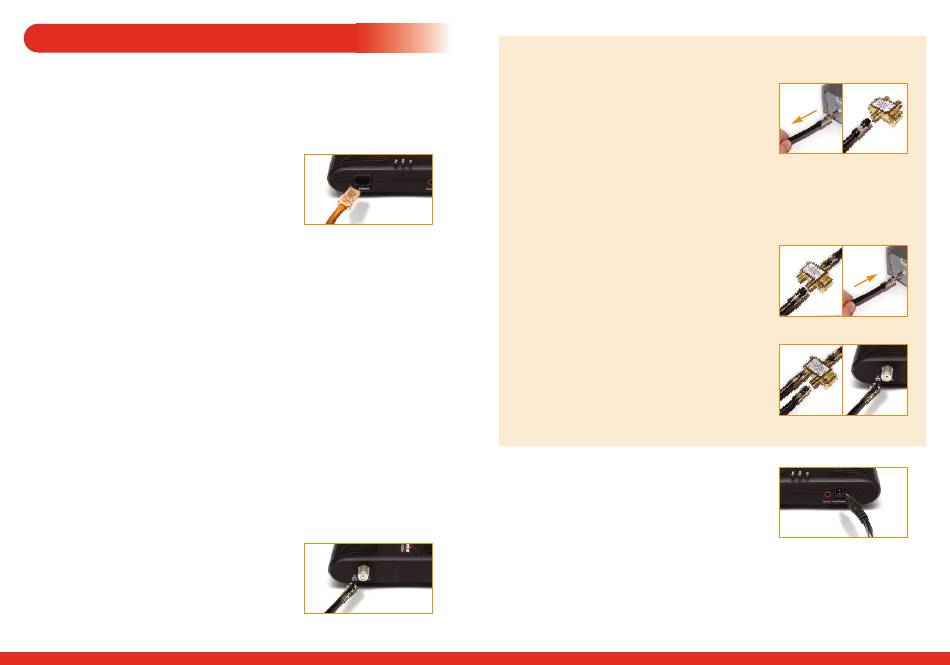

Verizon ECB2200V Installation Manual

1
Step
Make sure that a coaxial cable is connecting the Verizon
FiOS® Router, or other MoCA enabled network device, to a coaxial
outlet.
2
Step
Plug one end of the
Ethernet Cable into the Ethernet
Network port on the front of the
Coaxial Network Adapter.
3
Step
Plug the other end of the Ethernet Cable into the
Ethernet Port on the device you want to connect to the Internet.
4
Step
Find the coaxial cable closest to the device you want to
connect to the Internet.
5
Step
If the cable is NOT currently connected to a Verizon FiOS
Set Top Box, go to step 5a. If the cable IS currently connected to
a Verizon FiOS Set Top Box, go to step 5b.
5a
Step
Connect the coaxial cable
to the COAX IN port on the back of the
Coaxial Network Adapter. Continue
to Step 6.
5b
Step
for FiOS Set Top Box Owners
1 Disconnect the coaxial cable
connected to the Set Top Box and
reconnect this cable to the "IN"
port of the 2–way splitter, which
is included in the Coaxial
Network Adapter retail box.
2 Get the two other black coaxial cables from the Coaxial
Network Adapter retail box.
3
Using the 1st cable, connect one end
of the black coaxial cable to the 1st
"OUT" port on the splitter and the
other end to the coax port on the
back of the Verizon FiOS Set Top Box.
4 Using the 2nd black cable, connect
one end to the 2nd "OUT" port
on the splitter and the other end
to the COAX IN port on the back
of the Coaxial Network Adapter.
6
Step
Plug one end of the Power
Adapter into the Power port on the
back of the Coaxial Network Adapter.
Then plug the other end into an
electrical wall outlet. Please make sure that both Coax and
Ethernet lights turn SOLID
Congratulations! You have successfully connected your device to
the Internet.
GREEN on the Adapter.
