MESH-1200 Quick Installation Guide
Document number: 830-04378-01
Inside the Box
1 x MESH-1200 Controller
1 x MESH-1200 Agent
2 x Power supplies
1 x CAT 5E cable
System Description

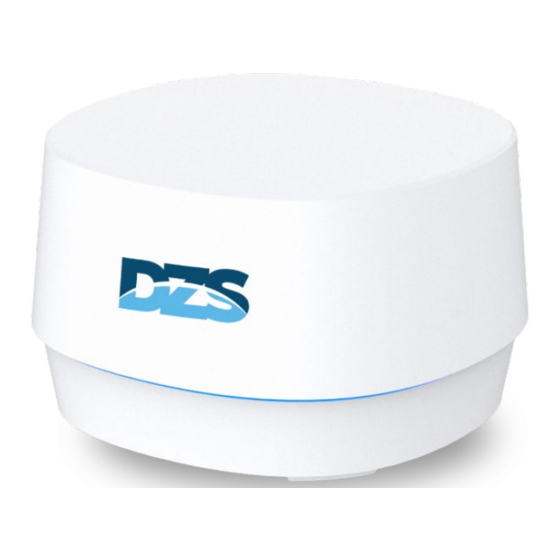

The MESH-1200 is a dual-band Wi-Fi router that can operate either as a single device, or as part of an EasyMesh
ecosystem. The unit supports both layer two and three operation when in controller mode. In addition, the unit can also
operate as a standard Wi-Fi repeater using the 5GHz radio.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DZS MESH-1200
Summary of Contents for DZS MESH-1200
- Page 1 System Description The MESH-1200 is a dual-band Wi-Fi router that can operate either as a single device, or as part of an EasyMesh ecosystem. The unit supports both layer two and three operation when in controller mode. In addition, the unit can also...

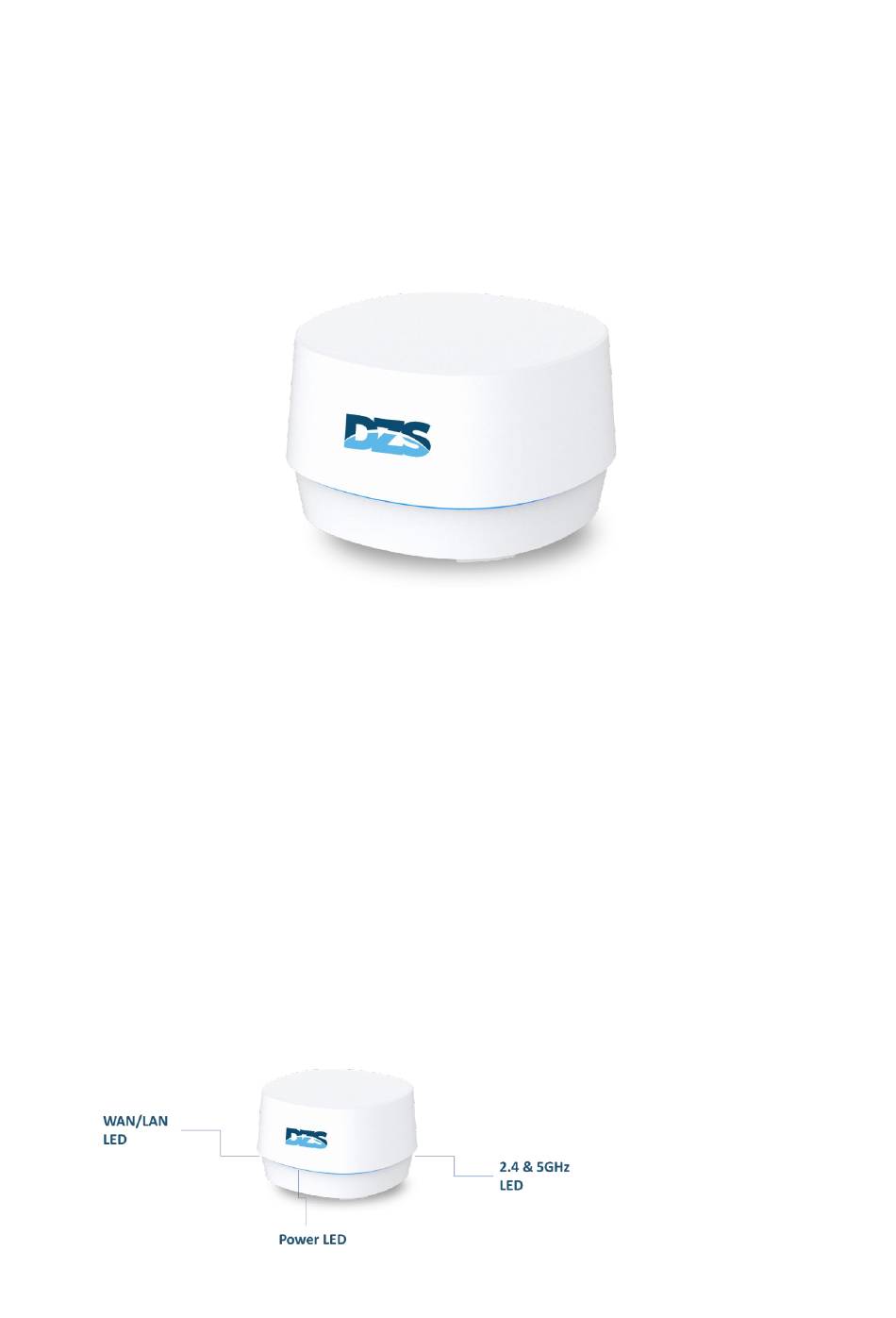

- Page 2 WIFI connected Mesh configured successfully (strong signal) Red solid on WIFI connect Mesh configured successfully (poor signal) Not ready Blue Solid on Ethernet interface linked Blink Data transmitting Ethernet interface not linked Ports and button MESH-1200-TWIN QIG | DZS, Inc.
-
Page 3: Installation Instructions
1) Using the system default credentials a) Find the MESH-1200 unit labeled “Controller” - The unit has a © on the unit label located on the back of the unit. b) Connect power by plugging the provided PSU to an electric wall outlet and the barrel connection on the corresponding port on the back of the unit c) Plug on end of the provided CAT 5E Ethernet cable in the WAN port of the unit –... - Page 4 Set the desired password and click “Set login password” or click on “Skip password setup” and use the default password for the admin user located on the unit label. Click “Login” to enter the WEB GUI. Next, the wizard gives you the option to change the default EasyMesh / Wi-Fi configuration: MESH-1200-TWIN QIG | DZS, Inc.
- Page 5 Wi-Fi network, reconnect or wait until the device reconnects on its own. After the process, then the user will be presented with the login screen. The installation is not complete, you may close the browser and start using your Wi-Fi network. MESH-1200-TWIN QIG | DZS, Inc.
- Page 6 Navigate to "EasyMesh" > "EasyMesh settings" and click "EasyMesh enable" if not enabled by default; select the "Controller" role and click “Save”. EasyMesh Status Navigate to "EasyMesh" > "Running Topology". The “Controller” unit will display a graphical view of the EasyMesh network, including all access points and connected devices. MESH-1200-TWIN QIG | DZS, Inc.
-
Page 7: Compliance Statement
California Proposition 65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. MESH-1200-TWIN QIG | DZS, Inc. - Page 8 Introduction This document contains domestic and international regulatory FCC Part 15: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
