Summary of Contents for WolfPack HDTV-B08

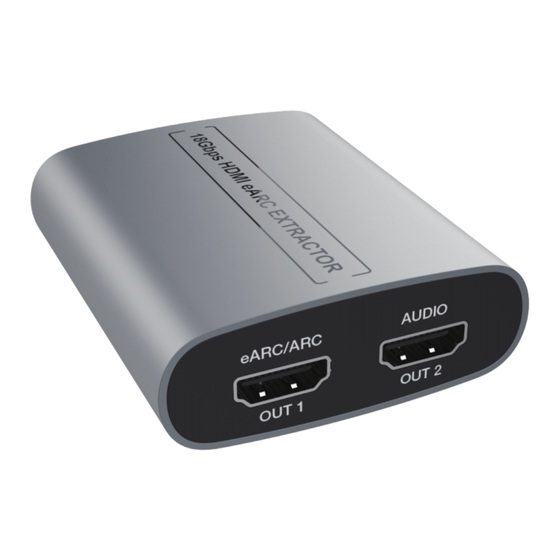

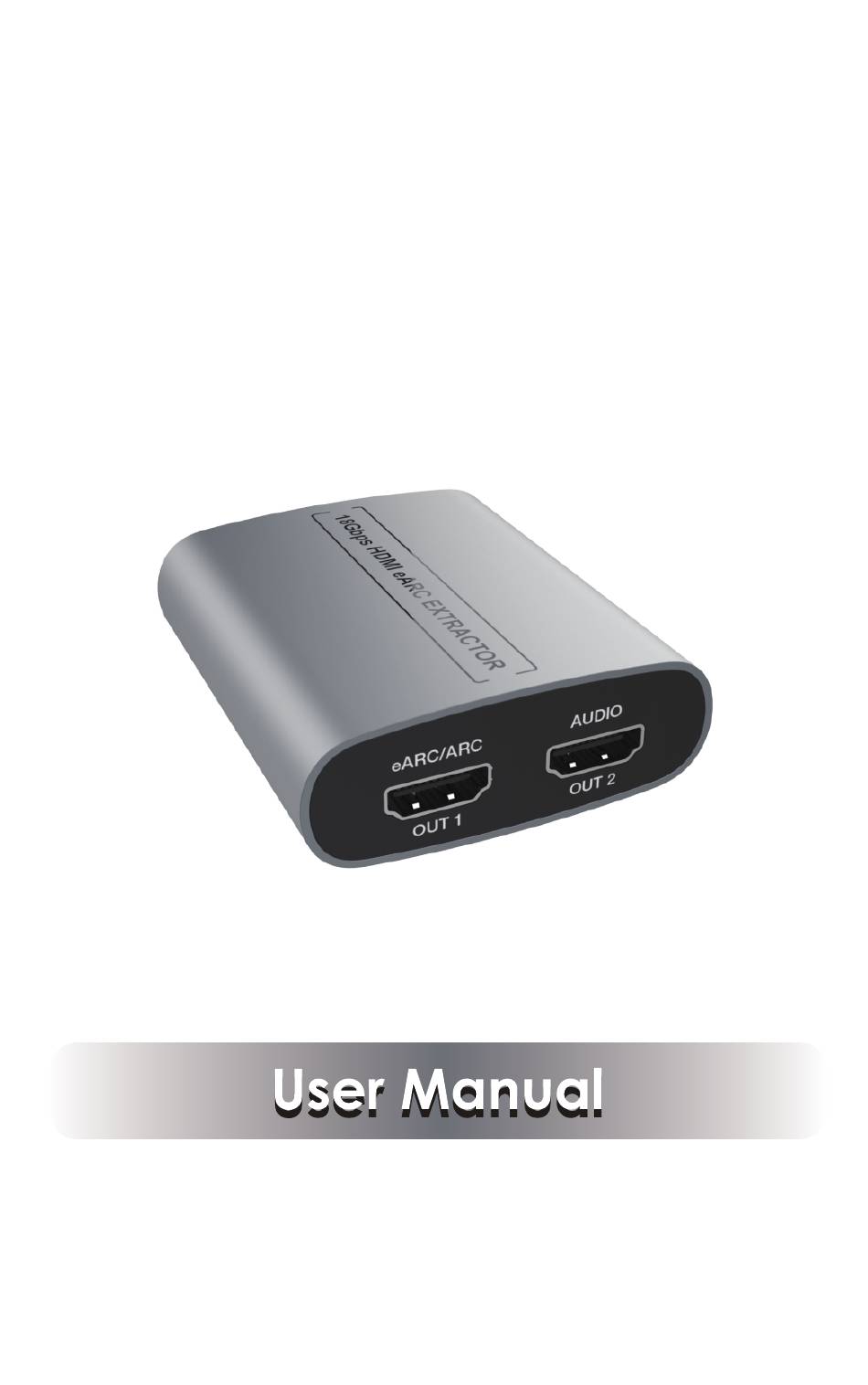

- Page 1 18Gbps HDMI eARC Extractor VER 1.0...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
1. Introduction The 18Gbps HDMI eARC audio extractor supports dedicated HDMI output for extracting audio only. It allows user to use the existing AV Receiver to receive 4K2K@60Hz, HDCP 2.3 content audio. The product also supports HDMI loop out, as well as 10bits HDR (High Dynamic Range) pass-through and eARC/ARC. -
Page 4: Package Contents
3. Package Contents ① 1× 18Gbps HDMI eARC Extractor ② 1× USB Cable (USB-A to Micro USB) ③ 1× User Manual 4. Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.3 / 1.x Video Bandwidth 18 Gbps Up to 4k2k@60Hz 4:4:4 Video Resolution 8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) - Page 5 Connection Input 1x HDMI Type A [19-pin female] Output 2x HDMI Type A [19-pin female] Mechanical Housing Aluminium Enclosure Color Silver Dimensions 65mm[W] x 70mm[D] x 27mm[H] Weight Power Supply USB 5V / 500mA Power Consumption 1.75W (Max) Operation 32 - 104°F / 0 - 40°C Temperature Storage temperature -4 - 140°F / -20 - 60°C...
-
Page 6: Operation Controls And Functions
5. Operation Controls and Functions 5.1 Left Panel 2 3 4 INPUT DC 5V eARC EDID Name Function Description Red LED will be on when the Power LED device is powered on. 1) DC 5V power supply port; DC 5V 2) Firmware update port The switch is used to turn on/off the eARC function: Switch to “ON”... -
Page 7: Right Panel
HDMI signal input port. Connect INPUT port to HDMI source device. 5.2 Right Panel eARC/ARC AUDIO OUT 1 OUT 2 Name Function Description TV eARC/ARC audio output port. eARC/ARC Connect to TV with ARC function. OUT 1 HDMI Audio output port (720p AUDIO audio only). -
Page 8: Application Example
6. Application Example DVD or Blu-ray Player USB Power Cable INPUT DC 5V eARC EDID eARC/ARC AUDIO OUT 1 OUT 2 Audio Amplifier TV with ARC function...
