ENGLISH
Easy Setup Guide
Please read this manual carefully before operating your set and retain it for future reference.
ESPAÑOL
Guía Rápida de Configuración
Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras
consultas.
FRANÇAIS
Guide de configuration rapide
Avant d'utiliser l'appareil, veuillez lire attentivement ce manuel et le conserver pour pouvoir
vous y reporter ultérieurement.
www.lg.com
43UJ6300
43UJ6350
43UJ6050
49UJ6300
60UJ6300
49UJ6350
60UJ6350
49UJ6050
60UJ6050
55UJ6300
65UJ6300
55UJ6350
65UJ6350
55UJ6050
65UJ6050
43UJ6300
49UJ6300
55UJ6300
60UJ6300
65UJ6300

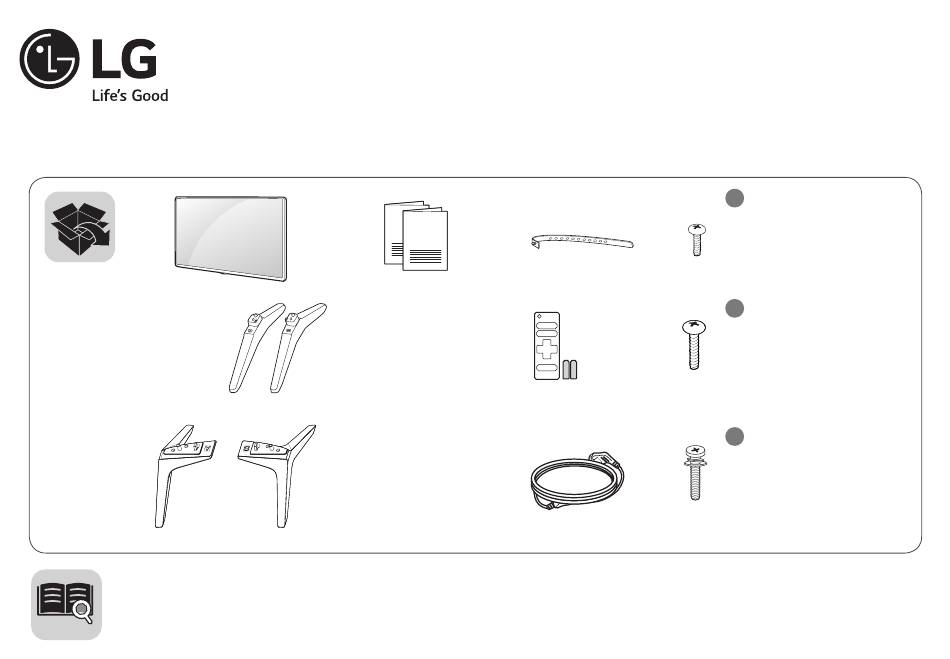

a
X 2
(M4 X L16)
43UJ6300
43UJ6350
43UJ6050
b
X 4
(M5 X L20)
55UJ6300
AAA
55UJ6350
55UJ6050
c
X 6
(M4 X L20)
60UJ6300
60UJ6350
60UJ6050
P/No: MFL69673502 (1702-REV01)
LED TV
43UJ6350
43UJ6050
49UJ6350
49UJ6050
55UJ6350
55UJ6050
60UJ6350
60UJ6050
65UJ6350
65UJ6050
X 4
(M4 X L16)
49UJ6300
49UJ6350
49UJ6050
65UJ6300
65UJ6350
65UJ6050

Advertisement

Table of Contents
loading

Related Manuals for LG 49UJ6350

Summary of Contents for LG 49UJ6350

  • Page 1 Please read this manual carefully before operating your set and retain it for future reference. 43UJ6350 43UJ6050 43UJ6300 ESPAÑOL Guía Rápida de Configuración 49UJ6350 49UJ6050 49UJ6300 Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras 55UJ6300 55UJ6350 55UJ6050 consultas.
  • Page 2 ENGLISH Read Safety and Reference. ESPAÑOL Leer Seguridad y Consultas. FRANÇAIS Lisez Sécurité et références. 43UJ6300 43UJ6350 43UJ6050...
  • Page 3 49UJ6300 / 55UJ6300 / 60UJ6300 / 65UJ6300 49UJ6350 / 55UJ6350 / 60UJ6350 / 65UJ6350 49UJ6050 / 55UJ6050 / 60UJ6050 / 65UJ6050 49UJ6300 / 49UJ6350 60UJ6300 / 60UJ6350 49UJ6050 / 55UJ6300 60UJ6050 / 65UJ6300 55UJ6350 / 55UJ6050 65UJ6350 / 65UJ6050...
  • Page 4 ENGLISH Easy TV Connect Guide (Animation) ESPAÑOL Guía Rápida de Conexión del televisor (Sólo en Inglés) FRANÇAIS Guide simplifié pour la connexion du téléviseur (Offert en anglais seulement)
  • Page 5 AV IN COMPONENT IN AV IN AUDIO R L/MONO VIDEO/Y AUDIO R VIDEO/Y L/MONO VIDEO L/MONO AUDIO R VIDEO AUDIO VIDEO L/MONO AUDIO R VIDEO L/MONO AUDIO R...
  • Page 7 (18,5) (18.2) (18,2) 43UJ6050-UC 49UJ6300-UA 1,110 1 110 81.1 81,1 11.4 11,4 11.3 11,3 1.2 A / 120 W 1,2 A / 120 W 49UJ6350-UC (43.7) (43,7) (27.7) (27,7) (9.2) (9,2) (25.5) (25,5) (3.1) (3,1) (25.1) (25,1) (24.9) (24,9) 49UJ6050-UC...
  • Page 8 For series of UJ6300 / UJ6050 Para series UJ6300 / UJ6050 Pour série UJ6300 / UJ6050 (Pour les États-Unis et le Canada) (For USA and Canada only) Ce produit est conforme aux normes (Para Estados Unidos y Canadá) ENERGY STAR® lorsque le réglage d’usine This product qualifies for ENERGY STAR®...

  • Page 9: Safety And Reference

    OWNER’S MANUAL Safety and Reference LED TV* * LG LED TVs are LCD TVs with LED backlighting. Please read this manual carefully before operating your TV and retain it for future reference. 43UJ6300 49UJ6300 55UJ6300 60UJ6300 65UJ6300 43UJ6050 49UJ6050 55UJ6050...
  • Page 10 Warning! Important Safety • Protect the power cord from being walked on or pinched particularly at plugs, convenience instructions receptacles, and the point where they exit from the apparatus. • Only use attachments/accessories specified by Read these instructions. Keep these instructions. the manufacturer.
  • Page 11 • Do not attempt to modify this product in any requirements. Do not connect too many way without written authorization from LG devices to the same AC power outlet as this Electronics. Unauthorized modification could could result in fire or electric shock.
  • Page 12 Preparing • Use only an authorized AC adapter and power cord approved by LG Electronics. Otherwise, this may result in fire, electric shock, • When the TV is turned on for the first time after malfunction, or product deformation. being shipped from the factory, initialization of •...

  • Page 13: Lifting And Moving The Tv

    Lifting and Moving the TV • Make sure that the screws are fastened tightly. (If they are not fastened securely enough, the TV may tilt forward after being installed.) • Do not fasten the screws with excessive force When moving or lifting the TV, read the following otherwise they may be worn out and become to prevent the TV from being scratched or loose.

  • Page 14: Using The Button

    Using the Button Mounting on a Table You can operate the TV functions, using the 1 Lift and tilt the TV into its upright position on a button. table. - Leave a 10 cm (4 inches) (minimum) space from the wall for proper ventilation. 10 cm (4 in c h e s ) 1 0 c m...

  • Page 15: Mounting On A Wall

    VESA (A x B) 300 x 300 be included with the wall mount. We recommend Standard screw M6 that you use an LG brand wall mount. The LG wall Number of mount is easy to adjust or to connect the cables. screws When you do not use LG’s wall mount bracket,...

  • Page 16: Connections (Notifications)

    Connections (Notifications) • When using the wall mount, it is recommended that you apply a piece of tape over the Stand holes to prevent dust and bugs from entering the holes. (Depending upon model) You can connect various external devices to the TV. Supported external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.

  • Page 17: Connecting To An Antenna Or Cable

    Connecting to an Antenna or Remote Control Cable (Some buttons and services may not be provided depending on models or regions.) Connect an antenna, cable, or cable box to watch The descriptions in this manual are based on TV. The illustrations may differ from the actual the buttons on the remote control.

  • Page 18: Open Source Software Notice Information

    (Home) Accesses the Home menu. (Pressing (Home) button displays the and holding the LG Electronics will also provide open source code previous history.) to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of (Settings) Accesses the settings.

  • Page 19: Troubleshooting

    Troubleshooting • Generated Sound - Cracking noise A cracking noise that occurs when watching or turning off the TV is • Cannot control the TV with the remote control. generated by plastic thermal contraction - Check if anything such as tape has been placed due to temperature and humidity.

  • Page 20: Wireless Module Specifications

    Wireless Module Specifications Regulatory Wireless module (LGSWFAC71) Specifications FCC NOTICE Wireless LAN (IEEE 802.11a/b/g/n/ac) Frequency Range Output Power(Max.) (For USA) 2,400 to 2,483.5 MHz 15 dBm This equipment has been tested and found to 5,150 to 5,725 MHz 14.5 dBm comply with the limits for a Class B digital device, 5,725 to 5,850 MHz 14.5 dBm...

  • Page 21: Note To Cable/Tv Installer

    FCC Radio Frequency Interference (For Canada) [For product having the wireless function using 5 Requirements (for UNII devices) GHz frequency bands] High power radars are allocated as primary users • The device for operation in the band 5150–5250 of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. MHz is only for indoor use to reduce the These radar stations can cause interference with potential for harmful interference to co-channel...
  • Page 22 WARNING! Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: • Using cabinets or stands recommended by the manufacturer of the television set.

  • Page 23: Child Safety

    CHILD SAFETY: PROPER TELEVISION PLACEMENT MATTERS THE CONSUMER ELECTRONICS INDUSTRY CARES • Manufacturers, retailers and the rest of the consumer electronics industry are committed to making home entertainment safe and enjoyable. • As you enjoy your television, please note that all televisions – new and old- must be supported on proper stands or installed according to the manufacturer’s recommendations.
  • Page 24 LG Customer Information Center Declaration of Conformity For inquires or comments, visit www.lg.com or call; Trade Name Model 43UJ6300-UA, 49UJ6300-UA, 1-800-243-0000 USA, Consumer User 55UJ6300-UA, 60UJ6300-UA, 1-888-865-3026 USA, Commercial User 65UJ6300-UA, 43UJ6050-UC, 1-888-542-2623 CANADA 49UJ6050-UC, 55UJ6050-UC, 60UJ6050-UC, 65UJ6050-UC, Register your product Online! 43UJ6350-UC, 49UJ6350-UC, www.lg.com...

  • Page 25: External Control Device Setup

    OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. www.lg.com...

  • Page 26: Key Codes

    KEY CODES KEY CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) CH +, PR + R/C Button List R/C Button CH -, PR - R/C Button Exit R/C Button Volume + R/C Button PIP(AD) R/C Button...
  • Page 27 (TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter RS-232C IN which is not made nor provided by LG. (CONTROL & SERVICE) (PC) (TV) • It can be purchased from computer stores that carry accessories for IT support professionals.

  • Page 28: Customer Computer

    EXTERNAL CONTROL DEVICE SETUP (TV) (PC) (TV) (PC) Phone jack Type RS-232C IN • You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and (CONTROL & SERVICE) (PC) (TV) the TV, which is specified in the manual. RS-232C IN (CONTROL &...

  • Page 29: Communication Parameters

    EXTERNAL CONTROL DEVICE SETUP Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA...

  • Page 30: Transmission / Receiving Protocol

    EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99.
  • Page 31 EXTERNAL CONTROL DEVICE SETUP * Commands may work differently depending on model and signal. 01. Power (Command: k a) Ack [d][ ][Set ID][ ][OK/NG][Data][x] ► To control Power *On or Off of the set. * In case of video mute on only, TV will display On Transmission[k][a][ ][Set ID][ ][Data][Cr] Screen Display(OSD).
  • Page 32 EXTERNAL CONTROL DEVICE SETUP 08. Color/Colour (Command: k i) 13. Treble (Command: k r) ► To adjust the screen Color(Colour). ► To adjust treble. You can also adjust colour in the PICTURE menu. You can also adjust in the AUDIO menu. Transmission [k][i][ ][Set ID][ ][Data][Cr] Transmission [k][r][ ][Set ID][ ][Data][Cr] Data Min : 00 to Max : 64...
  • Page 33 EXTERNAL CONTROL DEVICE SETUP 18. Equalizer (Command : j v) * Analog Antenna/Cable ► Adjust EQ of the set. [Data 00][Data 01] Channel Data Transmission [j][v][ ][Set ID][ ][Data][Cr] Data 00 : High byte channel data Data 01 : Low byte channel data - 00 00 ~ 00 C7 (Decimal : 0 ~ 199) Data 02 : Input Source (Analog) - 00 : Antenna TV (ATV)
  • Page 34 EXTERNAL CONTROL DEVICE SETUP * Analog Antenna/Cable 2. Tune to the digital antenna (ATSC) channel 30-3. Set ID = All = 00 Data 00 : Physical Channel Number Data 00 = Don’t know Physical = 00 - Antenna (ATV) : 02~45 (Decimal: 2 ~ 69) Data 01 &...
  • Page 35 11 11 EXTERNAL CONTROL DEVICE SETUP 2. Tune to the BS (ISDB-BS) channel 30. 24. Input select (Command: x b) Set ID = All = 00 (Main Picture Input) Data 00 = Don’t know Physical = 00 ► To select input source for main picture. Data 01 &...
  • Page 36 EXTERNAL CONTROL DEVICE SETUP * [Data 02], [Data 03] functions depend on model 3) When [Data 00] is 06, 07 and signal. 00 : Off 01 : On * If [Data 00] is 00 (3D On), [Data 03] has no meaning.
