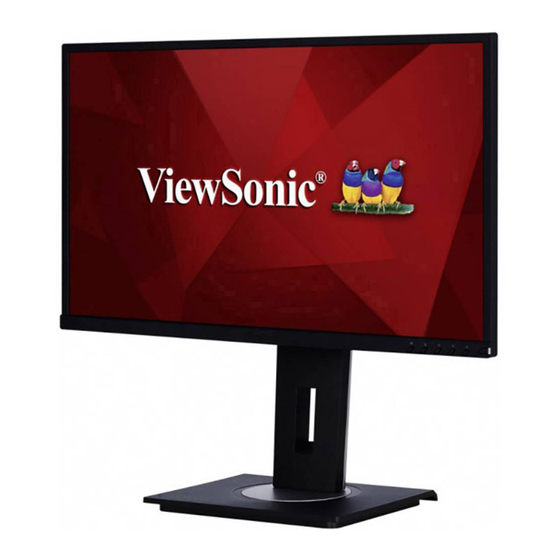

VG2448-PF
Display
User Guide
IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in
a safe manner, as well as registering your product for future service. Warranty information contained in this User
Guide will describe your limited coverage from ViewSonic® Corporation, which is also found on our web site at
http://www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right
corner of our website. "Antes de operar su equipo lea cu idadosamente las instrucciones en este manual"
Model No. VS17067
P/N: VG2448-PF

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VS17067 and is the answer not in the manual?

Questions and answers

Related Manuals for ViewSonic VS17067

Summary of Contents for ViewSonic VS17067

  • Page 1 Warranty information contained in this User Guide will describe your limited coverage from ViewSonic® Corporation, which is also found on our web site at http://www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right corner of our website.
  • Page 2 As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding the world’s expectations for technological evolution, innovation, and simplicity. At ViewSonic®, we believe that our products have the potential to make a positive impact in the world, and we are confident that the ViewSonic® product you have chosen will serve you well.

  • Page 3: Safety Precautions

    Do not place any heavy objects on the device or connection cables. • If smoke, an abnormal noise, or a strange odor is present, immediately turn the device off and call your dealer or ViewSonic®. It is dangerous to continue using the device. •...
  • Page 4 • When connecting to a power outlet, DO NOT remove the grounding prong. Please ensure grounding prongs are NEVER REMOVED. • Protect the power cord from being treaded upon or pinched, particularly at the plug, and at the point where it emerges from the equipment.

  • Page 5: Table Of Contents

    Contents Safety Precautions ............3 Introduction ..............7 Package Contents ....................7 Product Overview ....................8 Initial Setup ..............9 Installing the Stand ....................9 Wall Mounting ......................12 Using the Security Slot ..................14 Making Connections ..........15 Connecting to Power ....................15 Connecting External Devices ................16 HDMI Connection ....................
  • Page 6 Appendix ..............47 Specifications ......................47 Glossary ........................49 Troubleshooting ....................54 Maintenance......................56 General Precautions ....................56 Cleaning the Screen ....................56 Cleaning the Case ....................56 Disassembly Procedure ..........57 Recommended Spare Parts List ................58 Exploded Diagram and Exploded Parts List ............59 Product Upgradeability and Repairability ............59 Regulatory and Service Information ......

  • Page 7: Introduction

    Introduction Package Contents • Monitor • Power cord • Video cable • USB cable • Quick start guide NOTE:  The power cord and video cables included in your package may vary depending on your country. Please contact your local reseller for more information.

  • Page 8: Product Overview

    Product Overview Front View Display screen Power button (ViewMode) NOTE:  For more information about the 1 (ViewMode)/2/3/4/5 key and its functions, refer to “Hot Keys” on page 28. Rear View USB Downstream Security Slot USB Downstream DisplayPort USB Upstream HDMI port AC IN jack...

  • Page 9: Initial Setup

    Initial Setup This section provides detailed instructions for setting up your monitor. NOTE:  The monitor comes packaged in a user-friendly box to make installation easy. Installing the Stand 1. Place the box on a flat, stable surface and open the front flap of the box to reveal the contents.
  • Page 10 4. Align and slide the upper hooks of the monitor stand into the stand mounting slots as shown in the illustration below: NOTE:  Ensure the stand is secure and the quick release tab positively clicks into place.
  • Page 11 5. Using the stand’s handle, lift the device out of the box and into its upright position on a flat, stable surface. NOTE:  Always place the device on a flat, stable surface. Failure to do so may cause the device to fall and damage the device and/or result in personal injury.

  • Page 12: Wall Mounting

    Wall Mounting Refer to the table below for the standard dimensions for wall mount kits. Maximum Hole pattern Interface Pad Screw Specification Loading (W x H) (W x H x D) Hole & Quantity M4 x 10 mm 14 kg 100 x 100 mm 115 x 115 x 2.6 mm Ø...
  • Page 13 5. Attach the mounting bracket to the VESA mounting holes at the rear of the device. Then secure it with four (4) screws (M4 x 10 mm). 100 mm 6. Follow the instructions that come with the wall mounting kit to mount the monitor onto the wall.

  • Page 14: Using The Security Slot

    Using the Security Slot To help prevent the device from being stolen, use a security slot locking device to secure the device to a fixed object. Below is an example of setting up a security slot locking device on a table.

  • Page 15: Making Connections

    Making Connections This section guides you on how to connect the monitor with other equipment. Connecting to Power 1. Connect the power cord to the AC IN jack at the rear of the device. 2. Connect the power cord plug to a power outlet.

  • Page 16: Connecting External Devices

    Connecting External Devices HDMI Connection Connect one end of an HDMI cable to the HDMI port of your monitor. Then connect the other end of the cable to the HDMI port of your computer. NOTE:  The monitor is equipped with one HDMI 1.4 port.

  • Page 17: Displayport And Minidp Connection

    DisplayPort and miniDP Connection Connect one end of a DisplayPort cable to the DisplayPort or miniDP port. Then connect the other end of the cable to the DisplayPort or miniDP port of your computer. NOTE:  To connect the monitor to the Thunderbolt port (v. 1&2) on you Mac, connect the miniDP end of the “miniDP to DisplayPort cable”...

  • Page 18: Vga Connection

    VGA Connection Connect one end of a VGA cable to the VGA port of the monitor. Then connect the other end of the cable to the VGA port of your computer.

  • Page 19: Usb Connection

    USB Connection Connect one end of a USB cable to a USB port of the monitor. Then connect the other end of the cable to a USB port of your computer. NOTE:  The monitor supports two (2) types of USB ports. When making the connection(s), observe the following guidelines: •...

  • Page 20: Using The Monitor

    Using the Monitor Adjusting the Viewing Angle For optimal viewing, you can adjust the viewing angle using any of the following methods: Height Adjustment Lower or raise the monitor to the desired height (0 to 130 mm). NOTE:  When adjusting, press down firmly along the adjustment track.

  • Page 21: Tilt Angle Adjustment

    Tilt Angle Adjustment Tilt the monitor forwards or backwards to the desired viewing angle (-5° to 40°). NOTE:  • When adjusting, support the stand firmly with one hand while tilting the monitor forwards or backwards with the other hand. • The monitor must be lifted to the highest position, then it can support 40°...
  • Page 22 2. Rotate the monitor 90° clockwise or counter clockwise from landscape to portrait orientation. NOTE:  • To rotate the screen image, manually change the system’s display orientation settings. • When adjusting, make sure to hold both sides of your monitor firmly with both hands and rotate the monitor 90°.

  • Page 23: Swivel Angle Adjustment

    Swivel Angle Adjustment Swivel the monitor to the left or right for the desired viewing angle (60°).

  • Page 24: Privacy Zone

    Privacy Zone The privacy zone viewing angle is 60° horizontal (Left/Right 30°).

  • Page 25: Turning The Device On/Off

    Turning the Device On/Off 1. Plug the power cord into a power outlet. 2. Press the Power button to turn on the device. 3. To turn the device off, press the Power button again. NOTE:  The device will still consume some power as long as the power cord is connected to the power outlet.

  • Page 26: Using The Control Panel Keys

    Using the Control Panel Keys Use the control panel keys to access the Quick Menu, activate Hot Keys, navigate the On-Screen Display (OSD) Menu, and change the settings. (ViewMode) Quick Menu Press the 2/3/4/5 key to activate the Quick Menu. Viewmode Contrast/Brightness Input Select...
  • Page 27 Main Menu Exit Contrast/Brightness Adjust the contrast or brightness level. Contrast mode Brightness ast/Brightness Select Menu Input Select Select the input source. D-Sub HDMI DisplayPort Main Menu Enter the On-Screen Display (OSD) Menu. VG2448 Input Audio Adjust ViewMode Color Adjust Manual Image Setup Menu Adjust...

  • Page 28: Hot Keys

    Hot Keys Hot Keys When the On-Screen Display (OSD) Menu is off, you can quickly access special functions by using the control panel keys. When the OSD menu is off, you can quickly access special func�ons by using the control panel keys. Hot Keys NOTE: Some func�ons involve a combina�on of two keys.
  • Page 29 OSD Locked OSD Locked Description 2 + 4 Press and hold the keys to lock/unlock the Power button. 1 + 3 Press the keys to unlock/lock the Power bu�on. When the menu appears on the screen, continue holding both keys When the menu appears on the screen, press and hold both keys for 10 seconds to for 10 seconds to lock/unlock the Power button.

  • Page 30: Configuring The Settings

    Configuring the Settings General Operations 1920 X 1080@60Hz 1920 X 1080@60Hz Key Guide 1. Press the 2/3/4/5 key to activate the Quick Menu. Then press the 4 key to display the OSD Menu. VG2448 Input Audio Adjust ViewMode Color Adjust Manual Image Setup Menu Select...
  • Page 31 3. Press the 1 (ViewMode) or 2 key to select the desired menu option. Then press the 3 key to enter the sub-menu. VG2448 Manual Image Input Audio Adjust ViewMode Color Adjust Setup Menu Select Adjust Volume Mute 1920 X 1080@60Hz 4.
  • Page 32 NOTE:  Certain menu option adjustments do not require the user to press the 3 key to confirm the selection. Follow the key guide that appears on the bottom of the screen to select the option or make adjustments. VG2448 VG2448 Input Audio Adjust ViewMode...

  • Page 33: On-Screen Display (Osd) Menu Tree

    On-Screen Display (OSD) Menu Tree Main Menu Sub-menu Menu Option Input Select D-Sub (VGA) HDMI DisplayPort Audio Adjust Volume (-/+, 0~100) Mute ViewMode Office Text...
  • Page 34 Main Menu Sub-menu Menu Option ViewMode Office CUSTOM 1/2/3 Low Input Lag On/Off Black (-/+, Stabilization 0/10/20/30/40/50/ 60/70/80/90/100) Advanced DCR (-/+, 0/25/50/75/100) Response Standard Time Advanced Ultra Fast (-/+, 0~100) Green (-/+, 0~100) Blue (-/+, 0~100) Cyan (-/+, 0~100) Magenta (-/+, 0~100) Yellow...
  • Page 35 Main Menu Sub-menu Menu Option ViewMode Movie Mono Game FPS1 FPS2 MOBA Color Adjust Contrast/ Contrast (-/+, 0~100) Brightness Brightness (-/+, 0~100) Color Bluish Temperature Cool Native Warm User Color (-/+, 0~100) Green (-/+, 0~100) Blue (-/+, 0~100) Color Space Auto Color Range Auto...
  • Page 36 Main Menu Sub-menu Menu Option Manual Auto Image Adjust Image Adjust Horizontal Size (-/+, 0~100) H./V. Position Horizontal (-/+, 0~100) Position Vertical Position (-/+, 0~100) Fine Tune (-/+, 0~100) Sharpness (-/+, 0~100) Aspect Ratio Full Screen Overscan Blue Light Filter (-/+, 0~100)
  • Page 37 Main Menu Sub-menu Menu Option Setup Menu Language English Français Deutsch Español Italiano Suomi Русский Türkçe 日本語 한국어 繁體中文 简体中文 Česká Svenska Resolution Notice Information OSD Timeout (-/+, 5/15/30/60) OSD Background On OSD Pivot 0˚ +90˚ -90˚ Power Indicator Auto Power Off...
  • Page 38 Main Menu Sub-menu Menu Option Setup Menu Sleep 30 Minutes 45 Minutes 60 Minutes 120 Minutes ECO Mode Standard Optimize Conserve DisplayPort 1.2 DDC/CI Auto Detect All Recall...

  • Page 39: Menu Options

    Menu Options Input Select 1. Press the 2/3/4/5 key to activate the Quick Menu. Then press the 4 key to display the OSD menu. 2. Press the 1 (ViewMode) or 2 key to select Input Select. Then press the 3 key to enter the Input Select menu.
  • Page 40 Audio Adjust 1. Press the 2/3/4/5 key to activate the Quick Menu. Then press the 4 key to display the OSD menu. 2. Press the 1 (ViewMode) or 2 key to select Audio Adjust. Then press the 3 key to enter the Audio Adjust menu.
  • Page 41 ViewMode Menu NOTE:  The ViewMode can also be adjusted with the 1 (ViewMode) key on the control panel. 1. Press the 2/3/4/5 key to activate the Quick Menu. Then press the 4 key to display the OSD menu. 2. Press the 1 (ViewMode) or 2 key to select ViewMode. Then press the 3 key to enter the ViewMode menu.
  • Page 42 Color Adjust Menu NOTE:  Some sub-menus may not be adjustable depending on the user’s custom settings. 1. Press the 2/3/4/5 key to activate the Quick Menu. Then press the 4 key to display the OSD menu. 2. Press the 1 (ViewMode) or 2 key to select Color Adjust. Then press the 3 key to enter the Color Adjust menu.
  • Page 43 Menu Option Description Color Temperature Select the color temperature setting. • Bluish: Set the color temperature to 9300K. • Cool: Set the color temperature to 7500K • Native: The default color temperature. Recommended for regular use. • Warm: Set the color temperature to 5000K. •...
  • Page 44 Manual Image Adjust Menu 1. Press the 2/3/4/5 key to activate the Quick Menu. Then press the 4 key to display the OSD menu. 2. Press the 1 (ViewMode) or 2 key to select Manual Image Adjust. Then press the 3 key to enter the Manual Image Adjust menu.
  • Page 45 Setup Menu 1. Press the 2/3/4/5 key to activate the Quick Menu. Then press the 4 key to display the OSD menu. 2. Press the 1 (ViewMode) or 2 key to select Setup Menu. Then press the 3 key to enter the Setup Menu menu.
  • Page 46 Menu Option Description Language Select an available language for the OSD Menu. Resolution Notice Informs users that the current viewing resolution is not the correct native resolution. Resolution Notice For best picture quality, change resolution to 3840x2160 Clear Disable Message Message Press the 1 (ViewMode) key to hide the message or press the 3 key to disable this function.

  • Page 47: Appendix

    Appendix Specifications Item Category Specifications Type TFT, Active Matrix 1920 X 1080 LCD; 0.2745 (H)mm x 0.2745(V)mm pixel pitch Display Size 60.5 cm, 24" (23.8” viewable) Color Filter RGB vertical stripe Privacy Film Anti-Glare type, Hardness > H, Haze < 45% Surface Input Signal Video Sync...
  • Page 48 Do not set the graphics card in your computer to exceed these timing modes; doing so may result in permanent damage to the display. Please use the power adapter from ViewSonic® or an authorized source only. Maximum power consumption with max luminance, and USB/Speaker active.

  • Page 49: Glossary

    Auto Image Adjust Automatically adjusts the screen image for an ideal viewing experience. Black Stabilization ViewSonic’s Black stabilization provides heightened visibility and detail by brightening dark scenes. Blue Light Filter Adjusts the filter that blocks high-energy blue light for a more comfortable viewing experience.
  • Page 50 Color Range The monitor can detect the input signal color range automatically. You can manually change the color range options to fit the correct color range if the colors are not displayed correctly. Options Description Auto The monitor automatically recognizes the color format and black and white levels.
  • Page 51 Information Displays the timing mode (video signal input) coming from the graphics card in the computer, the LCD model number, the serial number, and the ViewSonic® website URL. See your graphics card’s user guide for instructions on changing the resolution and refresh rate (vertical frequency).
  • Page 52 OSD Pivot Sets the monitor’s On-Screen Display (OSD) Menu display direction. Options Description 0° Sets the OSD Menu without a pivot. +90° Sets the OSD Menu with a +90° pivot. -90° Sets the OSD Menu with a -90° pivot. Overscan Refers to a cropped image on your monitor’s screen.
  • Page 53 ViewMode ViewSonic®’s unique ViewMode feature offers “Game,” “Movie,” “Web,” “Text,” and “Mono” presets. These presets are specifically designed to deliver an optimized viewing experience for different screen applications. YUV Color Space YUV color space is used for color image and video processing; taking into account properties of the human eye that allow for reduced bandwidth of chroma components without perceptual distortion.

  • Page 54: Troubleshooting

    • Connect the monitor to another computer. • If you have an older graphics card, contact ViewSonic® for a non-DDC adapter. Screen image is too • Adjust brightness and contrast settings via the OSD light or dark Menu.
  • Page 55 Problem or Issue Possible Solutions The screen appears • Make sure the “Blue Light Filter” is Off. yellow The OSD Menu • Check whether the OSD Menu is locked. If yes, does not appear press and hold the 2 and 3 key for 10 seconds. on the screen/the •...

  • Page 56: Maintenance

    • ViewSonic® does not recommend the use of any ammonia or alcohol-based cleaners on the display screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the monitor. • ViewSonic® will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners.

  • Page 57: Disassembly Procedure

    Disassembly Procedure 1. Take out the monitor from the HDPE bage and put the monitor on a protect cushion. Use a Phillips-head screwdriver to remove four screws for unlocking the stand. 2. Use a small slot screwdriver to insert the two gaps(marked as No.1~2) on the bottom side of the rear cover to prize up the rear cover.

  • Page 58: Recommended Spare Parts List

    Recommended Spare Parts List Item Category Part Name ViewSonic P/N Supplier P/N Ref. No. In Exploded Diagram CB-00012376 50.7AA18.011 CB-00012377 50.7AA18.041 CB-00012431 50.7AA18.061 Signal Cable CB-00012438 750.A0M02.0001 CB-00012379 750.A0M02.0011 A-00009891 027.00001.0991 A-00009206 27.01518.G61 Accessories: [Adapter, A-00009286 27.01518.G71 Battery, Remote Controller,...

  • Page 59: Exploded Diagram And Exploded Parts List

    Exploded Diagram and Exploded Parts List Product Upgradeability and Repairability The following is a list of hardware features available Upgradable Repairable Replaceable for at least 5 years after the sale of the product. Main Processor(s) or SOC Memory Wireless Networking Capability Graphics Card Rechargeable Battery Fan Assembly...

  • Page 60: Regulatory And Service Information

    Regulatory and Service Information Compliance Information This section addresses all connected requirements and statements regarding regulations. Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the unit. FCC Compliance Statement This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 61: Declaration Of Rohs Compliance

    The following information is only for EU-member states: The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU (WEEE). The mark indicates the requirement NOT to dispose of the equipment as unsorted municipal waste, but use the return and collection systems according to local law.

  • Page 62: Indian Restriction Of Hazardous Substances

    Schedule 2 of the Rule. Product Disposal at End of Product Life ViewSonic® respects the environment and is committed to working and living green. Thank you for being part of Smarter, Greener Computing. Please visit the ViewSonic®...

  • Page 63: Tco Information

    TCO Information Congratulations! This product is TCO Certified – for Sustainable IT TCO Certified is an international third party sustainability certification for IT products. TCO Certified ensures that the manufacture, use and recycling of IT products reflect environmental, social and economic responsibility. Every TCO Certified product model is verified by an accredited independent test laboratory.
  • Page 64 Ergonomic, User-Centered Design Visual ergonomics in products with a display. Adjustability for user comfort (displays, headsets), acoustic performance - protection against sound spikes (headsets) and fan noise (projectors, computers), and ergonomically designed keyboard (notebooks). Electrical Safety, Minimal Electro-Magnetic Emissions Third Party Testing All certified product models have been tested in an independent, accredited laboratory.

  • Page 65: Copyright Information

    ENERGY STAR® is a registered trademark of the U.S. Environmental Protection Agency (EPA). As an ENERGY STAR® partner, ViewSonic® Corporation has determined that this product meets the ENERGY STAR® guidelines for energy efficiency. Disclaimer: ViewSonic® Corporation shall not be liable for technical or editorial errors or omissions contained herein;...

  • Page 66: Customer Service

    For technical support or product service, see the table below or contact your reseller. NOTE: You will need the product’s serial number. Country/ Region Website Country/ Region Website Asia Pacific & Africa Australia www.viewsonic.com/au/ Bangladesh www.viewsonic.com/bd/ 中国 (China) www.viewsonic.com.cn www.viewsonic.com/hk/ 香港 (繁體中文) Hong Kong (English) www.viewsonic.com/hk-en/ India www.viewsonic.com/in/...

  • Page 67: Limited Warranty

    “What the warranty excludes and does not cover” section). How long the warranty is effective: ViewSonic® displays are warranted for between 1 and 3 years, depending on your country of purchase, for all parts including the light source and for all labor from the date of the first consumer purchase.
  • Page 68 (e) the serial number of the product. • Take or ship the product, freight prepaid, in the original container to an authorized ViewSonic® service center or ViewSonic®. • For additional information or the name of the nearest ViewSonic® service center, contact ViewSonic®. Limitation of implied warranties:...
  • Page 69 Exclusion of damages: ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for: • Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of...

  • Page 70: Mexico Limited Warranty

    If a product proves to be defective in material or workmanship during the warranty period, ViewSonic® will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components &...
  • Page 71 Exclusion of damages: ViewSonic®’s liability is limited to the cost of repair or replacement of the product. ViewSonic® shall not be liable for: • Damage to other property caused by any defects in the product, damages...
  • Page 72 Name, address, of manufacturer and importers: México, Av. de la Palma #8 Piso 2 Despacho 203, Corporativo Interpalmas, Col. San Fernando Huixquilucan, Estado de México Tel: (55) 3605-1099 http://www.viewsonic.com/la/soporte/index.htm NÚMERO GRATIS DE ASISTENCIA TÉCNICA PARA TODO MÉXICO: 001.866.823.2004 Hermosillo: Villahermosa: Distribuciones y Servicios Computacionales SA de CV.
  • Page 73 C0 M91 Y72 K24 Process Color C0 M0 Y0 K100 Process Color C0 M91 Y72 K24 Process Color Pantone Black C Spot Color Pantone 187 C Spot Color...
