Visonic PowerMaster-360 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Table of Contents

V20.2 updates ..................................................... 3
1. Introduction .................................................... 4
Preface ......................................................... 4
Overview ....................................................... 4
System features ............................................ 4
Virtual Keypad Controls ................................ 6
Virtual Keypad display .................................. 8
Screen saver mode ....................................... 8
Proximity tags ............................................... 8
Users and codes ........................................... 8
Preparing to arm ........................................... 9
Arming 'AWAY' or 'HOME' ............................ 9
Disarming under duress .............................. 10
Partition selection process .......................... 10
Arming AWAY or HOME 'Instant' ................ 11
Forced arming AWAY or HOME ................. 11
Arming in latchkey mode ............................. 12
Initiating panic alarm ................................... 12
Chime ON or Chime OFF ........................... 13
Clearing the memory history ....................... 14
Problems with enrolled devices ................... 14
General Indications ..................................... 15
Correcting trouble conditions ...................... 16
4. Menus and functions ................................... 17
selecting an option ...................................... 17
the USER SETTINGS menu ....................... 19
B.4 Programming User Codes .................... 22
D-307503 PowerMaster 360 User's Guide
PowerMaster-360
Version 20.2
User's Guide
B.8 Setting the time and format ................... 28
B.9 Setting the date & format ...................... 29
reporting ...................................................... 31
option .......................................................... 37
B.14 Programming the Scheduler ................ 37
B.15 Volume Control ................................... 39
B.16 Serial number ...................................... 42
B.17 PowerLink parameters ........................ 43
Event notifications by SMS .......................... 44
Remote control by SMS ............................... 45
Looking after people at home ...................... 46
Keyfobs ....................................................... 46
7. Testing the system ....................................... 47
Periodic test ................................................ 47
Periodic test per partition ............................. 49
8. Maintenance .................................................. 51
Replacing the backup battery ...................... 51
Accessing 24-Hour zones ............................ 51
Cleaning the control panel ........................... 51
Event log ..................................................... 51
Exiting the event log .................................... 52
A1. KP-160 PG2 .......................................... 53
A2. KP-140/141 PG2 ................................... 54
A3. KF-234 PG2 .......................................... 55
Appendix B. Partitioning .................................. 56
B1. Selecting a partition ............................... 56
B3. The Show Function ............................... 56
B4. Siren ..................................................... 57
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PowerMaster-360 and is the answer not in the manual?

Questions and answers

Summary of Contents for Visonic PowerMaster-360

  • Page 1: Table Of Contents

    Proximity tags ..........8 option ............37 Users and codes ........... 8 B.14 Programming the Scheduler ....37 2. Operating the PowerMaster-360 system ..9 B.15 Volume Control ........39 Preparing to arm ........... 9 B.16 Serial number ........42 Arming ‘AWAY' or ‘HOME' ......
  • Page 2 E3. Electrical ............. 64 B5. Partition status display ......57 B6. Common areas ........57 E4. Communication .......... 64 Appendix C. Glossary ........59 E5. Physical Properties ........64 Appendix D. Home fire escape planning ..62 E6. Peripherals and Accessory Devices ..64 Appendix E.

  • Page 3: V20.2 Updates

    The installer can configure the system so that if no key is pressed for more than 30 seconds, the date and time will appear in the display when a partition is enabled. Reviewing events and alarm memory With the version 20.2 update, the text "SECURITY SYSTEM” replaces the “PowerMaster-360” text in the Resulting Display illustration and LCD screen. APPENDIX B. PARTITIONING B4.

  • Page 4: Introduction

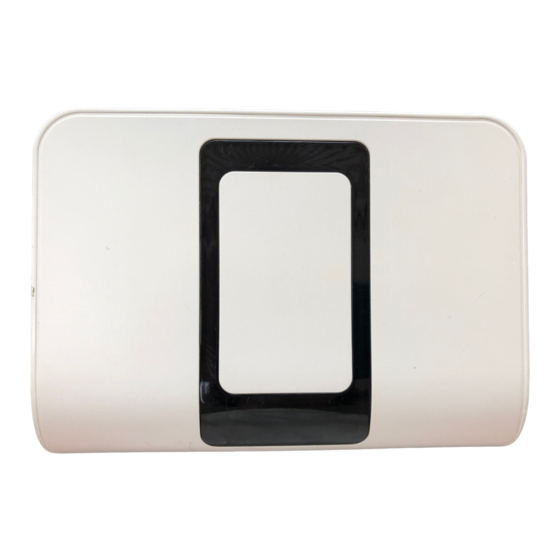

    Overview The PowerMaster-360 is a wireless alarm system for detecting and alerting in case of burglary, fire, and a variety of other security and safety hazards. In addition, it can be used to monitor the activity of disabled or elderly people left at home.
