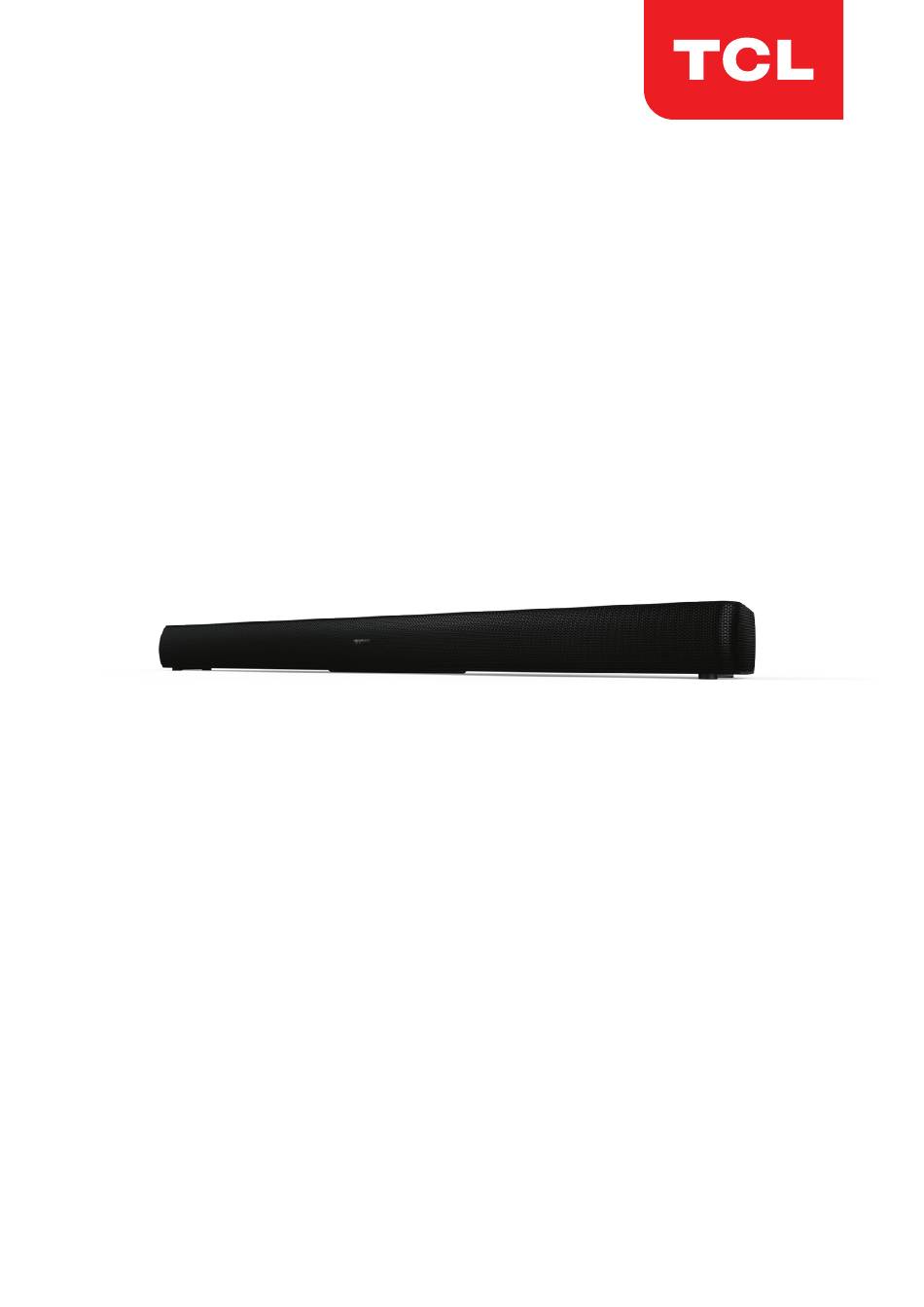

  • Page 1 2.0 Channel Home Theater Sound Bar TS5000 User manual...
  • Page 2 Product Registration Please register your purchase on-line at www.tcl.com. It will make it easier to contact you should it ever be necessary. Registration is not required for warranty coverage. Product Information Keep your sales receipt to obtain warranty parts and service and for proof of purchase.

  • Page 3: Table Of Contents

    Contents 1 Important safety instructions Important information Important safety instructions 2 Welcome What’s in the box Overview of the Sound Bar main unit Overview of the remote control Set up your Sound Bar system 3 Connect your Sound Bar system Connect with the optical cable Connect with the 3.5mm-to-3.5mm audio cable Connect your Sound Bar to power supply...
  • Page 4 6 Notice Declaration of conformity Disposal of your old product and battery Trademarks 7 FAQ...

  • Page 5: Important Safety Instructions

    1 Important safety instructions Important information CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the...
  • Page 6 product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. This symbol indicates that this product incorporates double insulation between hazardous main voltage and user accessible parts.

  • Page 7: Important Safety Instructions

    Important safety instructions Read these instructions - Read all the safety and • operating instructions before operating the product. Retain these instructions - Retain the safety and • operating instructions for future reference. Heed all warnings - Adhere to all warnings on the •...
  • Page 8 Use only attachments/accessories specified by the • manufacturer. Use only with the cart, stand, tripod, bracket, or table • specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Unplug this apparatus during lightning storms or when •...
  • Page 9 Cautions To prevent electric shock, match wide blade of plug to • wide slot, fully insert. The product shall not be exposed to dripping or • splashing. Do not place any sources of danger on the product (for • example: liquid filled objects, lighted candles). Disconnect the power cord to shut off when find trouble •...
  • Page 10 Do not dispose of batteries in fire or water. • Recycle or dispose of batteries as per state and local • guidelines. Danger of explosion if battery is incorrectly replaced. • Replace only with the same or equivalent type. When the remote control is not to be used for a long time •...
  • Page 11 the battery compartment is completely secure after you replace the battery. If the battery compartment cannot be completely secured, • discontinue use of the product. Keep out of reach of children and contact the manufacturer. Installation location This product is designed to sit on a firm, flat surface. Do • not place the product on built-in installation such as a bookcase or rack because the ventilation slots around the product will be blocked, resulting in reduced lifetime from overheating.

  • Page 12: Welcome

    2 Welcome Congratulations on the purchase of your new TCL Sound Bar! After it is set up and connected, you can experience a superb sound quality and state-of-the-art design to best fit your home entertainment system. You are recommended to read through this user manual which helps you set up, connect and operate the product easily and properly.
  • Page 13 Wall anchor x 4 Silicone pad x 2 Wall mount bracket x 2 Quick start guide Wall bracket screw (M4) Warranty Wall mounting screw (M3) x 2 Warranty card Wall mount template...

  • Page 14: Overview Of The Sound Bar Main Unit

    Overview of the Sound Bar main unit OPTICAL 10 11 Press to turn the Sound Bar main unit on or to standby mode. Press to switch the audio source among AUX/Bluetooth/Optical/USB modes. Press to select the Bluetooth function.
  • Page 15 Press to increase or decrease the volume level. Remote control sensor Receive signals from the remote control. LED indicators Red: in standby mode. Green: in AUX mode. Blue: in Bluetooth mode. Orange: in Optical mode. White: in USB mode. Wall bracket screws Optical input connector USB Type A connector (only for music playback) 10 AUX input connector...

  • Page 16: Overview Of The Remote Control

    Overview of the remote control Press to turn the Sound Bar on or to standby mode. Press to mute or unmute the sound. Source buttons - AUX/OPTICAL/USB/ Press to switch the audio source among different modes. Press to increase or decrease the volume level.

  • Page 17: Set Up Your Sound Bar System

    Sound Bar main unit on the wall (see ‘Important safety instructions’ on page 5). Make sure you use screws and wall mount brackets • provided or specified by the authorized manufacturer. TCL Entertainment Solutions Limited bears no • responsibility for accidents or damage caused by improper wall mounting and screws installation or insufficient wall strength, etc.
  • Page 18 Mount your Sound Bar main unit on the wall You can choose to place your Sound Bar main unit below the center of your TV or mount it on the wall. Place the supplied wall mount template on the wall. Make sure the wall mount template is at least 2 inches (5cm) below the center of the TV.
  • Page 19 > 5cm Insert the supplied wall anchors into 4 screw holes on the wall. Insert the supplied wall bracket screws into the wall anchors. Fix and tighten the wall bracket screws on the wall. Stick the silicone pads on the wall mount brackets when necessary to adjust the direction of the Sound Bar main unit.
  • Page 20 Replace the screws at the back of the Sound Bar main unit with the supplied wall mounting screws. 735 mm Hang the Sound Bar main unit on the wall mount brackets.
  • Page 21 Notes Check the installation location before you mount the • Sound Bar on the wall (see ‘Installation location’ on page 9). You may consider to connect the cables first before • mounting the Sound Bar on the wall. Activate the remote control The battery is pre-installed in the remote control. For first time use, remove the battery protective tab from the battery door to activate battery connection.
  • Page 22 Replace the remote control battery Warnings Danger of explosion if battery is incorrectly replaced. • Replace only with the same or equivalent type. The product/remote control may or may not contain a • coin/button type battery, which can be swallowed. Keep the battery out of reach of children at all times! Open the battery compartment and remove the old battery.

  • Page 23: Connect Your Sound Bar System

    3 Connect your Sound Bar system After you have fixed the position of the Sound Bar main unit, you can start connecting it to your TV or other devices and listen to the audio through your Sound Bar. Make sure you have muted the audio of your TV or device. For information, check the user manual of your TV or device.
  • Page 24 Do not bend or kink the optical cable (SPDIF) as it is fragile and can easily get damaged and broken. To get the best possible audio experience using the optical cable: Press the Settings button on your TCL TV remote. Navigate to Audio options. Set TV speakers to Off.

  • Page 25: Connect With The 3.5Mm-To-3.5Mm Audio Cable

    Connect with the 3.5mm-to-3.5mm audio cable You can either: • connect one end of the 3.5mm-to-3.5mm audio cable (sold separately) to the AUX input connector on your Sound Bar main unit and another end to the headphone or audio output connector on your TV or device. This will disable the sound of your TV built-in speakers;...

  • Page 26: Connect Your Sound Bar To Power Supply

    Connect your Sound Bar to power supply Make sure that you have completed all other connections before connecting the Sound Bar to power supply. Make sure the power supply voltage complies with your country’s safety standards (see ‘Specifications’ on page 39). Connect one end of a supplied AC power cord to the AC input connector on your Sound Bar main unit and another end to the power socket on the wall.

  • Page 27: Connect The Sound Bar With Your Bluetooth Device

    ➜ The blue LED flashes slowly. The Sound Bar is ready ➜ to pair. Power on your Bluetooth device and activate its Bluetooth function. Select TCL TS5000 on the pairing list of your Bluetooth device. ➜ You hear distinct double beep sounds. ➜ ➜ The blue LED remains on solidly when pairing is ➜...
  • Page 28 If you cannot find the model name TCL TS5000 on • your Bluetooth device, press and hold /PAIR on the remote control. You will see the blue LED flashes rapidly. Now the Sound Bar main unit is entering the pairing mode. TCL TS5000 Your Sound Bar system is now set up and ready to use. To disconnect the Bluetooth function, you can: • press on the Sound Bar main unit or the source buttons on the remote control to switch to another source;...

  • Page 29: Connect The Ir Pass-Through Cable

    Connect the IR pass-through cable If the Sound Bar blocks the IR receiver of the TV when placing directly in front of it, you can connect the Sound Bar and TV with the supplied IR pass-through cable so that it can receive signal from the remote control of your TV.

  • Page 30: Use Your Sound Bar System

    4 Use your Sound Bar system Use your Sound Bar with the top panel or remote control Make sure the Sound Bar is properly connected to the power supply and sources. Press on the top panel of your Sound Bar main unit or remote control to power on the Sound Bar.

  • Page 31: Sound Settings

    Note After powering on your Sound Bar, if there is no • operation performed on either the Sound Bar main unit or remote control within 15 seconds, all LED indicators on the Sound Bar main unit will turn off and light up again when the operation is resumed. You can use more advanced functions on the remote • control (see ‘Overview of the remote control’ on page 14).

  • Page 32: Listen To Music From Your Bluetooth Device

    Listen to music from your Bluetooth device Make sure that your device supports A2DP and/or AVRCP. For information, check the specification of your device. Pair your Bluetooth device with the Sound Bar main unit (see ‘Connect the Sound Bar with your Bluetooth device’ on page 25). • Start listening to music stored in your Bluetooth device through the Sound Bar.
...

  • Page 33: Use The Usb Cable Or Device For Music Playback

    Use the USB cable or device for music playback Connect the USB device to the USB Type A connector on your Sound Bar main unit. on the Sound Bar main unit or USB on the Press remote control. ➜ The white LED is on. ➜...
  • Page 34 Operation LED indicators Listen to music. The white LED is on. Press to pause the The white LED is on solidly. music. Press or to skip to the The white LED is on solidly. previous/next track...

  • Page 35: Specifications

    5 Specifications Sound Bar main unit • Power adapter: AC100-240V, 50/60Hz • Power consumption: 25W • Power consumption at standby mode: < 0.5W • Impedance: 8 Ω • Frequency response: 150 Hz-20 kHz • Dimensions (W x H x D): 800 x 66 x 84 mm •...
  • Page 36 6 Notice Declaration of conformity Hereby, TCL Entertainment Solutions Limited declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. You can find the Declaration of Conformity on www.tcl.com. Disposal of your old product and battery Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.
  • Page 37 This symbol means that the product contains a battery covered by European Directive 2013/56/EU which cannot be disposed of with normal household waste. Inform yourself about the local separate collection system for electrical and electronic products and batteries. Follow local rules and never dispose of the product and batteries with normal household waste.
  • Page 38 Trademarks Bluetooth The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by TCL Corporation under license. Other trademarks and trade names are those of their respective owners. Dolby Audio Manufactured under license from Dolby Laboratories.
  • Page 39 7 FAQ No power • Make sure the AC power cord and AC input connector are connected properly. • Make sure there is power supply. • Make sure the Sound Bar has turned on. No sound • Make sure the audio cable is connected to the Sound Bar and your device.
  • Page 40 I cannot find the Bluetooth name of this Sound Bar on my Bluetooth device. • Make sure the Bluetooth function is activated on your Bluetooth device. • Make sure the Sound Bar has paired with your Bluetooth device. For further support, visit www.tcl.com/support...
  • Page 41 HELP contact us first with any questions TAKE CARE WHEN REMOVING THE SOUNDBAR 2019 © TCL Entertainment Solutions Limited. All rights reserved. This product has been manufactured by and is sold under the responsibility of TCL Entertainment Solutions Limited. TS5000_EU_EN_UM_V1.0...
