DSAN IP-2000X Quick Start Manual

NETWORK EXTENDER
IP-2000X IP-2000XPC
Network Extender is an IP address-configurable adapter that allows multi-point control
and display of countdown time from Limitimer , speaker timer system or PerfectCue
® ®
remote cueing system.
An adapter is configured for one or the other product. It cannot be used for both.

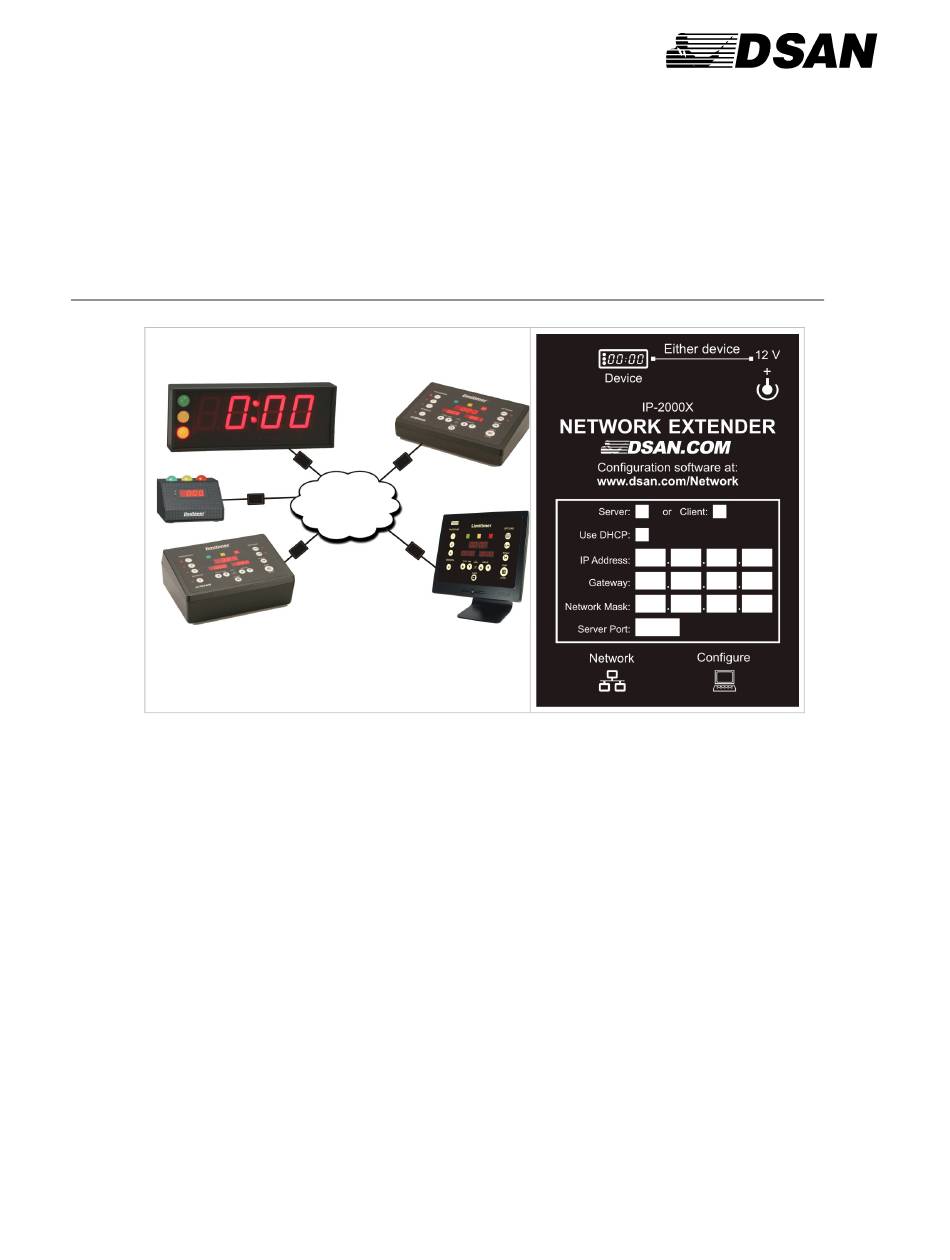

The server-configured adapter can serve client-configured adapters to drive signal
lights, slave timers or other cue lights across different networks.
Applications include video conferencing or meetings taking place across multiple
locations.

How to set up:

1. Obtain an IP address from your network administrator or select an unused IP
address within the range of a simple router (i.e. 192.168.1.85). Configure one Network
Extender with this information and set as server. Configuration is done with a
Windows software application (see http://www.dsan.com/Network) and a USB
connection to the PC. The Network Extender must be powered.
Connect Limitimer (or a signal light) or a cue light to the Network Extender using Cat-5
cable and the Network Extender to the network. Look carefully before connecting. The
Network jacks look like the signal light jacks.
