Summary of Contents for Helo OT 2 PLE

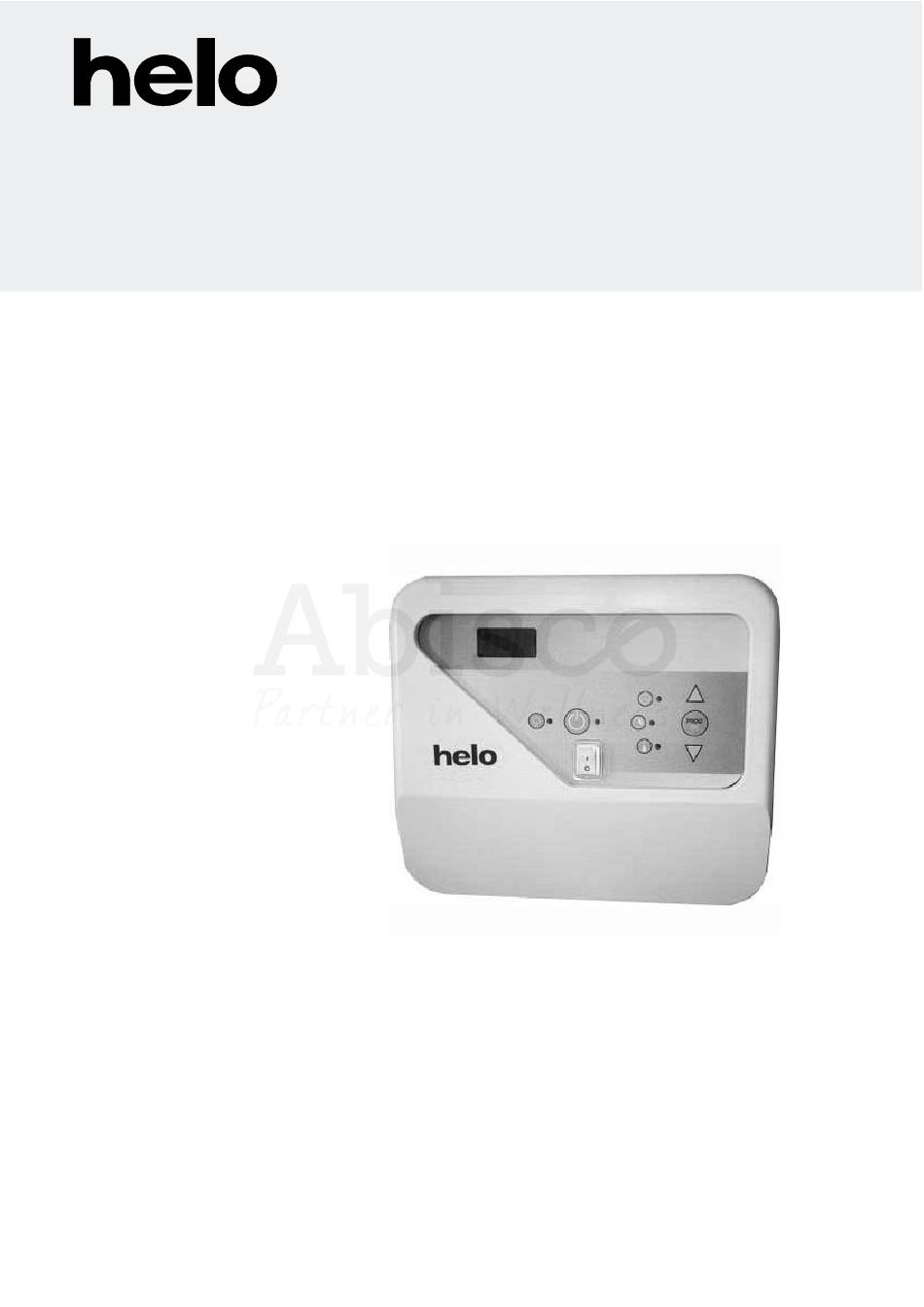

- Page 1 REWARD YOURSELF OT 2 PLE User and installation manual LAAVA Control Panel 1418 – 2 – 151105 Sensor OLET 17 314 SYOT 54 D 7014336 OT 2 PLE...
-
Page 2: High Temperature Limit
OT 2 PLE User and installation manual 1. On / Off button 2. Sauna light button 3. Pre-selection button 4. Operating time button 5. Temperature button PROG 6. Adjustment up button 7. Adjustment down button 8. Prog / OK button 9. - Page 3 OT 2 PLE User and installation manual OPERATION OF THE CONTROL UNIT Switch the control unit on using the main switch (9), located on the front panel of the unit. When you wish to begin heating the sauna, press the On/Off-button(1), leaving the unit in its basic mode. In this mode, the LED light located next to the on-off switch will remain lit.
- Page 4 OT 2 PLE User and installation manual MINIMUM DISTANCE(mm) FOR HEATER: 1714 - .. – 04 (mm) Heater Sauna room Min. distances (mm) On side In front Floor Volume Height 3 – 6 1900 5 – 9 1900 8 – 12 1900 9 –...
-
Page 5: Sensor Connection
OT 2 PLE User and installation manual MINIMUM DISTANCE(mm) FOR HEATER: 1517 - .. - 04 (mm) (mm) Heater Sauna room Min. distances (mm) On side In front Floor Volume Height min 30 min 30 1.3 – 2.5 1900 2 – 4... - Page 6 OT 2 PLE User and installation manual ROHS Ympäristönsuojeluun liittyviä ohjeita Anvisningar för miljöskydd Tämän tuotteen käyttöiän päätyttyä sitä ei Denna produkt får inte kastas med saa hävittää normaalin talousjätteen vanliga hushållssopor när den mukana, vaan se on toimitettava inte längre används. Istället ska den sähkö- ja elektroniikkalaitteiden kierrätykseen...
