Summary of Contents for Metallkraft HRB-10

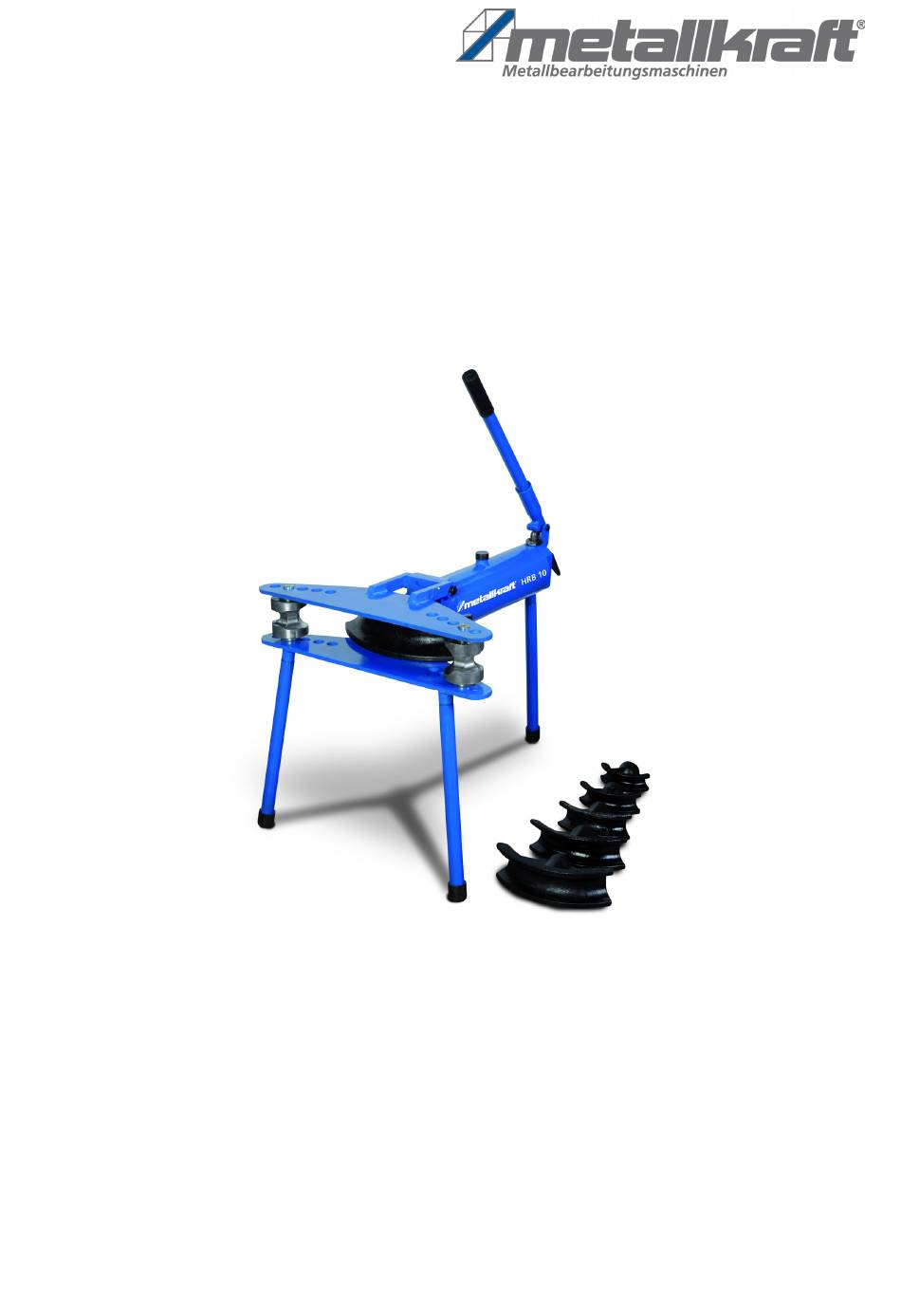

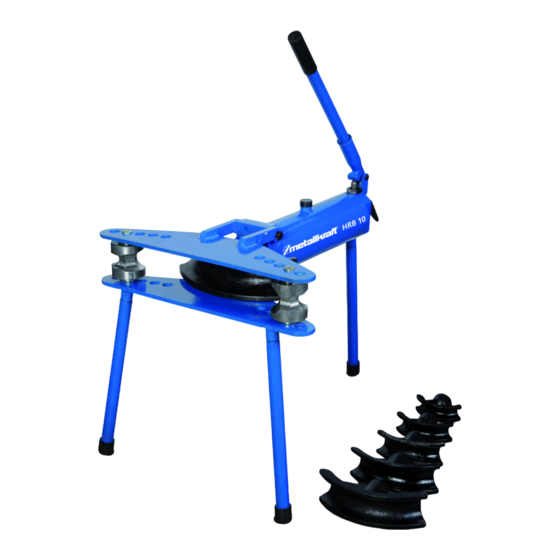

- Page 1 HYDRAULIC PIPE BENDER Model: HRB-10 OPERATION MANUAL...
- Page 2 I. SAFETY WARNINGS & CAUTIONS WARNING: When using tool, basic safety precautions should always be followed to reduce the Read all instructions before using this tool! risk of person injury and damage to equipment. 1. Keep work area clean. Cluttered areas invite injuries. 2.
- Page 3 labels on prescriptions to determine if your judgment of reflexes are impaired while taking drugs. If there is any doubt, do not operate the tool. II WORK PRINCIPLE FIGURES 1. OPERATION HANDLE 2. PLUNGER 3. SEALING O-RING 4. CYLINDER CAP 5.
- Page 4 Diameter Outside dia. Max. thickness Radius Bending angle 1/2” 21.30mm 3.25m 62mm 0-90 3/4” 26.80mm 3.50mm 78mm 0-90 1” 33.50mm 4.00mm 98mm 0-90 1-1/4” 42.30mm 4.00mm 128mm 0-120 1-1/2” 48.00mm 4.25mm 148mm 0-120 2” 60.00mm 4.50mm 187mm 0-120 IV OPERATIING INSTRUCTIONS 1.
- Page 5 9. If the truck piston (No. 11) can’t bounce back after being pressed down, you may check the oil lever to see if it complies with G.D. standard. You shall also check the spring (No. 6) to see if it is damaged. Then you may fill up the oil and change the spring. V.
- Page 6 ASSEMBLY DRAWING...
- Page 7 Imprint Product Identification Metallkraft Hydraulic Pipe Bending Machine HRB 10 Manufacturer Stürmer Maschinen GmbH Dr.-Robert-Pfleger-Str. 26 D-96103 Hallstadt Hotline: 0049 (0) 900 19 68 220 (0,49 Euro if calling from the German fixed network) Fax: 0049 (0) 951 96555 - 55 E-Mail: info@metallkraft.de...
- Page 8 www.metallkraft.de...
