Seats and Restraint System ............................. 1-1
Rear Seats
............................................... 1-2
Restraint System Check
Features and Controls ..................................... 2-1
Storage Areas
........................................... 2-2
Starting and Operating Your Vehicle
Instrument Panel ............................................. 3-1
Climate Controls
........................................ 3-2
Warning Lights, Gages, and Indicators
Driver Information Center (DIC)
Audio System(s)
....................................... 3-14

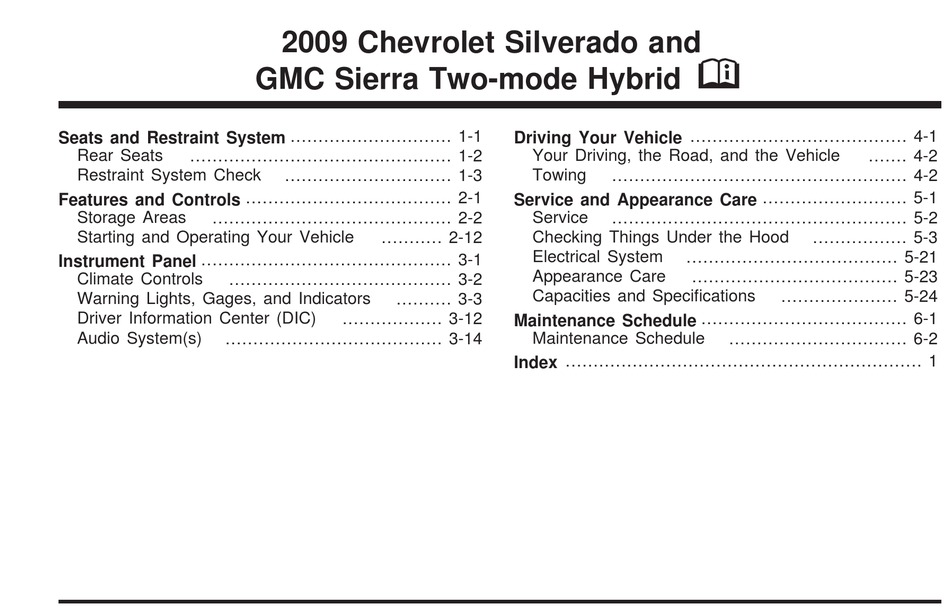

2009 Chevrolet Silverado and
GMC Sierra Two-mode Hybrid
.............................. 1-3
........... 2-12
.......... 3-3
.................. 3-12
Driving Your Vehicle ....................................... 4-1
Your Driving, the Road, and the Vehicle
Towing
..................................................... 4-2
Service and Appearance Care .......................... 5-1
Service
..................................................... 5-2
Checking Things Under the Hood
Electrical System
...................................... 5-21
Appearance Care
..................................... 5-23
Capacities and Specifications
Maintenance Schedule ..................................... 6-1
Maintenance Schedule
Index ................................................................ 1
M
....... 4-2
................. 5-3
..................... 5-24
................................ 6-2
