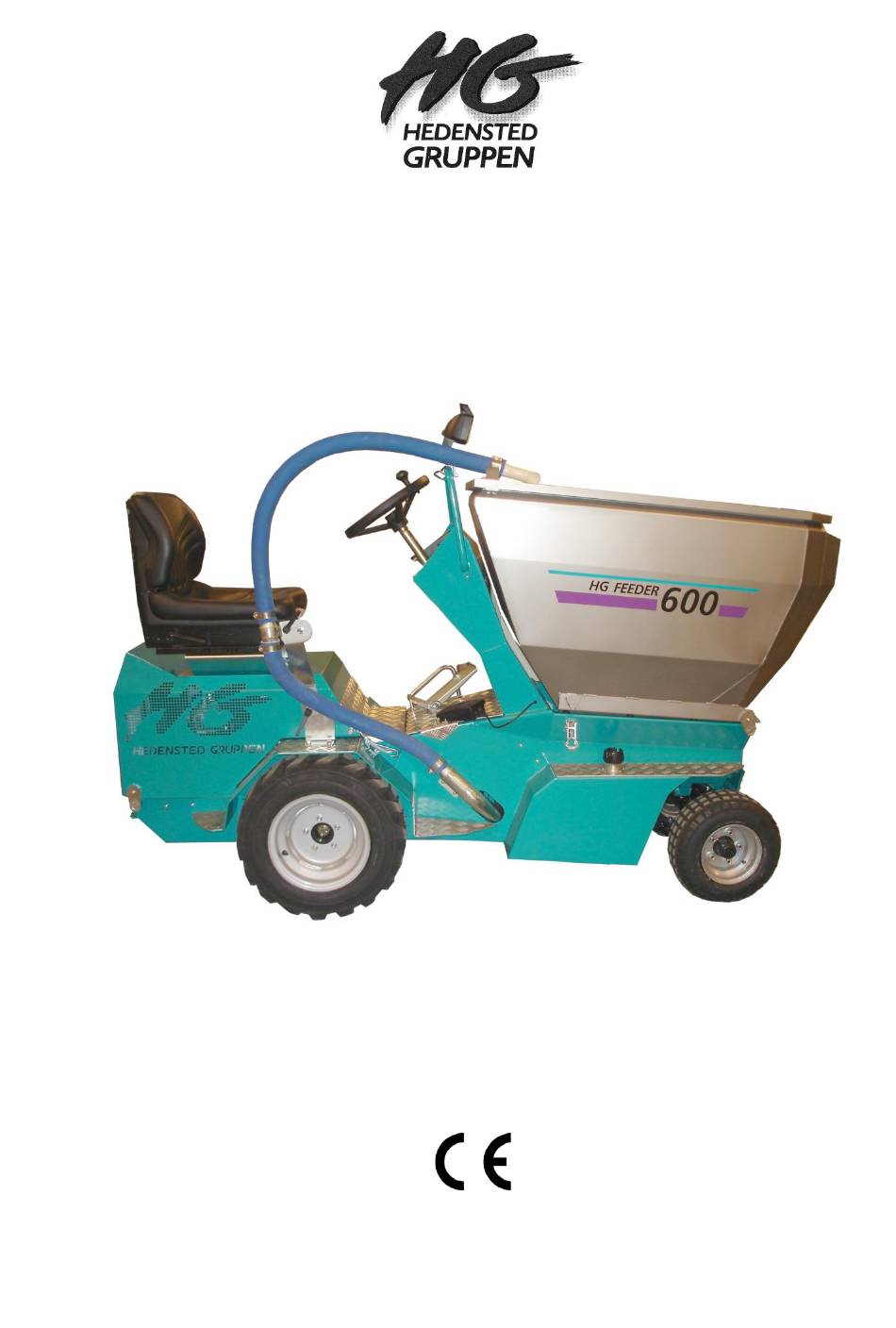

USERS MANUAL
HG FEEDER 600
3. december 2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HG FEEDER 600 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hedensted Gruppen HG FEEDER 600

  • Page 1 USERS MANUAL HG FEEDER 600 3. december 2012...
  • Page 2 Telephone 0045 75891244 Hedensted Gruppen – for professional farmers...

  • Page 3: Table Of Contents

    8. Driving and feeding ................26 9. Maintenance ..................28 9.1 Engine oil and oil filter change ............. 29 9.2 Changing diesel filters and bleeding ..........30 9.3 Cleaning/change of air filter ............30 Hedensted Gruppen – for professional farmers...
  • Page 4 10. Towing the machine................35 11. FAQ....................36 12. Hydraulic diagram................37 13. Electric diagram................. 38 14. Spare parts..................41 15. Technical data..................48 16. EC Declaration of Conformity............. 49 Hedensted Gruppen – for professional farmers...

  • Page 5: Guarantee Provisions

    The manufacturer`s guarantee does not cover these cases. Approval of claim for compensation: Provides that the defect part is shown to the manufacturer or a representative of the firm within 2 weeks after the damages is emerged. Hedensted Gruppen – for professional farmers...
  • Page 6  Operation loss and other following costs. Further Prior to the guarantee repair the manufacturer has to be contacted in order to agree on the procedure. These guarantee provisions can only be changed through separate agreement. Hedensted Gruppen – for professional farmers...

  • Page 7: Precautions

    Telephone 0045 75891244 3. Precautions Guidance in safe use of the HG Feeder 600: IMPORTANT! READ THE USERS MANUAL If you are not informed about certain details concerning this machine, there can be some risky situations. Read the users manual thoroughly before using the machine.
  • Page 8 Do not touch the wires while the engine is running. WARNING! ROTATING PARTS Rotating parts can cause serious damage. Keep hands, feet, hair and clothes away from all moveable parts. Do not use the machine without the enclosed shields and so on. Hedensted Gruppen – for professional farmers...
  • Page 9 Sudden start can cause serious damage and death. At parking and service the engine has to be stopped and the ignition key removed. WARNING! NOISE Long stay in noise can damage the hearing. Use of ear defenders is recommended. Hedensted Gruppen – for professional farmers...

  • Page 10: Training

    -Only fill in fuel outdoors. Smoking is forbidden at filling up. -Fill in fuel before starting the engine. Never remove the cover on the fuel tank or fill in fuel, while the engine is running or hot. Hedensted Gruppen – for professional farmers...

  • Page 11: Daily Control

    - That the air pressure in the tires is checked once a week. - That the running pedal easily goes to the middle position in idling. (That the machine stands still, when you let go of the running pedal). Hedensted Gruppen – for professional farmers...

  • Page 12: Operation

    Remember that the operating speed increases proportional to the press on the running pedal. It goes both forward and backward. When you leave the machine you have to remove the ignition key from the dash board. Hedensted Gruppen – for professional farmers...

  • Page 13: Operating Instruments

    Telephone 0045 75891244 4.1 Operating instruments The below shows the position of the different operating instruments on the HG Feeder 600. See the following pages for a deepening description. 1. Arbejdslampe med on/off kontakt 1 Working lamp 2. Engine operation.

  • Page 14: Engine Operation

    If you start a warm engine the lamp “preheater” does not light, and the engine can start at once. Hour meter: The hour meter tells you how many hours the machine has operated. The hour meter is activated when you start the engine. Hedensted Gruppen – for professional farmers...
  • Page 15 0. Wait 10 seconds and turn the key to position 1. The control unit tests the system and lights shortly with all the lamps. The engine is ready for a start. Hedensted Gruppen – for professional farmers...

  • Page 16: Tumbler Switches

    (Feeding computer is extra equipment). At manual running the operator steers the feeding amount manual by activating the feeding pedal. Hedensted Gruppen – for professional farmers...

  • Page 17: Feeding Computer (Extra Equipment)

    If the hand lever cannot stay in the chosen position, you tighten the center nut a little, so that the friction in the turning function is increased. Hedensted Gruppen – for professional farmers...

  • Page 18: Regulation Of Feed Amount And Water

    For adjustment of the pedal see the section “adjustment of driving comfort”. Important: At very low temperatures the braking distance can be longer until the oil is getting warm. Hedensted Gruppen – for professional farmers...

  • Page 19: Feeding Pedal

    Telephone 0045 75891244 4.9 Feeding pedal. The feeding pedal is placed to the right on the machine. The pedal has to be activated with the foot every time, there has to be pumped out feed. Hedensted Gruppen – for professional farmers...

  • Page 20: Water Tank And Water Filling Up

    6. Adjustment of driving the dash board in the left side of the comfort machine. The pump only runs when you activate the water on the tumbler switch and the feeding pedal. Hedensted Gruppen – for professional farmers...

  • Page 21: Adjustment Of Driving Comfort

    On handle 5 you can adjust the height of the feed hose. On handle 6 you can adjust the position of the feed hose in proportion to the seat. Hedensted Gruppen – for professional farmers...

  • Page 22: Check Before Start

    If the oil level is at the minimum mark you have to replenish. In order to reach the filler neck you dismount the stud to the foot pedal in the right side, then you can pull out the plate. Filling in hydraulic oil Indicator Hedensted Gruppen – for professional farmers...

  • Page 23: Fuel, Refueling

    Telephone 0045 75891244 7.3 Fuel, refueling HG Feeder 600 runs on ordinary diesel oil for internal combustion engines. Only use oil that is free of water and impurities. Unscrew the cover on the right side of the machine and fill in diesel oil.

  • Page 24: Cooling Water

    Important: Keep the filter clean. Check it anyway that the particle filter on the back of the machine is free of dirt, so that the machine gets cooling air. Lift up the filter and tilt it out below. Hedensted Gruppen – for professional farmers...

  • Page 25: Air Intake To Oil Cooler

    Check it anyway that the particle filter on the left side of the machine is free of dirt, so that the machine gets cooling air. Lift up the filter and tilt it out below. Hedensted Gruppen – for professional farmers...

  • Page 26: Driving And Feeding

    Beware that feet and legs do not overhang the machine so that they can hit something or get squeezed between cages, doors and so on. Never press the pedals standing or with your hands. Only when you are WARNING seated in the seat. Hedensted Gruppen – for professional farmers...
  • Page 27 At parking notice that even a easy sloping layer can make the machine running, at the risk of the machine itself runs out on a road or cause other damages. Park on horizontal layer and remove the key. Hedensted Gruppen – for professional farmers...

  • Page 28: Maintenance

    Telephone 0045 75891244 9. Maintenance Maintenance schedule: HG Feeder 600 OPERATION ↓ OPERATION HOURS → 2500 5000 Check Hydraulic oil level and leaks Fuel tank, hoses and leaks Engine oil level Water pump Belt tightening Engine support Exhaust Cooling water...

  • Page 29: Engine Oil And Oil Filter Change

    Telephone 0045 75891244 9.1 Engine oil and oil filter change It is recommended that Hedensted Gruppen carries out this service. Put a suitable container under the engine and remove the drain plug. Notice that there is approx. 6-7 liters of oil.

  • Page 30: Changing Diesel Filters And Bleeding

    Telephone 0045 75891244 9.2 Changing diesel filters and bleeding It is recommended that Hedensted Gruppen carries out this service. Drain plug Changing the glass filter. Turn off the oil cock. Dismount the glass by turning the swivel anticlockwise. Pull the filter down and remove the old filter.

  • Page 31: Change Of Hydraulic Oil And Hydraulic Filter

    Telephone 0045 75891244 9.4 Change of hydraulic oil and hydraulic filter It is recommended that Hedensted Gruppen carries out this service. Put a suitable container under the hydraulic tank, and remove the drain plug placed under the machine. Notice that a great amount of oil will flow.

  • Page 32: Lubrication

    9.5 Lubrication Every 100 hours the marked points on the steering gear have to be lubricated. In front At the side The bearings of the feeding pump have to be lubricated every 25 hours Hedensted Gruppen – for professional farmers...

  • Page 33: Maintenance Cleaning

    The main fuse of the electric supply mains Fuse box is placed under the foot pedal in the left side. Important: When you change a fuse, never put a bigger fuse in that the one Main fuse placed in the box. Hedensted Gruppen – for professional farmers...

  • Page 34: Tyre Pressure

    (max. 3,467 kp/cm max. 3,4 bar Truck tyre no.: 474760 max. 460 kPa (max. 4,690 kp/cm max. 4,6 bar Trelleborg lawn tyre (std.) no.:474756 325 kPa (max. 3,314 kp/cm max. 3,25 bar Front tyre no.: 474738 Hedensted Gruppen – for professional farmers...

  • Page 35: Towing The Machine

    Anti Clockwise (bottom) = Running It is important that the neutral position valve is completely closed after use, or else the inexpedient leak in the hydraulic circulation will reduce the turnout of the machine. Hedensted Gruppen – for professional farmers...

  • Page 36: Faq

    The engine misfires  Cold engine.  Air intake is glogged.  Gets false air via the injection pump.  Defect injection system.  Wrong fuel. Bad acceleration  Gets false air via the injection pump. Hedensted Gruppen – for professional farmers...

  • Page 37: Hydraulic Diagram

    Telephone 0045 75891244 12. Hydraulic diagram. Hedensted Gruppen – for professional farmers...

  • Page 38: Electric Diagram

    Telephone 0045 75891244 13. Electric diagram. Hedensted Gruppen – for professional farmers...
  • Page 39 Telephone 0045 75891244 Hedensted Gruppen – for professional farmers...
  • Page 40 Telephone 0045 75891244 Hedensted Gruppen – for professional farmers...

  • Page 41: Spare Parts

    Telephone 0045 75891244 14. Spare parts. Hedensted Gruppen – for professional farmers...
  • Page 42 Telephone 0045 75891244 Hedensted Gruppen – for professional farmers...
  • Page 43 Telephone 0045 75891244 Hedensted Gruppen – for professional farmers...
  • Page 44 Telephone 0045 75891244 Hedensted Gruppen – for professional farmers...
  • Page 45 Telephone 0045 75891244 Hedensted Gruppen – for professional farmers...
  • Page 46 Telephone 0045 75891244 Hedensted Gruppen – for professional farmers...
  • Page 47 Telephone 0045 75891244 Hedensted Gruppen – for professional farmers...

  • Page 48: Technical Data

    Q8 T520 SAE 15W-40 Hydraulic oil: Q8 ISO VG68 Coolant: Ethylenglycol Fuel: Diesel Containers and tanks: Feed container: 585 ltr. Water tank: 55 ltr. Fuel tank : 22,5 ltr. Wheel dimensions: Front wheels: LP-190-8 Rear wheels: 23x8,50-12 Hedensted Gruppen – for professional farmers...

  • Page 49: Ec Declaration Of Conformity

    Type number 250039 - is in conformity with the provision of: The Machinery Directive 2006/42/EF - and the following harmonized standards have been applied. DS/EN 12100-1:2005 DS/EN 60439-3 DS/EN 13857:2008 27. februar 2009 Hedensted d.17/8-2005 Hedensted Gruppen – for professional farmers...
