Summary of Contents for Morel Hybrid 42
- Page 1 Hybrid Installation Guide Hybrid 42, 52, 53, 62, 63 Hybrid Integra 42, 52, 62 Components MW4MKII, MW5MKII, MW6MKII, MT300, CDM700, MXR240.4, MXR250.4i, MXR300.4...
- Page 2 Thank you for choosing Morel for your car audio speaker solution. Morel prides itself on engineering and producing the best high-fidelity speaker systems. We hope you enjoy your Hybrid speakers for years to come. If you have any questions, please contact your Morel dealer or Morel support at www.morelhifi.com...

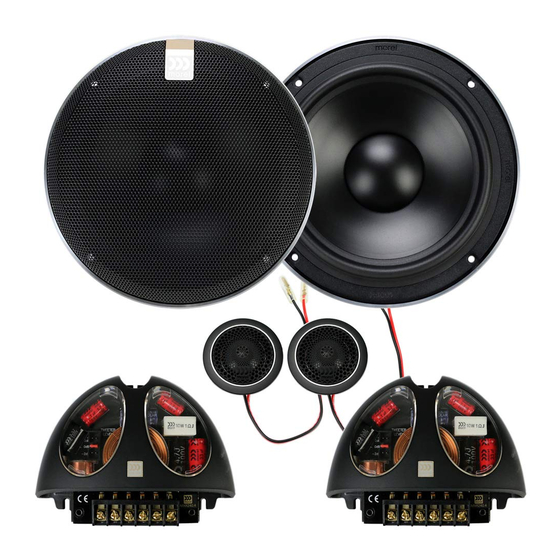

- Page 3 Hybrid Components Hybrid , . Hybrid , . , . Woofer , . Integra (5.25”) (6.5”) (5.25”) (6.5”) (4”) (4”) MT300 Tweeter CDM700 Midrange MXR240.4/250.4i/300.4 SURFACE OPTIONS...
- Page 4 Hybrid Woofer/Integra, Tweeter, Crossover mounting Unit , . Crossover mounting 6.5”: ø141mm (5.55”) 4”: ø 95mm (3.74”) 5.25”: ø 120mm (4.72”) MT300 Tweeter CDM700 Midrange Flush Mount Use the screw clips in any combination, with or without the plastic frame. These clips can be used either way up or down depending CLICK on installation requirements.
- Page 5 2-WAY System 2-WAY System Alignment 2-WAY System Wiring ACTIVE SET UP Tweeter Use the red jumper Highpass to determinate the tweeter +/- dB level Lowpass Woofer Recommended Active Crossovers 2-Way Component Systems Tweeter HP: 2,500Hz @ 12dB or 24dB slope Woofer LP: 2,500Hz @ 12dB or 24dB slope PASSIVE SET UP TWEETER...
- Page 6 3-WAY System 3-WAY System Wiring 3-WAY System Alignment ACTIVE SET UP (Outputs must be filtered) Tweeter Use the red jumper to determinate the tweeter +/- dB level Highpass Bandpass Midrange Lowpass Woofer Recommended Active Crossover Tweeter HP: 2,500Hz @ 12dB slope Midrange LP: 2,500Hz @ 12dB slope Midrange HP: 500Hz @ 12dB slope Woofer LP: 500Hz @ 12dB slope...
- Page 7 Integra System Hybrid Integra System Wiring Hybrid Integra System Alignment ACTIVE SET UP Use the red jumper to determinate the tweeter +/- dB level Tweeter Highpass Lowpass Woofer Recommended Active Crossover Tweeter HP: 2,500Hz @ 12dB or 24dB slope Woofer LP: 2,500Hz @ 12dB or 24dB slope PASSIVE SET UP TWEETER WOOFER...
- Page 8 HYBRID INTEGRA 62 TWEETER / MIDRANGE MT300 CDM700 CROSSOVER MXR240.4 MXR250. i MXR300.4 Morel, Ness Ziona, 70400 Israel. Morel America, Chandler, AZ, USA Tel: +972-8-9301161 Toll free number:1-877-667-3511 Fax: +972-8-9301312 Fax: 1-718-721-1560 E-mail: info@morelhifi.com E-mail: info@morelamerica.com w w w . m o r e l h i fi . c o m...
