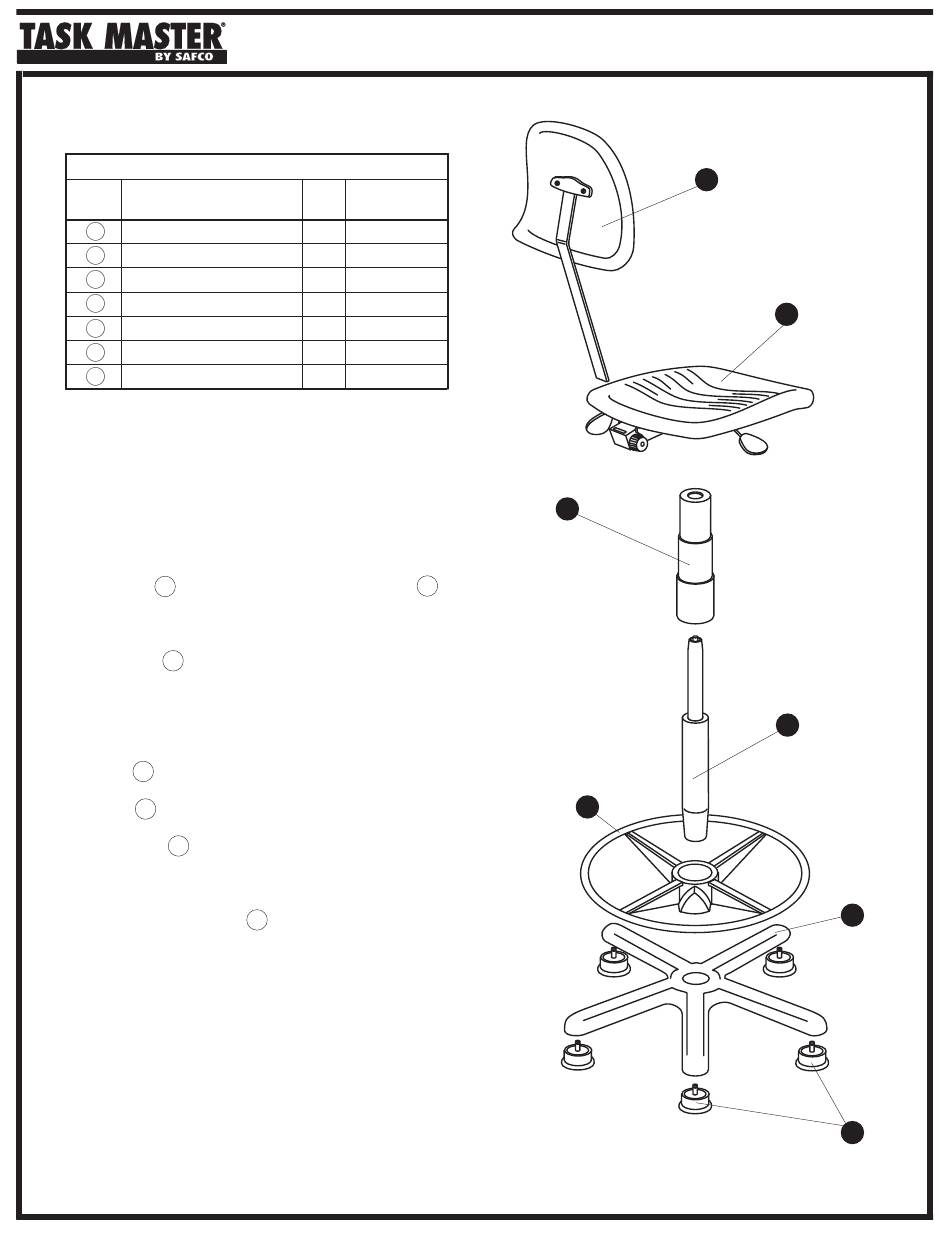

ASSEMBLY INSTRUCTIONS
READ THESE INSTRUCTIONS BEFORE STARTING;
FOLLOW THE ASSEMBLY PROCEDURES CAREFULLY.
LETTER
DESCRIPTION
CODE
A Glide
B Base
C Cylinder
D Foot Ring
E Dust Cover (3 pc set)
Seat Assembly
F
G Back Assembly
TOOLS REQUIRED: SCREWDRIVER
PRODUCT WARRANTY REGISTRATION
is available online at: www.safcoproducts.com
Check all parts against Parts List before
beginning assembly. Allow all parts to warm to
room temperature prior to assembly.
1
Install a A Glide into each of the legs of the B
Base. Press firmly into place. Be sure the glide is
inserted completely into leg for proper stability.
2
Insert the C Cylinder into the base, tapered end
down. Secure the cylinder by applying a little down-
ward pressure (CAUTION: When applying downward
pressure, avoid plastic button at top of cylinder, as
pressure will release pneumatic lift)
3
Slide D Foot Ring on to cylinder (ring side up),
position at desired height. Turn knob to secure.
Place E Dust Cover over exposed cylinder.
4
Install the F Seat Assembly by aligning the hole on
the underside with the shaft of the cylinder; push down
firmly on seat.
5
Insert the stem of the G Back Assembly into the slot
at the back of the seat. Use a screwdriver to depress
the push button at the bottom of the stem and slide
until the stem goes all the way through the slot and
sticks out the other side about 2". It may be necessary
to rotate the knob at the back of seat assembly
counterclockwise so stem will slide all the way through
the slot. Rotate the knob clockwise to lock the stem.
6
Make the final chair adjustments following the
instructions on the reverse side.
5113-37MP: 1 of 6; Rev. 3; 9/06

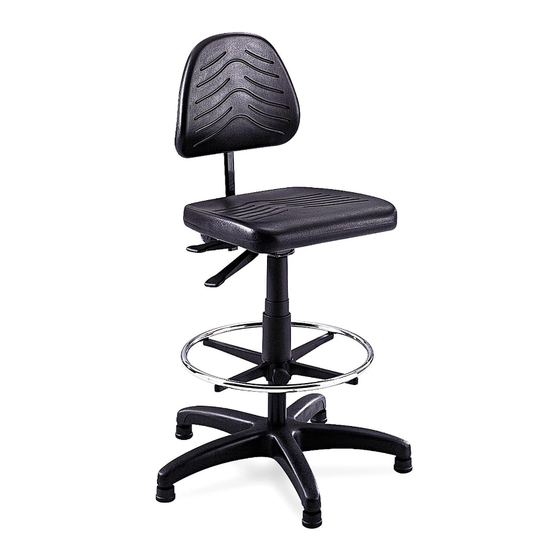

INDUSTRIAL CHAIR (19"-27" Range)
PARTS LIST
QTY. PART NO.
5 5110-25
1 5100-04
1 5110-11
1 5110-06
1 5110-14
1 5113-51
1 5113-52
G
E
D
Registered U.S. Patent D381,823
MODEL
5113
NUMBER
F
C
B
A
8000.02
