●Product Feature
Innovative Aluminum
With stainless steel heating system, built-in UV sterilization tube,
Pull-out water cup for easy operation
Unique vapor arm with aluminum finish, with 180 degree angle adjustment
Sensor touch control, microcomputer control,3-level vapor adjustment, auto water level
detection.
Water level alarm system to avoid heating system or heating tube buring
●Function:
1) Soften the dead cells on the surface skin for the next cleaning treatment.
2) Stretch skin pore for deep cleaning.
3) Permeate into the skin pore, Soften the cumulated oil dirt, blackhead, cosmetic remain and dirt, which
make the next cleansing treatment more efficient.
4) Help the skin pore to exclude toxin.
5) Soften wrinkle temporarily.
6) It can accelerate blood circumfluence, add water to cell, and improve the metabolism and
self-regeneration of skin cell.
7) Applying the proper Chinese herbal medicine during the steam treatment, it can improve the effect of
curing acnes, black spot and whiten, nourish skin.
With aromatherapy treatment,stimulating the partial nerve and nursing the physical function in
effective way.
●Specifications and Technical Data:
Product Name
Item No.
Function
Rated
Voltage/Power
Working
Frequency
Dimension
N.W
●Packing list:
Product Description
Item
Host machine
Roof
(magnifying
glass bracket)
components

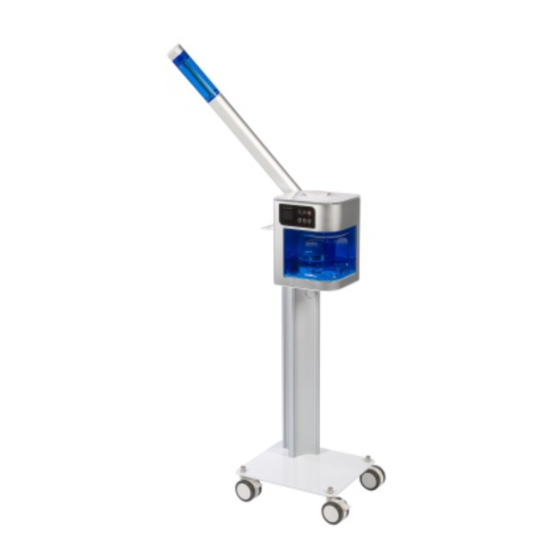

H1108 Facial Steamer
style appearance with leading structure design,
Micro-Computer Fragrance herbs Facial
steamer
H1108
Ion spray Facial Steamer
AC. 100-120V/750W
AC. 220-240V/800W
50/60HZ
89X41X32.5CM
17KG
QTY
Item
Herbal
1
Cover
Belt brake
1
casters
1
Product Description
QTY
1
2

Advertisement

loading
Need help?

Need help?

Do you have a question about the H1108 and is the answer not in the manual?

Questions and answers

Summary of Contents for Havit H1108

  • Page 1 H1108 Facial Steamer ●Product Feature style appearance with leading structure design, Innovative Aluminum With stainless steel heating system, built-in UV sterilization tube, Pull-out water cup for easy operation Unique vapor arm with aluminum finish, with 180 degree angle adjustment Sensor touch control, microcomputer control,3-level vapor adjustment, auto water level detection.
  • Page 2 Without belt Roof brake casters 17# open M10 allen spanner wrench φ10 Spring 19# open gasket spanner φ12 Spring φ10 flat gasket gasket M10×25 Hex cylinder head φ12 flat gasket machine silk 1 pcs power wire M12 Cover Instruction Manual Standing ●Steamer Structure Description Spray Arm...
  • Page 3 ● Host machine Description Herbal Net 2. Add enough water to cover 3. LED Lamp with Water Cup 5. Host Handle 6. Control Panel Spray arms ring 8. Starter 9. Insurance header 10. Hot plate operative ring 11. Hot plate 12.
  • Page 4 ●Assembly Instruction : Step 1: install the floor and roof components (attachment) 1.install the casters to the Standing: First, put the casters on φ12 spring washer, φ12 flat gasket, then insert into the base plate (pay attention to that the belt brake casters installed in the front and put a φ12 flat gasket after tighten M12 cover up .
  • Page 5: Usage Instruction

    Sprayer panel Instruction: 1. working window 2. time decreasing key 3. Adjust Energy Key 4. time increasing key 5. warming vapor start key 6. ozone star key 7. power Working window Instruction: 1. water cup working display area 2. warning display area 3.
  • Page 6 As the follow picture 1 the Spray arm can adjust right and left 150 degrees. As the follow picture 2 the shower nozzle can adjust 360 degrees. Pay attention not to adjust too hard. 3.add water to the host machine: Please lift up the cover, put water to the water cup.
  • Page 7 2.Press the button to turn on the host machine, the screen show the welcome menu, enter the language selection screen, then press button to choose the language. The host machine will enter the standby mode Default time display window show “15”minutes Energy display window show maximum level “Ozone “display area show “...
  • Page 8 6、Turn on the Ozone function Press the to turn on the Ozone function, the Ozone symbol of ozone indication area are blue, when the ozone working. There are ozone smell with the vapor 7、Water level alarm system The water level detection system work during the hot vapor temperature reservation system on, when the water stay in the normal status ,the host machine heat continuously ;when the water level beyond the lowest water level, the host machine will turn off...
  • Page 9 again until burnout the heating system. The host machine will return to normal working condition after adding water for 1-3 minutes. ●Warning! 1. It’s forbid to put oily material into water cup or herbal net; it may cause the problem of water spray. 2.
