INSTRUCT13
REV140909 D/SM

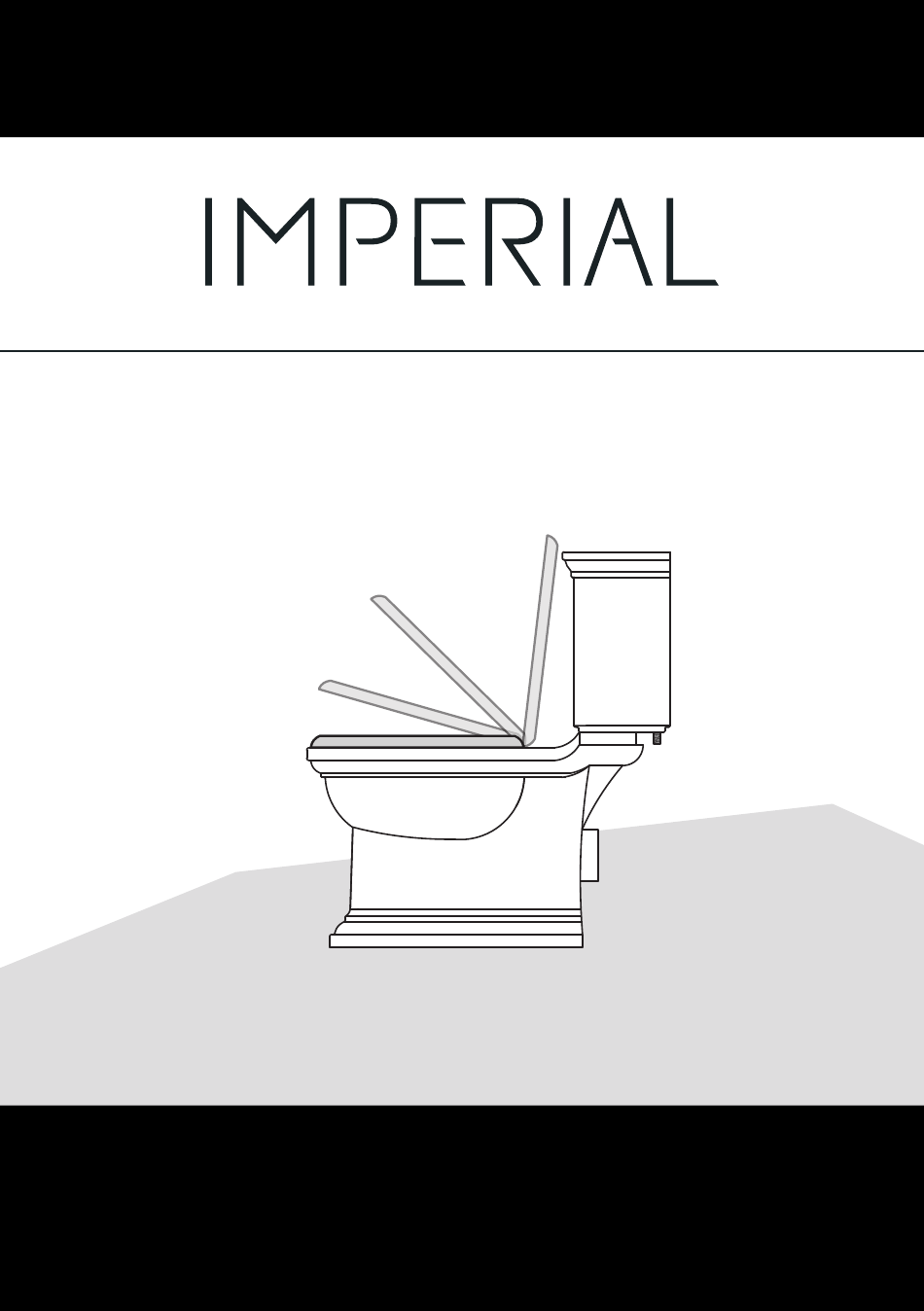

Toilet Seat Installation Instructions
Important Information:
Please check the products for transport damage and that contents are complete before
installation. Consult a qualified plumber if you have any problems installing this
product. Complaints made following installation regarding the above cannot be accepted.
Advertisement
Table of Contents
Related Manuals for Imperial Carlyon XT50000342NSB
Summary of Contents for Imperial Carlyon XT50000342NSB
- Page 1 INSTRUCT13 REV140909 D/SM Toilet Seat Installation Instructions Important Information: Please check the products for transport damage and that contents are complete before installation. Consult a qualified plumber if you have any problems installing this product. Complaints made following installation regarding the above cannot be accepted.
- Page 2 Assembly Instructions Soft Close Seat Installation Fixings included: SPRING TOGGLE CLIP (x2) ALLEN SCREW TOP FIX PACK TO BE USED ON BACK TO WALL PANS AND STANDARD PANS ALLEN SCREW SPRING TOGGLE CLIP...
- Page 3 How to intall the seat using spring toggle clip Fix the allen screw into the toggle Push the allen screw Tighten the allen screw with collar and push through the hole until the spring loaded the allen key provided to on the top of the toilet pan.
- Page 4 Assembly Instructions Standard Hinge Seat Installations Tools required for installation: NOTE: It is important to tighten the fixings fully. Place the seat onto the fixings and adjust until the seat is located in a satisfactory position. HINGE DISK LARGE WASHER CERAMIC SMALL WASHER WING NUT...
- Page 5 INSTALLER, PLEASE DO NOT REMOVE FROM SEAT, THIS IS FOR THE END CUSTOMER CARE OF YOUR HANDMADE SEAT Thank you for purchasing your Imperial toilet seat. You have just acquired a high quality and expensive piece of furniture and are...
- Page 6 Cleaning and Care Instructions 1. To clean use a damp cloth only. 2. Do not use any neat chemicals and under no circumstances use any form of acid or alkaline cleaners (such as lime-scale removers) as these will damage the plating on the metalwork. 3.
- Page 7 Notes Notes...
- Page 8 The Imperial Bathroom Company Limited England www.imperial-bathooms.co.uk Tel: +44 (0)1922 743074 Fax: +44 (0)1922 743180 Email: sales@imperial-bathrooms.co.uk...
