Qtx RP12 User Manual

Qtx RP12 User Manual

12-channel dmx relay pack
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

The 12CH DMX RELAY PACK can be controlled by DMX 512 console. Each output socket is controlled individually by one
relay. It can be widely applied to entertainment hall, stage, social club and indoor building decoration.

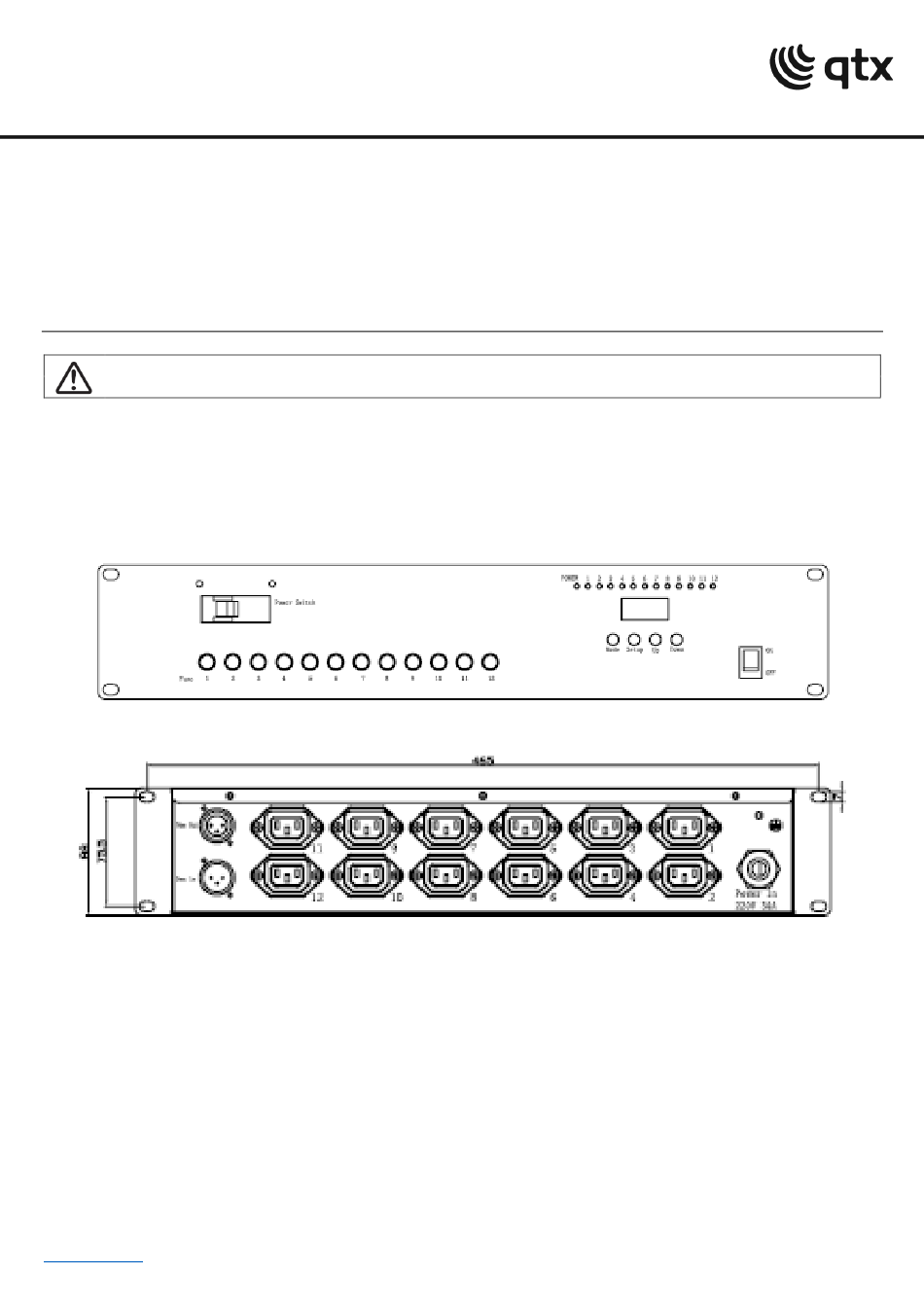

Front view:
Rear view:
- LED digital display for DMX addressing and work mode setting
- universal DMX512 (1990) multiplexed digital control
- DMX and Stand Alone operation modes
There are two modes of operation:
DMX: Either: 1, 2, 3, 6 or 12 channel.
Manual control mode.
Each mode can be selected by first pressing the MODE button followed by the UP / DOWN buttons and SET to confirm.
Each of the modes is displayed below:
www.avsl.com
Caution: Please read this manual carefully before operating
Damage caused by misuse is not covered by the warranty
12-Channel DMX Relay Pack
Item ref: 154.113UK
User Manual
154.113UK User Manual
RP12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RP12 and is the answer not in the manual?

Questions and answers

Summary of Contents for Qtx RP12

  • Page 1 RP12 12-Channel DMX Relay Pack Item ref: 154.113UK User Manual Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty The 12CH DMX RELAY PACK can be controlled by DMX 512 console. Each output socket is controlled individually by one relay.
  • Page 2 Control Panel Menu MODE manual SET UP UP/DOWN instruction manual manual Address Sets the DMX starting address DMX MODE The unit occupies 1 channels The unit occupies 2 channels The unit occupies 3 channels Channels The unit occupies 6 channels The unit occupies 12 channels 12 output sockets occupy 1 channel 12 output sockets occupy 2 channels...
  • Page 3 DMX mode You can control devices individually via the sliders on your DMX-controller. Each of the values is listed below :1 channel mode CH No. DMX value Function 000~010 CLOSE(No.1- 12 OUTPUT SOCKET) 011~255 OPEN(No.1-12 OUTPUT SOCKET) :2 channels mode CH No.
  • Page 4 :12 channels mode CH No. DMX value Function 000~010 CLOSE(No.1 OUTPUT SOCKET) 011~255 OPEN(No.1 OUTPUT SOCKET) 000~010 CLOSE(No.2 OUTPUT SOCKET) 011~255 OPEN(No.2 OUTPUT SOCKET) 000~010 CLOSE(No.3 OUTPUT SOCKET) 011~255 OPEN(No.3 OUTPUT SOCKET) 000~010 CLOSE(No.4 OUTPUT SOCKET) 011~255 OPEN(No.4 OUTPUT SOCKET) 000~010 CLOSE(No.5 OUTPUT SOCKET) 011~255...
