Carbon Series
Owner's Manual

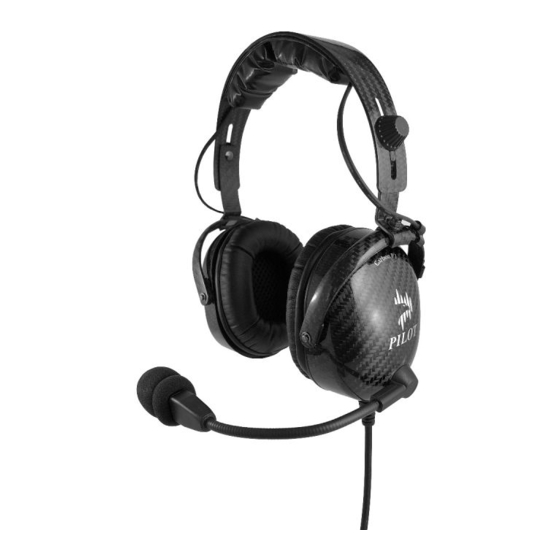

We believe our CARBON P1 is the lightest Passive headset available. Our technology and
comparison testing show it to be an unbeatable value. It contains more features than any other
Passive headset currently available. This exceptional unit has a passive noise attenuation of 23 dB. It
takes advantage of closer tolerance mil-spec components for a more stable and efficient
performance. Also available is a panel mounted and helicopter version.
A soft air-foam head pad makes the CARBON P1 very comfortable, which virtually eliminating hot
spots. The protein leather ear seals rest easily against your ears providing more comfort and noise
attenuation than any other type of seal. The 8 oz weight is one of the lightest muff style Passive
headsets manufactured today.
Passive: 23 dB
Auto Shut-Off
Mono / Stereo Capability
Protein Leather Ear Seals
Air-foam Head Pad
Adjustable "Memory" Flexible Microphone Boom
Auxiliary Audio Interface: Music, Checklists, Warnings
CARBON P1
"Our Premier CARBON P1 Headset"
Features
1
Custom Padded Protective Case
Noise Canceling Electret Microphone
Foam Mic Windscreen Cover
Dual Volume Control
Usage Time: 25hours with two AA
battery
Weight: 8 ounces
Three-Year Warranty

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Carbon Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Pilot Communications Carbon Series

  • Page 1 CARBON P1 Carbon Series Owner’s Manual “Our Premier CARBON P1 Headset” We believe our CARBON P1 is the lightest Passive headset available. Our technology and comparison testing show it to be an unbeatable value. It contains more features than any other Passive headset currently available.

  • Page 2: Table Of Contents

    Additional Models CARBON P1/B Bose (6 pin) Plug Version ® CARBON P1/H Helicopter Plug Version Table of Contents Introduction Features Additional Models Fitting Your Headset Microphone Placement Volume Control Mono / Stereo Selector Switch LED on Controller Module Protein Leather Ear Seals Taking Care of Your Headset Custom Padded Carrying Case Microphone Windscreen...

  • Page 3: Fitting Your Headset

    3.0 Fitting Your Headset Wearing your headset properly is paramount in achieving both comfort and the best performance possible. The headset should be placed on your head and slowly pulled down so that each ear cup is properly positioned over the ears. It should apply slight pressure on your head without being to snug.

  • Page 4: Taking Care Of Your Headset

    USB-C and auxiliary audio cord. 5.2 Microphone Windscreen Pilot Communications USA recommends periodically replacing the microphone windscreen if necessary. The foam microphone windscreen helps eliminate the popping “P” s and “T” s and annoying breath puffs when you’re communicating with the headset.

  • Page 5: Controller Module Description

    5.5 Controller Module descriptions 2. Right Volume 1. Left Volume 3. Power Indicator LED 4. On/Off 6. BT Volume Up 5. Play/Pause/Hold/Siri 7. Previous 8. Forward 9. BT Volume Down 10. Bluetooth Indicator LED 11. BT Pairing/Request 12. BT Music: Mute/Mix/Off 16.
  • Page 6 Buttons: 1) Intercom volume left 2) Intercom volume right 3) Power indicator LED 4) Power: press to turn on 5) Music play/pause: click once to pause or play, (For Siri hold for 3 sec) 6) Bluetooth volume + 7) Music pre 8) Music next 9) Bluetooth volume - 10) Bluetooth indicator...
  • Page 7 ¨ Both two devices search “Pilot BluLink” click “connect”, two devices will be connected with headset, the code is 0000 • One is new and one is paired before ¨ First to ignore the “Pilot BluLink” from device list ¨ Press more than 1 second, to turn on the Bluetooth, Bluetooth indicator flashes blue light, the headset is connected ¨...

  • Page 8: Technical Specifications

    § when users make or answer phone call through headset: short blue flash v Auto shut off switch Switch “ON” § • If device does not connect with intercom, headset will auto off in five minutes if there is no music if music plays, then headset will be auto off in 60 minutes. Some people forget to switch headset off when they leave airplane.
