Mifare Classic Installation And Operation Manual

Technical specifications of the Locker lock Freelocker
Mechanical specification Weight per Set
Equipment class as per
Electrical specifications
Directive 1999/5/EC
HF radiation output
Frequency band
Battery type
Ambient conditions Operating temperature
Relative humidity operation
Disposal
Danger!
The electronics of the Locker lock Freelocker contains a lithium-ion battery.
Dispose of this battery in accordance with national regulations.
When disposing of partly discharged batteries, ensure that no accidental short circuits can occur
between the poles of the battery (for example due to key fob in pocket of clothing...): danger of
explosion and fire.
Fasten the partly discharged battery for transport using non-conductive adhesive film in such a
way that no short-circuits can occur.
Important!
Separate electronics of the Locker lock Freelocker from the other parts and dispose of in ac-
cordance with local regulations and directives.
Warranty conditions
This product was designed and manufactured carefully. At the moment of purchase the warranty
amounts 12 months for material and manufacturing failures. The warranty starts with the date of
purchase for 12 months. The product can be exchanged prior to certification of the proof of purch-
ase.
The warranty conditions are limited to costfree exchange of the product or repair. Costs
and risks caused by transport, installation or de-installation of the product and all other costs
caused by the repairing will not be compensated. Liability for consequential loss—no matter which
type—are strictly excluded.
Congratulations on your purchase of the Locker lock Freelocker with
With this decision you have acquired locking technology with which you can lock and
secure furniture without a key but nevertheless in a controlled, safe way
The user's manual must be accessible for operators.
In addition, general and local regulations on accident
Important! prevention and environmental protection are to be obser-
ved.
General safety instructions
Important!
If the door is closed when starting up or changing the battery without inserting the battery, the
door cannot be opened via radio signals: it is necessary to break the door open.
Follow the exact instructions for installation and start-up of the radio systems and replacement of
the batteries. Remove the flat battery and to prevent a malfunction, wait at least 30 seconds
before inserting a new battery. Observe correct polarity (+/-) at the battery case and the
battery
itself.
At the bottom of the battery compartment and at the battery the polarity (+ / -) is indicated. Locks
with inserted battery never keep immediately adjacent to each other and also keep away the data
storage medium, as otherwise the battery will discharge.
Important!
During installation of the lock and strike plate, ensure that the door is not pre-stressed and
stresses are not transferred to the locking system. There is a risk that the latch can no longer
open  malfunction.
Avoid doors which are pre-loaded with a rubber profile.
Intended use
Authorised opening of an electronic lock in wooden furniture with an encoded chip. This chip can
be in the form of an ID-card (cheque card format) or key fob. Function of the lock is only warran-
ted when mounted on not conductive materials (wood, plastic). The reading distance is dependent
on the transponder design (with Mifare® technology, we recommend the passport form). The max.
thickness of the material must not exceed 15-20 mm. If used with higher material thickness or
metal doors or doors with metal coatings an external antenna must be used.
Forseeable misuse
Use of the lock in explosive environments. Use of the lock outside of the stipulated specifications.
For damage resulting from incorrect use the customer bears sole responsibility, the manufacturer
accepts no liability whatsoever.
Conversions or modifications
Any type of modification to the Locker lock Freelocker is not permitted.
The electromagnetic conduct of the Locker lock Freelocker may be impaired by additions or
modifications of any kind.
Therefore do not carry out any modifications or additions to electric/electronic components.
Replacement and wear parts and process materials
The use of replacement parts from third-party manufacturers may lead to dangers. Use only
original parts or parts approved by the manufacturer.
Complete Set 200 Gramm
Class 2
max. 66 dBµA/m at 10m
13,56 MHz
CR 123A 3V
+5°C bis +35°C (41°F to 95°F)
20% bis 75% (not condensing)
Mifare®
technology.
.

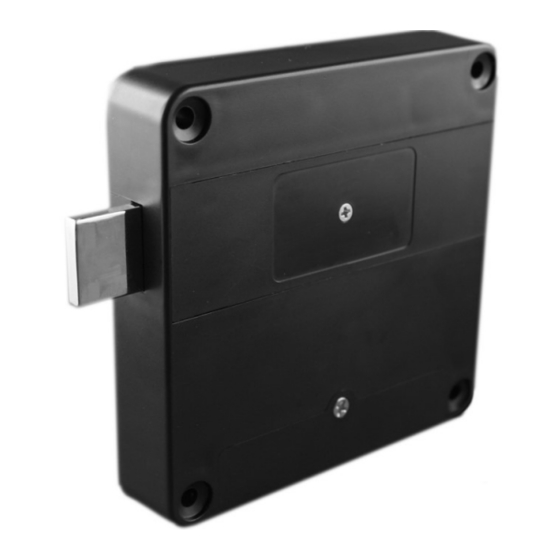

Locker lock Freelocker
13,56 MHz Mifare® Classic
 Contactless and invisible identification with 13,56 MHz frequency
 Compatible with Transponder Mifare Classic 1K und 4K (UID)
 Use with revolving doors, flaps and drawers in the furniture sector
 Simple programming, using programming card
 Up to 3 programming cards and 1 user transponder per lock (Freelocker)
 Up to 15 000 openings with one battery
 Programming card and transponder, please order separately
 „Segment Cleaner" to clear the information on the transponder to be ordered separately
 RFID read range depending on transponder and installation situation

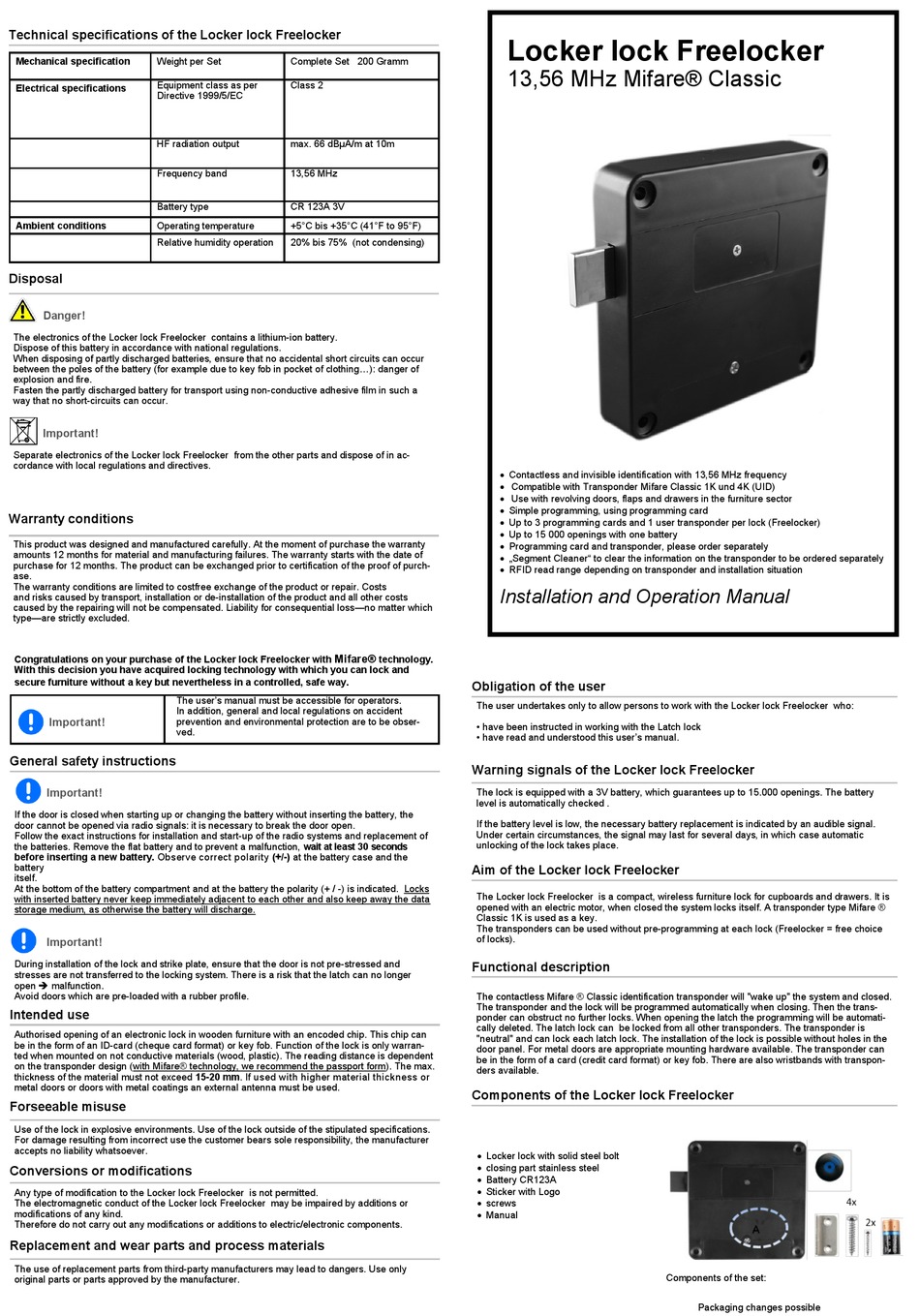

Installation and Operation Manual
Obligation of the user
The user undertakes only to allow persons to work with the Locker lock Freelocker who:
• have been instructed in working with the Latch lock
• have read and understood this user's manual.
Warning signals of the Locker lock Freelocker
The lock is equipped with a 3V battery, which guarantees up to 15.000 openings. The battery
level is automatically checked .
If the battery level is low, the necessary battery replacement is indicated by an audible signal.
Under certain circumstances, the signal may last for several days, in which case automatic
unlocking of the lock takes place.
Aim of the Locker lock Freelocker
The Locker lock Freelocker is a compact, wireless furniture lock for cupboards and drawers. It is
opened with an electric motor, when closed the system locks itself. A transponder type Mifare ®
Classic 1K is used as a key.
The transponders can be used without pre-programming at each lock (Freelocker = free choice
of locks).
Functional description
The contactless Mifare ® Classic identification transponder will "wake up" the system and closed.
The transponder and the lock will be programmed automatically when closing. Then the trans-
ponder can obstruct no further locks. When opening the latch the programming will be automati-
cally deleted. The latch lock can be locked from all other transponders. The transponder is
"neutral" and can lock each latch lock. The installation of the lock is possible without holes in the
door panel. For metal doors are appropriate mounting hardware available. The transponder can
be in the form of a card (credit card format) or key fob. There are also wristbands with transpon-
ders available.
Components of the Locker lock Freelocker
 Locker lock with solid steel bolt
 closing part stainless steel
 Battery CR123A
 Sticker with Logo
 screws
 Manual
Components of the set:
Packaging changes possible
