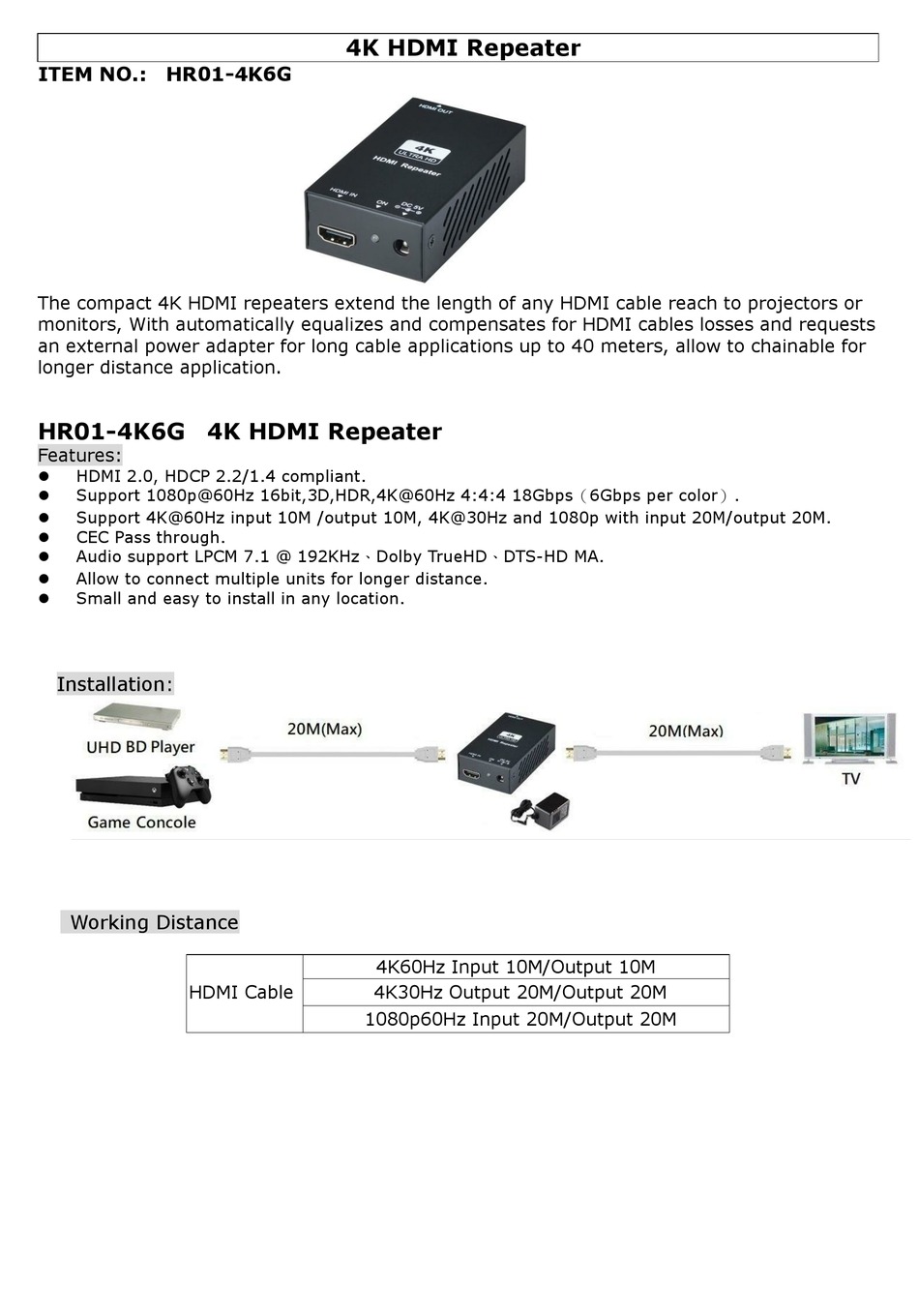

ITEM NO.: HR01-4K6G
The compact 4K HDMI repeaters extend the length of any HDMI cable reach to projectors or
monitors, With automatically equalizes and compensates for HDMI cables losses and requests
an external power adapter for long cable applications up to 40 meters, allow to chainable for
longer distance application.
HR01-4K6G 4K HDMI Repeater
Features:
HDMI 2.0, HDCP 2.2/1.4 compliant.
Support 1080p@60Hz 16bit,3D,HDR,4K@60Hz 4:4:4 18Gbps（6Gbps per color）.
Support 4K@60Hz input 10M /output 10M, 4K@30Hz and 1080p with input 20M/output 20M.
CEC Pass through.
Audio support LPCM 7.1 @ 192KHz、Dolby TrueHD、DTS-HD MA.
Allow to connect multiple units for longer distance.
Small and easy to install in any location.
Installation:
Working Distance
HDMI Cable
4K HDMI Repeater
4K60Hz Input 10M/Output 10M
4K30Hz Output 20M/Output 20M
1080p60Hz Input 20M/Output 20M
Advertisement
Table of Contents
Summary of Contents for AVR HR01-4K6G
- Page 1 With automatically equalizes and compensates for HDMI cables losses and requests an external power adapter for long cable applications up to 40 meters, allow to chainable for longer distance application. HR01-4K6G 4K HDMI Repeater Features: HDMI 2.0, HDCP 2.2/1.4 compliant.
- Page 2 Panel View: LED Indication: Green: Power on/off HR01-4K6G Package: HR01-4K6G DC 5V 1A Adapter User Manual Caution: Under 4K60 Hz mode, must use Premium certified HDMI cable to insure the reliability. Specification: ITEM NO HR01-4K6G HDMI Input HDMI Type A x 1...
