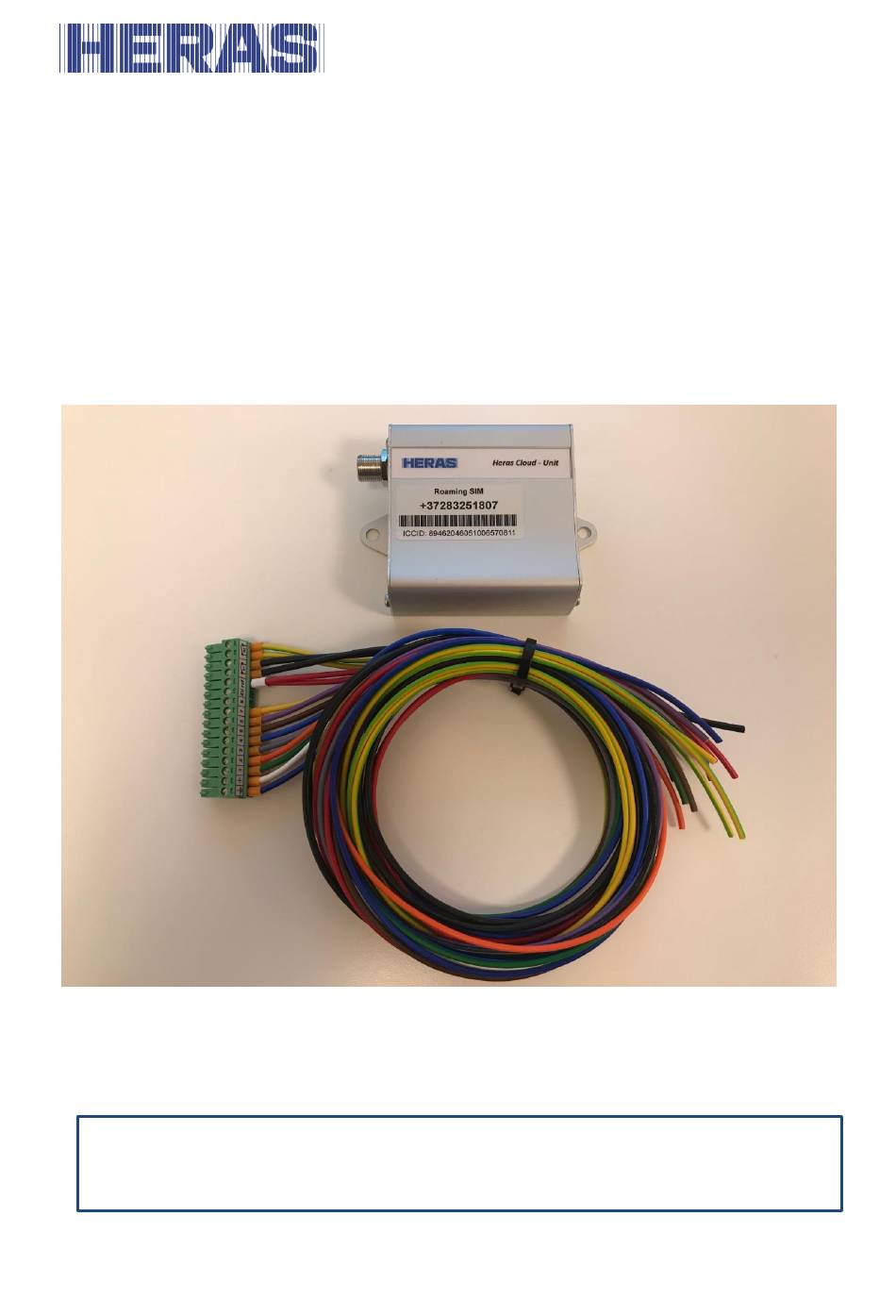

- Page 1 Heras Cloud Unit on B700 Read this installation manual before connecting the Heras Cloud Unit to the B700! Act according to the manual and keep it in a safe place. EN – Translation of the original installation manual - 1.0 | 2020...
- Page 2 EN – Translation of the original installation manual - 1.0 | 2020...
-
Page 3: Table Of Contents
CONTENTS FOREWORD ......................4 THE HCU ON THE B700 ..................5 CONNECTIONS TO THE B700 ................5 POSITIONING THE UNIT, MAGNET AND CONTACT ..........6 ACTIVATING THE UNIT ..................9 USE OF THE QR CODE ..................9 USE OF THE WEBLINK ................... 11... -
Page 4: Foreword
FOREWORD With this installation guide you can correctly commission and configure the Heras Cloud Unit. To ensure that the user receives the correct information via the Heras Cloud Portal, it is mandatory to follow these instructions. Read this installation manual carefully before using the turnstile and the Heras Cloud Unit. -
Page 5: The Hcu On The B700
THE HCU ON THE B700 Make sure you make the connections according to the instruction below. Because the Heras Cloud Unit uses a predefined template, it is mandatory to connect it ex- actly as indicated. CONNECTIONS TO THE B700 EN – Translation of the original installation manual - 1.0 | 2020... -
Page 6: Positioning The Unit, Magnet And Contact
B700 Wire color Description Signal levels Note - CT Dark blue (-) GND 0 VDC Power - 24 VDC + CT White (+) 24V DC 24 VDC Power + In 1 2, 4 Green Cycle counter Inactive / +24V Including diodes... - Page 7 Unit on inside of the cover: EN – Translation of the original installation manual - 1.0 | 2020...
- Page 8 Magnet on lid and case: EN – Translation of the original installation manual - 1.0 | 2020...
-
Page 9: Activating The Unit
Scan the QR code using the camera of your mobile phone. The browser opens a web form in which the telephone number of the HCU is already entered. If the HCU is already activated, you will be redirected to Heras Connect, where you can log in to gain access to the HCU. - Page 10 Unit name: Enter Site name + location + gate description; this is how the unit will be shown in the Heras Cloud Portal. For example: DPD Leeds main gate or Amazon Man- chester barrier 1. This name must be clear to both the customer and us.
-
Page 11: Use Of The Weblink
Enter the country in which the unit will be installed. Tim zone: Select the time zone if there is more than one. Terms of agreement: Accept the conditions that are available on the Heras website. Activate: Click to activate the HCU. - Page 12 Local supplier stamp...
