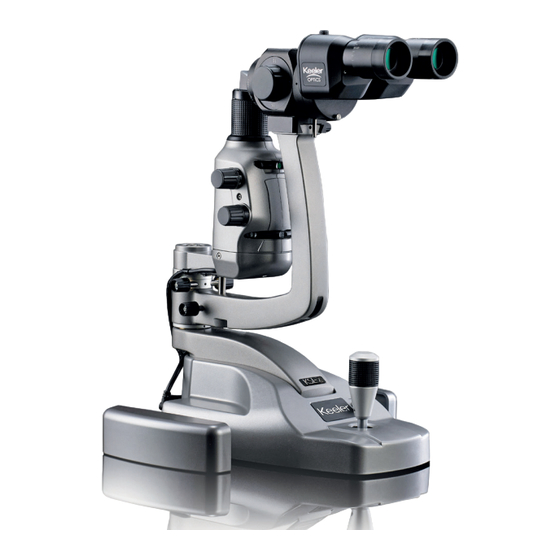

- Page 1 SLIT LAMP INSTRUCTIONS FOR USE Z Series A world without vision loss...
-
Page 3: Table Of Contents
KSL-Z by KEELER CONTENTS INDICATIONS FOR USE ..................3 SAFETY ......................... 3 PHOTOTOXICITY ..........................3 WARNINGS AND CAUTIONS ......................4 CONTRAINDICATION ........................5 CLEANING AND DISINFECTION INSTRUCTIONS ............ 5 NAMES OF CONTROLS AND COMPONENTS ............6 ASSEMBLY ......................8 TABLE TOP AND BASE ASSEMBLY PROCEDURE ................8 ILLUMINATION TOWER ASSEMBLY PROCEDURE ................9... - Page 4 Use-by date Serial number Catalogue number Medical device Translation The Keeler Slit Lamp is designed and built in conformity with Directive 93/42/EEC, Regulation (EU) 2017/745 and ISO 13485 Medical Devices Quality Management Systems. Classifi cation: CE: Class I FDA: Class II The information contained within this manual must not be reproduced in whole or part without the manufacturer’s...
-
Page 5: Indications For Use
Brief description of the instrument This Keeler Slit Lamp can either be mounted onto a custom table top supplied by Keeler or can be mounted on a third parties table top (refraction unit) by suitably trained technicians. The Keeler Slit Lamp consists of 5 assemblies; illumination tower; observation system; XYZ translation base;... -
Page 6: Warnings And Cautions
Please note that the proper and safe functioning of our instruments is only guaranteed if both the instruments and their accessories are exclusively from Keeler Ltd. The use of other accessories may result in increased electromagnetic emissions or reduced electromagnetic immunity of the device and may lead to incorrect operation. -
Page 7: Contraindication
• Ensure the instrument or instrument table is placed on a level and stable surface. • Use only genuine Keeler approved parts and accessories or device safety and performance may be compromised. • Shut down after every use. In case the dust cover is used: risk of overheating. -
Page 8: Names Of Controls And Components
KSL-Z by KEELER 3. Surfaces must be carefully hand-dried using a clean non- shedding cloth. 4. Safely dispose of used cleaning materials. 4. NAMES OF CONTROLS AND COMPONENTS Headrest Assembly 1. Fixation light cable 2. Forehead rest band 3. Patient’s eye height marker 4. - Page 9 KSL-Z by KEELER 20. Joystick base locking knob 21. Joystick control (X Y Z movement) 22. Illumination control rheostat 23. Axle 24. Runner covers 25. Z type tonometer mounting hole 26. Yellow fi lter knob (up = out) 27. Lock for securing magnifi cation body 28.
-
Page 10: Assembly
The refraction stand, combi unit or table leg must be IEC 60601-1 compliant. If you are fi tting or have fi tted your Slit Lamp to a medical or Keeler table leg / base ensure it is situated on a fi rm and level fl oor. -
Page 11: Illumination Tower Assembly Procedure
KSL-Z by KEELER Runners 5.2 ILLUMINATION TOWER ASSEMBLY PROCEDURE 1. Remove the hex bolt (a) from the base of the Illumination tower, and then place the illumination tower on the Slit Lamp base with the base notch (b) and pin (c) aligned. -
Page 12: Cable Attachment Procedure
9.4 Power Supply page 20. 2. If the Keeler Slit Lamp is used with a power supply or cables other than those supplied, this may result in increased emissions or decreased immunity of the Keeler Slit Lamp in relation to EMC performance. -
Page 13: Fitting Applanation Tonometers, T Type And Z Types
Right eye Left eye Applanation Tonometer ‘Keeler Fixed’ (Z-TYPE) This instrument is for those who wish the tonometer to remain permanently on the slit lamp. 5. Mount the plate for the tonometer onto the microscope body using the securing screw. -
Page 14: Instructions For Use
KSL-Z by KEELER 6. INSTRUCTIONS FOR USE 6.1 SETTING THE BINOCULARS It is vital that the binoculars are optimised for the user’s optical correction in order to obtain focused binocular images. 1. Remove the Test Bar locating hole cover plate (16) and place the test bar focus in the test bar location hole at the base of the microscope arm. -
Page 15: Preparing The Patient And Using The Slit Lamp
Parts of the slit lamp coming in to contact with the patient should be cleaned in accordance with these instructions prior to the examination. Keeler recommends the use of disposable hygienic chinrest tissues on the Chinrest before the patients place their chin on it. -
Page 16: Description Of Filters, Apertures And Magnifications
KSL-Z by KEELER Shut down after every use. In case the dust cover is used: risk of overheating. 6.3 DESCRIPTION OF FILTERS, APERTURES AND MAGNIFICATIONS Stereo microscope Eyepieces 12.5x Dioptric adjustment +/– 8D PD range 8° converging eyepieces 49mm – 77mm PD range 0°... -
Page 17: Routine Maintenance
2. Whilst this is a significant life expectancy, we suggest that the Slit Lamp is always switched off between examinations to conserve energy and LED life. 3. In the unlikely event of an LED failure please contact Keeler or your local distributor for guidance on the replacement procedure. -
Page 18: Specifications And Electrical Ratings
9.1 ELECTROMAGNETIC EMISSIONS Guidance and manufacturer’s declaration – electromagnetic emissions The Keeler Slit Lamp is intended for use in the electromagnetic environment specifi ed below. The customer or user should ensure that it is used in such an environment. Emissions test Compliance Electromagnetic environment –... -
Page 19: Electromagnetic Immunity
9.2 ELECTROMAGNETIC IMMUNITY Guidance and manufacturer’s declaration – electromagnetic immunity The Keeler Slit Lamp is intended for use in the electromagnetic environment specified below. The customer or user should ensure that it is used in such an environment. Immunity test... -
Page 20: Recommended Safe Distances
To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the Keeler Slit Lamp is used exceeds the applicable RF compliance level above, the Keeler Slit Lamp should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as re-orientating or relocating the Keeler Slit Lamp. -
Page 21: Technical Specifications
KSL-Z by KEELER Rated maximum output Separation distance according to frequency of power of transmitter (W) transmitter (m) 150 kHz to 80MHz 80MHz to 800MHz 800MHz to 2.7GHz d = 1.2√ p d = 1.2√ p d = 2.3√ p 0.01... - Page 22 KSL-Z by KEELER Horizontal fine adjustment 12mm Table top dimensions 405 x 500mm Fixation lamp Light source LED output power 240K (+/-20%) Weight, packed (approx.) Slit Lamp complete 25Kg, 90 x 58 x 45cm W x D x H Protection against ingress...
-
Page 23: Accessories And Spares
KSL-Z by KEELER Environmental Conditions: 1060 hPa °C °C 800 hPa Shock (without packing) 10 g, duration 6 ms STORAGE CONDITIONS 1060 hPa °C °C 700 hPa TRANSPORT CONDITIONS 1060 hPa °C °C 500 hPa Vibration, sinusoidal 10 Hz to 500 Hz: 0.5g... -
Page 24: Packaging And Disposal Information
Keeler Z-KAT Tonometer 2414-P-2010 Keeler KAT R-Type 2414-P-2040 Applanation Tonometer Keeler D-KAT R-Type Digital Keeler 2414-P-2042 Applanation Tonometer 11. PACKAGING AND DISPOSAL INFORMATION Disposal of old electrical and electronic equipment This symbol on the product or on its packaging and instructions indicates that this product shall not be treated as household waste. - Page 26 Contact Manufacturer Keeler Limited Clewer Hill Road Windsor Berkshire SL4 4AA UK Freephone 0800 521251 Tel +44 (0) 1753 857177 Fax +44 (0) 1753 827145 USA Sales Office China Office Keeler USA Halma China Group 3222 Phoenixville Pike 名称：沃迈（上海）机电有限 Building #50 公司...
