1 Description
The 433MHz Series Transmitters and Receiver are ideal for the wireless activation and/or sequencing of automatic doors. The transmitters are available
in hand-held or pushplate styles and they transmit a unique rolling code each time the transmitter is activated (thus providing a secure door opening
signal). The transmitter PN: 10TD433PB9V is powered by a 9-volt battery whereas all other transmitters are powered by a 3 volt battery and all
illuminate a Red LED when activated.
Since receivers can be individually programmed, multiple receivers can be programmed differently thus allowing for sequencing in multiple applications.
Upon activation (pushplate / transmitter), all receivers will acquire the signal at the same time; however, each receiver will respond according to
their programming. Those receivers programmed with NO DELAY will active immediately upon receiving the transmitter signal. Those receivers
programmed with a DELAY will activate at the end of their pre-determined time delay set by the potentiometer. The use of multiple receivers will allow
for the uninterrupted pace or hands free operations through a pair of doors upon initial activation.
10TD433HH
ONE BUTTON
2 Specifications
DESCRIPTION
FREQUENCY
EMITTED RADIO POWER
POWER CONSUMPTION
INPUT VOLTAGE
CONTACT RATING
OPERATING TEMPERATURE
MAX No. OF PROGRAMMED
UNITS PER RECEIVER
LEDs Receiver Learn
Relay Activation
DIMENSIONS Transmitter
Receiver
CERTIFICATIONS
3 Precautions
This wireless receiver is not intended to be used DIRECTLY with maglocks or electric strikes due to possible damage caused by

inductive load kickback. Instead, this wireless receiver should be used to trigger a logic module (Br3) or isolation relay which then
triggers the maglock or electric strike.
Shut off all power going to work area before attempting any wiring procedures.

Maintain a clean & safe environment when working in public areas.

To remain in compliance with Part 15.231, do not operate transmitter (hold down button ) for longer than 5 seconds.

Constantly be aware of pedestrian traffic around the area.

Always stop pedestrian traffic through the doorway when performing tests that may result in unexpected- reactions by the door.

ESD: Circuit boards are vulnerable to damage by electrostatic discharge. Before handling ensure you dissipate your body's charge.

Always check placement of components before powering up so that moving parts will not catch any wires or cause damage to

equipment.
Ensure compliance with all applicable safety standards (i.e. ANSI A156.10 / 19) upon completion of installation.

DO NOT attempt any internal repair of the components. All repairs and/or component replacements must be performed by BEA,

Inc. Unauthorized disassembly or repair:
1. May jeopardize personal safety and may expose one to the risk of electrical shock.
2. May adversely affect the safe and reliable performance of the product resulting in a voided warranty.
75.5092.09 EN 20160623
433MHz TRANSMITTERS & RECEIVER
FCC ID#: G9B-10TD433HH4
DIGITAL TRANSMITTERS AND RECEIVER WITH SEQUENCING FUNCTION
10TD433HH2 10TD433HH3
TWO BUTTON THREE BUTTON
SPECIFICATION
433 MHz
-28.7 dBm (Transmitter)
3mA (Transmitter) 30mA (Receiver)
12 to 24 VAC/DC (Receiver)
1.0 A @ 30 VDC / 0.3 A @ 60 VDC
0.5 A @ 125 VAC
14ºF TO 131ºF (-10ºC TO 55ºC)
100 TRANSMITTERS
RED
BLUE
2 3/4" X 1 3/8" X 9/16" (70mm x 35mm x 14mm)
2 3/4" x 2 1/8" x 1" (70mm x 55mm x 25mm)
FCC, IC,
IC ID#: 4680A-10TD433HH4
10TD433HH4 10TD433PB3V
FOUR BUTTON 3V w / LEADS
TERMINAL
STRIP
DIP
SWITCH
LEARN WITH
DELAY BUTTON
USER'S GUIDE

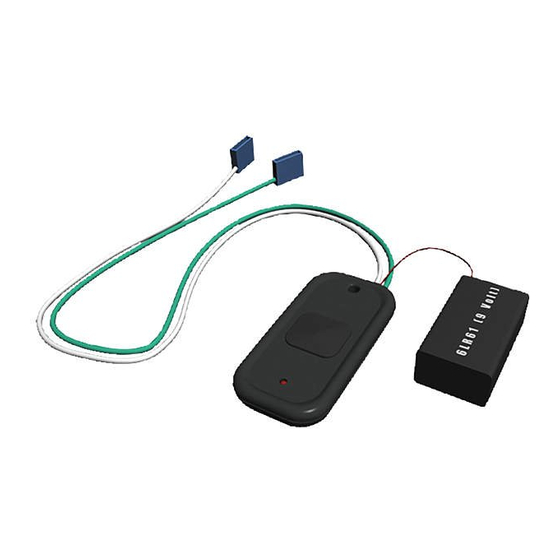

10TD433PB9V
9V w / LEADS
ANTENNA WIRE
BLUE LED
RED LED
LEARN
W/O DELAY
BUTTON
DELAY
POTENTIOMETER
(Time Adjustment)
Page 1 of 4
