Synetik ErgoCare SEGO User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SEGO and is the answer not in the manual?

Questions and answers

Related Manuals for Synetik ErgoCare SEGO

Summary of Contents for Synetik ErgoCare SEGO

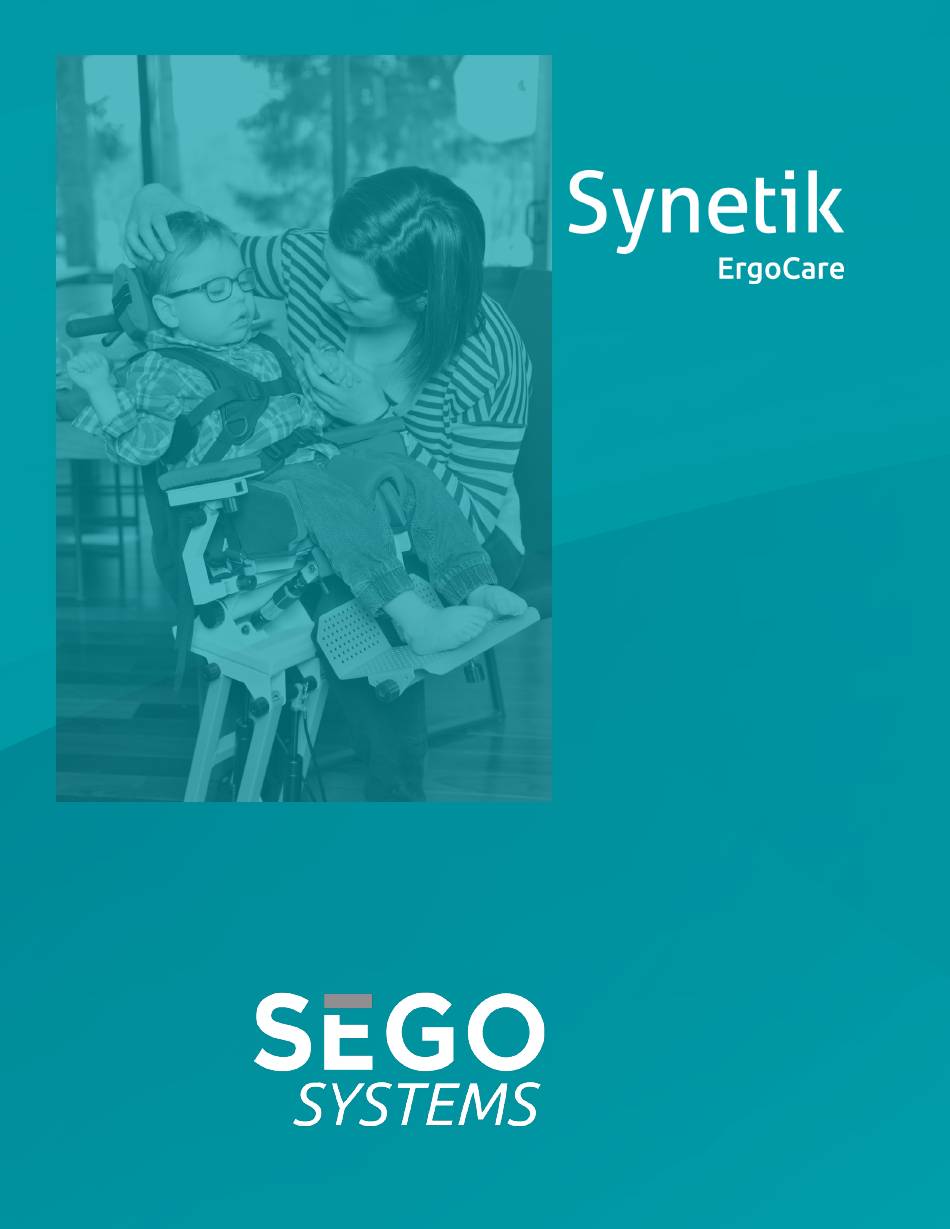

  • Page 1 User guide...
  • Page 2 Photo: Production Synop6...

  • Page 3: Declaration Of Conformity

    The maximum weight of the user must not exceed 50 lbs, the average size of a child from 1 to 4 years of age. When secured onto its the Hi-Low Base, the SEGO Seating System can be used in a number of contexts and environments such as at home, at the daycare as well as in a school setting.

  • Page 4: Safety Information

    Never go up or down stairs with the user seated in the equipment. • Never use the SEGO Seating System on a slope steeper than 5 degrees. The user may fall out of the device, the seat may roll or tip over.
  • Page 5 • Never move the Sego Seating System by pushing on the headrest or backrest. Always use the grip handles specifically designed for this purpose. • Never place extremely hot items onto the tray. • Clean the device regularly. Never use abrasive products. Always refer to the Cleaning and •...
  • Page 6 Overview of the SEGO: HI/LOW BASE: fig.1 fig.2...
  • Page 7 SEAT: fig.3 fig.4b fig.4...
  • Page 8 SEAT – ADJUSTMENTS: fig.5 fig.6...
  • Page 9 SEAT – SMALLEST SIZE: fig.7 SEAT – LARGEST SIZE: fig.8...
  • Page 10 fig.9...
  • Page 11 CENTRAL CUSHIONS Sizes: Small, Medium, Large 3.3" [83mm] 2.3" [57mm] 1.3" [32mm] 3.3" [83mm] 2.3" [57mm] 1.3" [32mm] 3.3" [83mm] 2.3" [57mm] 1.3" [32mm] 3.3" [83mm] 12.0" 7.3" [186mm] 8.5" [216mm] 2.3" [57mm] 1.3" [32mm] 7.9" [201mm] 12.0" [306mm] 14.5" [369mm] 7.3"...

  • Page 12: Seat Depth

    Seat and Hi/Low Base Weight (combined) 34.4 lbs (15.4 kg) Tom 5 Stroller Frame Weight 26.4 lbs (12.0 kg) SEGO Seat with Tom 5 Stroller Frame Weight 44.6 lbs (20.3 kg) Contents of the Boxes The Synetik ErgoCare SEGO Seating System comes in...
  • Page 13 Caution: Certain parts are sealed in a plastic bag. Keep bags out of the reach of babies and children. The thin material is a choking hazard that can obstruct nostrils and/or the mouth. Caution: Certain SEGO Seating System parts are chocking hazards for children. Always ensure parts are securely fastened to the seat.
  • Page 14 Hex (Allen) Key One main tool is required to assemble and adjust of the SEGO Seating System. The 5/16 hex (Allen) key is located on the cylinder underneath the seat. Two (2) other hex keys (3/32 and 5/32) are required headrest assembly (not included).
  • Page 15 (Fig. 14). Installing the Abduction Supports (Small Size) The Growth Kit supplied with the SEGO Seating System includes two (2) sizes of abduction supports. Select the size that best fits the user. To complete the assembly of the small-sized abduction supports, you...
  • Page 16 Installing the Footrest The Growth Kit supplied with the SEGO Seating System includes two (2) footrest sizes. Each size includes a support and a footplate. Choose the size that fits the user. To complete the assembly, you will need to: Remove plastic cap A at the end of support rod B (Fig.

  • Page 17: Installing The Belt

    Armrests G Note: The covers can be installed on either side (left or right), except the armrest covers. Note: All the SEGO System cushions and covers are machine washable and go into the dryer. (See section on Cleaning and Maintenance) Installing the Belt Slip the belt straps through the slot A just under the pelvic support (Fig.
  • Page 18 Push down gently on the foot pedal to raise the base. Installation of the seat is facilitated when the base is set at its maximum height. Hold the SEGO seat and position it as per Figure 38. Tilt seat to a 45º angle to facilitate its insertion.
  • Page 19 Clinical Adjustment for Postural Alignment Clinical adjustments are to be made by a person with the required knowledge and skill sets. In addition, the person must be properly trained on how to use the SEGO Seating System. Note: Synetik ErgoCare recommends that an up-to-date log of all settings and adjustments made to the product be kept.

  • Page 20: Backrest Angle

    1.7 Reinstall the backplate and retighten the plastic knob. 1.8 Reinstall the black centre cushion onto the backrest. Be sure to insert the correct cushion size (Fig. 10). To do so, select the cushion that best fills the entire area between the two (2) coloured cushions.
  • Page 21 B (Fig. 52). Note: The tilt angle of the seat can be safely adjusted while the child is seated. Caution: Be sure to firmly grip the SEGO seat before activating the tilt-in-space angle adjustment lever in the stroller frame.
  • Page 22 7.6 Retighten the knob securely, using the hex (Allen) key anchored to the cylinder beneath the seat. Footrest: Height, Depth and Angle The SEGO growth kit includes two (2) sizes of footrests. Size Dimensions 10 3/8’’ (263 mm) Wide x 6 3/4'’ (171 mm) Deep 11 1/4’’...

  • Page 23: Frequent Adjustments For Daily Use

    10. Positioning of Sandals Sandals for the SEGO seat come in pairs of 2. Each is fitted with Velcro soles. To complete the assembly, you will need to: Remove the protective film covering the Velcro sole bottom on the sandals and position sandals at the desired spot on the footplate (Fig.
  • Page 24 Note: Perform a daily inspection before placing the child into the SEGO Seating System. The procedure for this inspection can be found in the "Daily Inspection of SEGO" section of this User Manual. Hi/Low Base The height of the Hi/Low Base can be adjusted by pressing on the foot pedal A (Fig.
  • Page 25 Cushions, Belts and Harnesses • All cushions and covers on the SEGO Seating System are machine washable using a mild detergent and can be tumble-dried at a gentle dryer setting. No handling of the cushions is required. Removal of the cushion covers is not required.
  • Page 26 Annual Inspection of the SEGO Seating System Synetik ErgoCare recommends that the SEGO Seating System be subject to a detailed inspection once a year and whenever the product is to be repurposed or refurbished for reuse. This inspection must be carried out by a person with the appropriate technical skills and trained in the use of the product.
  • Page 28 Synetik Group Now centralized at our facility in Joliette, Quebec, Synetik brings together three important facets of ergonomics: design, manufacture and training. To better serve healthcare, industrial and work place needs. Seating & Positionning Systems Ergonomic Workplace Solution Ergonomic Industrial Products Phone Toll-Free 1242 De Lanaudière, Joliette...
