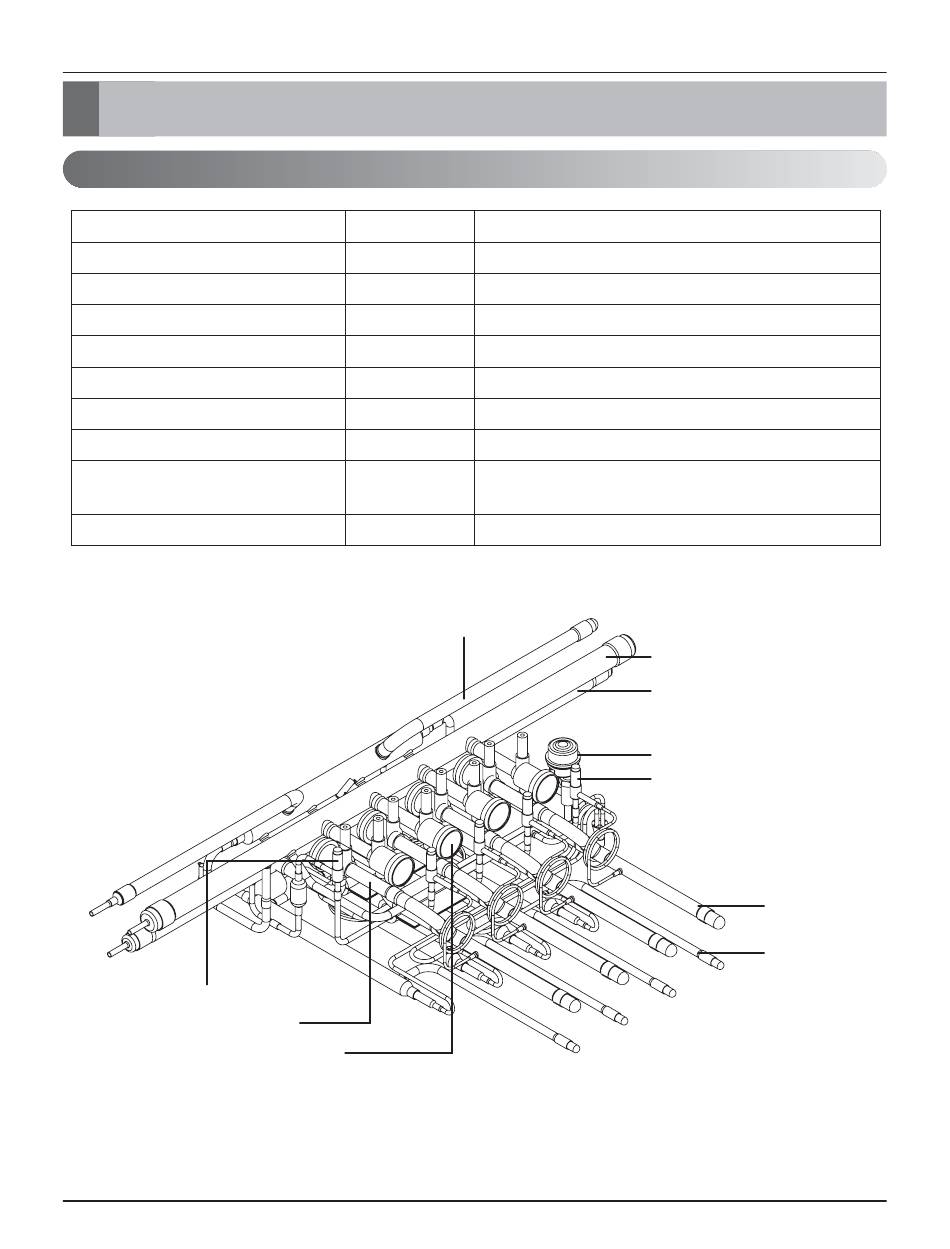

1. Parts Functions
Parts name
Low pressure gas pipe
High pressure gas pipe
Liquid pipe 1
Liquid bypass valve
Solenoid assembly 1, 2
Liquid pipe 2
Gas pipe
Balancing valve
Subcooling EEV
Liquid bypass valve
Solenoid assembly 1
Solenoid assembly 2
Copyright ©2011 LG Electronics. Inc. All right reserved.
Only for training and service purposes
Symbol
LPGV Pipe for low pressure gas
HPGV Pipe for high pressure gas
LP1 Liquid pipe connected with outdoor unit
LBV Prevent liquid charging
SOL1, 2 Control the path for heating or cooling
LP2 Liquid pipe connected with indoor unit
GSP Gas pipe connected with indoor unit
BLV Control the pressure between High and Low
pressure pipe during operation switching
SCEEV Control the subcooling
Liquid pipe1
- 12 -
Major function
Low pressure gas pipe
High pressure gas pipe
Subcooling EEV
Balancing valve
Gas pipe
Liquid pipe2
