Model # SAN1-2100

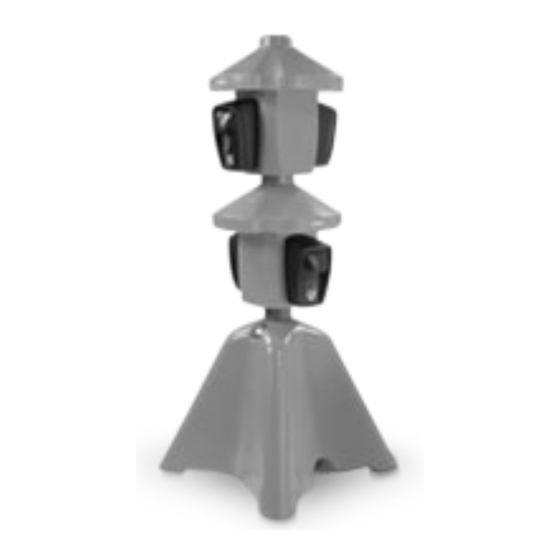

SANISTAND™ HAND SANITIZER STAND | ADA COMPLIANT
SPECIFICATIONS
DIMENSION
Height
Width
Depth
Number of Single Dispenses
Weight Empty w/Dispensers
Base Capacity
We recommend reading through the entire assembly
instructions prior to proceeding with installation, service
and maintenance.
throughout this guide are as viewed from the front.
IMPERIAL
66 in
28 in
28 in
5333
36 lbs
23 gal
All references to left and right
~~Assembly Tools Required~~
• Drill with a Phillips Bit
or a Phillips Head Screwdriver
Full Scale Fastener Drawing
(4) PC-000158
Self-Tapping Screws
www.belson.com
METRIC
168 cm
71 cm
71 cm
5333
16.3 kg
87.1 L
111 North River Road
North Aurora, IL 60542
Phone: (800) 323-5664
Fax: (630) 897-0573
sales@belson.com
Instructions Sheet
Advertisement
Table of Contents
Summary of Contents for Belson Outdoors SANISTAND
- Page 1 111 North River Road North Aurora, IL 60542 Phone: (800) 323-5664 Fax: (630) 897-0573 sales@belson.com Model # SAN1-2100 Instructions Sheet SANISTAND™ HAND SANITIZER STAND | ADA COMPLIANT SPECIFICATIONS DIMENSION IMPERIAL METRIC 66 in Height 168 cm Width 28 in 71 cm...
- Page 2 * = Specify Color Option (1) SAN1-0004*TC - Top Foam Dispenser Holder (1) SAN1-0004*BC - Bottom Foam Dispenser Holder (4) PC-000158 - Self-Tapping Screws (4) FD1-1000 - Hand Foam Dispenser SAN1-0005 - (16) PC-000105 - Rivet Dispensing Pipe (16) PC-000106 - Washer PC-000762 - Locking Rod PC-000205M - Lock...
- Page 3 Assembly Instructions NOTE: All drilling will require a 13/64” bit. * = Specify Color Option Step 1. Insert the SAN1-0005 - Dispensing Pipe into the SAN1-0001G - Base. Step 2. Line up the pre-drilled holes of the base and dispensing pipe. Insert a PC-000762 - Locking Rod through the holes of the base and dispensing pipe and push through to the other side.
