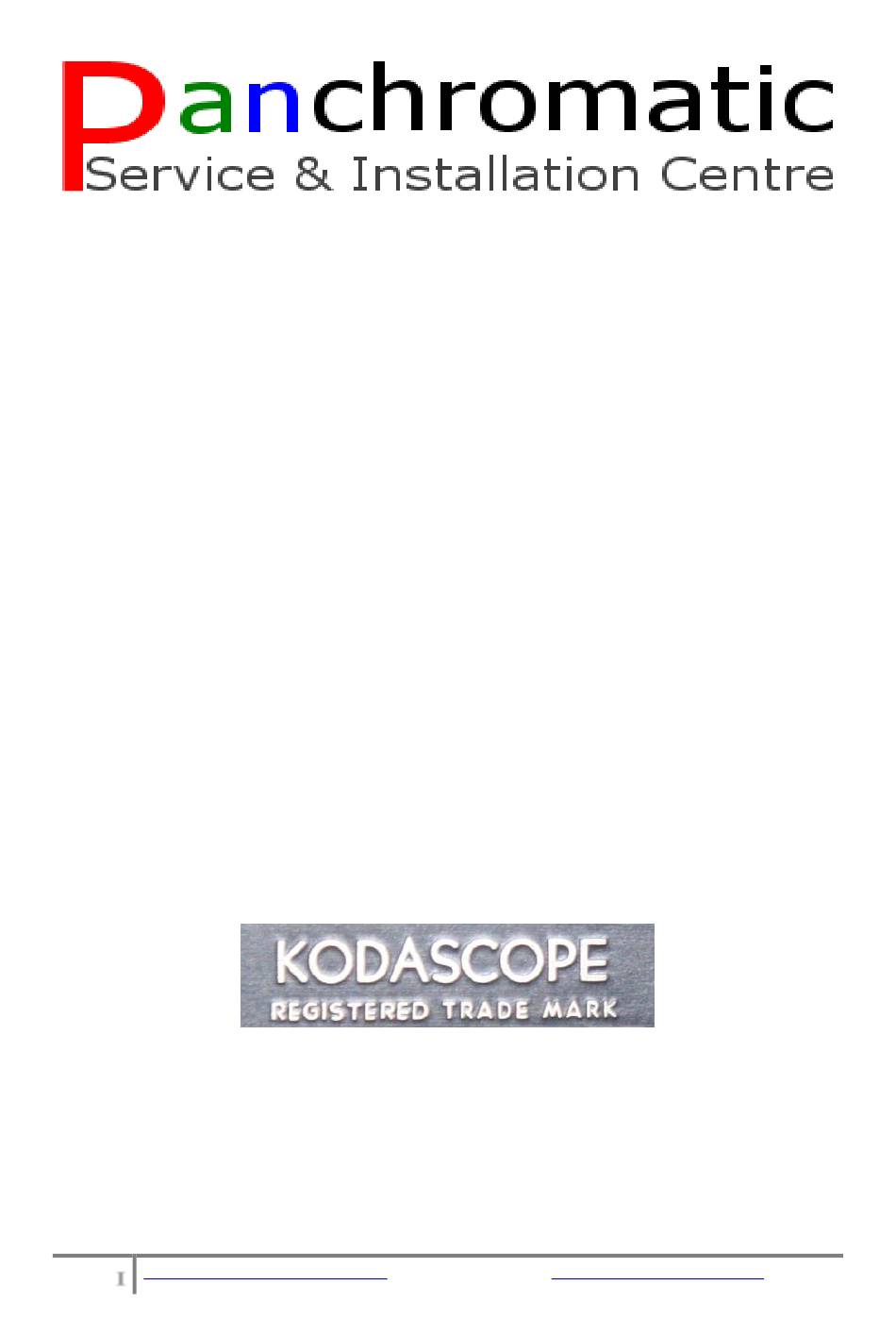

Page 1 Panchromatic Kodascope Model D User Manual The Place to find Antique, Vintage, Retro or just plain used, 8 mm Super 8 mm 9.5 mm, 16 mm Film Projectors, Slide Transparency Projectors, Cameras and Darkroom Equipment. Kodascope Model D 16 mm Format Film Projector User Manual Service@Panchromatic.co.uk...
Page 2 Panchromatic Kodascope Model D User Manual Instructions for operating the Kodascope Model D Published by EASTMAN KODAK COMPANY Rochester N.Y. Service@Panchromatic.co.uk www.Panchromatic.co.uk...
Page 3: Table Of Contents
Panchromatic Kodascope Model D User Manual CONTENTS Table of Parts Setting Up the Kodascope Threading Operation Rewinding Care of the Kodascope Oiling Cleaning the Lenses and Mirrors Cleaning the Gate Replacing the Lamp Care of the Film Breakage of the Film Titles Duplicates Copies of "Still"...
Page 4 Panchromatic Kodascope Model D User Manual Instructions for the Operation of the Kodascope To successfully operate the Kodascope, the instructions in this manual should be carefully read and followed. The Kodascope is accurately adjusted and is very simple to operate but, unless the few things which have to be done by the operator are done correctly, there will be danger of injuring the film.
Page 5: Table Of Parts
Panchromatic Kodascope Model D User Manual Table of Parts Part Explanation Upper Reel Support Holds supply Reel Lower Reel Support Holds take-up Reel Lens Barrel Contains Projection Lens Front Plate Holds Lens Barrel Spring Button Keeps upper reel support in position. Page 7 Spring Button Keeps lower reel support in position.
Page 6: Setting Up The Kodascope
Panchromatic Kodascope Model D User Manual Socket For attaching floor or table lamp Page 8 Switch Turns on electric current motor and lamp Page 8 Pulley For connecting belt for rewinding film Page 17 Pull Down Shaft For connecting belt for rewinding film Page 15 Lamp Cover Prevents excess light through lamp house...
Page 7 Panchromatic Kodascope Model D User Manual  Lift the upper reel support to the vertical position. The spring button 5, Fig. 2, will snap into place and hold the reel support rigidly, If the reel support cannot be raised easily, loosen it by turning the knob 27, Fig.
Page 8 Panchromatic Kodascope Model D User Manual  To obtain illumination while threading the Kodascope, Changing reels or preparing to rewind, 8 a floor or table lamp can be used by connecting the cord from the lamp to the convenient socket 46, Fig 3, on the switch 47, attached to the cord of the Kodascope.
Page 9 Panchromatic Kodascope Model D User Manual Set up the screen so that its center is on a line with or a little higher than the lens of the Kodascope. On account of the different sizes of the screens used, The distances between tile screen and the lens of the Kodascope will vary.
Page 10: Threading
Panchromatic Kodascope Model D User Manual Threading Place the reel of film or supply reel on the supply spindle 12, Fig. 4, so that the film draws from the part of the coil nearest the lamp house, with the shiny side of film towards the center of the reel * and with the picture upside down.
Page 11 Panchromatic Kodascope Model D User Manual Slide the film sideways behind the gate as shown in Fig. 5. Start inserting the film at the upper end of the gate. Be sure that the dull side of the film is towards the lens barrel 3, and that the film is pushed all the way in, so that none of it projects beyond the edge of the gate.
Page 12 Panchromatic Kodascope Model D User Manual Insert the film by sliding it between the two rollers and the lower part of sprocket as in Fig. 6. Be sure that the film comes between the rollers and the film perforations engage with the teeth on the sprocket, Fig.
Page 13 Panchromatic Kodascope Model D User Manual Place the empty or take-up reel 13, on the take-up spindle 14, as in Fig. 7. Be sure that the reel is pushed all the way in so that the spring on the spindle snaps into position. Thread the film on the reel, by holding the end of film against the core and turning the take-up reel at least one turn in a clockwise direction...
Page 14 Panchromatic Kodascope Model D User Manual Figure 8 shows the Kodascope set-up and properly threaded ready for projecting. Be sure that the upper and lower loops, are of the proper size. These loops provide slack in the film between the continuously moving sprocket and the intermittently moving pull-down.
Page 15: Operation
Panchromatic Kodascope Model D User Manual Operation After the Kodascope is properly threaded, push in the button of the switch 47, Fig 9. When the current is turned on it automatically lights the lamp and starts the motor at the same time. If the motor does not start at once, revolve the adjusting knob 33, Fig.
Page 16 Panchromatic Kodascope Model D User Manual If the picture is not sharp on the screen, focus the Kodascope by turning the lens barrel 3, Fig. 10. When the picture on the screen shows a white strip at the top or bottom or the edge of the next picture on the film, in other words, it does not “frame”...
Page 17: Rewinding
Panchromatic Kodascope Model D User Manual If the picture on the screen is extremely unsteady, it is probably caused by the loss of either the upper or lower loop. This will sometimes happen if some of the film perforations are broken, If this should occur, stop the mechanism at once by pushing the black button of the switch 47, Fig, 9.
Page 18: Care Of The Kodascope
Panchromatic Kodascope Model D User Manual To connect the motor for rewinding, remove the spring belt from the lower reel pulley as in Fig. 11. Place the spring belt Figs. 9 and 11, onto the upper reel pulley 48, giving the belt a twist as shown in Fig. 11. Be sure that the belt is in the groove on the pull-down shaft 49, Fig.
Page 19 Panchromatic Kodascope Model D User Manual Remove the cover as shown in Fig. 12. The cover is fastened by means of two projections at the top and one at the bottom, which fit into holes on the edges of the frame around the pull-down mechanism. Never remove the cover while the Kodascope is running.
Page 20: Cleaning The Lenses And Mirrors
Panchromatic Kodascope Model D User Manual Cleaning the Lenses and Mirrors The lenses of the Kodascope should be' cleaned whenever necessary. Dirt on the lenses will cause the picture on the screen to appear cloudy or flat. Remove the lens barrel 3, by unscrewing it from the front plate 4, Fig.
Page 21: Cleaning The Gate
Panchromatic Kodascope Model D User Manual The small mirror 36 which is attached to the inside of the cover 29, Fig. 13, page 20 and the reflector fastened inside the lamp house 40, Fig, 16, page 23 must be clean. Be sure that there are no finger marks on them.
Page 22: Replacing The Lamp
Panchromatic Kodascope Model D User Manual To remove the gate 20, Fig. 13, page 20, first pull back the spring 37, then take hold of the ends of the gate and lift it off the projection on the lower end of the framing lever 26, Fig. 13, page 20. Clean the tracks of the gate, also the frame around the pull-down mechanism with a slightly moistened clean cloth.
Page 23: Care Of The Film
Panchromatic Kodascope Model D User Manual Lift off the lamp cover 50, Fig. 16. Press down lightly on the lamp and give it a quarter turn to the left, then lift it out of the socket 41, Fig 16. Insert the new lamp with the larger flange over the larger opening; press it down into the socket and give it a quarter turn to the right until it snaps into position.
Page 24: Breakage Of The Film
Panchromatic Kodascope Model D User Manual The picture area of the film should never be handled in any way. Scratches are generally caused by careless rewinding of the film, from “cinching” it tightly on the reel, or from a dirty gate. Slack film should be taken up by rewinding the film onto another reel slowly and then winding with an even tension and at uniform speed back onto the first reel.
Page 25: Titles
Panchromatic Kodascope Model D User Manual If it is desired to splice the film at once, proceed as follows: Leave the upper and lower reels in position unthread the film from the sprocket and gate and draw the ends of the film out. Use the splicing block in the Kodascope Film Splicing Outfit, or use the Kodascope Rapid Splicer, and follow the splicing directions that are included with the outfit.
Page 26: Duplicates
Panchromatic Kodascope Model D User Manual Card Titles These titles are limited to approximately 25 words and are made at the rate of three cents a word with a minimum of twenty-five cents per title. The minimum charge for an order is $1.00 Scroll Titles The Scroll Title is ideally suited for those longer explanatory titles so often needed at the beginning of a reel the wording moves slowly and...
Page 27: Copies Of "Still" Pictures
Any picture from Vest Pocket Kodak size to 11 x 14 inches can be copied. The price of a copy is 50 cents, minimum order $1.00. Copies are obtainable in the United States at Rochester only. EASTMAN KODAK COMPANY ROCHESTER. NEW YORK Service@Panchromatic.co.uk Service@Panchromatic.co.uk...
Page 28: Kodascope Rapid Rewind & Splicer
Panchromatic Kodascope Model D User Manual Service@Panchromatic.co.uk www.Panchromatic.co.uk...
Page 29: Carrying Case For Kodascope Model D
Panchromatic Kodascope Model D User Manual Service@Panchromatic.co.uk www.Panchromatic.co.uk...
