- Page 1 InfraCal 2 Analyzer Operations Manual InfraCal and Wilks are registered trademarks of Spectro Scientific Copyright 2013 Wilks, East Norwalk, CT WilksIR.com Rev. 1.1, June 2013...
-
Page 2: Table Of Contents
Table of Contents InfraCal 2 Overview ......................3 1.1. Introduction ..........................3 1.2. Basic measurement concept .......................3 1.3. Analyzer description........................3 1.3.1. Location ..........................4 1.3.2. Power requirements ......................4 1.3.3. Warm up time ........................4 1.4. External ports ..........................4 1.4.1. Communications ports ......................4 1.4.2. External memory ports ......................4 1.5. -
Page 3: Infracal 2 Overview

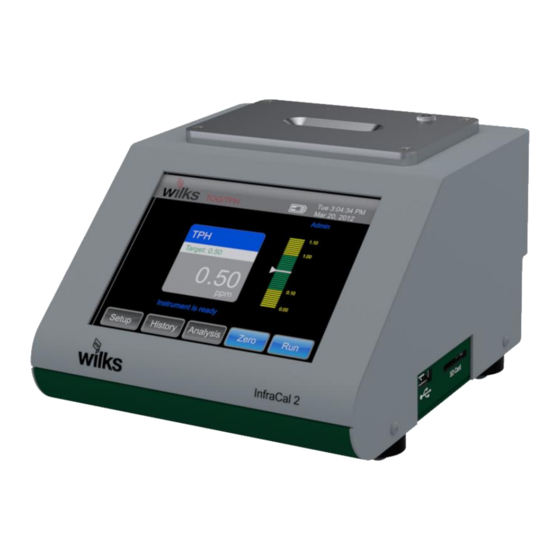

________________________________________________________________________ InfraCal 2 Overview 1.1. Introduction The InfraCal 2 Analyzer is a filter based mid infrared analyzers with pre-selected filters for up to three discrete wavelengths. The sample stage is also preset for either transmission or ATR (Attenuated Total Reflection) 1.2. -
Page 4: Location
Figure 2: Touch Screen Layout 1.3.1. Location The InfraCal 2 Analyzer is designed for on-site measurements and is relatively insensitive to vibration and ambient temperature changes. For more sensitive readings below 1 ppm, it is best to avoid dramatic temperature changes such as direct sun or a location in the direct air flow of a heating or air conditioning vent. -
Page 5: Power On-Off
1.5. Power on-off Press the ON/OFF button to turn the instrument on. Press again to turn the instrument off. If the instrument fails to turn off, press and hold the ON/OFF button until the instrument powers down (about 5 seconds). No settings will be lost. 1.6. -
Page 6: User Interface Navigation
_________________________________________________________________________ User Interface Navigation 3.1. Tables To view entries that are not visible in the table window, touch the data field and slide your finger up or down, left or right to scroll the table. The blue arrow icons can also be tapped to scroll left or right. 3.2. -
Page 7: Setup Screen
4.1.1. Setup screen: This is where a user is created or changed. Select the current user, language and display Set the clock date/time and select display format. Select Daylight Saving Time and format. Tap the cell to highlight then use the up and down arrows to adjust. Select “Update”... -
Page 8: Zero Button
4.1.3. Zero button: Zero the analyzer prior to collecting calibration data with the appropriate zero for the analysis Select “Zero” and “Done” when satisfied with zero Figure 8: Analysis Screen 4.1.4. Analysis screen creating or editing an analysis Select a calibration for an analysis. Add edit or delete an analysis Select to create new calibration. -
Page 9: Zero Button: Information Section
Opens table for calibration points. Calibration data can be entered directly into this table. Press when last point is entered Select “Curve” if calibration standards need to be tested for absorbance values. Figure 13: Calibration Table Zero the analyzer prior to collecting calibration data with the appropriate zero for the analysis Enter Calibration standard value using the keypad. -
Page 10: Service And Customer Support
Service and Customer Support ® Your InfraCal TOG/TPH Analyzer may have been purchased either directly from Wilks Enterprise or from a local dealer or representative. If you have a technical question relative to the operation of the instrument or relative to the analysis, please contact Wilks Enterprise at the contact address provided below: Customer Services Department Wilks...
