EZ2R15B
High Performance Outdoor 802.11bg Bridge/Router
Achieve up to 15 Mbit/
▫
sec data thruput
Long Distance operation
▫
with good line of sight
Best security available
▫
(WPA2)
Field Proven Wireless
▫
Technology
Antenna Pattern
0
-15
-30
-1
-45
-3
-60
-6
-10
-75
-25
-90
h
v
2400.0 MHz
-150
-165
180
15
30
45
60
75
90
105
120
135
150
165
Advertisement
Table of Contents
Summary of Contents for E-ZY EZ2R15B

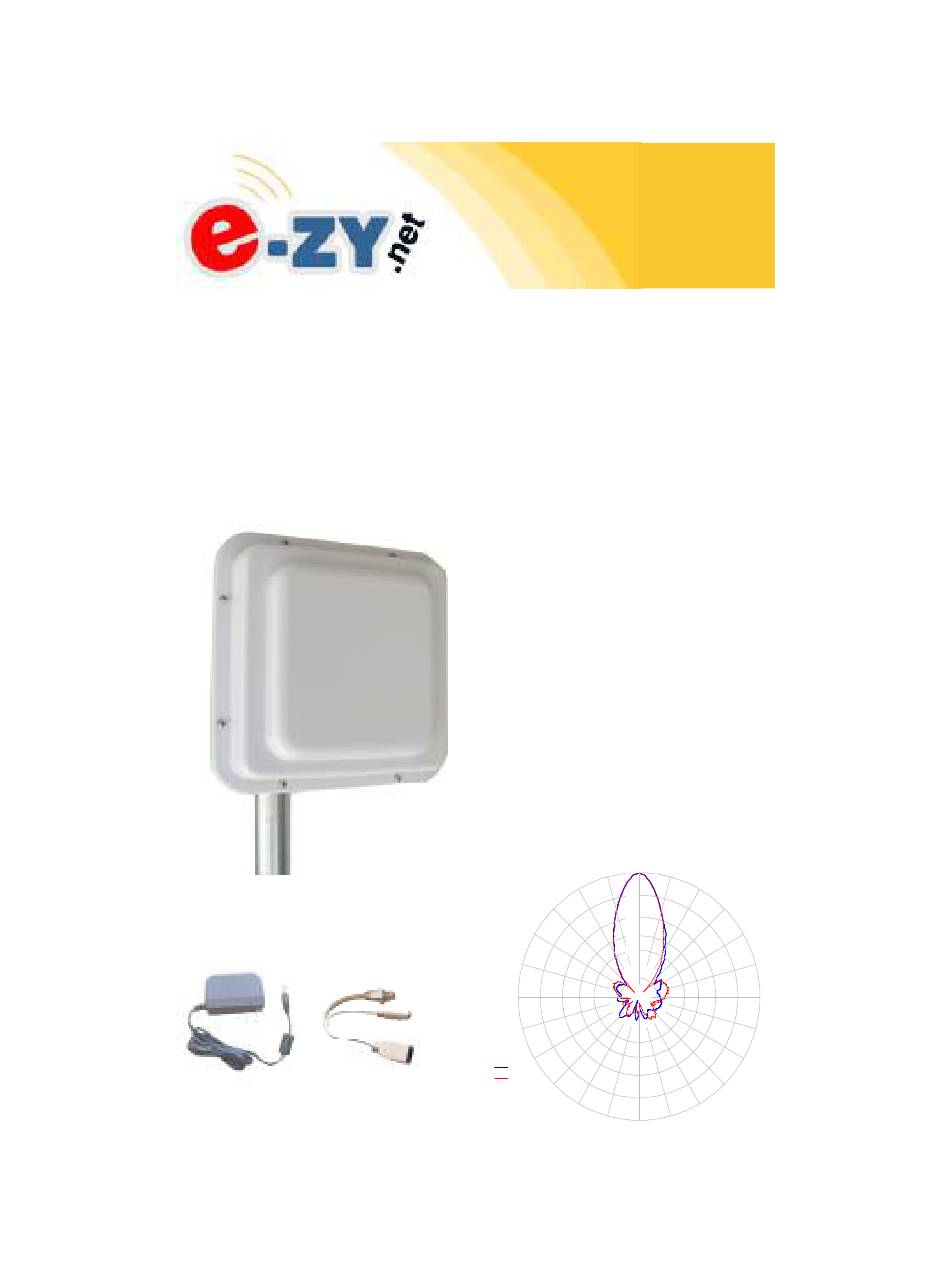

- Page 1 EZ2R15B High Performance Outdoor 802.11bg Bridge/Router Achieve up to 15 Mbit/ ▫ sec data thruput Long Distance operation ▫ with good line of sight Best security available ▫ (WPA2) Field Proven Wireless ▫ Technology Antenna Pattern 2400.0 MHz -150 -165...
- Page 2 DANGER! Avoid Powerlines! You Can Be Killed! When following the instructions in this guide to install the EZ2 take ex- treme care to avoid contact with overhead power lines, lights and power circuits. Contact with power lines, lights or power circuits may be fatal. We recommend to install EZ2 no closer than 20 feet to any power lines.
- Page 3 STEP 3: Choose a mounting location with good line of sight to the re- mote location. The antenna can be mounted to an existing pole up to 2” diameter. If only short distances are needed, the antenna can be mounted inside a building. Install the antennas. TECH TIP: Microwaves travel in straight lines and they lose strength quickly when going thru buildings and trees.
- Page 4 SETTINGS, then Reset Settings To Default. Any customized settings will be lost once this process is initiated. 8. UPGRADE FIRMWARE: For the latest firmware point your browser http://www.e-zy.net/support/2plus/Firmware/ . Download the latest firmware to your PC. Select UPGRADE from the menu and then browse...
- Page 5 for the new file. Advanced Features The EZ2 has many advanced features if more functionality is desired. To access the advanced features, click on Advanced Web at the top of the menu tree. This will activate the advanced menu options. The EZ2 can operate as Access Point, Client, WDS, AP+WDS, Point to Point.
- Page 6 generated which can damage electronic equipment. We have taken special care in the design of the EZ2 unit to ensure proper grounding of the electronics inside the enclosure to prevent damage from electrical storms. Make sure that the POE Power Supply is plugged into a surge protected outlet such as a surge protected power strip or UPS inside the house.
- Page 7 Technical Specifications Note: Subject to Change Without Notice General Standards 802.11b/g (WLAN), 802.3/802.3u (LAN) (b) DSSS (DBPSK, DQPSK, CCK) Modulation (g) OFDM (64QAM, 16QAM, QPSK, BPSK) Certifications FCC / CE Radio Specifications 2400 to 2497MHz Operating Frequency USA/Canada 11; Japan 14; France 4; Channels Europe 13 802.11b 100, 150, 200, 250mW...
- Page 8 NFF charge is $200. This charge will be at the discretion of E-ZY.NET. The RMA number is valid for 14 days from date of issue. The product must be received by the repair depot within these 14-days or the shipment may be refused.
