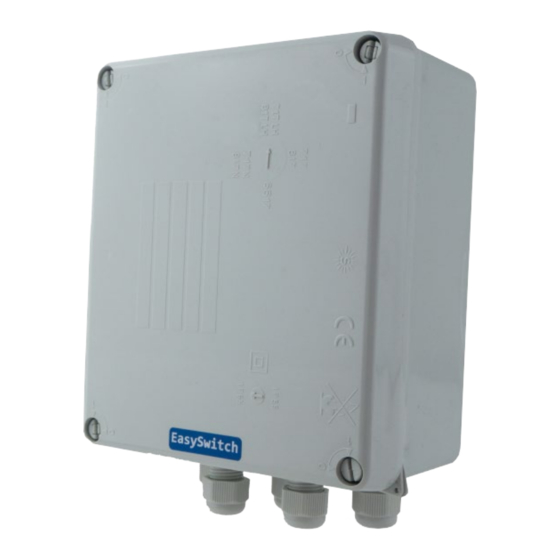

ESR.4 Four channel wireless ON/OFF receiver Specification.
RF input
433.92Mhz 10m/w
Antenna connection
Screw terminal
Antenna
433Mhz 1/4 wave (included)
RF range
100—200m line of sight
Learning capacity.
16 devices per zone. 64 in all.
Number of channels
4
Supply voltage
230 volts 50Hz
Relay output voltages
230 volts 50Hz
Relay contact ratings
1kw resistive. (Halogen) 100 watts for LED lighting.
Maximum switch rating
2KW total shared by 4 relays (8 amps)
Enclosure
ABS L190 W140 H90mm
IP rating
65
Easyswitch wireless
Luminite
Transmitters:
PIR detector
Wide angle 15m x 90 deg
PIR detector
Long range 40m x 1 deg
PIR detector
Pet ally
12 m x 90 deg
Key fob 1 button
Key fob 2 button
Key fob 4 button
Wall switch transmitter. Connects to up to 4 switches.
HVAC transmitter for heating systems.
Receivers:
Single zone ON/OFF receiver.
Four zone ON/OFF receiver.
Four zone ON/OFF receiver with ESF4 key fob.
Plug adaptor.
Plug in bleeper.
Technical help: Tel: 0208 368 7887
product range
ESD.1
ESD.2
ESD.3
ESF.1
ESF.2
ESF.4
EST.1
4 inputs.
EST4HVAC
ESR.1
ESR.4
ESR4x4
ESA.1
ESB.1
EasySwitch Wireless
Detection and Automation System
ESR.4 & ESR4X4
4 channel
receiver
Installation
Handbook
Type: ESR.4 & ESR4X4
Issue 4.
Advertisement
Table of Contents
Related Manuals for Luminite EasySwitch Wireless ESR.4
Summary of Contents for Luminite EasySwitch Wireless ESR.4
- Page 1 Maximum switch rating 2KW total shared by 4 relays (8 amps) Enclosure ABS L190 W140 H90mm IP rating ESR.4 & ESR4X4 4 channel Easyswitch wireless Luminite product range receiver Transmitters: PIR detector Wide angle 15m x 90 deg ESD.1 Installation...
- Page 2 Do the same for each additional PIR that is to be learnt. Luminite Electronics Ltd acknowledge all registered trademarks Luminite Electronics Ltd reserve the right to make changes to this handbook and to its TO CLEAR THE MEMORY. products without prior notice in order to improve design or performance characteristics.
- Page 3 POSITIONING & WIRING. IMPORTANT: All wiring must be carried out by a qualified electrician in accordance with IEE and part P regulations. INDEX page This product is IP65 rated and may be fitted outdoors. Choose a suitable position for easy wiring but make sure that the aerial is clear of obstructions and metal objects. Introduction.
- Page 4 Introduction Remove jumper for single mode Fig 2 Two way Mimic The ESR.4 receiver is a mains powered mains switching receiver and works in conjunction with all other products in the easyswitch range. 1 2 3 4 There are four relays each capable of switching 230 volts 1kw resistive load or 100 watts LED.
