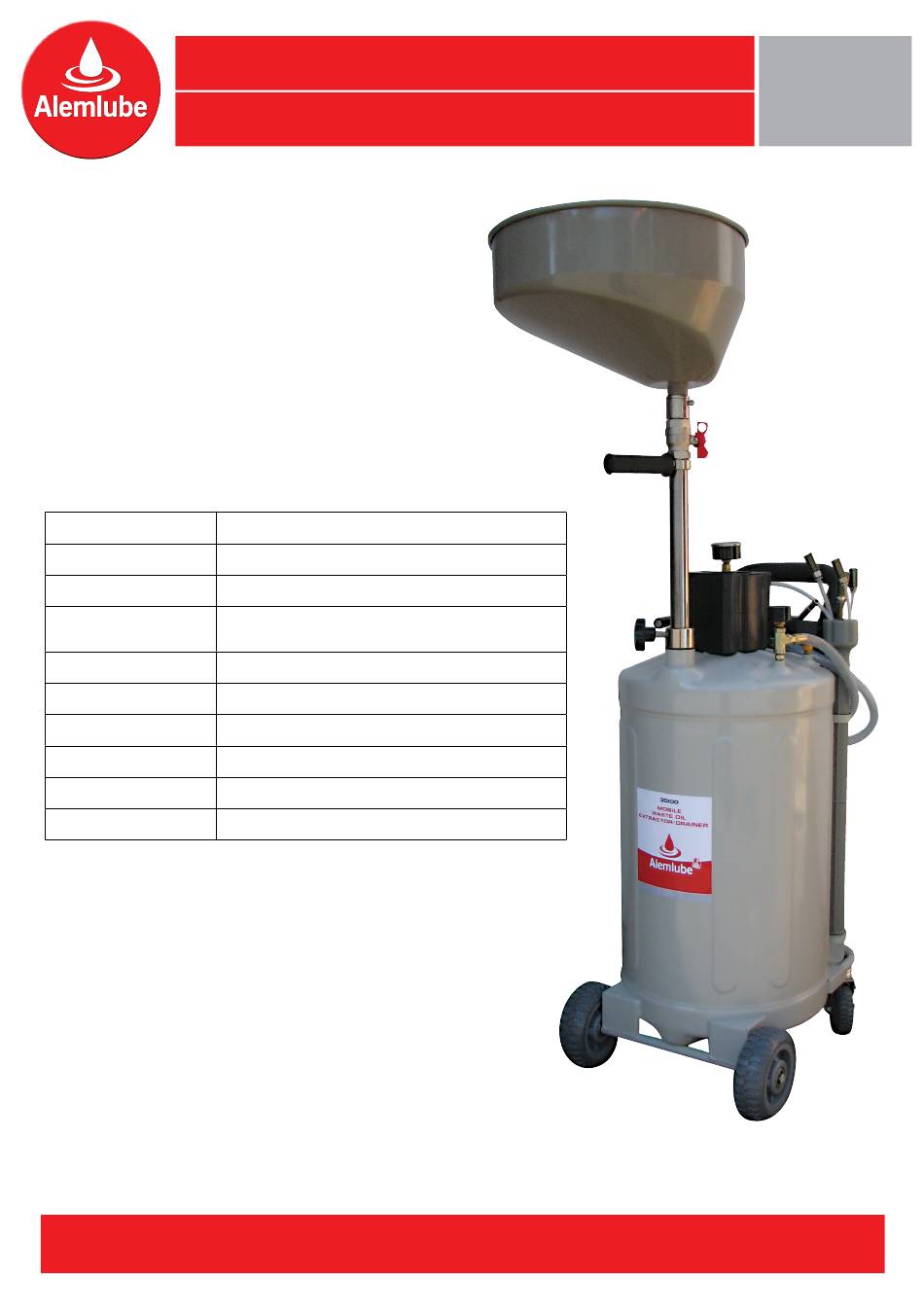

Alemlube 30100 Owner Technical Manual

Mobile waste oil drainer / extractor
Hide thumbs

Advertisement

Table of Contents

OWNER'S TECHNICAL MANUAL
SPECIFICATIONS
Function
Power
Air Consumption
Air Inlet Pressure
(for vacuum)
Oil ejection pressure
Vacuum Degree
Tank Capacity
Collect tray capacity
Height
Working Temperature
NSW/ACT
QLD/PNG
TEL: (02) 9677 1555
TEL: (07) 3204 9166
FAX: (02) 9675 1155
FAX: (07) 3204 1224
Mobile Waste Oil Drainer / Extractor
Collect waste oil from vehicle gear box or engine
Compressed air
About 200L/min
87~116PSI/6~8Bar
10~14PSI/0.7~1Bar
0 ~ -14PSI/0~-1Bar
80L
20L
From 1250mm to 1890mm
40~60°C (for engine oil)
VIC/TAS
TEL: (03) 8787 8288
FAX: (03) 8787 8266
Visit our website at
www.alemlube.com.au
WA
SA/NT
TEL: (08) 9302 4199
TEL: (08) 8241 7111
FAX: (08) 9303 2095
FAX: (08) 8241 7011
or
www.alemlube.co.nz
30100
January 2021
NZ
TEL: (09) 447 1007
FAX: (09) 447 1008
1
