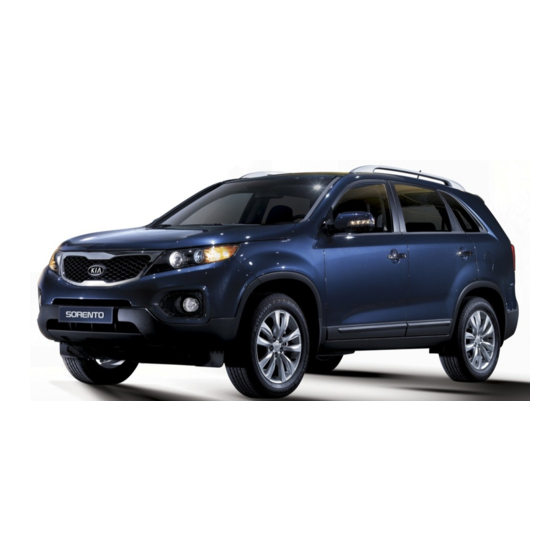

Kia Sorento 2010 Owner's Manual

page of 399

/ 399
Bookmarks

Quick Links

k k i i a a , , t t h h e e c c o o m m p p a a n n y y

Now that you are the owner of a KIA Vehicle, you'll probably

be asked a lot of questions about your vehicle and the company

like "What is a KIA?," "Who is KIA?," "What does 'KIA'

mean?"

Here are some answers. First, KIA is the oldest car company in

Korea. It's a company that has thousands of employees focused

on building high-quality vehicles at affordable prices.

The first syllable, KI, in the word "KIA" means "to arise from

to the world" or "to come up out of to the world". The second

syllable, A, means "Asia". So, the word KIA, means "to arise

from" or "to come up out of Asia to the world".

Enjoy your Vehicle!

Need help?

Do you have a question about the Sorento 2010 and is the answer not in the manual?

Questions and answers

Elvina

May 13, 2025

Bluetootha qoshula bilmirem

slavik

February 2, 2025

i thimk if i send photo is clearlt

Summary of Contents for Kia Sorento 2010

Page 1 , , t t h h e e c c o o m m p p a a n n y y Now that you are the owner of a KIA Vehicle, you’ll probably be asked a lot of questions about your vehicle and the company like “What is a KIA?,”...
Page 2 Thank you for choosing a KIA vehicle. The information and specifications provided in this man- ual were accurate at the time of printing. KIA reserves When you require service, remember that your dealer the right to discontinue or change specifications or design knows your vehicle best.
Page 3 Introduction Your vehicle at a glance Safety features of your vehicle Features of your vehicle Driving your vehicle table of contents What to do in an emergency Maintenance Specifications & Consumer information Index...
Page 4 Introduction How to use this manual / 1-2 Fuel requirements / 1-3 Vehicle handling instructions / 1-6 Vehicle break-in process / 1-6 Indicator symbols on the instrument cluster / 1-7...
Page 5 Introduction HOW TO USE THIS MANUAL We want to help you get the greatest The general layout of the manual is pro- will find various WARNINGs, possible driving pleasure from your vehi- vided in the Table of Contents. Use the CAUTIONs, and NOTICEs in this manu- cle.
Page 6 When you are going to use leaded gasoline, Except Europe ask an authorized KIA dealer whether Your new KIA vehicle is designed to use leaded gasoline in your vehicle is avail- only unleaded fuel having an Octane able or not.
Page 7 Use of MTBE Vehicle damage or drivability problems methanol may not be covered by the manufactur- KIA recommends avoiding fuels contain- er’s warranty if they result from the use Gasohol, a mixture of gasoline and ing MTBE (Methyl Tertiary Butyl Ether) ethanol (also known as grain alcohol), over 15.0% vol.
Page 8 • In winter, in order to cut down tives, as this will increase wear and To help contribute to cleaner air, KIA rec- incidents due to freezing, paraffin cause damage to the engine and fuel...
Page 9 Introduction VEHICLE HANDLING VEHICLE BREAK-IN PROCESS INSTRUCTIONS Biodiesel No special break-in period is needed. By As with other vehicles of this type, failure following a few simple precautions for the Commercially supplied Diesel blends of to operate this vehicle correctly may first 1,000 km (600 miles) you may add to no more than 7% biodiesel, commonly result in loss of control, an accident or...
Page 10 Introduction INDICATOR SYMBOLS ON THE INSTRUMENT CLUSTER Parking brake & Brake fluid Cruise SET indicator* Door ajar warning light warning light DBC indicator* Tailgate open warning light ESP indicator* Door/tailgate open position ESP OFF indicator* Low fuel level warning light indicator* Shift pattern indicator* Engine oil pressure warning light...
Page 11 Your vehicle at a glance Interior overview / 2-2 Instrument panel overview / 2-3 Engine compartment / 2-4...
Page 12 Your vehicle at a glance INTERIOR OVERVIEW 1. Door lock/unlock button ....4-14 2. Outside rearview mirror folding button*..........4-38 3. Outside rearview mirror control switch ..........4-37 4. Central door lock switch* ....4-14 5. Power window lock button* ....4-23 6. Power window switches ....4-20 7.
Page 13 Your vehicle at a glance INSTRUMENT PANEL OVERVIEW 1. Instrument cluster......4-39 2. Steering wheel audio controls* ..4-107 3. Light control / Turn signals ....4-63 4. Horn ..........4-34 5. Auto cruise controls* ......5-41 6. Wiper/Washer switch......4-69 7. Driver’s front air bag......3-47 8.
Page 14: Table Of Contents
Your vehicle at a glance ENGINE COMPARTMENT 1. Engine coolant reservoir....7-25 2. Engine oil filler cap ......7-24 3. Fuel filter..........7-31 4. Brake fluid reservoir......7-28 5. Air cleaner ........7-32 6. Fuse box ..........7-51 7. Negative battery terminal ....7-39 8. Positive battery terminal ....7-39 9.
Page 15 Seats / 3-2 Seat belts / 3-18 Child restraint system / 3-31 Air bag - supplemental restraint system / 3-41 Safety features of your vehicle...
Page 16 Safety features of your vehicle SEATS Front seat (1) Forward and backward (2) Seatback angle (3) Seat cushion height (Driver’s seat) (4) Lumbar support (Driver’s seat)* (5) Seat warmer* / Seat warmer (with air ventilation, Driver’s seat)* (6) Headrest Manual seat 2nd row seat (7) Seatback angle and folding (8) Double folding*...
Page 17 Safety features of your vehicle WARNING WARNING WARNING Loose objects Driver respon- - Driver’s seat sibility for passengers Loose objects in the driver’s foot • Never attempt to adjust the seat area could interfere with the opera- while the vehicle is moving. This Riding in a vehicle with the seat- tion of the foot pedals, possibly could result in loss of control,...
Page 18 Safety features of your vehicle (Continued) WARNING - Rear seatbacks • When resetting the seatback to • The rear seatback must be the upright position, make sure it securely latched. If not, passen- is securely latched by pushing it gers and objects could be thrown forward and backwards.
Page 19 Safety features of your vehicle Front seat adjustment - power (if equipped) The front seat can be adjusted by using the control switches located on the out- side of the seat cushion. Before driving, adjust the seat to the proper position so as to easily control the steering wheel, pedals and switches on the instrument panel.
Page 20 Safety features of your vehicle CAUTION • The power seat is driven by an electric motor. Stop operating once the adjustment is complet- ed. Excessive operation may damage the electrical equipment. • When in operation, the power seat consumes a large amount of electrical power.
Page 21 Safety features of your vehicle OHM038048N OXM039008 OXM039009 Seat height (for driver’s seat) Lumbar support (for driver’s seat) Headrest Pull the front portion of the control switch The lumbar support can be adjusted by The driver's and front passenger's seats up to raise or down to lower the front part pressing the button.
Page 22 Safety features of your vehicle WARNING • For maximum effectiveness in case of an accident, the headrest should be adjusted so the middle of the headrest is at the same height of the center of gravity of an occupant's head. Generally, the center of gravity of most peo- ple's head is similar with the height of the top of their eyes.
Page 23 During mild weather or under conditions the active headrest, take your vehicle to where the operation of the seat warmer WARNING an authorized KIA dealer and have the is not needed, keep the switches in the system checked. Make sure the headrest locks in OFF position.
Page 24 Safety features of your vehicle CAUTION WARNING - Seat warmer • When cleaning the seats, do not burns use an organic solvent such as Passengers should use extreme thinner, benzene, alcohol and caution when using seat warmers gasoline. Doing so may damage due to the possibility of excess the surface of the heater or seats.
Page 25 Safety features of your vehicle * if equipped OXM039015 OXM039016 OHM038049N Seatback pocket Rear seat adjustment Headrest The seatback pocket is provided on the The rear seat(s) is equipped with head- Seatback angle (2nd row seat) back of the front passenger’s and driver’s rests in all the seating positions for the To recline the seatback: seatbacks.
Page 26 Safety features of your vehicle WARNING • For maximum effectiveness in case of an accident, the headrest should be adjusted so the middle of the headrest is at the same height of the center of gravity of an occupant's head. Generally, the center of gravity of most peo- ple's head is similar with the height of the top of their eyes.
Page 27 Safety features of your vehicle Folding the rear seat 2nd row seat 1. Insert the rear seat belt buckle in the The rear seatbacks can be folded to facil- pocket between the rear seatback and itate carrying long items or to increase the luggage capacity of the vehicle.
Page 28 Safety features of your vehicle OXM039021 OXM039023 OXM039024 4. Pull on the seatback folding lever, then 5. Double folding 6. To use the rear seat, lift and pull the fold the seat toward the front of the (2nd row right seat, if equipped) seatback backward by pulling on the vehicle.
Page 29 Safety features of your vehicle 3rd row seat (if equipped) WARNING 1. Insert the rear seat belt buckle in the pocket between the rear seatback and When you return the rear seatback cushion, and insert the rear seat belt to its upright position after being webbing in the guide to prevent the folded down: seat belt from being damaged.
Page 30 Safety features of your vehicle WARNING When you return the rear seatback to its upright position after being folded down: Be careful not to damage the seat belt webbing or buckle. Do not allow the seat belt webbing or buckle to get caught or pinched in the rear seat.
Page 31 Safety features of your vehicle CAUTION - Rear seat belts WARNING WARNING - Uprighting Cargo loading When returning the rear (2nd and/or seat Make sure the engine is off, the 3rd row) seatbacks to the upright automatic transaxle is in P (Park) When you return the seatback to its position, remember to return the rear and the parking brake is securely...
Page 32 Safety features of your vehicle SEAT BELTS Seat belt restraint system (Continued) (Continued) • Avoid wearing twisted seat belts. Care should be taken to avoid con- WARNING A twisted belt can't do its job tamination of the webbing with pol- well.
Page 33 Safety features of your vehicle If you continue not to fasten the seat belt and you drive over 9km/h, the illuminated warning light will start to blink until you drive under 6km/h. If you continue not to fasten the seat belt and you drive over 20km/h the seat belt warning chime will sound for approxi- mately 100 seconds and the correspon-...
Page 34 Safety features of your vehicle ✽ ✽ NOTICE Front seat If you are not able to pull out the safety belt from the retractor, firmly pull the belt out and release it. Then you will be able to pull the belt out smoothly. B180A01NF-1 OXM039026 Lap/shoulder belt...
Page 35 Safety features of your vehicle To raise the height adjuster, pull it up (1). To lower it, push it down (3) while press- ing the height adjuster button (2). Release the button to lock the anchor into position. Try sliding the height adjuster to make sure that it has locked into position.
Page 36 Safety features of your vehicle Lengthen Shorten OHM039105N B210A01NF-1 B220A04NF-1 Lap belt (if equipped) To release the seat belt: The seat belt is released by pressing the To fasten your seat belt: release button (1) in the locking buckle. To fasten a 2-point static type belt, insert Too high When it is released, the belt should auto- the metal tab (1) into the locking buckle...
Page 37 Safety features of your vehicle 2nd row seat ■ OXM039029 3rd row seat (if equipped) ■ OXM039028 B210A02NF-1 When using the rear center seat belt, the To release the seat belt: buckle with the “CENTER” mark must be When you want to release the seat belt, used.
Page 38 Safety features of your vehicle 2nd row seat ■ CAUTION When using the seat belt, use it after taking it out of the guides. If you pull the seat belt when it is stored in the guides, it may damage the guides and/or belt webbing.
Page 39 Safety features of your vehicle When the vehicle stops suddenly, or if the occupant tries to lean forward too WARNING quickly, the seat belt retractor will lock To obtain maximum benefit from a into position. In certain frontal collisions, pre-tensioner seat belt: the pre-tensioner will activate and pull 1.
Page 40 Do not being driven, please have an sioner seat belts were activated. touch the pre-tensioner seat belt authorized KIA dealer inspect the assemblies for several minutes pre-tensioner seat belt and SRS air ✽ ✽ NOTICE after they have been activated.
Page 41 Never hold a child in your greatly reduce these hazards. tact an authorized KIA dealer. arms or lap when riding in a vehi- Always follow the precautions cle. The violent forces created dur-...
Page 42 Safety features of your vehicle Larger children If the shoulder belt portion slightly touch- ✽ ✽ NOTICE es the child’s neck or face, try placing the Children who are too large for child Small children are best protected from child closer to the center of the vehicle. If restraint systems should always occupy injury in an accident when properly the shoulder belt still touches their face...
Page 43 Safety features of your vehicle Pregnant women Injured person WARNING The use of a seat belt is recommended A seat belt should be used when an for pregnant women to lessen the chance injured person is being transported. Riding with a reclined seatback of injury in an accident.
Page 44 If the webbing This should be done even if no damage or buckles are damaged, get them is visible. Additional questions concern- replaced immediately. ing seat belt operation should be directed to an authorized KIA dealer.
Page 45 Safety features of your vehicle CHILD RESTRAINT SYSTEM Children riding in the vehicle should sit in the rear seat and must always be proper- WARNING WARNING ly restrained to minimize the risk of injury • A child restraint system must be To reduce the chance of serious or in an accident, sudden stop or sudden placed in the rear seat.
Page 46 Safety features of your vehicle Rearward-facing child restraint system (Continued) (Continued) • Never leave children unattended • Never use an infant carrier or a in a vehicle – not even for a short child safety seat that "hooks" time. The vehicle can heat up very over a seatback, it may not pro- quickly, resulting serious...
Page 47 Installing a child restraint system the system checked immediately with a lap belt (on the center rear seat) (if equipped) - Except Europe by your authorized KIA dealer. • Failure to observe this manual's To install a child restraint system on the instructions...
Page 48 Safety features of your vehicle E2MS103005 OEN036101 OEN036104 Installing a child restraint system 2. Fasten the lap/shoulder belt latch into 3. Buckle the seat belt and allow the seat with a lap/shoulder belt the buckle. Listen for the distinct “click” belt to take up any slack.
Page 49 Safety features of your vehicle Child seat restraint suitability for seat position using the seat belt - For Europe Use child safety seats that have been officially approved and are appropriate for your children. When using the child safety seats, refer to the following table. Seating position Age group Front...
Page 50 Safety features of your vehicle WARNING WARNING - Child restraint check A child can be seriously injured or killed in a collision if the child Check that the child restraint sys- restraint is not properly anchored tem is secure by pushing and to the car and the child is not prop- pulling it in different directions.
Page 51 Safety features of your vehicle Lower Anchor Position Indicator Lower Anchor OXM039035 OHM038045N OXM039036 Securing a child restraint system There are ISOFIX symbols located on Both rear outboard seats are equipped with “ISOFIX” system and “Tether the lower portion of each side of the 2nd with a pair of ISOFIX anchorages as well Anchorage”...
Page 52 Safety features of your vehicle The installing and the use of a child-seat To secure the child restraint seat (Continued) has to be done according to the 1. To engage the child restraint seat to In a crash, the child restraint seat installing-manual, which is added to the the ISOFIX anchor, insert the child ISOFIX attachments may not be...
Page 53 Safety features of your vehicle Child seat restraint suitability for vehicle ISOFIX positions - For Europe vehicle ISOFIX positions Mass Group Size Class Fixture 2nd Outboard 2nd Outboard Front Passenger 2nd Center (Driver side) (Passenger side) ISO/L1 Carrycot ISO/L2 0 : UP to 10kg ISO/R1 ISO/R1 0+ : UP to 13kg...
Page 54 Safety features of your vehicle Recommended child restraint systems – For Europe ECE-R44 Mass Group Name Manufacturer Type of Fixation Approval No. rearward facing with vehicle Group 0-1 FAIR G0/1 FAIR S.r.l E4 04443718 specific ISOFIX platform type “D” (0-18kg) Baby Safe Plus Britax Römer with vehicle 3-point safety seatbelt...
Page 55 Safety features of your vehicle AIR BAG - SUPPLEMENTAL RESTRAINT SYSTEM (IF EQUIPPED) (1) Driver’s front air bag (2) Passenger’s front air bag* (3) Side impact air bag* (4) Curtain air bag* * : if equipped WARNING Even in vehicles with air bags, you and your passengers must always wear the safety belts provided in order to minimize the risk and...
Page 56 Safety features of your vehicle How does the air bag system • Air bag deployment depends on a num- • There even circumstances ber of factors including vehicle speed, under which contact with the steer- operate angles of impact and the density and ing wheel air bag can cause fatal •...
Page 57 Safety features of your vehicle Noise and smoke WARNING When the air bags inflate, they make a loud noise and they leave smoke and • Extreme Hazard! Do not use a powder in the air inside of the vehicle. rearward facing child restraint on This is normal and is a result of the igni- a seat protected by an air bag in tion of the air bag inflator.
Page 58 4. Curtain air bag modules* approximately 6 seconds, then go off. of the SRS. Have an authorized KIA 5. Retractor pre-tensioner assemblies* Have the system checked if: dealer inspect the air bag system 6.
Page 59 Safety features of your vehicle Driver’s front air bag (1) Driver’s front air bag (2) Driver’s front air bag (3) B240B01L B240B02L B240B03L The front air bag modules are located Upon deployment, tear seams molded A fully inflated air bag, in combination both in the center of the steering wheel directly into the pad covers will separate with a properly worn seat belt, slows the...
Page 60 If this occurs, instrument cluster nor on the have your vehicle immediately instrument panel surface. inspected by an authorized KIA It may become a dangerous pro- dealer. jectile and cause injury if the pas- (Continued)
Page 61 Safety features of your vehicle The indications of the system's presence Driver’s front air bag are the letters "AIR BAG" embossed on WARNING the air bag pad cover on the steering Always use seat belts and child wheel and the passenger's side front restraints –...
Page 62 • Air bags can only be used once – practical from the front air bags, or near the air bag modules on have an authorized KIA dealer while still maintaining control of the steering wheel, instrument replace the air bag immediately the vehicle.
Page 63 Safety features of your vehicle (Continued) (Continued) • A child restraint system must • Sitting improperly or out of posi- never be placed in the front seat. tion can result in serious or fatal The infant or child could be injury in a crash.
Page 64 If this occurs, have an authorized bag, insert the master key into the pas- passenger seat. KIA dealer inspect the passen- senger’s front air bag ON/OFF switch • When the passenger’s front air bag ger’s front air bag ON/OFF switch, and turn it to the OFF position.
Page 65 Safety features of your vehicle (Continued) WARNING • Even though your vehicle is • The driver is responsible for the equipped with the passenger's proper position of the passen- front air bag ON/OFF switch, do ger’s front air bag ON/OFF switch. not install a child restraint sys- •...
Page 66 • If the seat or seat cover is dam- aged, have the vehicle checked • Do not use any accessory seat and repaired by an authorized covers. KIA dealer because your vehicle (Continued) is equipped with side impact air bags. : Only vehicle’s for Europe equipped with...
Page 67 Curtain air bag (if equipped) Importantly, children should sit in KIA dealer. Curtain air bags are located along both a proper child restraint system in Failure to follow the above instruc- sides of the roof rails above the front and the rear seat.
Page 68 Safety features of your vehicle Why didn’t my air bag go off in a collision? (Inflation and non-infla- tion conditions of the air bag) There are many types of accidents in which the air bag would not be expect- ed to provide additional protection. These include rear impacts, second or third collisions in multiple impact accidents, as well as low speed...
Page 69 Have the result in serious personal injury vehicle checked and repaired by or death. an authorized KIA dealer. • If the installation location or • Your vehicle has been designed angle of the sensors is altered in...
Page 70 Safety features of your vehicle Although the front air bags (driver’s and front passenger’s air bags) are designed to inflate only in frontal collisions, they also may inflate in other types of colli- sions if the front impact sensors detect a sufficient impact.
Page 71 Safety features of your vehicle OUN036087 OVQ036018N 1VQA2089 • Air bags are not designed to inflate in • Front air bags may not inflate in side • In an angled collision, the force of rear collisions, because occupants are impact collisions, because occupants impact may direct the occupants in a moved backward by the force of the move to the direction of the collision,...
Page 72 Safety features of your vehicle 1VQA2090 1VQA2091 1VQA2092 • Just before impact, drivers often brake • Front air bags may not inflate in • Air bags may not inflate if the vehicle heavily. Such heavy braking lowers the rollover accidents because front air collides with objects such as utility front portion of the vehicle causing it to bag deployment would not provide...
Page 73 KIA dealer. Improper handling of the SRS safety precautions must deployment of the system.
Page 74 Safety features of your vehicle Additional safety precautions • Keep occupants away from the air bag covers. All occupants should sit WARNING • Never let passengers ride in the upright, fully back in their seats with cargo area or on top of a folded- •...
Page 75 Safety features of your vehicle OXM039050L Air bag warning label Air bag warning labels are attached to alert the passengers of the potential risk of the air bag system. Note that these government warnings focus on the risk of children. We also want you to be aware of the risks which adults are exposed to that have been described in previous pages.
Page 76 Keys / 4-3 Remote keyless entry / 4-6 Smart key / 4-9 Theft-alarm system / 4-12 Door locks / 4-14 Tailgate / 4-18 Windows / 4-20 Hood / 4-24 Features of your vehicle Fuel filler lid / 4-26 Panorama sunroof / 4-29 Steering wheel / 4-33 Mirrors / 4-35 Instrument cluster / 4-39...
Page 77 Storage compartment / 4-97 Interior features / 4-99 Exterior feature / 4-105 Audio system / 4-107 Features of your vehicle...
Page 78 Should you lose your keys, this number will enable an authorized KIA dealer to CAUTION duplicate the keys easily. Remove the bar Do not fold the key without press- code tag and store it in a safe place.
Page 79 Immobilizer password is a cus- WARNING tomer unique password and should be kept confidential. Do not leave Use only KIA original parts for the this number anywhere in your vehi- ignition key in your vehicle. If an cle. aftermarket key is used, the ignition switch may not return to ON after START.
Page 80 If you need additional keys or lose your Do not change, alter or adjust the key with other immobilizer keys around. keys, consult an authorized KIA dealer. immobilizer system because it Otherwise the engine may not start or could cause the immobilizer sys- may stop soon after it starts.
Page 81 Features of your vehicle REMOTE KEYLESS ENTRY (IF EQUIPPED) Remote keyless entry system Tailgate unlock (3) Type A ■ operations The tailgate is unlocked if the button is pressed for more than 1 second. Lock (1) The hazard warning lights will blink twice All doors (and tailgate) are locked if the to indicate that the tailgate is unlocked.
Page 82 (CR2032). When replacing the battery, make sure the battery positive “+” sym- bol faces up as indicated in the illus- tration. 3. Install the battery in the reverse order of removal. For transmitter replacement, see an authorized KIA dealer to reprogram the transmitter.
Page 83 KIA dealer. • Using the wrong battery can cause the transmitter to malfunc- tion. Be sure to use the correct battery.
Page 84 Features of your vehicle SMART KEY (IF EQUIPPED) Even though you press the button, the doors will not lock and the chime sounds if any of the following occurs: • The smart key is in the vehicle. • The ENGINE START/STOP button is in the ACC or ON position.
Page 85 KIA dealer to protect it from potential theft. Start-up • The smart key will not work if any of...
Page 86 If you are unsure without the mechanical key. how to use your smart key or replace the An inappropriately disposed bat- battery, contact an authorized KIA deal- tery can be harmful to the environ- ment and human health. Dispose the battery according to your local law(s) or regulation.
Page 87 Park the vehicle and stop the engine. The theft-alarm system by the key can be Arm the system as described below. activated by an authorized KIA dealer. Armed If you want this feature, consult an 1. Remove the ignition key from the igni- stage authorized KIA dealer.
Page 88 KIA deal- After pressing the unlock button, if any door (or tailgate) is not opened within 30 Malfunctions caused by improper seconds, the system will be rearmed.
Page 89 Features of your vehicle DOOR LOCKS • Doors can also be locked and unlocked with the transmitter (or smart key). (if equipped) • Once the doors are unlocked, they may be opened by pulling the door handle. • When closing the door, push the door by hand.
Page 90 Features of your vehicle • If the inner door handle of the driver’s Driver’s door (or front passenger’s) door is pulled when the door lock button is in the lock position, the button will unlock and the door will open. (if equipped) •...
Page 91 Features of your vehicle • When pressing the front portion (1) of the switch, all vehicle doors will lock. WARNING - WARNING Doors Unlocked vehicles • When pressing the rear portion (2) of • The doors should always be fully the switch, all vehicle doors will unlock.
Page 92 Features of your vehicle Impact sensing door unlock sys- 3. Close the rear door. tem (if equipped) To open the rear door, pull the outside door handle. All doors will automatically unlock when Even though the doors may be unlocked, an impact causes the air bags to deploy.
Page 93 Features of your vehicle TAILGATE ✽ ✽ NOTICE In cold and wet climates, door lock and door mechanisms may not work proper- ly due to freezing conditions. WARNING The tailgate swings upward. Make sure no objects or people are near the rear of the vehicle when open- ing the tailgate.
Page 94 Features of your vehicle WARNING WARNING Exhaust fumes • For emergencies, be fully aware of the location of the emergency If you drive with the tailgate tailgate safety release lever in the opened, you will draw dangerous vehicle and how to open the tail- exhaust fumes into your vehicle gate if you are accidentally which can cause serious injury or...
Page 95 Features of your vehicle WINDOWS (1) Driver’s door power window switch (2) Front passenger’s door power win- dow switch (3) Rear door (left) power window switch (4) Rear door (right) power window switch (5) Window opening and closing (6) Automatic power window up*/down (Driver’s window) (7) Power window lock switch * : if equipped...
Page 96 Features of your vehicle Power windows The ignition switch must be in the ON position for power windows to operate. Each door has a power window switch that controls the door's window. The driv- er has a power window lock button which can block the operation of passenger windows.
Page 97 Features of your vehicle ✽ ✽ NOTICE The automatic reverse feature for the driver’s window is only active when the “auto up” feature is used by fully pulling up the switch. The automatic reverse feature will not operate if the window is raised using the halfway posi- tion on the power window switch.
Page 98 Features of your vehicle CAUTION WARNING - Windows • To prevent possible damage to • NEVER leave the ignition key in the power window system, do not the vehicle. open or close two windows or • NEVER leave any child unattend- more at the same time.
Page 99 Features of your vehicle HOOD Closing the hood 1. Before closing the hood, check the fol- lowing: • All filler caps in the engine compart- ment must be correctly installed. • Gloves, rags or any other com- bustible material must be removed from the engine compartment.
Page 100 Features of your vehicle WARNING WARNING • Before closing the hood, ensure • Always double check to be sure that all obstructions are removed that the hood is firmly latched from the hood opening. Closing before driving away. If it is not the hood with an obstruction latched, the hood could open present in the hood opening may...
Page 101 Features of your vehicle FUEL FILLER LID Closing the fuel filler lid 1. To install the cap, turn it clockwise until it “clicks”. This indicates that the cap is securely tightened. 2. Close the fuel filler lid and push it light- ly and make sure that it is securely closed.
Page 102 Features of your vehicle (Continued) (Continued) WARNING - Refueling dan- Use only approved portable plas- • Do not get back into a vehicle gers tic fuel containers designed to once you have begun refueling Automotive fuels are flammable carry and store gasoline. since you can generate static materials.
Page 103 Remove the panel in replacement, use only a genuine the luggage compartment area. Pull the KIA cap or the equivalent speci- handle out slightly. fied for your vehicle. An incorrect fuel filler cap can result in a seri- ous malfunction of the fuel sys- tem or emission control system.
Page 104 Features of your vehicle PANORAMA SUNROOF (IF EQUIPPED) ✽ ✽ NOTICE ✽ ✽ NOTICE • In cold and wet climates, the sunroof The sunroof cannot tilt when it is in the may not work properly due to freez- slide position but can be slid while in a ing conditions.
Page 105 Features of your vehicle To open the sunroof automatically: Pull the sunroof control lever backward to the second detent position and then release it. The sunroof will slide open automatically but will not open all the way. If you would like to completely open the sunroof, pull the lever once more.
Page 106 Features of your vehicle WARNING - Sunroof • Be careful that no head, hands and body parts are obstructed by a closing sunroof. • Do not extend the face, neck, arms or body outside the sunroof while driving. • Make sure your hands and head are safely out of the way before closing a sunroof.
Page 107 Features of your vehicle Resetting the sunroof Whenever the vehicle battery is discon- nected or discharged, you must reset your sunroof system as follows: 1. Turn the ignition switch to the ON position. 2. Open the roller blind. 3. Close the sunroof. 4.
Page 108 (below vehicle operation, have the power steer- ment panel warning lights and gauges. -10°C/14°F), the power steering may ing checked by an authorized KIA dealer. require increased effort when the engine is first started. This is caused by WARNING...
Page 109 Features of your vehicle CAUTION Do not strike the horn severely to operate it, or hit it with your fist. Do not press on the horn with a sharp- pointed object. (if equipped) OXM049033 OXM049034 To change the steering wheel angle, pull Horn down the lock release lever (1), adjust To sound the horn, press the horn sym-...
Page 110 Features of your vehicle MIRRORS Inside rearview mirror Electrochromic mirror (ECM) (if equipped) Adjust the rearview mirror so that the The electric rearview mirror automatical- center view through the rear window is ly controls the glare from the headlights seen. Make this adjustment before you Night of the vehicles behind you in nighttime or start driving.
Page 111 Features of your vehicle Outside rearview mirror Type A ■ CAUTION Be sure to adjust the mirror angles Do not scrape ice off the mirror before driving. face; this may damage the surface Your vehicle is equipped with both left- of the glass.
Page 112 Features of your vehicle CAUTION • The mirrors stop moving when they reach the maximum adjust- ing angles, but the motor contin- ues to operate while the switch is pressed. Do not press the switch longer than necessary, the motor may be damaged.
Page 113 Features of your vehicle CAUTION In case it is an electric type outside rearview mirror, don’t fold it by hand. It could cause motor failure. OXM049040 Electric Type To fold the outside rearview mirror, press the button. To unfold it, press the button again. CAUTION The electric type outside rearview mirror operates even though the...
Page 114 Features of your vehicle INSTRUMENT CLUSTER Gasoline Engine Type A ■ ■ 1. Tachometer 2. Turn signal indicators 3. Speedometer 4. Engine temperature gauge 5. Warning and indicator lights 6. Shift position indicator* 7. Odometer 8. Trip computer* Type B ■...
Page 115 Features of your vehicle Diesel Engine Type A ■ ■ 1. Tachometer 2. Turn signal indicators 3. Speedometer 4. Engine temperature gauge 5. Warning and indicator lights 6. Shift position indicator* 7. Odometer 8. Trip computer* Type B ■ ■ 9.
Page 116 Features of your vehicle Type A Type B Type A ■ ■ ■ • Gasoline • Gasoline • • Diesel Diesel OXM049053/OXM049054 OXM049055 Type C Type D Type B ■ ■ ■ OXM049052L • Gasoline • Diesel Instrument panel illumination (if equipped) When the vehicle’s parking lights or headlights are on, press the illumination...
Page 117 Features of your vehicle When the door is opened, or if the engine Type A Type B ■ ■ is not started within 1 minute, the WARNING tachometer pointer may move slightly in Never remove the radiator cap the ON position with the engine OFF. when the engine is hot.
Page 118 Features of your vehicle Type A Type B ■ ■ WARNING - Fuel gauge Running out of fuel can expose vehicle occupants to danger. You must stop and obtain addition- al fuel as soon as possible after the warning light comes on or when the gauge indicator comes close to the 0/E level.
Page 119 Features of your vehicle The odometer is always displayed until Type A Type A ■ ■ the display is turned off. Press the TRIP button for less than 1 second to select any mode as follows: Tripmeter A Type B Type B ■...
Page 120 Features of your vehicle Type A Type A Type A ■ ■ ■ Type B Type B Type B ■ ■ ■ OXM049063L OXM049065L OXM049066L Distance to empty (if equipped) Average fuel consumption (if equipped) Instant fuel consumption (if equipped) (km or mi.) (l/100 km or MPG) (l/100 km or MPG)
Page 121 Features of your vehicle ✽ ✽ NOTICE Type A Type A ■ ■ • If the vehicle is not on level ground or the battery power has been interrupt- ed, the “Distance to empty” function may not operate correctly. The trip computer may not register additional fuel if less than 6 liters (1.6 Type B Type B...
Page 122 ON (do not start the engine). Any light that does not illuminate This warning light will illuminate for should be checked by an authorized KIA approximately 6 seconds each time you dealer. turn the ignition switch to the ON posi- After starting the engine, check to make tion.
Page 123 If this occurs, have your vehicle checked Low brake fluid level warning If both ABS and brake warning by an authorized KIA dealer as soon as If the warning light remains on, it may lights are on and stay on, your vehi- possible.
Page 124 You should consult your deal- diately by an authorized KIA dealer. er for repairs. This indicator also blinks when the haz- ard warning switch is turned on.
Page 125 In any damage could result. instance where the oil light stays on when the engine is running, the engine should be checked by an authorized KIA dealer before the vehicle is driven again.
Page 126 : Indicates that shifting up to the 3rd charging system. Have an authorized gear is desired (currently the shift KIA dealer correct the problem as lever is in the 2nd gear). Door open position indicator soon as possible.
Page 127 START/STOP button washer fluid as soon as possible. turned to ON position with the smart key in the vehicle, have the system checked by an authorized KIA dealer. • When the battery is weak, if the ENGINE START/STOP button pressed, the indicator will blink and you are not able to start the engine.
Page 128 Engine Control System inspect- position, take your vehicle to the nearest for a long time, the DPF system can ed as soon as possible by an authorized KIA dealer and have the sys- be damaged and fuel consumption authorized KIA dealer. tem checked.
Page 129 Take For more information about the use of But, if the ESP system malfunctions the your vehicle to an authorized KIA dealer cruise control, refer to “Cruise control indicator illuminates and stays on. Take and have the system checked.
Page 130 KIA dealer as driving, check the system by an soon as possible. authorized KIA dealer as soon as possible.
Page 131 Overspeed warning chime while the vehicle is moving. Keep the authorized KIA dealer as soon as possi- If you drive with the speed of 120 km/h or smart key in the vehicle or insert it in the ble.
Page 132 If this occurs, have the system checked brake pedal, the warning illuminates on ENGINE START/STOP button in the by an authorized KIA dealer as soon as the LCD display for about 10 seconds to ACC, ON, or START position, the warn- possible.
Page 133 ENGINE START/STOP button, nates on the LCD display, the warning If the steering wheel does not lock nor- take your vehicle to an authorized KIA “Insert key” illuminates for about 10 sec- mally when the ENGINE START/STOP dealer and have the system checked.
Page 134 Features of your vehicle REAR PARKING ASSIST SYSTEM (IF EQUIPPED) Operation of the rear parking WARNING assist system The rear parking assist system is a Operating condition supplementary function only. The • This system will activate when backing operation of the rear parking assist up with the ignition switch ON.
Page 135 If the indicator blinks, check the system 5. Heavy rain or water spray exists. by an authorized KIA dealer. 6. Wireless transmitters or mobile phones are within range of the sensor. 7. The sensor is covered with snow.
Page 136 If this occurs, have your vehicle • The rear parking assist system may be detected by the sensors. checked by an authorized KIA dealer as malfunction if the vehicle bumper Always visually check behind the vehi- soon as possible.
Page 137 Features of your vehicle REARVIEW CAMERA (IF EQUIPPED) HAZARD WARNING FLASHER The rearview camera may be turned off by pressing the ON/OFF button when the rearview camera is activated. To turn the camera on again, press the ON/OFF button again when the ignition switch is on and the shift lever in R (Reverse).
Page 138 Features of your vehicle LIGHTING Battery saver function • The purpose of this feature is to pre- vent the battery from being dis- charged. The system automatically turns off the exterior lights when the driver removes the ignition key and opens the driver-side door.
Page 139 Features of your vehicle CAUTION • Never place anything over the sensor (1) located on the instru- ment panel. This will ensure bet- ter auto-light system control. • Don’t clean the sensor using a window cleaner. The cleaner may leave a light film which could interfere with sensor operation.
Page 140 Features of your vehicle OBK049050N OBK049049N OBK049051N High beam operation To flash the headlights, pull the lever Turn signals and lane change sig- towards you. It will return to the normal nals To turn on the high beam headlights, (low beam) position when released. The push the lever away from you.
Page 141 Features of your vehicle To signal a lane change, move the turn signal lever slightly and hold it in position (B). The lever will return to the OFF posi- tion when released. If an indicator stays on and does not flash or if it flashes abnormally, one of the turn signal bulbs may be burned out and will require replacement.
Page 142 Features of your vehicle Daytime running light Listed below are the examples of proper switch settings. For loading conditions (if equipped) other than those listed below, adjust the Daytime Running Lights (DRL) can make switch position so that the beam level it easier for others to see the front of your may be the nearest as the condition vehicle during the day.
Page 143 Features of your vehicle ✽ ✽ NOTICE • Check the headlight washers periodi- cally to confirm that the washer fluid is being sprayed properly onto the headlight lenses. • The headlight washer may not work temporarily if it freezes after a car wash, rain or snow in the winter.
Page 144 Features of your vehicle WIPERS AND WASHERS A : Wiper speed control (front) Windshield wiper/washer Rear window wiper/washer · MIST/ – Single wipe Type A ■ Type A ■ · OFF / O – Off · INT / --- – Intermittent wipe AUTO* –...
Page 145 Features of your vehicle Windshield wipers To vary the speed setting, turn the speed Type A ■ control knob (1). Operates as follows when the ignition If the wiper switch is set in AUTO mode switch is turned ON. when the ignition switch is ON, the wiper MIST/ : For a single wiping cycle, will operate once to perform a self-check...
Page 146 Features of your vehicle The spray and wiper operation will con- Type A ■ CAUTION tinue until you release the lever. When washing the vehicle, set the If the washer does not work, check the wiper switch in the OFF (O) position washer fluid level.
Page 147 Features of your vehicle Type A Type A ■ ■ CAUTION • To prevent possible damage to the wipers or windshield, do not operate the wipers when the windshield is dry. • To prevent damage to the wiper OAM049103N OXM049125 blades, do not use gasoline, Type B Type B...
Page 148 Features of your vehicle INTERIOR LIGHT Type A ■ CAUTION Do not use the interior lights for extended periods when the engine is not running. It may cause battery discharge. Automatic turn off function OXM049131 (if equipped) Type B ■ The interior lights automatically turn off approximately 20 minutes after the igni- OXM049130...
Page 149 Features of your vehicle • OFF : The light stays off at all times. • ON : The light stays on at all times. • DOOR : The light comes on when any door (or tailgate) is opened regardless of the ignition switch position.
Page 150 Features of your vehicle OXM049135 OXM049133 Glove box lamp (if equipped) Vanity mirror lamp (if equipped) The glove box lamp comes on when the • : The lamp will turn on if this but- glove box is opened. ton is pressed. The parking lights or headlights must be •...
Page 151 Features of your vehicle DEFROSTER To activate the rear window defroster, Type A ■ CAUTION press the rear window defroster button located in the center facia switch panel. To prevent damage to the conduc- The indicator on the rear window tors bonded to the inside surface of defroster button illuminates when the the rear window, never use sharp...
Page 152 Features of your vehicle MANUAL CLIMATE CONTROL SYSTEM (IF EQUIPPED) Front climate control ■ ■ 1. Fan speed control knob 2. Mode selection knob 3. Temperature control knob 4. Air conditioning button 5. Air intake control button 6. 3rd row air conditioning ON/OFF button* (controlled from the front) 7.
Page 153 Features of your vehicle Heating and air conditioning 1. Start the engine. 2. Set the mode to the desired position. For improving the effectiveness of heating and cooling; - Heating: - Cooling: 3. Set the temperature control to the desired position. 4.
Page 154 Features of your vehicle MAX A/C-Level (B, D, E) Floor-Level (C, F, G, A, D) Air flow is directed toward the upper body Most of the air flow is directed to the and face. floor, with a small amount of the air being In this mode, the air conditioning and the directed to the windshield and side win- recirculated air position will be selected...
Page 155 Features of your vehicle Type A ■ Type B ■ OXM049145 OXM049146 OXM049147 Temperature control Air intake control Instrument panel vents The outlet vents can be opened or closed The temperature control knob allows you The air intake control is used to select separately using the thumbwheel.
Page 156 Features of your vehicle Recirculated air position WARNING With the recirculated air position selected, air from • Continue using the climate con- the passenger compart- trol system in the recirculated air ment will be drawn through position may allow humidity to the heating system and increase inside the vehicle which heated or cooled according...
Page 157 Features of your vehicle 2. To turn off the 3rd row air conditioning control system, press the 3rd row air conditioning ON/OFF button ( ) once more located on the front climate con- trol panel or set the fan speed to the “0” position with the 3rd row fan speed switch (indicator light on the ON/OFF button (...
Page 158 Features of your vehicle System operation Air conditioning (if equipped) Operation Tips • To keep dust or unpleasant fumes from All KIA Air Conditioning Systems are Ventilation entering the vehicle through the venti- filled with environmentally friendly 1. Set the mode to the position.
Page 159 Features of your vehicle Air conditioning system operation tips • When using the air conditioning sys- ✽ ✽ NOTICE tem, you may notice clear water drip- • If the vehicle has been parked in direct • When using the air conditioning sys- ping (or even puddling) on the ground sunlight during hot weather, open the tem, monitor the temperature gauge...
Page 160 • When the air flow rate suddenly found, have the system inspected by an Blower decreases, the system should be authorized KIA dealer. checked at an authorized KIA dealer. Climate control air filter Heater core Evaporator core ✽ ✽ NOTICE...
Page 161 Features of your vehicle AUTOMATIC CLIMATE CONTROL SYSTEM (IF EQUIPPED) Front climate control ■ ■ 1. A/C display 2. Driver's temperature control knob 3. AUTO (automatic control) button 4. Front blower OFF button 5. Front fan speed control switch 6. Mode selection button 7.
Page 162 Features of your vehicle 2. Set the temperature switch to the desired temperature. If the temperature is set to the lowest setting (Lo), the air conditioning sys- tem will operate continuously. 3. To turn the automatic operation off, select any button or switch of the fol- lowing: •...
Page 163 Features of your vehicle Manual heating and air condition- Face-Level The heating and cooling system can be Air flow is directed toward the upper body controlled manually by pressing buttons and face. Additionally, each outlet can be or turning knob(s) other than the AUTO controlled to direct the air discharged button.
Page 164 Features of your vehicle OXM049155 OXM049145 OXM049156 Temperature control Defrost-Level Instrument panel vents Most of the air flow is directed to the The outlet vents can be opened or closed The temperature will increase to the windshield with a small amount of air separately using the thumbwheel.
Page 165 Features of your vehicle Adjusting the driver and passenger side temperature equally 1. Press the DUAL button again to deac- tivate DUAL mode. The passenger side temperature will be set to the same temperature as the driver side. 2. Operate the driver side temperature control switch.
Page 166 Features of your vehicle Recirculated air position ✽ ✽ NOTICE Type A ■ With the recirculated air Prolonged operation of the heater in the position selected, air from recirculated air position (without air the passenger compart- conditioning selected) may cause fog- ment will be drawn through ging of the windshield and side windows the heating system and...
Page 167 Features of your vehicle WARNING • Continue using the climate control system in the recirculated air posi- tion allow humidity increase inside the vehicle which may fog the glass and obscure vis- ibility. • Do not sleep in a vehicle with the air conditioning or heating system on.
Page 168 Features of your vehicle 2. To turn off the 3rd row air conditioning control system, press the 3rd row air conditioning ON/OFF button ( ) once more located on the front climate con- trol panel or set the fan speed to the “0” position with the 3rd row fan speed switch (indicator light on the ON/OFF button (...
Page 169 Features of your vehicle WINDSHIELD DEFROSTING AND DEFOGGING • For maximum defrosting, set the tem- WARNING perature control to the extreme Windshield right/hot position and the fan speed heating control to the highest speed. Do not use the position • If warm air to the floor is desired while during cooling operation...
Page 170 Features of your vehicle OXM049166 OXM049167 OXM049168 To defrost outside windshield Automatic climate control system To defrost outside windshield 1. Set the fan speed to the highest posi- 1. Set the fan speed to the highest posi- To defog inside windshield tion.
Page 171 Features of your vehicle Defogging logic To reduce the possibility of fogging up the inside of the windshield, the air intake or air conditioning are controlled auto- matically according to certain conditions such as position. To cancel or return to the defogging logic, do the fol- lowing.
Page 172 Features of your vehicle STORAGE COMPARTMENT These compartments can be used to store small items. CAUTION • To avoid possible theft, do not leave valuables in the storage compartment. • Always keep the storage com- partment covers closed while driving. Do not attempt to place so many items in the storage compartment that the storage OXM049212...
Page 173 Features of your vehicle Type A ■ WARNING • Do not keep objects except sun- glasses inside the sunglass hold- er. Such objects can be thrown from the holder in the event of a sudden stop or an accident, pos- sibly injuring the passengers in the vehicle.
Page 174 “ready” position. • Putting lit cigarettes or matches If it is necessary to replace the cigarette in an ashtray with other com- lighter, use only a genuine KIA replace- bustible materials may cause a ment or its approved equivalent. fire.
Page 175 Features of your vehicle Cup holder Cups or small beverage cans may be Front ■ placed in the cup holders. WARNING Hot liquids • Do not place uncovered cups of hot liquid in the cup holder while the vehicle is in motion. If the hot liquid spills, you may burn your- self.
Page 176 Features of your vehicle Front ■ CAUTION - Vanity mirror lamp (if equipped) If you use the vanity mirror lamp, turn off the lamp before return the sunvisor to its original position. It could result in battery discharge and possible sunvisor damage. OXM049184 Center (if equipped) ■...
Page 177 Features of your vehicle Digital clock CAUTION • Use the power outlet only when WARNING the engine is running and remove Do not adjust the clock while driv- the accessory plug after use. ing. You may lose your steering Using the accessory plug for pro- control and cause an accident that longed periods of time with the results in severe personal injury or...
Page 178 If necessary, contact your authorized KIA dealer to obtain a luggage net. WARNING • Make sure the floor mat is proper- ly placed on the floor carpet.
Page 179 Features of your vehicle OXM049218 OXM049219 OXM049220 Cargo security screen To use the cargo security screen, pull the When not in use, place the cargo securi- handle backward and insert the edges ty screen on the lower portion of the (if equipped) into the slots.
Page 180 Since the cargo security screen not damage the roof of the vehicle. may be obtained from an authorized KIA may be damaged or malformed, do • When carrying large objects on dealer.
Page 181 Features of your vehicle (Continued) WARNING • Always drive slowly and turn cor- • The following specification is the ners carefully when carrying maximum weight that can be items on the roof rack. Severe loaded onto roof rack. wind updrafts, caused by passing Distribute the load as evenly as vehicles or natural causes, can possible across the crossbars (if...
Page 182 Features of your vehicle AUDIO SYSTEM Type A Type B ■ ■ CAUTION • Before entering a place with a low height clearance, be sure that the antenna is removed. • Be sure to remove the antenna before washing the car in an auto- matic car wash or it may be dam- aged.
Page 183 Features of your vehicle RADIO mode VOLUME (VOL ) (1) It will function as the PRESET STATION • Push up the lever to increase volume. select buttons. • Push down the lever to decrease vol- ume. CDP mode It will function as the TRACK UP/DOWN SEEK/PRESET ( ) (2) button.
Page 184 Features of your vehicle FM reception AM(MW, LW) reception FM radio station JBM001 JBM002 JBM003 How vehicle audio works AM(MW, broadcasts FM broadcasts are transmitted at high received at greater distances than FM frequencies and do not bend to follow the AM(MW, LW) and FM radio signals are broadcasts.
Page 185 Features of your vehicle Using a cellular phone or a two-way radio When a cellular phone is used inside the vehicle, noise may be produced from the audio equipment. This does not mean that something is wrong with the audio equipment.
Page 186 Features of your vehicle Care of discs • Keep CDs in their cases after use to protect them from scratches or dirt. • If the temperature inside the vehicle is • Depending on the type of CD-R/CD- too high, open the vehicle windows for RW CDs, certain CDs may not operate ventilation before using your vehicle normally according to manufacturing...
Page 187 Features of your vehicle RADIO, SET UP, VOLUME, AUDIO CONTROL (PA710XM, EUR) 1. FM Selection Button 2. AM Selection Button 3. Preset Buttons 4. Power ON/OFF Button & Volume Control Knob 5. TA(Traffic announcement) Selection Button 6. SETUP Button 7. TUNE Knob & Audio Control Knob RADIO, SET UP, VOLUME, AUDIO CONTROL (PA760XM, EUR) 8.
Page 188 Features of your vehicle 1. FM Selection Button • Adjusts the volume of the car audio • AF system. Rotate clockwise to increase Select this item to turn the AF (Alternate Turns to FM mode and switches among the volume or counterclockwise to Frequency) feature ON or OFF.
Page 189 Features of your vehicle 7. TUNE Knob & Audio Control 9. AST(Auto Store) Button • FADER Control Knob Turn the control knob clockwise to When [AST] is pressed, radio channel is emphasize rear speaker sound (front stored on the preset memory [1] ~ [6] of Rotate the knob clockwise by one notch speaker sound will be attenuated).
Page 190 Features of your vehicle CD (PA710XM, EUR) 1. CD Loading Slot 2. CD Eject Button 3. CD/AUX Selection Button 4. Automatic Track Selection Button 5. RANDOM Play Button 6. REPEAT Button 7. CD Indicator 8. CD LOAD button CD (PA760XM, EUR) 9.
Page 191 Features of your vehicle 1. CD Loading Slot 4. Automatic Track Selection 6. REPEAT Button Button Please face printed side upward and gen- Repeats current song when the button is • Press [TRACK ] button for less than tly press in. When the ignition switch is on pressed for less than 0.8 second.
Page 192 Features of your vehicle 10. INFO Button 12. SEARCH Knob & ENTER • FADER Control Button Turn the control knob clockwise to Displays the information of the current CD emphasize rear speaker sound (front TRACK in the order of DISC TITLE ➟...
Page 193 Features of your vehicle AUX/USB (PA710XM, EUR) 1. AUX/USB Selection Button 2. TRACK Moving Button 3. RANDOM Playback Button 4. REPEAT Selection Button 5. SCAN Selection Button 6. INFO Button 7. SEARCH Knob & ENTER Button 8. FOLDER Moving Button AUX/USB (PA760XM, EUR)
Page 194 Features of your vehicle (Continued) (Continued) CAUTION IN USING • Depending on the condition of • If you dismount the external USB USB DEVICE the external USB device, the con- device during playback in USB • To use an external USB device, nected external USB device can mode, the external USB device can make sure the device is not...
Page 195 Features of your vehicle (Continued) (Continued) • If USB device is divided by logical • Please avoid using USB memory drives, only the music files on the products which can be used as highest-priority drive are recog- key chains or cellular phone nized by car audio.
Page 196 Features of your vehicle 1. AUX/USB Selection Button 3. RANDOM Playback Button 7. SEARCH Knob & ENTER Button Press the button for less than 0.8 second If USB is connected, it switches to USB to start or stop the random playback of mode.
Page 197 Features of your vehicle RUNNING iPod (PA710XM, EUR) 1. iPod Selection Button 2. TRACK Moving Button 3. REPEAT Selection Button 4. RANDOM Playback Button 5. INFO Button 6. SEARCH Knob & ENTER Button 7. CATEGORY Selection Button RUNNING iPod (PA760XM, EUR) iPod is a trademark of Apple Inc.
Page 198 Features of your vehicle ✽ ✽ NOTICE FOR USING iPod (Continued) CAUTION IN USING • When the iPod cable is connected, DEVICE iPod DEVICE the system can be switched to the • Some iPod models might not sup- • You need the power cable exclu- AUX mode even without the iPod port the communication protocol sive for an iPod in order to oper-...
Page 199 Features of your vehicle 1. iPod Selection Button 4. RANDOM Playback Button • Pressing the button changes the BASS, MIDDLE, TREBLE, FADER and BAL- If iPod is connected, it switches to the Press the button for less than 0.8 second ANCE TUNE mode.
Page 200 Features of your vehicle RADIO, SET UP, VOLUME, AUDIO CONTROL (PA710XM, GEN) 1. FM Selection Button 2. AM Selection Button 3. Preset Buttons 4. Power ON/OFF Button & Volume Control Knob 5. SETUP Button 6. TUNE Knob & Audio Control Knob 7.
Page 201 Features of your vehicle 1. FM Selection Button 5. SETUP Button • SDVC Select this item to turn the SDVC(Speed Turns to FM mode and toggles FM1 and Press this button to enter the TEXT Dependent Volume Control) feature ON FM2 when the button is pressed each SCROLL, SDVC and P.BASS adjustment or OFF.
Page 202 Features of your vehicle 6. TUNE Knob & Audio Control 8. AST(Auto Store) Button • FADER Control Knob Turn the control knob clockwise to When AST is pressed, frequency is stored emphasize rear speaker sound (front on the preset memory [1]~[6] and auto- Rotate the knob clockwise by one notch speaker sound will be attenuated).
Page 203 Features of your vehicle CD (PA710XM, GEN) 1. CD Loading Slot 2. CD Eject Button 3. CD Selection Button 4. Automatic Track Selection Button 5. RANDOM Play Button 6. REPEAT Button 7. CD Indicator 8. CD LOAD button CD (PA760XM, GEN) 9.
Page 204 Features of your vehicle 1. CD Loading Slot 4. Automatic Track Selection 6. REPEAT Button Button Please face printed side upward and gen- Repeats current song when the button is • Press [TRACK ] button for less than tly press in. When the ignition switch is on pressed for less than 0.8 second.
Page 205 Features of your vehicle 10. INFO Button (PA710/PA760) 12. SEARCH Knob & ENTER • FADER Control Button Turn the control knob clockwise to Displays the information of the current CD emphasize rear speaker sound (front TRACK in the order of DISC TITLE ➟...
Page 206 Features of your vehicle AUX/USB (PA710XM, GEN) 1. AUX/USB Selection Button 2. TRACK Moving Button 3. RANDOM Playback Button 4. REPEAT Selection Button 5. SCAN Selection Button 6. INFO Button 7. SEARCH Knob & ENTER Button 8. FOLDER Moving Button AUX/USB (PA760XM, GEN) 4 131...
Page 207 Features of your vehicle (Continued) (Continued) CAUTION IN USING • Depending on the condition of • If you dismount the external USB USB DEVICE the external USB device, the con- device during playback in USB • To use an external USB device, nected external USB device can mode, the external USB device can make sure the device is not...
Page 208 Features of your vehicle (Continued) (Continued) • If USB device is divided by logical • Please avoid using USB memory drives, only the music files on the products which can be used as highest-priority drive are recog- key chains or cellular phone nized by car audio.
Page 209 Features of your vehicle 1. AUX/USB Selection Button 3. RANDOM Playback Button 7. SEARCH Knob & ENTER Button Press the button for less than 0.8 second If the auxiliary device is connected, it to start or stop the random playback of switches to AUX or USB mode to play the Turn this button clockwise to display the the songs in the current folder.
Page 210 Features of your vehicle RUNNING iPod (PA710XM, GEN) 1. iPod Selection Button 2. TRACK Moving Button 3. REPEAT Selection Button 4. RANDOM Playback Button 5. INFO Button 6. SEARCH Knob & ENTER Button 7. CATEGORY Selection Button RUNNING iPod (PA760XM, GEN) iPod is a trademark of Apple Inc.
Page 211 Features of your vehicle ✽ ✽ NOTICE FOR USING iPod (Continued) CAUTION IN USING • When the iPod cable is connected, DEVICE iPod DEVICE the system can be switched to the • Some iPod models might not sup- • You need the power cable exclu- AUX mode even without the iPod port the communication protocol sive for an iPod in order to oper-...
Page 212 Features of your vehicle 1. iPod Selection Button 4. RANDOM Playback Button Pressing the button changes the BASS, MIDDLE, TREBLE, FADER and BAL- If iPod is connected, it switches to the Press the button for less than 0.8 second ANCE TUNE mode. The mode selected iPod mode from the previous mode to to start or stop the random playback of is shown on the display.
Page 213 Before driving / 5-3 Key positions / 5-4 ENGINE START/STOP button / 5-8 Manual transaxle / 5-14 Automatic transaxle / 5-17 Four wheel drive (4WD) / 5-23 Brake system / 5-30 Cruise control system / 5-41 Economical operation / 5-45 Special driving conditions / 5-47 Winter driving / 5-51 Driving your vehicle...
Page 214 KIA dealer. • Do not run the engine in an enclosed area.
Page 215 Driving your vehicle BEFORE DRIVING Before entering vehicle Before starting WARNING - Driving under • Be sure that all windows, outside mir- • Close and lock all doors. the influence of alcohol or ror(s), and outside lights are clean. • Position the seat so that all controls are drugs •...
Page 216 Driving your vehicle KEY POSITIONS (IF EQUIPPED) ACC (Accessory) The steering wheel is unlocked and elec- trical accessories are operative. ✽ ✽ NOTICE If difficulty is experienced turning the ignition switch to the ACC position, turn the key while turning the steering wheel right and left to release the tension.
Page 217 Driving your vehicle START Starting the engine (Continued) Turn the ignition switch to the START • Never reach for the ignition switch, position to start the engine. The engine WARNING or any other controls through the will crank until you release the key; then steering wheel while the vehicle is Always wear appropriate shoes it returns to the ON position.
Page 218 Driving your vehicle Starting the gasoline engine Starting the diesel engine CAUTION (if equipped) (if equipped) If the engine stalls while the vehicle 1. Make sure the parking brake is To start the diesel engine when the is in motion, do not attempt to move applied.
Page 219 Driving your vehicle Starting and stopping the engine for tur- bocharger intercooler Glow indicator light 1. Do not race or accelerate the engine immediately after starting. If the engine is cold, idle for several seconds before sufficient lubrication is ensured in the turbocharger unit. 2.
Page 220 Try locking the steering wheel again. If the problem is not solved, have it checked by an author- ized KIA dealer. In addition, if the ENGINE START/STOP button is in the OFF position after the dri-...
Page 221 Driving your vehicle ACC(Accessory) CAUTION You are able to turn off the engine (START/RUN) or vehicle power (ON), only when the vehicle is not in motion. In an emergency situation Orange indicator Green indicator while the vehicle is in motion, you •...
Page 222 Driving your vehicle START/RUN ✽ ✽ NOTICE (Continued) If you leave the ENGINE START/ STOP • Never reach for the ENGINE button in the ACC or ON position for a START/STOP button or any other long time, the battery will discharge. controls through the steering wheel while the vehicle is in Not illuminated...
Page 223 Driving your vehicle Starting the engine Starting the diesel engine 4. Press the ENGINE START/STOP but- ton. (if equipped) Starting the gasoline engine 5. In extremely cold weather (below - (if equipped) To start the diesel engine when the 18°C / 0°F) or after the vehicle has not engine is cold, it has to be pre-heated 1.
Page 224 Driving your vehicle Starting and stopping the engine for tur- • Even if the smart key is in the vehicle, if it is far away from you, the engine bocharger intercooler Glow indicator light may not start. 1. Do not race or accelerate the engine immediately after starting.
Page 225 Driving your vehicle (Continued) CAUTION • When the stop lamp fuse is blown, you If the engine stalls while the vehicle can't start the engine normally. is in motion, do not attempt to move Replace the fuse with a new one. If it the shift lever to the P (Park) posi- is not possible, you can start the tion.
Page 226 Driving your vehicle MANUAL TRANSAXLE (IF EQUIPPED) Manual transaxle operation CAUTION The manual transaxle has 6 forward • When downshifting from fifth gears. gear to fourth gear, caution This shift pattern is imprinted on the shift should be taken not to inadver- knob.
Page 227 Driving your vehicle Using the clutch • During cold weather, shifting may be difficult until the transaxle lubricant has WARNING The clutch should be pressed all the way warmed up. This is normal and not to the floor before shifting, then released •...
Page 228 Driving your vehicle Good driving practices • Exercise extreme caution when driving on a slippery surface. Be especially WARNING • Never take the vehicle out of gear and careful when braking, accelerating or • Always buckle-up! In a collision, coast down a hill. This is extremely shifting gears.
Page 229 Driving your vehicle AUTOMATIC TRANSAXLE (IF EQUIPPED) Automatic transaxle operation The automatic transaxle has 6 forward speeds and one reverse speed. The indi- vidual speeds are selected automatically, depending on the position of the shift lever. ✽ ✽ NOTICE The first few shifts on a new vehicle, if the battery has been disconnected, may be somewhat abrupt.
Page 230 Driving your vehicle For smooth operation, depress the brake Transaxle ranges CAUTION pedal when shifting from N (Neutral) to a The indicator in the instrument cluster forward or reverse gear. • To avoid damage your displays the shift lever position when the transaxle, do not accelerate the ignition switch is in the ON position.
Page 231 Driving your vehicle N (Neutral) CAUTION The wheels and transaxle are not The transaxle may be damaged if engaged. The vehicle will roll freely even you shift into P (Park) while the on the slightest incline unless the parking vehicle is in motion. brake or service brakes are applied.
Page 232 3. Have your vehicle inspected by an • When driving on a slippery road, of the P (Park) position into anoth- authorized KIA dealer immediately. push the shift lever forward into the er position to avoid inadvertent +(up) position. This causes the...
Page 233 Driving your vehicle Ignition key interlock system Good driving practices • Always use the parking brake. Do not (if equipped) depend on placing the transaxle in P • Never move the shift lever from P (Park) to keep the vehicle from moving. The ignition key cannot be removed (Park) or N (Neutral) to any other posi- unless the shift lever is in the P (Park)
Page 234 Driving your vehicle Moving up a steep grade from a stand- WARNING WARNING ing start To move up a steep grade from a stand- • Always buckle-up! In a collision, If your vehicle becomes stuck in ing start, depress the brake pedal, shift an unbelted occupant is signifi- snow, mud, sand, etc., then you the shift lever to D (Drive).
Page 235 Driving your vehicle FOUR WHEEL DRIVE (4WD) (IF EQUIPPED) Tight corner brake effect Engine power can be delivered to all front and rear wheels for maximum traction. WARNING Off road driving 4WD is useful when extra traction is This vehicle is designed primarily CAUTION - required on road, such as, when driving for on road use although it can oper-...
Page 236 Driving your vehicle Four Wheel Drive (4WD) transfer mode selection Transfer mode Selection button Indicator light Description • When driving in 4WD AUTO mode, the vehicle operates sim- ilar to conventional 2WD vehicles under normal operating conditions. However, if the system determines that there is a 4WD AUTO need for the 4WD mode, the engine’s driving power is dis- (4WD LOCK is...
Page 237 Driving your vehicle For safe four-wheel drive opera- tion WARNING Four-wheel driving The conditions of on-road or off- road that demand four-wheel drive mean all functions of your vehicle are exposed to extreme stress than under normal road conditions. Slow down and be ready for changes in the composition and traction of the HILL1...
Page 238 Driving your vehicle • You must consciously take the effort to learn how to corner in a 4WD vehicle. WARNING Wind danger Do not rely on your experience in con- If you are driving in heavy wind, the ventional 2WD vehicles in choosing vehicle's higher center of gravity safe cornering speed in 4WD mode.
Page 239 Driving your vehicle ✽ ✽ NOTICE Reducing the risk of a rollover WARNING - 4WD driving • Do not drive in water if the level is This multi-purpose passenger vehicle is higher than the bottom of the vehicle. • Avoid high cornering speed. defined as a Sports Utility Vehicle (SUV).
Page 240 KIA for off • Avoid sharp turns or abrupt road driving, you should not use maneuvers. these tires for highway driving.
Page 241 Driving your vehicle • Full-time 4WD vehicles must be tested on a special four wheel chassis WARNING - Dynamometer dynamometer. testing Keep away from the front of the ✽ ✽ NOTICE vehicle while the vehicle is in gear on the dynamometer. This is very Never engage the parking brake while dangerous as the vehicle can jump performing these tests.
Page 242 Driving your vehicle BRAKE SYSTEM Power brakes In the event of brake failure WARNING Brakes If service brakes fail to operate while the Your vehicle has power-assisted brakes vehicle is in motion, you can make an that adjust automatically through normal •...
Page 243 Driving your vehicle Disc brakes wear indicator When your brake pads are worn and new pads are required, you will hear a high- pitched warning sound from your front brakes or rear brakes (if equipped). You may hear this sound come and go or it may occur whenever you depress the brake pedal.
Page 244 Driving your vehicle If the parking brake does not release or does not release all the way, have the system checked by an authorized KIA dealer. WARNING • To prevent unintentional move- ment when stopped and leaving the vehicle, do not use the shift lever instead of the parking brake.
Page 245 Driving your vehicle Anti-lock brake system (ABS) (Continued) • On roads where the road surface WARNING is pitted or has different surface height. ABS (or ESP) will not prevent acci- The safety features of an ABS (or dents due to improper or danger- ESP) equipped vehicle should not driving maneuvers.
Page 246 • Always slow down when cornering. lem with the ABS. Contact an The anti-lock brake system cannot pre- CAUTION authorized KIA dealer as soon as vent accidents resulting from exces- • If the ABS warning light is on and possible.
Page 247 Driving your vehicle The Electronic Stability Program (ESP) WARNING system is an electronic system designed to help the driver maintain vehicle control Never drive too fast according to under adverse conditions. It is not a the road conditions or too quickly substitute for safe driving practices.
Page 248 Driving your vehicle ESP operation ESP operation off When operating When the ESP is in operation, ESP ON condition ESP OFF state ESP indicator light blinks. • When the ignition is turned • To cancel ESP operation, • When the Electronic Stability ON, ESP and ESP OFF indi- press the ESP OFF button Program is operating proper-...
Page 249 Driving your vehicle ESP OFF usage ■ ESP indicator light CAUTION When driving Driving with varying tire or wheel • ESP should be turned on for daily driv- sizes may cause the ESP system to ing whenever possible. malfunction. When replacing tires, •...
Page 250 Driving your vehicle Hill-start assist control (HAC) ✽ ✽ NOTICE (if equipped) • The HAC does not operate when the transaxle shift lever is in the P (Park) A vehicle has the tendency to slip back or N (Neutral) position. on a steep hill when it starts to go after •...
Page 251 If the DBC red indicator light illuminates, the system has overheated or some- thing is wrong. The DBC will not activate. If the DBC red indicator light illu- minates even though the DBC system has been cooled enough have the sys- tem checked by an authorized KIA dealer. 5 39...
Page 252 KIA dealer for assistance. into the curb to help keep the vehicle engage the vehicle's transaxle from rolling.
Page 253 Driving your vehicle CRUISE CONTROL SYSTEM (IF EQUIPPED) CAUTION WARNING During cruise-speed driving of a • If the cruise control is left on manual transaxle vehicle, do not (Cruise indicator light in the shift into neutral without depress- instrument cluster illuminated), ing the clutch pedal, since the cruise control...
Page 254 Driving your vehicle OXM059020 OXM059021 OXM059022 To set cruise control speed: 3. Push the SET - switch, and release it at To increase cruise control set the desired speed. The SET indicator speed: 1. Push the Cruise ON-OFF button on light in the instrument cluster will illumi- the steering wheel, to turn the system Follow either of these procedures:...
Page 255 Driving your vehicle To temporarily accelerate with the cruise control on: If you want to speed up temporarily when the cruise control is on, depress the accelerator pedal. Increased speed will not interfere with cruise control operation or change the set speed. To return to the set speed, take your foot off the accelerator.
Page 256 Driving your vehicle Each of these actions will cancel cruise control operation (the SET indicator light in the instrument cluster will go off), but it will not turn the system off. If you wish to resume cruise control operation, push the RES+ switch located on your steering wheel.
Page 257 Driving your vehicle ECONOMICAL OPERATION Your vehicle's fuel economy depends • Don't "ride" the brake or clutch pedal. • Keep your vehicle in good condition. mainly on your style of driving, where you This can increase fuel consumption For better fuel economy and reduced drive and when you drive.
Page 258 Therefore, have an authorized KIA speeds. loss of vehicle steering which dealer perform scheduled inspections could cause serious injury or and maintenance.
Page 259 Driving your vehicle SPECIAL DRIVING CONDITIONS Hazardous driving conditions Rocking the vehicle • If stalled in snow, mud, or sand, use second gear. Accelerate slowly to When hazardous driving conditions are If it is necessary to rock the vehicle to free avoid spinning the drive wheels.
Page 260 Driving your vehicle WARNING - Spinning tires Do not spin the wheels, especially at speeds more than 56 km/h (35 mph). Spinning the wheels at high speeds when the vehicle is station- ary could cause a tire to overheat which could result in tire damage that may injure bystanders.
Page 261 Driving your vehicle • Adjust your mirrors to reduce the glare • If your tires are not in good condition, from other driver's headlights. making a quick stop on wet pavement can cause a skid and possibly lead to • Keep your headlights clean and prop- an accident.
Page 262 Driving your vehicle Fuel, engine coolant and engine oil WARNING High speed travel consumes more fuel than urban motoring. Do not forget to • Underinflated overinflated check both engine coolant and engine tires can cause poor handling, oil. loss of vehicle control, and sud- den tire failure leading to acci- dents, injuries, and even death.
Page 263 Driving your vehicle WINTER DRIVING Snowy or icy conditions Snow tires If you mount snow tires on your vehicle, To drive your vehicle in deep snow, it may make sure they are radial tires of the be necessary to use snow tires or to same size and load range as the original install tire chains on your tires.
Page 264 Driving your vehicle When using tire chains, attach them to Chain installation the drive wheels as follows. When installing chains, follow the manu- facturer's instructions and mount them as 2WD : Front wheels tightly as you can. Drive slowly with 4WD : All four wheels chains installed.
Page 265 7. The level of charge in your battery can pension, body and wheels. be checked by an authorized KIA dealer • Stop driving and retighten the or a service station. chains any time you hear them hitting the vehicle.
Page 266 Window washer anti-freeze is available from an authorized KIA dealer Under some conditions, snow and ice and most auto parts outlets. Do not use can build up under the fenders and inter- engine coolant or other types of anti- fere with the steering.
Page 267 Ask an Remember that trailering is different than exceeded by not more than 10% or authorized KIA dealer for further details 100kg (220.4 lbs), whichever value is just driving your vehicle by itself. before towing.
Page 268 • The bumpers on your vehicle are not intended for hitches. Do not attach • Right side rental hitches or other bumper-type hitches. Use only a frame-mounted hitch that does not attach to the bumper. • KIA trailer hitch accessory is available at an authorized KIA dealer.
Page 269 Driving your vehicle Safety chains Trailer brakes Driving with a trailer should always attach chains If your trailer is equipped with a braking Towing a trailer requires a certain between your vehicle and your trailer. system, make sure it conforms to your amount of experience.
Page 270 Do not connect a trailer lighting system directly to your vehicle’s lighting system. Use only an approved trailer wiring har- ness. An authorized KIA dealer can assist you in installing the wiring harness.
Page 271 Driving your vehicle Parking on hills 5. Start the vehicle, hold the brakes, shift CAUTION to neutral, release the parking brake Generally, if you have a trailer attached to and slowly release the brakes until the • When towing a trailer on steep your vehicle, you should not park your trailer chocks absorb the load.
Page 272 Driving your vehicle Maintenance when trailer towing When you are ready to leave after park- CAUTION ing on a hill Your vehicle will need service more often • Due to higher load during trailer 1. With the manual transaxle in Neutral when you regularly pull a trailer.
Page 273 (4409.2) (4409.2) transaxle damage. • When towing a trailer, be sure to con- Maximum permissible static sult an authorized KIA dealer for fur- 100 (220.5) (176.4) vertical load on the coupling ther information on additional require- ments such as a towing kit, etc.
Page 274 Driving your vehicle The trailer tongue should weigh a maxi- mum of 10% of the total loaded trailer weight, within the limits of the maximum trailer tongue load permissible. After you've loaded your trailer, weigh the trail- er and then the tongue, separately, to see if the weights are proper.
Page 275 Driving your vehicle VEHICLE WEIGHT Overloading This section will guide you in the proper GAW (Gross axle weight) loading of your vehicle and/or trailer, to This is the total weight placed on each keep your loaded vehicle weight within its axle (front and rear) - including vehicle design rating capability, with or without a WARNING -...
Page 276 Road warning / 6-2 In case of an emergency while driving / 6-2 If the engine will not start / 6-3 Emergency starting / 6-4 If the engine overheats / 6-6 If you have a flat tire (with spare tire) / 6-7 If you have a flat tire (with InstantMobilitySystem) / 6-16 Tire Pressure Monitoring System (TPMS) / 6-21 Towing / 6-26...
Page 277 What to do in an emergency IN CASE OF AN EMERGENCY ROAD WARNING WHILE DRIVING It should be used whenever emergency repairs are being made or when the vehi- If the engine stalls at a crossroad cle is stopped near the edge of a road- or crossing way.
Page 278 4. If the engine still does not start, call an tion. 4. Check the starter connections to be authorized KIA dealer or seek other sure they are securely tightened. qualified assistance. If engine stalls while driving 5.
Page 279 What to do in an emergency EMERGENCY STARTING Jump starting Jumper Cables WARNING - Battery Jump starting can be dangerous if done • Keep all flames or sparks away incorrectly. Therefore, to avoid harm to from the battery. The battery pro- yourself or damage to your vehicle or duces hydrogen gas which may battery, follow the jump starting proce-...
Page 280 (2). not apparent, you should have your vehi- Proceed to connect one end of the cle checked by an authorized KIA dealer. other jumper cable to the negative ter- minal of the booster battery (3), then...
Page 281 KIA 5. If the water pump drive belt is broken stopped. If there is no visible loss of dealer.
Page 282 What to do in an emergency IF YOU HAVE A FLAT TIRE (WITH SPARE TIRE, IF EQUIPPED) Jacking instructions WARNING - Changing tires The jack is provided for emergency tire changing only. • Never attempt vehicle repairs in the traffic lanes of a public To prevent the jack from “rattling”...
Page 283 What to do in an emergency (Continued) • The vehicle can easily roll off jack causing serious injury or death. No person should place any portion of their body under a vehicle that is supported only by a jack; use vehicle support stands. •...
Page 284 What to do in an emergency OXM069004 OXM069005 1VQA4022 4. After the spare tire reaches the To store the spare tire: Changing tires ground, continue to turn the 1. Lay the tire on the ground with the 1. Park on a level surface and apply wrench counterclockwise, and valve stem facing up.
Page 285 What to do in an emergency WARNING - Changing a tire • To prevent vehicle movement while changing a tire, always set the parking brake fully, and always block the wheel diagonally opposite the wheel being changed. • We recommend that wheels of the vehicle be chocked, and that no person...
Page 286 What to do in an emergency 9. Loosen the wheel nuts and remove them with your fingers. Slide the wheel off the studs and lay it flat so it cannot roll away. To put the wheel on the hub, pick up the spare tire, line up the holes with the studs and slide the wheel onto them.
Page 287 Then double-check each nut for tightness. After changing wheels, have an authorized KIA dealer tight- en the wheel nuts to their proper torque as soon as possible. Wheel nut tightening torque: Steel wheel &...
Page 288 Adjust for thread style before installing it to the specified pressure, if aftermarket lug nuts or wheels. necessary. Refer to “Tires and If in doubt, consult an author- wheels” in section 8. ized KIA dealer. 6 13...
Page 289 What to do in an emergency Important - use of compact spare tire When using a compact spare tire, (if equipped) WARNING observe the following precautions: Your vehicle is equipped with a com- The compact spare tire is for • Under no circumstances should pact spare tire.
Page 290 What to do in an emergency • Do not take this vehicle through an • The compact spare tire should not automatic car wash while the com- be used on any other wheels, nor pact spare tire is installed. should standard tires, snow tires, wheel covers or trim rings be used •...
Page 291 What to do in an emergency IF YOU HAVE A FLAT TIRE (WITH INSTANTMOBILITYSYSTEM, IF EQUIPPED) It is possible that some tires, espe- cially with larger punctures or dam- age to the sidewall, cannot be sealed completely. Air pressure loss in the tire may adversely affect tire performance.
Page 292 What to do in an emergency 8. Button for reducing tire inflation pressure 9. Hose to connect compressor and sealant bottle or compressor and wheel Connectors, cable and connection hose are stored in the compressor housing. WARNING Before using the IMS, follow the instructions on the sealant bottle.
Page 293 What to do in an emergency Using the IMS 9) Switch off the compressor. 1. Filling the sealant 10) Detach the hoses from the sealant bottle connector and Strictly follow the specified sequence, from the tire valve. otherwise the sealant may escape under high pressure.
Page 294 4 mm (0.16 in). turbance or noise, reduce your - To increase the inflation pres- Please contact the nearest KIA speed and drive with caution sure: Switch on the compressor, A/S center, or a workshop that until you can safely pull off of position I.
Page 295 What to do in an emergency Notes on the safe use of the Technical Data • Never leave the IMS unattended InstantMobilitySystem while it is being used. System voltage: DC 15 V • Park your car at the side of the •...
Page 296 What to do in an emergency TIRE PRESSURE MONITORING SYSTEM (TPMS) (IF EQUIPPED) As an added safety feature, your Your vehicle has also been equipped vehicle has been equipped with a tire with a TPMS malfunction indicator to pressure monitoring system (TPMS) indicate when the system is not that illuminates a low tire pressure operating properly.
Page 297 CAUTION nated, one or more of your tires is KIA dealer and have the system In winter or cold weather, the significantly under-inflated. The low checked. low tire pressure telltale may be...
Page 298 Have the system checked by an vehicle. This can interfere with authorized KIA dealer as soon as normal operation of the Tire possible to determine the cause of Pressure Monitoring System the problem.
Page 299 Have the flat tire repaired TPMS sensor on the replaced is repaired and placed on the vehi- by an authorized KIA dealer as soon spare wheel should be initiated cle. as possible or replace the flat tire...
Page 300 What to do in an emergency You may not be able identify a low WARNING WARNING tire by simply looking at it. Always TPMS - Protecting use a good quality tire pressure TPMS • The TPMS cannot alert you to gauge to measure the tire's inflation severe and sudden tire dam- Tampering with, modifying, or...
Page 301 • Do not tow the vehicle backwards truck and wheel dollies are not used, the ized KIA dealer or a commercial tow- with the front wheels on the front of the vehicle should always be lift- truck service.
Page 302 What to do in an emergency When towing your vehicle in an emer- 3. Install the towing hook by turning it gency without wheel dollies : clockwise into the hole until it is fully secured. 1. Set the ignition switch in the ACC posi- tion.
Page 303 • To avoid damaging the hook, do not OXM069013 pull from the side or at a vertical angle. Always pull straight ahead. Emergency towing If towing is necessary, we recommend you to have it done by an authorized KIA dealer or a commercial tow truck service.
Page 304 Attach a white or red cloth the towing. Contact an authorized tral. Be sure the steering is KIA dealer or a commercial tow (about 30 cm (12 inches) wide) in the unlocked by placing the ignition truck service for assistance.
Page 305 What to do in an emergency OXM069014L Tie-down hook (for flatbed towing, if equipped) WARNING Do not use the tie-down hooks under the front of the vehicle for towing purposes. These hooks are designed ONLY for transport tie- down. If the tie-down hooks are used for towing, the tie-down hooks or front bumper will be damaged and this could lead to serious...
Page 306 What to do in an emergency EMERGENCY COMMODITY (IF EQUIPPED) First aid kit There are some emergency commodities To check the tire pressure, take the fol- in the vehicle to help you respond to the lowing steps; There are some items such as scissors, emergency situation.
Page 307 Engine compartment / 7-2 Maintenance services / 7-4 Owner maintenance / 7-6 Scheduled maintenance service / 7-8 Explanation of scheduled maintenance items / 7-21 Engine oil / 7-24 Engine coolant / 7-25 Brake fluid / 7-28 Power steering fluid / 7-29 Washer fluid / 7-30 Parking brake / 7-30 Fuel filter / 7-31...
Page 308: Engine Coolant Reservoir
Maintenance ENGINE COMPARTMENT Gasoline Engine (2.4L) ■ ■ 1. Engine coolant reservoir 2. Engine oil filler cap 3. Brake fluid reservoir 4. Air cleaner 5. Fuse box 6. Negative battery terminal 7. Positive battery terminal Gasoline Engine (3.5L) 8. Radiator cap ■...
Page 309 Maintenance Diesel Engine ■ ■ 1. Engine coolant reservoir 2. Engine oil filler cap 3. Fuel filter 4. Brake fluid reservoir 5. Air cleaner 6. Fuse box 7. Negative battery terminal 8. Positive battery terminal 9. Radiator cap 10. Engine oil dipstick 11.
Page 310 We recommend you have your vehicle maintained and repaired by an author- ized KIA dealer. An authorized KIA deal- er meets KIA’s high service quality stan- dards and receives technical support from KIA in order to provide you with a high level of service satisfaction.
Page 311 People using pacemakers authorized KIA dealer. ficial heart pacemaker to malfunction. should not move more than 30cm • Working under the hood with the •...
Page 312 • Note any changes in the sound of the When you stop for fuel: the owner or an authorized KIA dealer at exhaust or any smell of exhaust fumes • Check the engine oil level.
Page 313 Maintenance At least monthly: At least twice a year At least once a year: (i.e., every Spring and Fall): • Check the coolant level in the engine • Clean the body and door drain holes. coolant reservoir. • Check the radiator, heater and air con- •...
Page 314 Maintenance SCHEDULED MAINTENANCE SERVICE If your vehicle is operated under the Follow the Normal Maintenance Schedule if the vehicle is usually operated where above conditions, you should inspect, none of the following conditions apply. If replace or refill more frequently than the any of the following conditions apply, fol- following Normal Maintenance Schedule.
Page 315 Maintenance NORMAL MAINTENANCE SCHEDULE - GASOLINE ENGINE MAINTENANCE Number of months or driving distance, whichever comes first INTERVALS Months Miles×1,000 MAINTENANCE Km×1,000 ITEM At first, inspect 90,000 km (60,000 miles) or 72 months For Europe after that, inspect every 30,000 km (20,000 miles) or 24 months Drive belts * Except Europe Except China &...
Page 316 I : Inspect and if necessary, adjust, correct, clean or replace. R : Replace or change. : Inspect for excessive valve noise and/or engine vibration and adjust if necessary. An authorized KIA dealer should perform the operation. : For your convenience, it can be replaced prior to it's interval when you do maintenance of other items.
Page 317 Maintenance NORMAL MAINTENANCE SCHEDULE - GASOLINE ENGINE (CONT.) Number of months or driving distance, whichever comes first MAINTENANCE INTERVALS Months Miles×1,000 MAINTENANCE Km×1,000 ITEM At first, replace at 90,000 km (60,000 miles) or 60 months: For Europe after that, replace every 30,000 km (20,000 miles) or 24 months * Engine coolant * At first, replace every 48,000 km (30,000 miles) or 24 months: Except Europe...
Page 318 Maintenance NORMAL MAINTENANCE SCHEDULE - GASOLINE ENGINE (CONT.) MAINTENANCE Number of months or driving distance, whichever comes first INTERVALS Months Miles×1,000 MAINTENANCE Km×1,000 ITEM Driveshaft and boots Tire (pressure & tread wear) Front suspension ball joints Bolt and nuts on chassis and body Air conditioner refrigerant (if equipped) Air conditioner compressor (if equipped) Climate control air filter...
Page 319 Maintenance MAINTENANCE UNDER SEVERE USAGE CONDITIONS - GASOLINE ENGINE The following items must be serviced more frequently on cars mainly used under severe driving conditions. Refer to the chart below for the appropriate maintenance intervals. R : Replace I : Inspect and if necessary, adjust, correct, clean or replace Maintenance Maintenance intervals MAINTENANCE ITEM...
Page 320 Maintenance Maintenance MAINTENANCE ITEM Maintenance intervals Driving condition operation Inspect more frequently Disc brakes and pads, calipers and rotors C, D, E, G, H depending on the condition Inspect more frequently Parking brake C, D, G, H depending on the condition Inspect more frequently Driveshaft and boots C, D, E, F, H...
Page 321 Maintenance NORMAL MAINTENANCE SCHEDULE - DIESEL ENGINE MAINTENANCE Number of months or driving distance, whichever comes first INTERVALS Months Miles×1,000 12.5 37.5 62.5 87.5 MAINTENANCE Km×1,000 ITEM At first, inspect 80,000 km (50,000 miles) or 48 months Drive belts * after that, inspect every 20,000 km (12,500 miles) or 12 months Engine oil and For Europe...
Page 322 : This maintenance schedule depends on fuel quality. It is applicable only when using a qualified fuel <"EN590 or equivalent">. If the diesel fuel specifications don't meet the EN590, it must be replaced more frequently. KIA recommends "every 7,500km inspection, every 15,000km replacement".
Page 323 Maintenance NORMAL MAINTENANCE SCHEDULE - DIESEL ENGINE (CONT.) Number of months or driving distance, whichever comes first MAINTENANCE INTERVALS Months Miles×1,000 12.5 37.5 62.5 87.5 MAINTENANCE ITEM Km×1,000 Inspect “Coolant level adjustment and leak” every day Cooling system Inspect “Water pump” when replacing the drive belt At first, replace at 100,000 km (62,500 miles) or 60 months: For Europe after that, replace every 40,000 km (25,000 miles) or 24 months *...
Page 324 Maintenance NORMAL MAINTENANCE SCHEDULE - DIESEL ENGINE (CONT.) MAINTENANCE Number of months or driving distance, whichever comes first INTERVALS Months Miles×1,000 12.5 37.5 62.5 87.5 MAINTENANCE ITEM Km×1,000 Disc brakes and pads Power steering fluid and hoses Steering gear rack, linkage and boots Drive shaft and boots Tire (pressure &...
Page 325 Maintenance MAINTENANCE UNDER SEVERE USAGE CONDITIONS - DIESEL ENGINE The following items must be serviced more frequently on cars mainly used under severe driving conditions. Refer to the chart below for the appropriate maintenance intervals. R : Replace I : Inspect and if necessary, adjust, correct, clean or replace Maintenance MAINTENANCE ITEM Maintenance intervals...
Page 326 Maintenance Maintenance MAINTENANCE ITEM Maintenance intervals Driving condition operation Inspect more frequently Front suspension ball joints C, D, E, F, G depending on the condition Inspect more frequently Disc brakes and pads, calipers and rotors C, D, E, G, H depending on the condition Inspect more frequently Parking brake...
Page 327 Have being driven in severe conditions, more issues such as hard starting. If an exces- an authorized KIA dealer replace any frequent oil and filter changes are sive amount of foreign matter accumu- damaged or leaking parts immediately.
Page 328 Air cleaner filter Manual transaxle fluid (if equipped) The vapor hose and fuel filler cap should A Genuine KIA air cleaner filter is recom- be inspected at those intervals specified mended when the filter is replaced. Inspect the manual transaxle fluid in the maintenance schedule.
Page 329 Maintenance Brake hoses and lines Suspension mounting bolts Drive shafts and boots Visually check for proper installation, Check the suspension connections for Check the drive shafts, boots and clamps chafing, cracks, deterioration and any looseness or damage. Retighten to the for cracks, deterioration, or damage.
Page 330 Maintenance ENGINE OIL 3. Turn the engine off and wait for a few minutes (about 5 minutes) for the oil to return to the oil pan. 4. Pull the dipstick out, wipe it clean, and re-insert it fully. WARNING - Radiator hose Be very careful not to touch the radiator hose when checking or...
Page 331 Have engine oil and filter changed by an • Turn the engine off and wait until coolant. The reservoir is filled at the fac- authorized KIA dealer according to the it cools down. Use extreme care tory. Maintenance Schedule at the beginning when removing the radiator cap.
Page 332 If the coolant level is low, add enough specified coolant to provide protection against freezing and corrosion. Bring the level to F, but do not overfill. If frequent additions are required, see an authorized KIA dealer for a cooling system inspec- tion.
Page 333 Changing the coolant WARNING - Coolant Have the coolant changed by an author- • Do not use radiator coolant or ized KIA dealer according to the antifreeze in the washer fluid Maintenance Schedule at the beginning reservoir. of this section.
Page 334 KIA dealer. guaranteed. It should be properly the reservoir cap thoroughly to prevent disposed. Don't put in the wrong brake fluid contamination.
Page 335 Check the connections for oil leaks, dam- requires frequent addition of fluid, the age and twists in the power steering vehicle should be inspected by an hose before driving. authorized KIA dealer. CAUTION OXM079009 • To avoid damage to the power Checking the power steering fluid...
Page 336 If the stroke is more or windshield washer fluid. Serious with antifreeze characteristics in cold cli- less than specified, have the parking injury or death could occur. mates to prevent freezing. brake adjusted by an authorized KIA dealer. Stroke : 4~5 notch...
Page 337 ON position. If this warning light illuminates, take your car to an authorized KIA dealer and have drain the water and checked the system. OXM059015 Type B Check the stroke of the parking brake by counting the number of “clicks’’...
Page 338 It must be replaced when necessary, and ✽ ✽ NOTICE should not be washed. When replacing the fuel filter cartridge, You can clean the filter when inspecting use KIA genuine parts. the air cleaner element. Clean the filter by using compressed air.
Page 339 4. Lock the cover with the cover attaching clips. damage may result. • Use a KIA genuine part. Use of non-genuine parts could damage the air flow sensor or turbocharg- 7 33...
Page 340 Maintenance CLIMATE CONTROL AIR FILTER (IF EQUIPPED) Filter inspection The climate control air filter should be replaced according to the maintenance schedule. If the vehicle is operated in severely air-polluted cities or on dusty rough roads for a long period, it should be inspected more frequently and replaced earlier.
Page 341 Maintenance OXM079017 OXM079018 3. Remove the climate control air filter 4. Replace the climate control air filter. case by pulling out both sides of the 5. Reassemble in the reverse order of cover. disassembly. ✽ ✽ NOTICE When replacing the climate control air filter install it properly.
Page 342 Maintenance WIPER BLADES CAUTION To prevent damage to the wiper blades, do not use gasoline, kerosene, paint thinner, or other solvents on or near them. Blade replacement When the wipers no longer clean ade- quately, the blades may be worn or cracked, and require replacement.
Page 343 Maintenance 1JBA7037 OHM078059 OHM078060 2. Lift up the wiper blade clip. Then pull Type B down the blade assembly and remove 1. Raise the wiper arm. CAUTION Do not allow the wiper arm to fall against the windshield, since it may chip or crack the windshield.
Page 344 3. Make sure the blade assembly is installed firmly by trying to pull it slight- To prevent damage to the wiper arms or other components, have an authorized KIA dealer replace the wiper blade.
Page 345 Maintenance BATTERY (Continued) WARNING - Battery dangers If electrolyte gets on your skin, thoroughly wash the Always read the following contacted area. If you feel instructions carefully when pain or burning sensation, handling a battery. get medical attention imme- Keep lighted cigarettes and diately.
Page 346 Maintenance (Continued) WARNING WARNING - Recharging • The electrical ignition system battery • Before performing maintenance works with high voltage. Never or recharging the battery, turn off When recharging battery, touch these components with the all accessories and stop the observe the following precautions: engine running or the ignition engine.
Page 347 If a tire frequently needs refilling, Recommended cold tire inflation have it checked by an author- pressures ized KIA dealer. All tire pressures (including the • Overinflation produces OXM079101L spare) should be checked when the...
Page 348 Maintenance Checking tire inflation pressure CAUTION CAUTION - Tire pressure Check your tires once a month or • Warm tires normally exceed Always observe the following: more. recommended cold tire pres- • Check tire pressure when the Also, check the tire pressure of the sures by 28 to 41 kPa (4 to 6 tires are cold.
Page 349 Refer to “Tire and wheels” in section • Remember to check the pres- sure of your spare tire. KIA recommends that you check the spare every time you check the pressure of the other tires on your vehicle.
Page 350 Maintenance ✽ ✽ NOTICE Wheel alignment and tire balance With a full-size spare tire (if equipped) Rotate radial tires that have an The wheels on your vehicle were asymmetric tread pattern only from aligned and balanced carefully at the front to rear and not from right to factory to give you the longest tire life left.
Page 351 • Replace tires that are worn, • Wheels that do not meet KIA’s show uneven wear, or are specifications may fit poorly damaged. Worn tires can and result in damage to the...
Page 352 Maintenance Compact spare tire replacement Wheel replacement Tire traction (if equipped) When replacing the metal wheels for Tire traction can be reduced if you A compact spare tire has a shorter any reason, make sure the new drive on worn tires, tires that are tread life than a regular size tire.
Page 353 Maintenance 2. Tire size designation 108 - Load Index, a numerical code associated with the maximum A tire’s sidewall is marked with a tire load the tire can carry. size designation. You will need this information when selecting replace- T - Speed Rating Symbol. See the ment tires for your vehicle.
Page 354 Maintenance 3. Checking tire life (TIN : Tire Tire speed ratings Identification Number) WARNING - Tire age The chart below lists many of the dif- Any tires that are over 6 years old, ferent speed ratings currently being Tires degrade over time, even based on the manufacturing date, used for passenger car tires.
Page 355 Maintenance 5. Maximum permissible inflation 7. Uniform tire quality grading These grades are molded on the pressure side-walls of passenger vehicle tires. Quality grades can be found where This number is the greatest amount The tires available as standard or applicable on the tire sidewall of air pressure that should be put in optional equipment on your vehicle...
Page 356 Maintenance Temperature -A, B & C WARNING - Tire The temperature grades are A (the temperature highest), B, and C, representing the tire’s resistance to the generation of The temperature grade for this heat and its ability to dissipate heat tire is established for a tire that when tested under controlled condi- is properly inflated and not...
Page 357 Avoid using Normal Blown the system involved and immediately CAUTION consult an authorized KIA dealer. Multi fuse Do not use a screwdriver or any Three kinds of fuses are used: blade type other metal object to remove fuses...
Page 358 5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized KIA dealer. If you do not have a spare, use a fuse of...
Page 359 Maintenance ✽ ✽ NOTICE • If the memory fuse is pulled out from the fuse panel, the warning chime, audio, clock and interior lamps, etc., will not operate. Some items must be reset after replacement. Refer to “Battery” in this section. •...
Page 360 To remove or insert the fuse, If the main fuse is blown, consult an use the fuse puller in the engine com- authorized KIA dealer. partment fuse panel. 4. Push in a new fuse of the same rating, and make sure it fits tightly in the clips.
Page 361 Maintenance Fuse/relay panel description Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity. Inner fuse panel Engine compartment fuse panel ✽ ✽ NOTICE Not all fuse panel descriptions in this manual may be applicable to your vehi- cle.
Page 362 Maintenance Inner fuse panel (Instrument panel) Symbol Fuse rating Protected component REAR SEAT WARMER LH, RH DOOR LOCK, TAILGATE THEFT ALARM HORN 7.5A RHEOSTAT, IMS CLUSTER, SMART KEY, RSE MONITOR, TPMS, AUDIO, REAR PARKING ASSIST SYSTEM BUZZER, ESP SWITCH, DBC SWITCH, DBC RELAY 'S1', AUTO HLLD SENSOR(4), HLLD ACTUATOR SPORT MODE SWITCH, 4WD ECU HEAD LAMP WASHER...
Page 363 Maintenance Symbol Fuse rating Protected component BCM (FLASHER UNIT B+: TURN SIGNAL) PDM UNIT SAFETY POWER WINDOW AMP UNIT (B+) FRONT WIPER, WASHER FUEL LID, TAIL GATE LATCH ACTUATOR SUNROOF MOTOR UNIT POWER WINDOW SWITCH 7.5A DRL ON/OFF SMART KEY ECU A(9), OUTSIDE MIRROR SWITCH, POWER WINDOW SWITCH, AMP, 7.5A RSE MONITOR, BCM, DIGITAL CLOCK, PDM UNIT (B4-ACC) REAR FOG RELAY (ICM), TPMS UNIT, OUTSIDE MIRROR SWITCH (11),...
Page 364 Maintenance Symbol Fuse rating Protected component AUDIO SYSTEM MANU 7.5A ECU (BLOWER ON SIGNAL) CENTER POWER OUTLET AIR BAG INDICATOR, SEAT BELT REMINDER, DIGITAL CLOCK OUTSIDE MIRROR MOTOR, AIR CONDITIONING SYSTEM FRONT SEAT WARMER ECM MIRROR, CARGO LAMP, ROOM LAMP, OVER HEAD CONSOLE, CLUSTER, OBD II, DOOR WARNING SWITCH, AIR CONDITIONING SYSTEM, SET TOP BOX, DIGITAL CLOCK AIR BAG POWER SEAT...
Page 365 Maintenance Engine compartment main fuse panel Symbol Fuse rating Protected component ECU 20A, SENSOR 1 10A, SENSOR 2 10A, SENSOR 3 10A, SENSOR 4 15A, PCU(2.4L ENGINE) DIESEL 2.4 GASOLINE 3.5 GASOLINE ECU(K3) IGNITION COIL IGNITION COIL ECU(K5) CONDENSOR CONDENSOR ECU(K6) CAMSHAFT POSITION SEN- SOR 1 T2(1)
Page 366 Maintenance Symbol Fuse rating Protected component Symbol Fuse rating Protected component DIESEL 2.4 GASOLINE 3.5 GASOLINE EGR COOLING VALVE(2) VGT ACTUATOR HONEY- O2 SENSOR UP BIN T2(3) O2 SENSOR 4 WELL(1) O2 SENSOR UP LIN T2(4) PCU(A100) VGT ACTUATOR KAMTEC(3) O2 SENSOR DN FR T2(3) O2 SENSOR 1 SENSOR...
Page 367 Maintenance Symbol Fuse rating Protected component SUNROOF 20A, SEAT WARMER REAR 15A, HEAD LAMP WASHER 20A, PDM 20A, SMART KEY 10A COOLING FAN LOW(1), COOLING FAN HI(2) FRONT DEICER IGNITION SWITCH(IG2, ST), START SOLENOID IGN2 IGNITION SWITCH(IG1, ACC) IGN1 HORN LH, RH DBC RELAY(ICM), STOP SWITCH"L“, ECU DIESEL(K45), SMART ECU A(24:BRAKE SWITCH), STOP REAR COMINATION LAMP, HIGH MOUNTED STOP LIGHT, ABS UNIT(14),...
Page 368 Maintenance Symbol Fuse rating Protected component REAR DEFROSTER, OUTSIDE MIRROR DEFROSTER ABS UNIT(2), ESP UNIT(1), DIAGNOSIS(4:A/BLEED'G) ABS UNIT(1), ESP UNIT(2), DIAGNOSIS(12:A/BLEED'G) REAR FOG/TPMS 10A, HAZARD 15A, FUEL LID 15A, IPS B+ DOOR LOCK 20A, SUNROOF 20A, SEAT WARMER REAR 15A, HEAD LAMP WASHER 20A, PDM 20A, SMART KEY 10A, IPS B+ Engine compartment sub fuse panel (if equipped) FUSIBLE LINK...
Page 369 Prior to working on the light, firmly consult an authorized KIA dealer. In apply the parking brake, ensure many cases, it is difficult to replace that the ignition switch is turned to...
Page 370 Maintenance (Continued) • If a bulb becomes damaged or cracked, replace it immediately and carefully dispose of it. • Wear eye protection when chang- ing a bulb. Allow the bulb to cool down before handling it. OHD076046 OXM079047L Headlight bulb 1.
Page 371 Maintenance 8. Install a new headlight bulb and snap the headlight bulb retaining wire into position by aligning the wire with the groove on the bulb. 9. Connect the headlight bulb socket connector. 10. Install the headlight bulb cover by turning it clockwise.
Page 372 Headlight (HID type), position, turn signal, and front fog light bulb replacement If the light bulb does not operate, have the vehicle checked by an authorized KIA dealer. OXM079053L OXM079031 Front fog light bulbs (if equipped) Side repeater light replacement...
Page 373 Maintenance Type A ■ OXM079033 OXM079034 Type B ■ OXM079050L Type B 1. Remove the light assembly from the vehicle by prying the lens and pulling the assembly out. 2. Disconnect the bulb electrical connec- tor. 3. Separate the socket and the lens parts by turning the socket counterclockwise until the tabs on the socket align with OXM079032...
Page 374 Maintenance Type B (Stop and tail light) If the light bulb does not operate, have the vehicle checked by an authorized KIA dealer. OXM079036 OXM079037 Inside light 4. Remove the socket from the assembly by turning the socket counterclockwise 1. Open the tailgate.
Page 375 If the light does not operate, have the 6. Install the socket in the assembly by screwdriver. vehicle checked by an authorized KIA aligning the tabs on the socket with the dealer. slots in the assembly. Push the socket into the assembly and turn the socket clockwise.
Page 376 1. Loosen the lens retaining screws with If the light does not operate, have the by turning it clockwise. a philips head screwdriver. vehicle checked by an authorized KIA 3. Replace with a new bulb. dealer. 2. Remove the lens.
Page 377 Maintenance Map lamp Glove box lamp Interior light bulb replacement 1. Using a flat-blade screwdriver, gently pry the lens from the interior light housing. 2. Remove the bulb by pulling it straight out. WARNING Prior to working on the Interior Lights, ensure that the “OFF”...
Page 378 Maintenance APPEARANCE CARE Exterior care After washing, rinse the vehicle thor- oughly with lukewarm or cold water. Do Exterior general caution not allow soap to dry on the finish. It is very important to follow the label directions when using any chemical CAUTION cleaner or polish.
Page 379 Maintenance Finish damage repair Bright-metal maintenance Waxing Wax the vehicle when water will no Deep scratches or stone chips in the • To remove road tar and insects, use a longer bead on the paint. painted surface must be repaired tar remover, not a scraper or other promptly.
Page 380 Maintenance Underbody maintenance Aluminum wheel maintenance WARNING Corrosive materials used for ice and The aluminum wheels are coated with a snow removal and dust control may col- clear protective finish. After washing the vehicle, test the lect on the underbody. If these materials brakes while driving slowly to see if •...
Page 381 Maintenance Corrosion protection High-corrosion areas Moisture breeds corrosion If you live in an area where your vehicle Moisture creates the conditions in which Protecting your vehicle from corrosion is regularly exposed to corrosive materi- corrosion is most likely to occur. For By using the most advanced design and als, corrosion protection is particularly example, corrosion is accelerated by...
Page 382 Maintenance To help prevent corrosion • When cleaning underneath the vehicle, Keep paint and trim in good condition give particular attention to the compo- You can help prevent corrosion from get- Scratches or chips in the finish should be nents under the fenders and other ting started by observing the following: covered with "touch-up"...
Page 383 Maintenance Interior care Cleaning the upholstery and interior Cleaning the lap/shoulder belt web- trim bing Interior general precautions Vinyl Clean the belt webbing with any mild Prevent caustic solutions such as per- soap solution recommended for cleaning Remove dust and loose dirt from vinyl fume and cosmetic oil from contacting upholstery or carpet.
Page 384 In order to assure the proper function of phere. the emission control systems, it is rec- ommended that you have your vehicle inspected and maintained by an author- ized KIA dealer in accordance with the maintenance schedule in this manual.
Page 385 Maintenance Canister 3. Exhaust emission control Engine exhaust gas precautions (carbon monoxide) system Fuel vapors generated inside the fuel tank are absorbed and stored in the • Carbon monoxide can be present with The Exhaust Emission Control System is onboard canister. When the engine is other exhaust fumes.
Page 386 • Never sit in a parked or stopped vehi- tem. All inspections and adjustments etc. cle for any extended time with the must be made by an authorized KIA engine running. dealer. Your vehicle is equipped with a catalytic • When the engine stalls or fails to start, •...
Page 387 If the malfunction indicator light contin- ues to be blinked in spite of the proce- The Diesel Particulate Filter (DPF) sys- dure, please visit an authorized KIA deal- tem removes the soot emitted from the er and then check the DPF system.
Page 388 Dimensions / 8-2 Bulb wattage / 8-2 Tires and wheels / 8-3 Recommended lubricants and capacities / 8-4 Vehicle identification number (VIN) / 8-7 Vehicle certification label / 8-7 Tire specification and pressure label / 8-8 Engine number / 8-8 Specifications &...
Page 389 Specifications & Consumer information BULB WATTAGE DIMENSIONS Item mm (in) Light Bulb Wattage Headlights (Low) 55 or 35 (HID) Overall length 4685 (184.4) Headlights (High) Overall width 1885 (74.2) Front turn signal lights Overall height 1710 (67.3)/1745 (68.7)* /1755 (69.1)* Position lights Front tread 1618 (63.7)
Page 390 Specifications & Consumer information TIRES AND WHEELS Inflation pressure bar (psi, kPa) Tire Wheel lug nut torque Wheel size Item Normal load Maximum load size kg•m (lb•ft, N•m) Front Rear Front Rear 235/65R17 7.0J×17 Full size tire 235/60R18 7.0J×18 (33, 230) (33, 230) (38, 260) (42, 290) 9~11 T165/90D17 (65~79, 88~107)
Page 391 2.0L 7.8 l (8.24 US qt.) NOCA ATF SP-IV Diesel Engine 2.2L 7.7 l (8.14 US qt.) KIA genuine ATF SP-IV Power steering 1.0 l (1.06 US qt.) PSF-3 6.5 l (6.87 US qt.) 2.4L Gasoline Engine 6.6 l (6.97 US qt.)
Page 392 Specifications & Consumer information Lubricant Volume Classification 0.7~0.8 l Brake fluid FMVSS116 DOT-3 or DOT-4 (0.7~0.8 US qt.) HYPOID GEAR OIL API GL-5, SAE 75W/90 Rear differential oil 0.7 l (0.74 US qt.) (SHELL SPIRAX X or equivalent) 2.4L 0.6 (0.63 US qt.) Gasoline Engine Transfer case oil HYPOID GEAR OIL API GL-5, SAE 75W/90...
Page 393 Specifications & Consumer information Recommended SAE viscosity Engine oil viscosity (thickness) has an When choosing an oil, consider the range effect on fuel economy and cold weather number of temperature your vehicle will be oper- operating (engine start and engine oil ated in before the next oil change.
Page 394 Specifications & Consumer information VEHICLE IDENTIFICATION NUMBER (VIN) VEHICLE CERTIFICATION LABEL Frame number VIN label (if equipped) OXM089001 OHM088008N OXM089002 The vehicle identification number (VIN) is The VIN is also on a plate attached to the The vehicle certification label attached the number used in registering your vehi- top of the dashboard.
Page 395 Specifications & Consumer information TIRE SPECIFICATION AND ENGINE NUMBER PRESSURE LABEL Gasoline engine (2.4L) Diesel engine ■ ■ OXM089003 OXM079101L OXM089005 Gasoline engine (3.5L) ■ The tires supplied on your new vehicle The engine number is stamped on the are chosen to provide the best perform- engine block as shown in the drawing.
Page 396 Index...
Page 397 Index Air bag - supplemental restraint system ························3-41 Economical operation ····················································5-45 Air cleaner ·····································································7-32 Emergency commodity ··················································6-31 Appearance care·····························································7-72 Emergency starting ··························································6-4 Audio system ·······························································4-107 Emission control system················································7-78 Automatic climate control system ·································4-86 Engine compartment ·················································2-4/7-2 Automatic transaxle ·······················································5-17 Engine coolant ·······························································7-25 Engine number·································································8-8 Engine oil·······································································7-24 ENGINE START/STOP button ·······································5-8...
Page 398 Index Manual climate control system······································4-77 Manual transaxle····························································5-14 Mirrors ···········································································4-35 If the engine overheats·····················································6-6 If the engine will not start ···············································6-3 If you have a flat tire (with InstantMobilitySystem)······································6-16 If you have a flat tire (with spare tire)·····························6-7 Owner maintenance ·························································7-6 In case of an emergency while driving····························6-2 Indicator symbols on the instrument cluster ···················1-7 Instrument cluster ··························································4-39...
Page 399 Index Special driving conditions ·············································5-47 Wiper blades ··································································7-36 Steering wheel ·······························································4-33 Wipers and washers ·······················································4-69 Storage compartment ·····················································4-97 Tailgate···········································································4-18 Theft-alarm system ························································4-12 Tire Pressure Monitoring System (TPMS)····················6-21 Tire specification and pressure label ·······························8-8 Tires and wheels······················································7-41/8-3 Towing ···········································································6-26 Trailer towing·································································5-55 Vehicle break-in process ··················································1-6 Vehicle certification label ················································8-7 Vehicle handling instructions···········································1-6...

Kia Sorento 2010 Owner's Manual

Quick Links

Need help?

Questions and answers

Related Manuals for Kia Sorento 2010

Summary of Contents for Kia Sorento 2010

Page 14: Table Of Contents

Page 308: Engine Coolant Reservoir
