- Page 1 SCIENCE Moticon SCIENCE Instruction Manual Effective August 1, 2019 PRELIMINARY...
- Page 2 Content Warning Symbols and Labeling Overview Intended Use Operation Modes System Functions Connectivity Software Setup Safety Instructions Sensor Insole Setup Data Acquisition Procedure Handling Instructions Reprocessing Environment Product Compliance Imprint Moticon SCIENCE Instruction Manual 03.00.00...
- Page 3 Humidity range for operation / storage Handle package with care On the sensor insoles, the labeling is located in the mid area of the lower surface. On the packaging, handling instructions are given on the outer surface of the packaging. Moticon SCIENCE Instruction Manual 03.00.00...

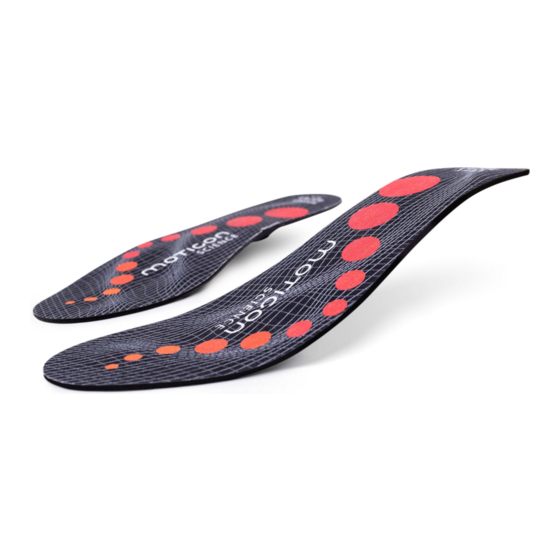

- Page 4 Model Insole3 The Moticon SCIENCE Sensor Insole is a versatile tool for sensing human foot dynamics. The sensor insole is fully integrated and highly flexible. It incoporates all technological components to execute standalone measurements. No external devices are required for data acquisition.
-
Page 5: Intended Use
Intended Use In the following, the terms "sensor insole" and "product" refers to an individual left / right Moticon SCIENCE Sensor Insole, as well as to a pair of sensor insoles. Intended Use Measurements may be incorrect when the product is used outside of the defined intended use. -
Page 6: Operation Modes
Smart Recording is an activity triggered recording mode where internal firmware algorithms control the intermediate pausing and resuming in action. The mobile device (phone/tablet) is only required for starting and stopping, not for the recording itself. For further details on the operation modes refer to the applications note on www.moticon.de/support. Moticon SCIENCE Instruction Manual... -
Page 7: System Functions
Function Description Firmware Update Firmware of the sensor insoles can be updated wirelessly using the Moticon SCIENCE Mobile App File Management The firmware runs a file management system on the on-board memory of the sensor insoles. Measurements can be selected, deleted and transmitted individually using the... - Page 8 WiFi or LAN connection Sensor Data / Status Settings / Control Sensor Data Sensor Data WiFi Access Point Notes For instructions of use refer to the tutorials on www.moticon.de/support. Legend Wireless data transmission. Cable bound data transmission. Moticon SCIENCE Instruction Manual 03.00.00...
-
Page 9: Software Setup
Moticon SCIENCE user group. 2. In Google Play Store, search for "Moticon SCIENCE" and install the mobile app on your phone or tablet. 3. When you launch the mobile app, grant the following permissions:... -
Page 10: Safety Instructions
The sensor insole may not be worn with open wounds or ulcers. The sensor insole must be worn with socks in order to avoid direct skin contact. See the detailed product information on www.moticon.de/insole3-specs and tutorial videos about correct sensor insole handling on www.moticon.de/support Moticon SCIENCE Insole Instruction Manual 03.00.00... - Page 11 Safety warnings for coin cell batteries Always keep the product and the coin cell batteries away from children to prevent swallowing. Never use batteries other than the coin cell battery type specified by Moticon. They are labeled as follows: Route JD Inc Li-ion Rechargeable 3.7V Do not use the sensor insole in case of a damaged, demolished or shifted battery contact terminal.
- Page 12 9. Shake left and right sensor insole 2-3 seconds 10. Select "Sensor Insoles" section in mobile app 13. Press confirm button to save pairing settings to activate them (auto turn on/off, no switches) 11. Press "+" to start pairing new sensor insoles Moticon SCIENCE Insole Instruction Manual 03.00.00...
- Page 13 Other ways of data collection and a more detailed description of the workflow steps can be found on www.moticon.de/support. The software setup (P09) and the sensor insole setup (P12) must be completed before starting with the data acquisition procedure.
- Page 14 19. Wait until transfer and decoding is finished, 20. Switch to "Analyze" section If you encounter technical problems during measurement appears in measurement tree 21. Replay or analyze measurement data data acquisitions, visit our support pages Moticon SCIENCE Insole Instruction Manual 03.00.00...
-
Page 15: Handling Instructions
Do not bend or twist the middle part of the sensor insole when putting it into or taking it out from a shoe. Wireless connections are potentially unstable. When starting a recording, check in the Moticon SCIENCE Mobile App that the recording has started before letting the wearer walk away. - Page 16 Reprocessing The Moticon SCIENCE Sensor Insole surface can be cleaned with desinfectants and a samp soft wipe. The sensor insole is not a sterile product. Do not spray the desinfectant on skin or feet. Pay attention to the safety instructions provided by the desinfectant manufacturer.
- Page 17 Moticon products are subject to the Directive. We therefore urge you to not dispose the equipment as normal household waste. Instead, please send all products back to Moticon.
-
Page 18: Product Compliance
(2) this device must accept any interference received, including interference that may cause undesired operation. FCC Part 15.21 Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Moticon SCIENCE Insole Instruction Manual 03.00.00... - Page 19 Imprint Legal Notice This document is the property of Moticon ReGo AG. Any reproduction of this document in part or in whole is strictly prohibited. For educational purposes only. Errors and omissions excepted and subject to change without notice. Further Information For more detailed product information, please visit www.moticon.de/insole3-overview...
