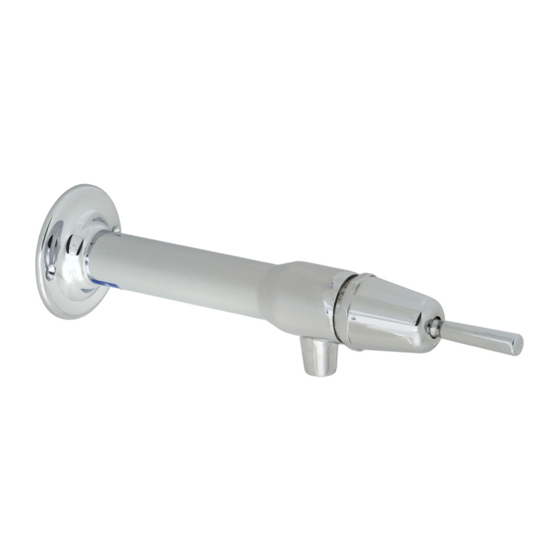

Ezy-Drink
SS Lead Safe Wall Mounted Lever Action
Bottle Filler
PRODUCT CODES:
- 34990X
SPECIFICATIONS
−
Bottle filler taps are designed to operate at full mains pressure.
−
Lead Safe stainless steel construction
−
Adjustable built-in flow restrictor.
IMPORTANT: All Ezy-Drink
our premises in good working order.
TECHNICAL DATA
Inlet
Outlet
Headwork
Working Pressure Range (kPa)
Working Temperature Range (°C)
Nominal Flow Rate (LPM)
Finish
NOTE: Galvin Engineering continually strive to improve their products. Specifications may change without
notice.
TOOLS REQUIRED
−
Power drill
−
Spanner or adjustable crescent
−
Screw driver
®
lever bottle filler taps are tested in accordance with AS/NZS 3718 and leave
th
Version 1,29
January 2021, Page 1 of 4
½" BSP - Female
Water diffuser
Lever action
Min
50
Max
500
Min
5
Max
60
1.7
Stainless Steel
Advertisement
Summary of Contents for Galvin Specialised Ezy-Drink SS
- Page 1 Version 1,29 January 2021, Page 1 of 4 ® Ezy-Drink SS Lead Safe Wall Mounted Lever Action Bottle Filler PRODUCT CODES: - 34990X SPECIFICATIONS − Bottle filler taps are designed to operate at full mains pressure. − Lead Safe stainless steel construction −...
- Page 2 Version 1,29 January 2021, Page 2 of 4 PRE-INSTALLATION MOUNTING DETAILS – HOLE CENTRES − If the mounting holes do not already exist, mark out and drill the holes in the wall/sheet, as shown in rough-in dimensions. Note: Before installation, all lines must be flushed. We recommend that a line strainer be installed prior to drinking taps to eliminate any foreign material.
- Page 3 Version 1,29 January 2021, Page 3 of 4 Regulating screw Blanking screw 3. Testing − Once the bottle filler tap has been installed and tested for leaks − To adjust water flow (if required) 1. Remove the blanking screw. Located as shown. 2.
- Page 4 Version 1,29 January 2021, Page 4 of 4 WARRANTY The warranty set forth herein is given expressly and is the only warranty given by the Galvin Engineering Pty Ltd. With respect to the product, Galvin Engineering Pty Ltd makes no other warranties, express or implied. Galvin Engineering Pty.
